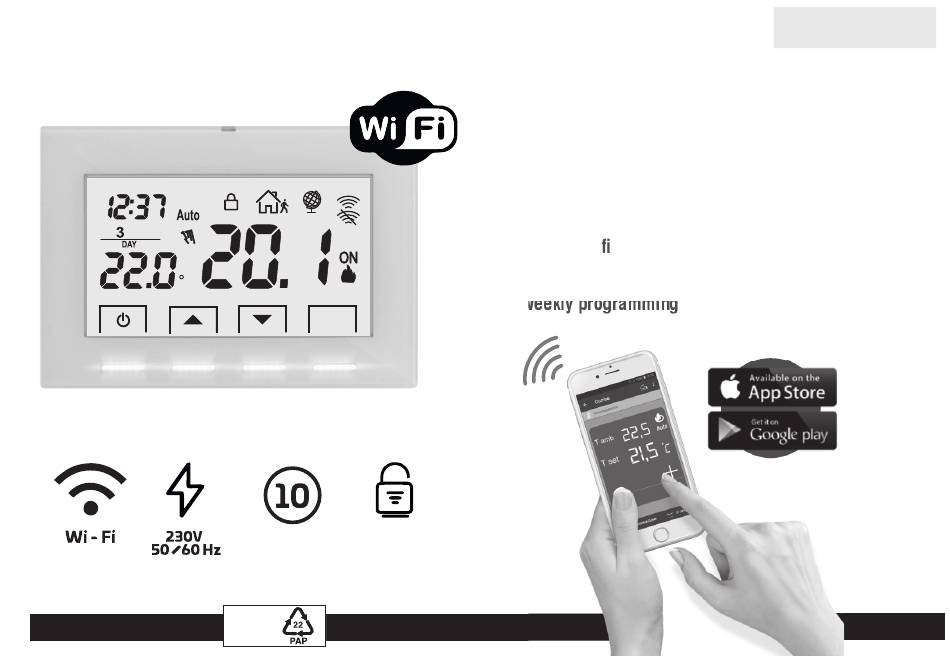

Wi-Fi THERMOSTAT / CHRONOTHERMOSTAT
Wall mounting
Installation manual
• Wireless connection
• Equipped with a back-lit LCD display with
"White-LED" technology
• "All glass" nish for a pleasant and modern design
• Easy to program via APP
C
• Weekly programming
AP
V003
Series:
Programs
Key lock
for day
&
PE - DECRPE029EN 01/24
Advertisement
Table of Contents
Related Manuals for Perry Electric V003 Series
Summary of Contents for Perry Electric V003 Series
- Page 1 ENGLISH Wi-Fi THERMOSTAT / CHRONOTHERMOSTAT Wall mounting Installation manual • Wireless connection • Equipped with a back-lit LCD display with “White-LED” technology • “All glass” nish for a pleasant and modern design • Easy to program via APP • Weekly programming V003 Series: Programs...
-
Page 2: Table Of Contents
The manufacturer declares that the type of radio Manufacturer, Fabricat , Fabrikant , Fabbricante, Fabricante: equipment listed below complies with Directive PERRY ELECTRIC S.r.l. 2014/53/EU (RED). Via MILANESE, 11 - 22070 VENIANO (Como) The full text of the EU Declaration of Conformity is ITALY - www.perry.it available at the Internet address shown on the label: Tel. -
Page 3: Warnings
WARNINGS Important: for the system modes and operation of the W F temperature control system and for i- i The installation and electrical connection of the correct installation, also see the specific programmable thermostat must be implemented only manual of the APP . qualified electrician and in conformity with current... -
Page 4: Keys Function Legend
KEYS FUNCTION LEGEND Thermostat OFF Increase Decrease Access point temperature temperature (creates a temporary Wi-Fi network) Important! DISPLAY AND KEY BACK-LIGHTING Touching any key activates back-lighting, displaying the words selection and navigation press the Note: with fixed backlighting (which can be set from desired key within 6 sec. -
Page 5: Display Legend
DISPLAY LEGEND Away mode Operation from (exclusively settable program entered from APP) Current time with the APP In communication with the Perry Server Key lock Thermostat Days of connected to Wi-Fi network the week Thermostat not connected to Wi-Fi network Cooling mode Set temperature Connected utility on... -
Page 6: Installation
INSTALLATION Radio range warnings During installation, some precautions must be taken in order not to limit or inhibit the range of the radio waves between Wi-Fi Router and thermostat: - install the appliance away from metal furniture or structures which could alter or screen propagation of radio signals; - make sure that there are no electrical or electronic devices (television, microwave oven, etc.) within a range of at least 1 m from the appliance. - Page 7 FASTENING THE WALL BASE INSTALLATION Switch off mains power 230V~ DIMENSIONS Fasten the base of th thermostat with the screws supplied: to the wall, to the rounded or rectangular recessed box via the relative paired holes . A 88,5 128,5 Thermostat installation: independent fixed Wall mounted - onto a recessed rounded box with a...
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS Important: t he installation and electrical connection of the thermostat must be implemented only by qualified electrician and in conformity with current laws and regulations. The manufacturer declines all liability in connection with the use of products subject to special environmental and/or installation standards. - Page 9 ELECTRICAL CONNECTIONS Examples of electrical connections to devices to be controlled BOILER Connection to a boiler 230V~ 230V~ LOAD closes opens Connection to a motorized valve with heavy inductive loads (pumps and solenoid valves), connecting an RC filter parallel to the load is recommendable. After having completed the electrical connections, secure the body of the thermostat to the wall base as instructed in the following paragraph.
-
Page 10: Pag
FASTEN OR REMOVE THE THERMOSTAT TO/FROM THE WALL-MOUNTED BASE After having made the electrical connections: Apply the terminal cover to the base, securing it to hook . E To remove the cover, use a small screwdriver on hook for leverage. Removing the thermostat from the wall base ATTENTION! -
Page 11: System Assembly
Perry APP with a Wi-Fi network connected to an internet network. The device only supports Wi-Fi channels on the 2.4GHz frequency. APP: Perry Thermostat 230V Perry Electric S.r.l. Wi-Fi ROUTER INTERNET (2,4 GHz) Docad the APP for free «Perry Thermostat 230V»... -
Page 12: Pag
ROUTER Wi-Fi THERMOSTAT ASSOCIATION TO The programmable thermostat must be associated with the Wi-Fi network via the relative Perry Thermostat 230V APP. After installing the Perry Thermostat 230V APP on your smartphone, register and log in Enter the serial number of the thermostat Associate is located on the bottom wall of the product it with your... -
Page 13: Thermostat Association To Router
ROUTER Wi-Fi THERMOSTAT ASSOCIATION TO The hermostat is associated with the Wi-Fi network and connected to the Perry server Casa1 Associazione Termostato completata! If no association occurs, repeat the above procedure. Make sure the Wi-Fi network password has been entered correctly and the distance between the thermostat and the router does not exceed the declared limit. -
Page 14: Thermostat Operation Mode
THERMOSTAT OPERATION MODE Auto: the set temperature changes automatically depending on the program set via APP (the set default temperature for all days of the week is 18°C). Temporary override : this is a temporary mode activated when the temperature is modified directly by the user; the change remains valid until the next programmed change. -
Page 15: Operations Carried Out Directly By Thermostat
OPERATIONS CARRIED OUT DIRECTLY BY THERMOSTAT KEY LOCK To lock the keyboard, simultaneously press the keys : the lock symbol will appear on the display (padlock). To unlock the keyboard, simultaneously press the keys : the lock symbol will disappear from the display (padlock). Operation that can also be carried out from the APP RESET Reset... -
Page 16: Pag
TECHNICAL SPECIFICATIONS ·Power supply 230V~ 50 60 Hz ·Backlit LCD and keys with «White-LED» technology ·Type of action, disconnection and appliance: 1B Electronic. ·Type of output: relay with contact in COM / NO / NC exchange, potential free - max 5(3)A/250V~ ·Cross-section of the wires to the terminals: 0,5 mm ÷...
