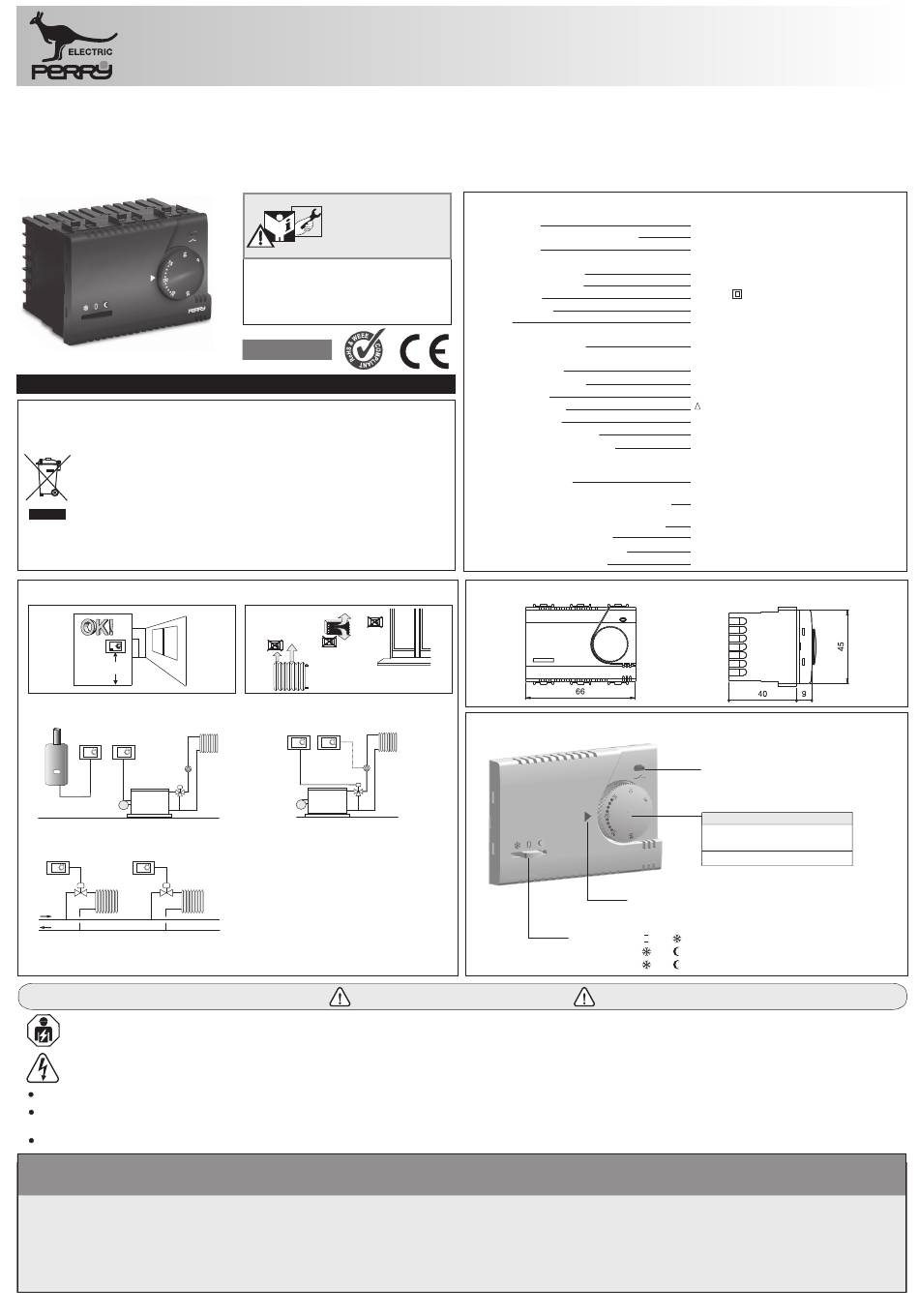

Perry Electric Recess Series Manual

PERRY ELECTRIC Srl
Via Milanese, 11
22070 VENIANO (CO)
ITALY
Models with differential ON/OFF intervention and luminous charge inserted signal
1TITE302/MC - Electronic thermostat with On-Off-Antifreeze control and input for night reduction
1TITE304/MC - Electronic thermostat for night reduction control on board

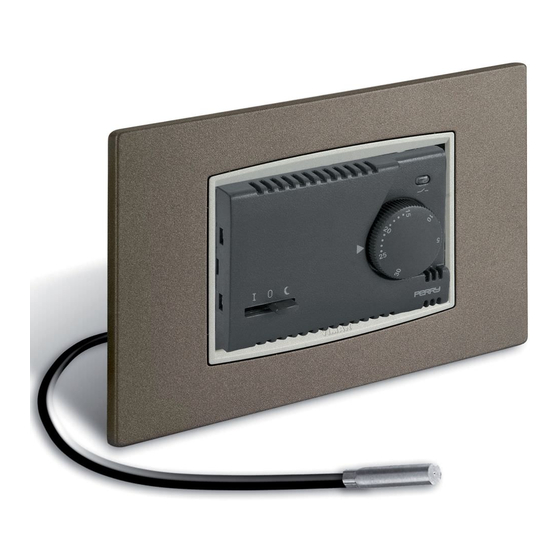

1TITE305/MC - Electronic thermostat with remote thermostat for floor heating;
night reduction control on board
PE - DETIPE013 02/18
PE - DETIPE014EN 02/20
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT
This symbol on the product or its packaging to indicates that this product shall not be
treated as household waste.
Instead, it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment, such as for example:
- sales points, in case you buy a new and similar product
- local collection points (waste collection centre, local recycling center, etc...).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequence for the environment and human health, which could otherwise be caused by
inappropriate waste handing of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your house
hold waste disposal service or the shop where you purchased the product.
INSTALLATION EXAMPLES
h 1,5 m
Install the thermostat at a height of 1,5 m ÷ 1,7 m from the floor, far from heat sources, air vents,
doors or windows and anything else that could affect its operation.
A B
D D
N.B.: the examples contained in this documentation are in principle.
Important: the installation and electrical connection of the devices and appliances must be implemented by person with electrotechnical expertise only and in conformity with current laws and
regulations. he manufacturer declines any liability for the use of products subject to special environmental and/or installation standards. T
Attention: before starting any operations on the device, disconnect the 230V~ mains power supply
This appliance must be intended only for the use for which it was built. Any other use must be considered improper and dangerous.
The thermostat is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or by those with a lack of experience and knowledge of the instructions,
unless they are supervised or have received the necessary instructions concerning use of the device by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the device.
COMPATIBILITY TO THE MOST COMMON RESIDENTIAL SERIES PLATES
IMPORTANT: for the assembly procedure of the thermostat with the chosen
residential plate, follow instructions contained in the specific compatibility
sheet contained in the package.
RECESS SERIES ELECTRONIC
THERMOSTATS MODULE - H 45 mm
www.perry.it
Ins allation t
a n d u s e r
in tructions s
Read this manual carefully before using the
product as it provides important guidelines
regarding safety, installation and use.
The manual must be preserved with care for
future reference.
English
C C
Examples of installation in heating systems
with a thermostat that controls:
A) Wall mounted boiler
B) Burner
C) Circulation pump or Motorized solenoid valve
D) Area solenoid valve
SAFETY PRECAUTIONS
TECHNICAL DATA
Supply voltage:
Type of action, disconnect and device:
Type of output :
Output connection (load):
Wire section at terminals:
Insulation type:
Protection degree:
Pollution:
Temperature adjustment range
(excluding 1TITE305/MC ):
Temperature adjustment range
(only 1TITE305/MC ):
ERP Energy classification:
Thermal gradient:
Differential operation:
Precision of reading
Operating temperature limits:
Reference standard for CE mark:
(according to model)
PERFORMANCE DATA
Night reduction control
Night reduction temperature (referred to the set):
Antifreeze temperature (only 1TITE302/MC):
Temperature set lock (all models):
External probe (only 1TITE305/MC):
Luminous signals (all models):
DIMENSIONS
SIGNALS AND CONTROLS
Reference index for temperature setting
Selector for controlling work mode, according to model:
I
1TITE302/MC -
1TITE304/MC -
1TITE305/MC -
230 V~ 50 ÷ 60 Hz
1 / B / Electronic
relay with changeover contact NO / COM / NC
voltage free - 8(2)A / 250 V~
2 or 3 conductors
2
2
min. 0,75 mm - max. 2,5 mm
Class II
IP 30
normal
from + 5 °C to + 30 °C ( limitable
( limitable
from 0 °C to + 60 °C
ErP: Class I; 1% Reg. EU 811/2013
max 1K/15 min.
T = 0,7 °C
± 1 °C
0 °C ÷ + 50 °C
LVD EN60730-2-9 EMC EN60730-2-9
on board (1TITE 304/MC and 1TITE
remote control ( 1TITE 302/MC)
- 4°C (all models excluding 1TITE305/MC)
- 9 °C ( 1TITE 305/MC)
+5 °C fix
mechanical with "range disc" (supplied)
probe with 4 m of cable (supplied)
LED showing charge inserted/disengaged
(according to model)
Load status signal LED:
alight = load inserted
Knob with temperature scale:
5 °C ÷ 30 °C 1TI TE30 /MC 2
1TITE304/MC
"
0 °C ÷ 60 °C 1TI TE305/MC
- 0 - (Alight - OFF - Antifreeze)
- 0 - (Winter - OFF - Nighttime economy)
- 0 -
(Winter - OFF - Nighttime economy)
)
)
305/MC)
