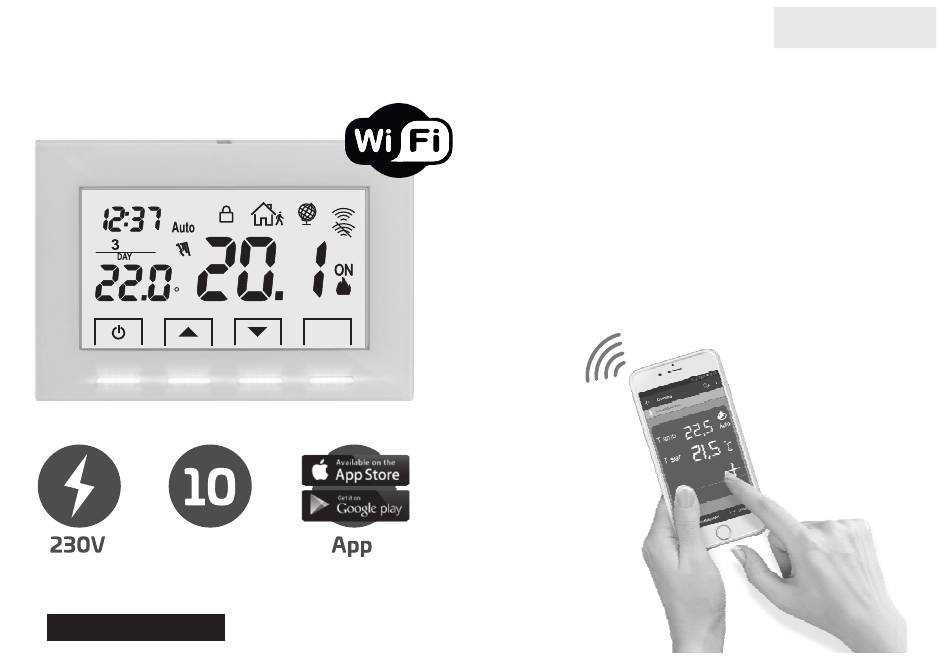

Wi-Fi THERMOSTAT
Wall mounting
Installation and use manual
• Wireless connection
• Equipped with a back-lit LCD display with
"White-LED" technology
• "All glass" finish for a pleasant and modern design
• Easy to program via APP
C
• Weekly programming
AP
Programs
for day
PE - DECRPE024EN 01/20
