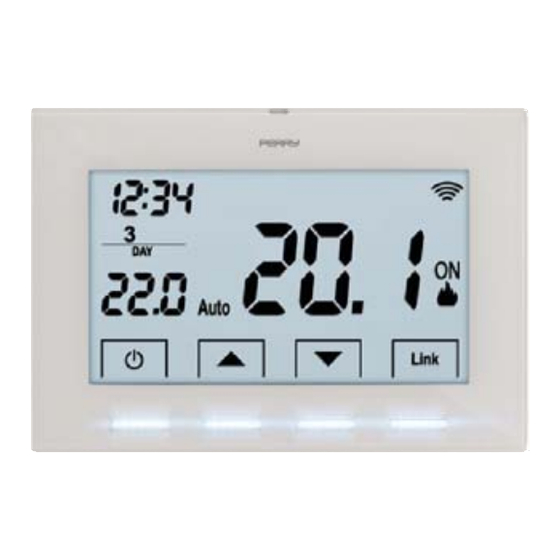

Wi-Fi PROGRAMMABLE THERMOSTAT
ENGLISH
Installation and use manual
• Wireless connection to the Smartbox
• Equipped with a back-lit LCD display with
"White-LED" technology
• Easy to program via APP
• Weekly programming
• Battery powered (not included)
• "All glass" finish for a pleasant and modern design
PE - DERXPE005 EN 01/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Perry Electric 1TX CR028WIFI
Summary of Contents for Perry Electric 1TX CR028WIFI

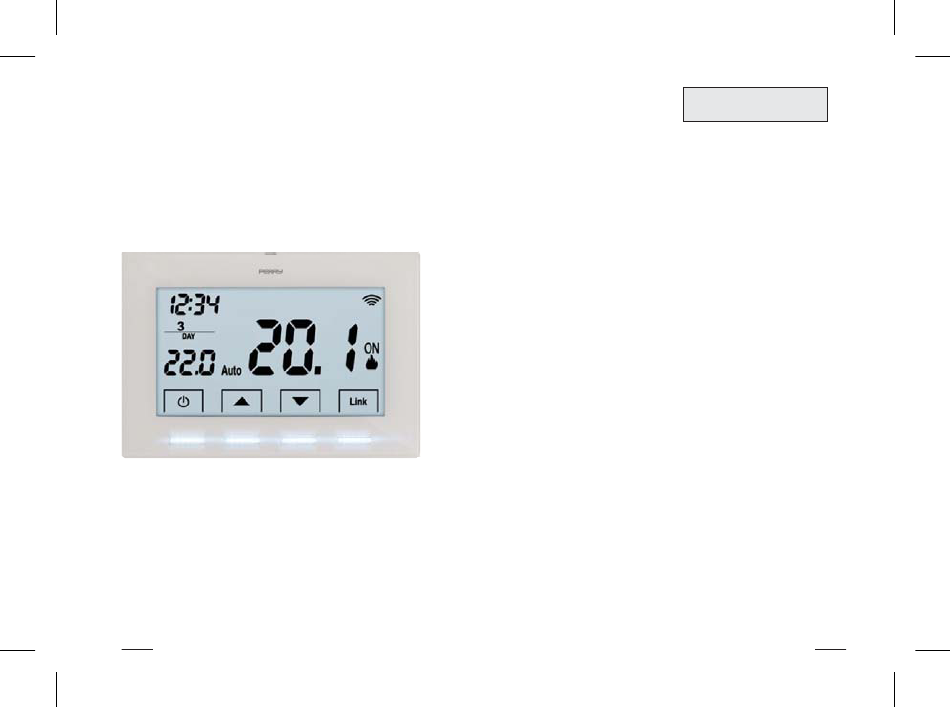

- Page 1 Wi-Fi PROGRAMMABLE THERMOSTAT ENGLISH Installation and use manual • Wireless connection to the Smartbox • Equipped with a back-lit LCD display with "White-LED” technology • Easy to program via APP • Weekly programming • Battery powered (not included) • “All glass” finish for a pleasant and modern design PE - DERXPE005 EN 01/18...
-
Page 2: Table Of Contents
CONTENTS WARNINGS ............................pag. 3 KEYS ............................. pag. 4 pag. 5 DISPLAY ..........................INSTALLATION ............................ pag. 6 ELECTRICAL CONNECTIONS ....................... pag. 8 SECURING OR REMOVING THE PROGRAMMABLE THERMOSTAT FROM THE WALL BASE ..pag. 9 pag. 10 BATTERIES FLAT OR ALMOST FLAT WARNING .............. -
Page 3: Warnings
Important: for the system modes and WARNINGS operation of the WIFI temperature control The installation and electrical connection of the system and for correct installation, also see devices and appliances must be implemented by the specific manual of the smartbox and of the qualified personnel and in conformity with current laws APP . -
Page 4: Keys
KEYS LEGENDA DISPLAY To activate the keyboard is necessary press any key (Keys and display backlight) Programmable Increase Decrease Link thermostat temperature temperature (connection) -
Page 5: Display
DISPLAY Current Away time used mode used used lock Programmable thermostat coupled and communicating Days of Programmable thermostat the week coupled but not communicating Battery at Cooling mode Connected utility on (e.g. Boiler) temperature Heating mode Operation Detected room temperature from entered program Override operation... -
Page 6: Installation
INSTALLATION Radio range warnings During installation, some precautions must be taken in order not to limit or, in some cases, inhibit the range of the radio waves between Smartbox and Programmable thermostat, in particular: - install the appliance away from metal furniture or structures which could alter or screen propagation of radio signals; - make sure that there are no electrical or electronic devices (television, microwave oven, etc.) within a range of at least 1 m from the appliance. - Page 7 INSTALLATION FASTENING THE WALL BASE Switch off mains power 230V~ to device DIMENSIONS Fasten the base of the programmable thermostat with the screws supplied: to the wall, to the rounded or rectangular recessed box via the relative paired holes A. Programmable thermostat installation: independent fixed Wall mounted - onto a recessed rounded box or with a rectangular 3 module box.
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS Important: the installation and electrical connection of the devices and appliances must be implemented by qualified personnel and in conformity with current laws and regulations. The manufacturer declines all liability in connection with the use of products subject to special environmental and/or installation standards. Relay terminals connect the device to be controlled to the terminals: Disconnect the 230V~ mains voltage... -
Page 9: Securing Or Removing The Programmable Thermostat From The Wall Base
FASTEN OR REMOVE THE PROGRAMMABLE THERMOSTAT TO/FROM THE WALL-MOUNTED BASE After having made the electrical connections: Apply the terminal cover to the base, securing it to hook . E To remove the cover, use a small screwdriver 2° on hook for leverage. 1°... -
Page 10: Batteries Flat Or Almost Flat Warning
SIGNALLING BATTERIES LOW OR DOWN When the symbol blinks, this indicates that the batteries are running out and as from this moment there are 15 days to replace them. Note: the backlight of the display is automatically deactivated. If the discharged batteries are not replaced within this time the display will completely turn off. -
Page 11: Programmable Thermostat Association To Smartbox
PROGRAMMABLE THERMOSTAT ASSOCIATION TO SMARTBOX The programmable thermostat must be coupled to the Smartbox with the specific PERRY PROGRAMMABLE THERMOSTAT APP. Instead of association via APP, you may associate the programmable thermostat by pressing the association key on the Smartbox for 3 seconds and the two external buttons ( ) on the programmable thermostat for 3 seconds. -
Page 12: The Programmable Thermostat Can Operate In 3 Different Modes
THE PROGRAMMABLE THERMOSTAT CAN OPERATE IN 3 DIFFERENT MODES: Auto: the set temperature changes automatically depending on the program set via APP. Override : this is a temporary mode activated when the temperature is modified directly by the user; the change remains valid until the next programmed change. -
Page 13: Operations Carried Out Directly By Programmable Thermostat
OPERATIONS CARRIED OUT DIRECTLY BY PROGRAMMABLE THERMOSTAT Key lock To lock the keyboard, simultaneously press the keys for 3 seconds, and the lock symbol will appear on the display. To unlock the keyboard, simultaneously press the keys for 3 seconds, and the lock symbol will disappear from the display. -
Page 14: Programmable Thermostat Technical Specifications
PROGRAMMABLE THERMOSTAT TECHNICAL SPECIFICATIONS · Power supply by 2x 1.5V alkaline type AA batteries , over 2 year duration · LCD backlit · 4 keys, with lock option ·Type of action, disconnection and appliance: 1 / BU / Electronic. ·Type of output: relay with contact in COM / NO / NC exchange, potential free - max 5(3)A/250V~ ·Cross-section of the wires to the terminals: 1.5 mm²... -
Page 16: Simplified Eu Declaration Of Conformity
(Frequently Asked Questions and Inconsistent Resolutions) Manufacturer, Fabricat , Fabrikant , Fabbricante, Fabricante: consult the FAQ on page: PERRY ELECTRIC S.r.l. http://perry.it/it/prodotto/1tx-cr028wifi.aspx Via Milanese, 11 22070 VENIANO (Como) - ITALY or else access it using the QR code: Tel. +39 031.8944.1 Fax +39 031.931848 www.perry.it...
