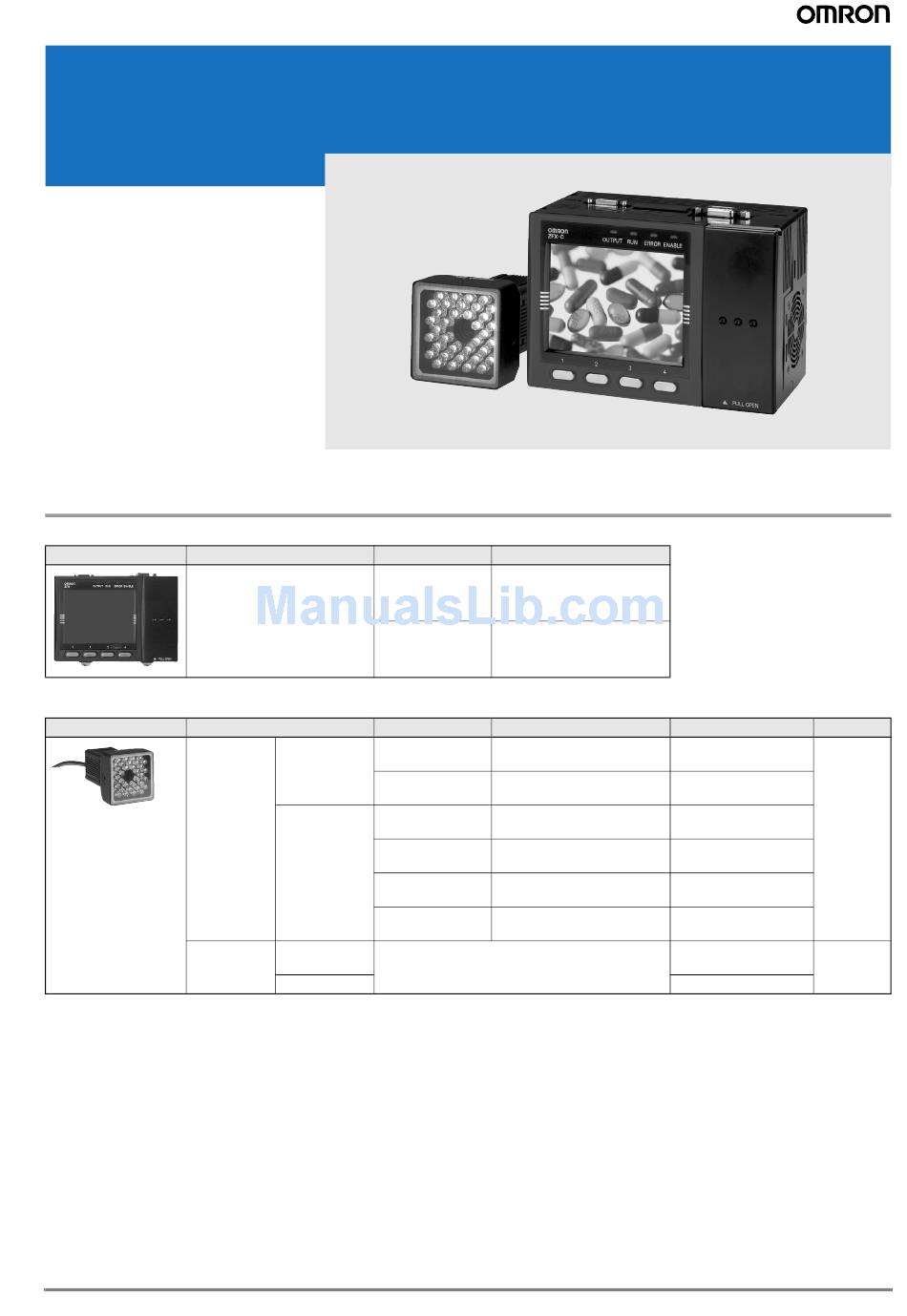

ZFX
Easy Vision – Touch,
Connect & Go
• Easy vision – intuitive teach & go
user interfaces
• Live – built-in LCD touch monitors
for setup and immediate feedback
• Communication – centralized setup &
inspection via Ethernet
• Versatile – app. 20 tools, 32
inspections per image
• Simplicity – auto-adjustment functions
for easy image setup
Ordering Information
Controllers
Appearance
DC21.6 to 26.4V
Cameras
Appearance
Camera with
lighting
(ZFX-SC50)
Camera only
ZFX
Power supply
Circuit type
NPN
PNP
Type
Setting distance
Monochrome
34mm to 49mm
type
38mm to 194mm
Color type
34mm to 49mm
34mm to 187mm
67mm to 142mm
115mm to 227mm 90mm x 89mm to
Monochrome
The CCTV lens is selected according to the range
type
of detection and the installation distance.
Color type
Model
ZFX-C10
ZFX-C15
Sensing area
5mm x 4.9mm to
9mm x 8.9mm (variable)
10mm x 9.8mm to
50mm x 49mm (variable)
5mm x 4.9mm to
9mm x 8.9mm (variable)
10mm x 9.8mm to
50mm x 49mm (variable)
50mm x 49mm to
90mm x 89mm (variable)
150mm x 148mm (variable)
Model
Remarks
ZFX-SR10
Cable
length: 2m
ZFX-SR50
ZFX-SC10
ZFX-SC50
ZFX-SC50W(IP67)
ZFX-SC90
ZFX-SC90W(IP67)
ZFX-SC150
ZFX-SC150W(IP67)
ZFX-S
–
ZFX-SC
1
Advertisement
Table of Contents
Related Manuals for Omron ZFX
Summary of Contents for Omron ZFX
-
Page 1: Ordering Information
90mm x 89mm (variable) ZFX-SC90W(IP67) 115mm to 227mm 90mm x 89mm to ZFX-SC150 150mm x 148mm (variable) ZFX-SC150W(IP67) Camera only Monochrome The CCTV lens is selected according to the range ZFX-S – type of detection and the installation distance. Color type ZFX-SC... -
Page 2: Specifications
3Z4S-LT exceed 19 m. MLEK-C100E1TSX It is possible to ZFX-SC50 and ZFX-SC90 use it. It is possible to ZFX-S and ZFX-SC use it. It uses it so that the controller may control an external lighting. Specifications Controller Item... - Page 3 Operating and storage: 35% to 85% (with no condensation) Ambient atmosphere No corrosive gases allowed Degree of protection IP20 (IEC60529) Vibration resistance Vibration frequency: 10 to 150 Hz Single-amplitude: 0.35 mm Acceleration: (durability) 50 m/s 10 times for 8 minutes Shock resistance 150 m/s...
- Page 4 1000 VAC 50 Hz/60 Hz 1 min 500VAC 50 Hz/60Hz strength 1 min Vibration 10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions resistance (durability) Shock 150 m/s 3 times each in 6 directions (up/down, left/right, forward/backward)
-
Page 5: Cctv Lenses
Optical Graph If using the ZFX-S/SC Camera (Camera only), refer to the optical graph below and select the lens and Extension Tubes. The lens to be selected will depend on the size of the measurement object and the camera distance. -
Page 6: External Dimensions
(Unit: mm) Controllers ZFX-C10/C15 (130) (130) Optional Lighting ZFV-LTL01 ZFV-LTL04 ± ± Four, M4 Mounting Hole Dimensions Two sets of three, M3 (through-hole) Depth: 5 165.4 P5.8 × 9 = 52.2 37.4 90° 59.9 ± ± Mounting Hole Dimensions 10.7 165.4... - Page 7 6.2 mm dia. standard length 2 m Heat-resistant PVC shielded cable (6.36) 5.8 mm dia. standard length 2 m Focus adjustment control Mounting brackets can be mounted on each side. Mounting brackets can be mounted on each side. 33.6 17.9 ZFX-SC10 ZFX-SC150/150W 110.2...
- Page 8 Cat. No. E381-E2-01-X In the interest of product improvement, specifications are subject to change without notice. OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands Phone: +31 23 568 13 00 Fax: +31 23 568 13 88 www.omron-industrial.com Vision Systems...
