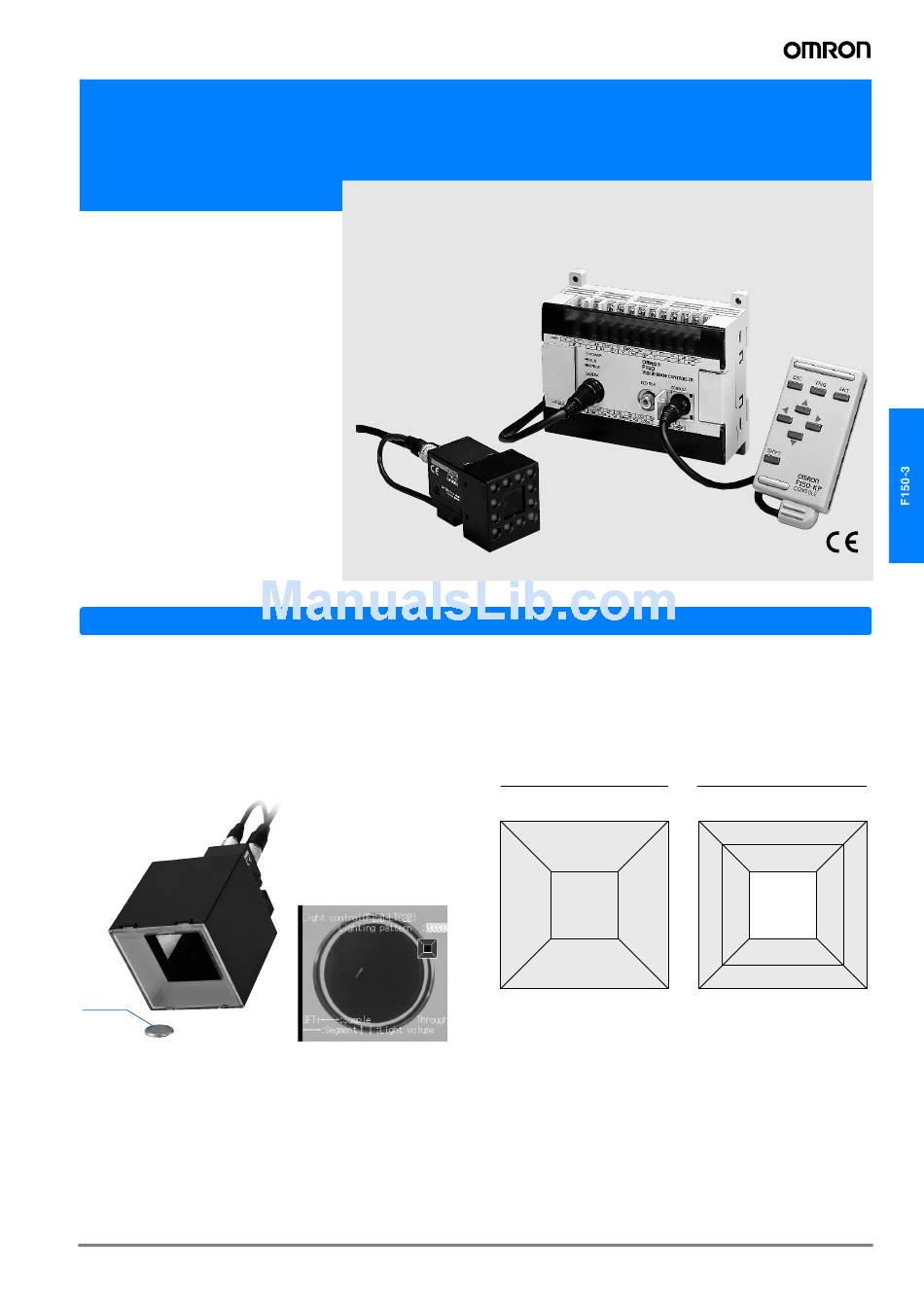

Vision Sensor
F150-3
Intelligent lighting
Various types of lighting control make it possible to obtain a
clear, stable image suitable for the inspection. The dome
shape minimizes the effects of external light and permits dam-
age inspection. Red and green light is mixed to allow inspec-
tion of a wide range of work.
Detection of a
defect
F150-3
Perform settings in a conversational man-
ner. The dialog menu artist "talks" to you.
Features
Inspection of button battery defect
Variety of lighting methods
The direction of lighting and the brightness can be changed.
Coaxial lighting is also possible with the F150-SLC20. The op-
timum lighting method for the work can be selected.
F150-SLC20
(Field of view: 20 mm)
Light intensity can be set separately to
one of 8 levels for 5 illuminated areas.
2
3
1
5
Coaxi a l verti c al l i g hti n g
4
Control lighting from the menu
• The illumination area and light intensity are controlled from
the controller menu. Settings can be easily changed without
handling the lighting.
• The lighting is also treated as scene data, and thus can be
changed along with other conditions when the model is
changed.
• The controller manages the lighting setting as a digital val-
ue. This increases the reproducibility of the setting.
F150-SLC50
(Field of view: 50 mm)
Light intensity can be set separately to
one of 8 levels for 8 illuminated areas.
5
1
6
2
4
8
3
7
C-11
