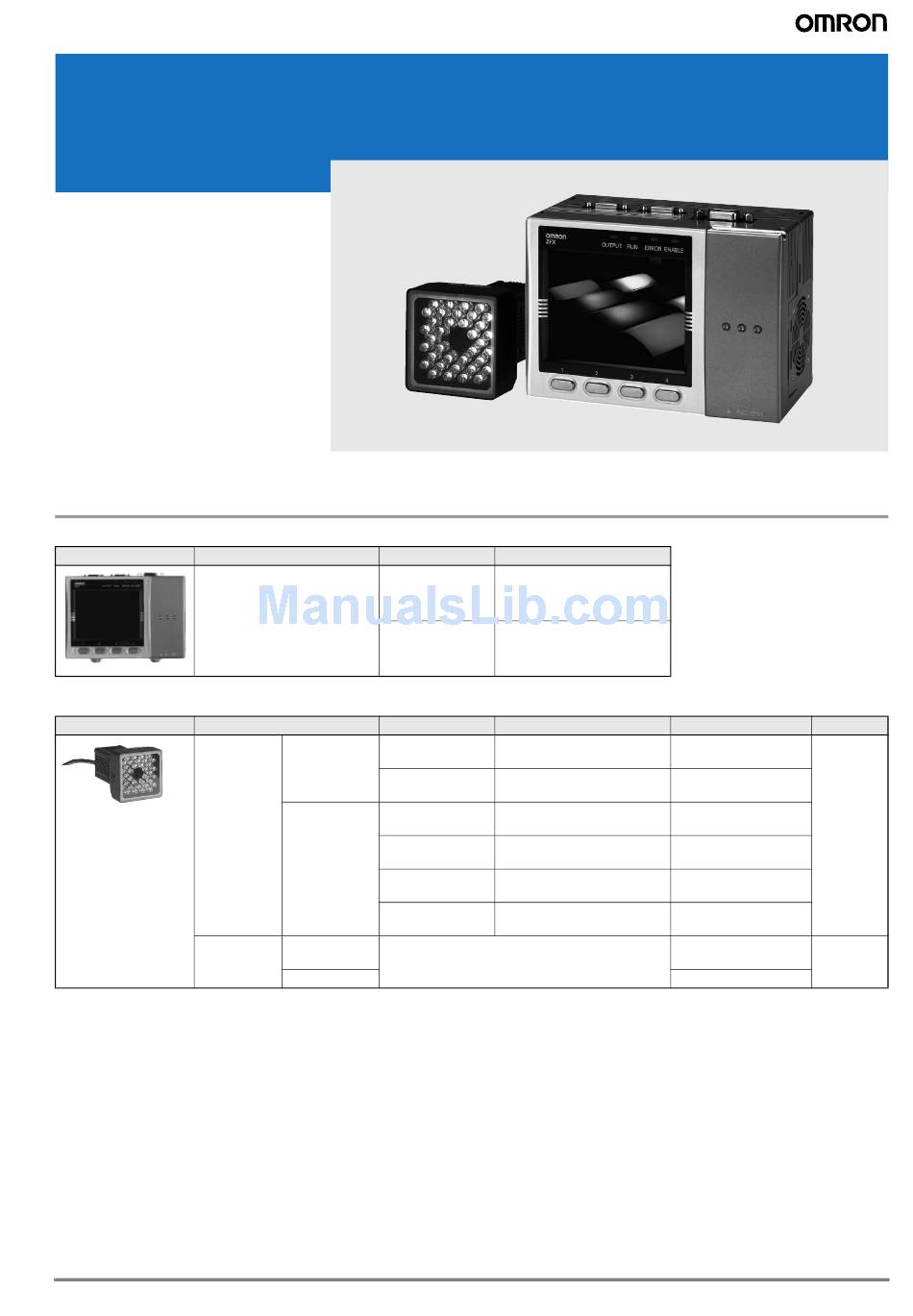

3Z4S-LT exceed 19 m. MLEK-C100E1TSX It is possible to ZFX-SC50 and ZFX-SC90 use it. It is possible to ZFX-S and ZFX-SC use it. It uses it so that the controller may control an external lighting. Specifications Controller Item...
Page 3
IP20 (IEC60529) Vibration resistance Vibration frequency: 10 to 150 Hz Single-amplitude: 0.35 mm Acceleration: (durability) 50 m/s 10 times for 8 minutes in X, Y, and Z directions Shock resistance 150 m/s 3 times each in 6 directions (destructive) (up/down, left/right, forward/backward)
Page 4
ZFX-SC___W: IP67 (IEC60529) Dielectric 1000 VAC 50 Hz/60 Hz 1 min strength Vibration 10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions resistance (durability) Shock 150 m/s 3 times each in 6 directions (up/down, left/right, forward/backward)
Optical Graph If using the ZFX-S/SC Camera (Camera only), refer to the optical graph below and select the lens and Extension Tubes. The lens to be selected will depend on the size of the measurement object and the camera distance.
Page 7
6.2 mm dia. standard length 2 m Heat-resistant PVC shielded cable (6.36) 5.8 mm dia. standard length 2 m Focus adjustment control Mounting brackets can be mounted on each side. Mounting brackets can be mounted on each side. 33.6 17.9 ZFX-SC10 ZFX-SC150/150W 110.2...
Page 8
Cat. No. Q27E-EN-01 In the interest of product improvement, specifications are subject to change without notice. OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands Phone: +31 23 568 13 00 Fax: +31 23 568 13 88 www.omron-industrial.com Vision Systems...
