Summary of Contents for Omron XPECTIA VISION SYSTEM

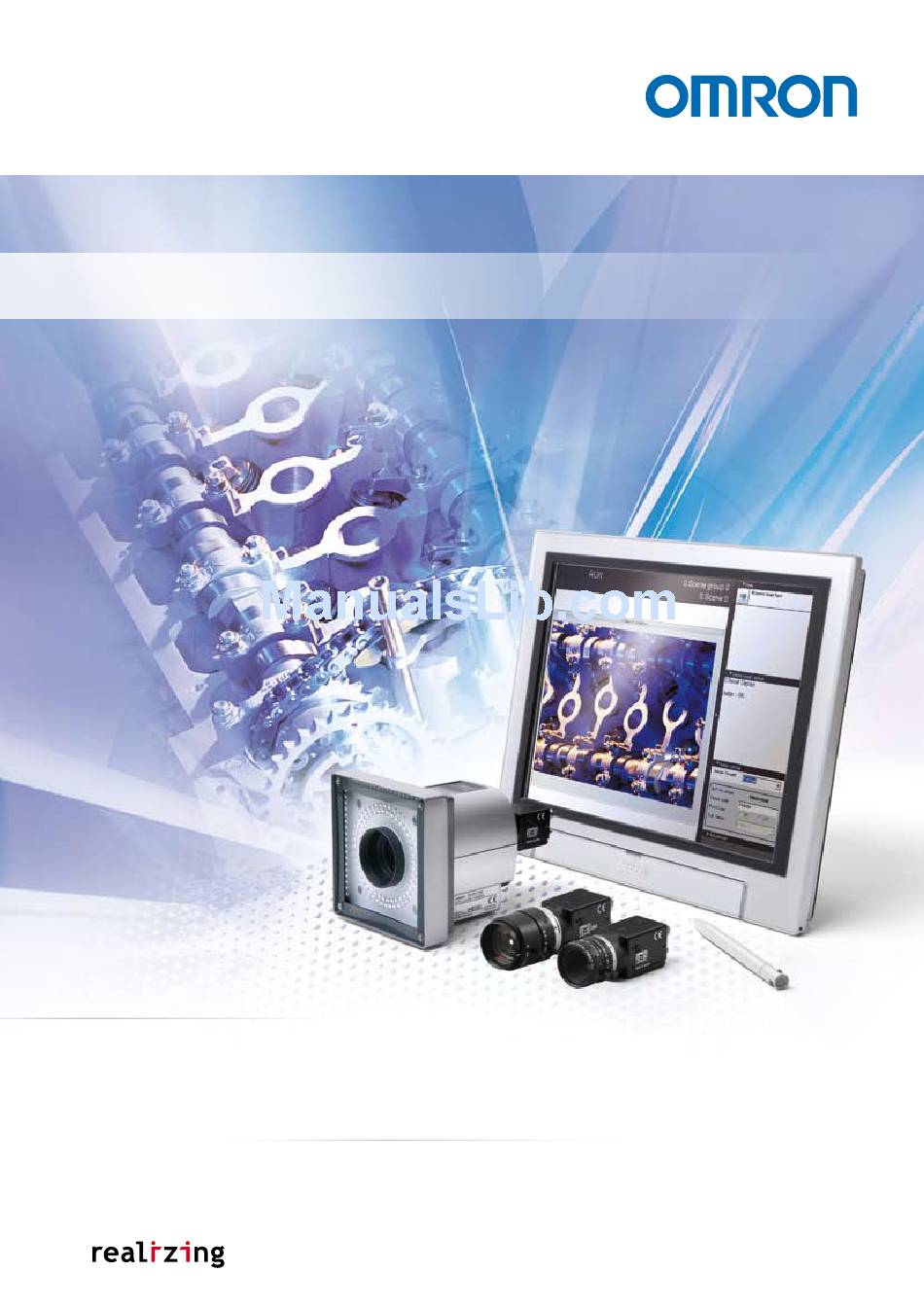

- Page 1 Xpectia ViSiON SYSteM I n s p e c t i o n b e y o n d e x p e c t a t i o n F l e x i b l e p l a t f o r m c o n c e p t »...
- Page 2 True colour system: 16 million colours • High resolution cameras: 5 million pixels • 2D and 3D inspections • Omron‘s Xpectia is defining a new class of vision Touch-screen for easy operation • systems: real colour sensing, high resolution, Industrial-PC platform •...
- Page 4 The powerful functions of Xpectia make all vision applications simple and straightforward: from now on, there is only one class of visual inspection. Because with Xpectia, the complexity of is hidden from the user. No colour filtering: objects can be inspected whatever the •...
- Page 5 Xpectia processes all 256 gradations of RGB colours, enabling Standard system: 256 colours Xpectia: 16.77 million colours it to sense more than 16 million colours and detect minute variations in the colour of objects. Without filtering or colour Light Dark pick-up Xpectia sees like a human eye.As a result, completely...
-
Page 6: High Resolution
High resolution To ensure the quality of a workpiece, multiple details usually have to be inspected, requiring the detection of: small and large characteristics at the same time • small defects on large objects • Meeting these requirements with the same set-up is beyond standard-resolution cameras –... -
Page 7: Quality Inspection
3D is easy to install and calibrate on Xpectia. At the same time 2D and 3D inspections can be performed. Hole positions and diameters... -
Page 8: System Configuration
Four-camera controllers PNP/NPN FZ3-305-10/FZ3-300-10 Box-type Controller Two-camera controllers PNP/NPN FZ3-355/FZ3-350 Four-camera controllers PNP/NPN FZ3-355-10/FZ3-350-10 Intelligent Wide field of vision Color FZ-SLC100 Camera + Zoom, Autofocus Lens + Intel- cameras ligent Lighting Narrow field of vision Color FZ-SLC15 Autofocus Wide field of vision Color... -
Page 9: Camera Connection
*4. The 15-m cable cannot be used for the intelligent camera, autofocus camera and 5 million-pixel camera. *5. The maximum cable length depends on the Camera being connected, and the model and length of the Cable being used.For further information, please refer to the "Ratings and Specifications"... -
Page 10: Ratings And Specifications
*4. The operating mode can be switched from the Controller Menu settings. Note: Do not install the firmware for FZ2 in any High Grade High Speed or High Grade controller of the FZ3 series. It will lead to the failure of the controller. For software download, please contact your Omron representative. - Page 11 *1. The length of the visual field is the lengths along the Y axis. *2. Tolerance: ±5% max. *3. Applicable standards: IEC 60825-1: 1993 + A1: 1997 + A2-2001, EN 60825-1: 1994 + A1: 2002 + A2: 2001 Digital cameras...
- Page 12 OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands. Tel: +31 (0) 23 568 13 00 Fax: +31 (0) 23 568 13 88 www.industrial.omron.eu OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands. Tel: +31 (0) 23 568 13 00 Fax: +31 (0) 23 568 13 88 www.industrial.omron.eu...
