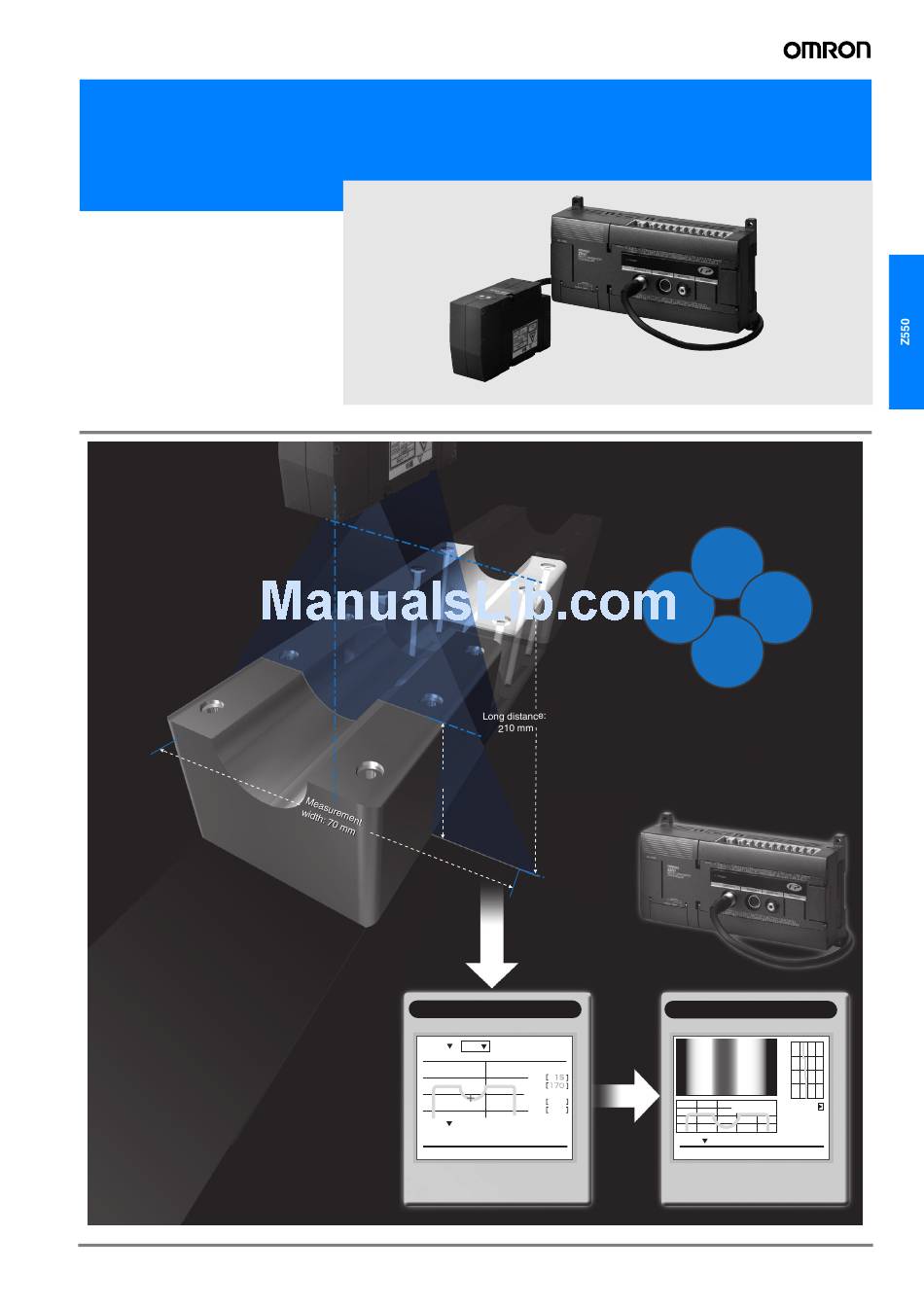

Multi-Dimensional Sensor
Z550
• Inline profile inspections for workpiec-
es made of metal, plastic, or other ma-
terials all at one time
Features
High-precision Measurements Over a Wide Area
High-precision Measurements Over a Wide Area
Height of measurement range: 60 mm, width of measurement range:
70 mm
Cross-sectional Measurements without
Cross-sectional Measurements without
Moving the Sensor or Target Object
Moving the Sensor or Target Object
OMRON's unique 2-dimensional SW-CCD element and light
sensitivity control ensure consistent measurements even on
workpieces with curves and other surface shapes.
Complete Measurement Menus
Complete Measurement Menus
Menu selections include items for measuring heights, 2- or 3-pt
steps, edge positions, widths, edge centers, peaks/bottoms, cross-
sectional areas, inclinations, average roughness, and maximum
roughness. There are also menu items for user-defined continuous
measurements (unrestricted calculations), trigger measurements,
and logging measurements.
Z550
Measurement
Measurement
height: 60 mm
height: 60 mm
Image Monitor
This window is a conceptualization and not an actual window.
Run
Scn 0
99.60ms
NEAR
Sen0
LV
PEAK
Sen1
LV
PEAK
FAR
OUT 0
Zero's OFF
+005.188000
mm
PASS
S+←/→: Display S+ENT: Adjust
Workpiece shape and measurement
results can be checked at a glance.
Turn
Height
Cross-
Width
sectional area
Inclination
into precise numeric
evaluation criteria!
Profile Monitor
This window is a conceptualization and not an actual window.
1div
T: 0.996 [s]
V: 0.1250[mm]
Thru
Sen 0
+005.188000
mm
S+←/→: Display S+ENT: Adjust
Profiles that change sequentially as
the workpiece moves can be checked
through images with 3-D shading.
99.60ms
PASS
B-57

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omron Z550

  • Page 1 Measurement height: 60 mm height: 60 mm High-precision Measurements Over a Wide Area High-precision Measurements Over a Wide Area Height of measurement range: 60 mm, width of measurement range: 70 mm Cross-sectional Measurements without Image Monitor Profile Monitor Cross-sectional Measurements without...
  • Page 2 1,500 Vp-p; Pulse width: 0.1 ms/1 ms; Rising edge: 1-ns pulse Vibration resistance 10 to 150 Hz (at a double amplitude of 0.1 mm) for 8 minutes each in the X, Y, and Z directions Shock resistance 200 m/s²; 3 times each in 6 directions Ambient temperature 0 to +50 °C at operation, -15 to +60 °C at storage (no icing or condensation)
  • Page 3 For 60-mm measurement range mode Defined as 1/e² (13.5%) of the central light intensity. Leakage of light is also present in areas other than those defined. Thus, there are some influences in cases where the reflection factor of the area surrounding the workpiece is higher than that of the workpiece itself.
  • Page 4 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. Z192-E2-01-X In the interest of product improvement, specifications are subject to change without notice. B-60 Displacement sensors / Width-measuring Sensors...
