Summary of Contents for Omron ZFV - DATASHEET 1

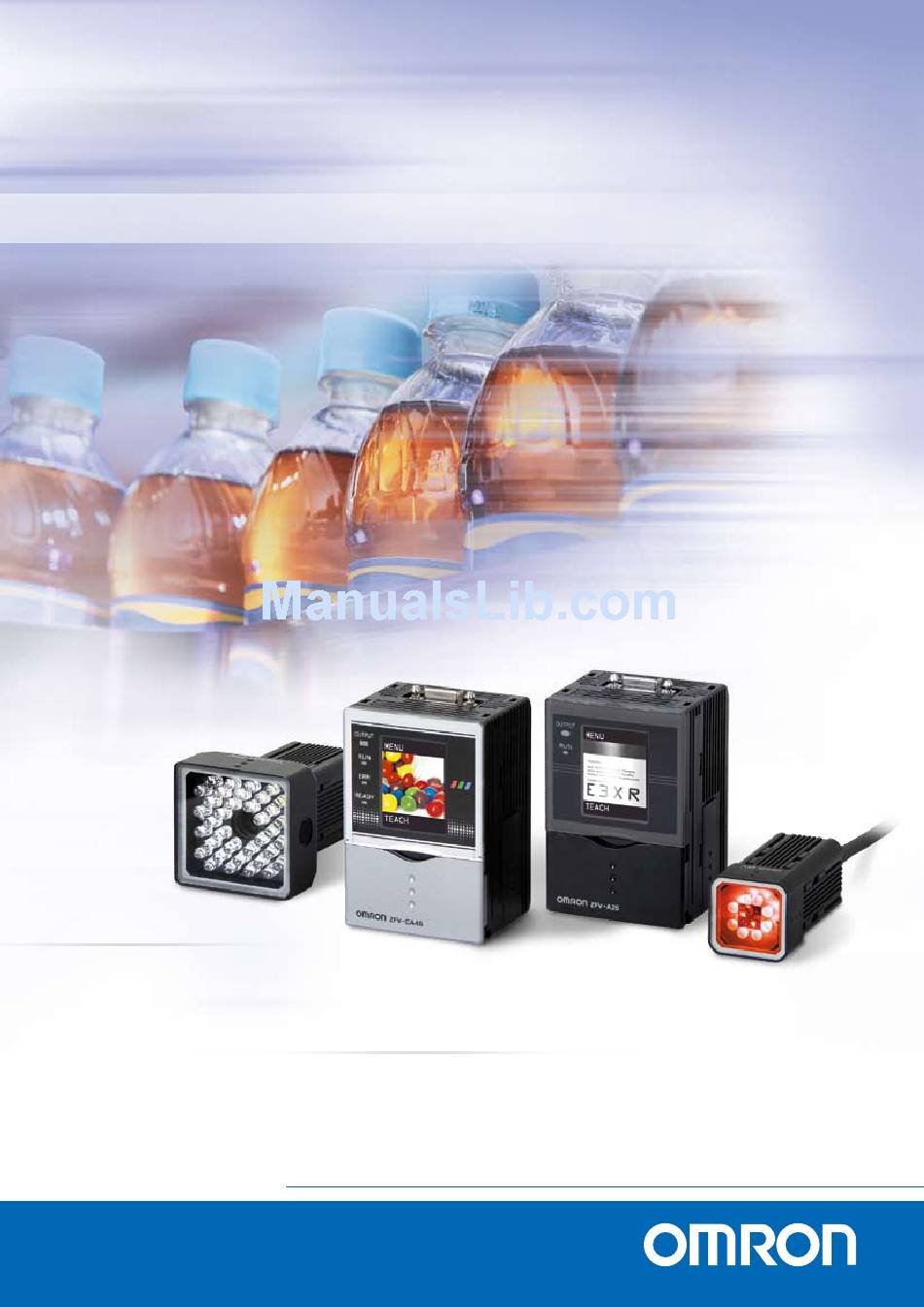

- Page 1 E a s y v i s i o n – Te a c h & G o » S c a l a b l e a n d f l e x i b l e E a sy c o l o u r v i s i o n »...
- Page 2 What makes this sensor so Using this instead of the conventional monochrome sensor special is how easy it is to use; with its ‘Teach & Go’ widens the choice of applications and increases the stability of measurement of the inspection.
-
Page 3: Intuitive User Interface
There’s no need to connect an external PC for set-up, maintenance or operation viewing; the ZFV supplies real-time images all the time. The ZFV provides instant feedback - on board - exactly when you need it. - Page 4 Multiple functions: “One Sensor Fits All” concept Depending on the controller version, the ZFV contains up to 8 different tools; one can be selected at a time. These sophisticated tools offer an affordable sensor with a very intuitive user interface. Both the monochrome and colour version offer basically the same inspection functionality while the ZFV Colour uses the additional colour information included in the image.
- Page 5 The monochrome version of the ZFV will be a perfect solution Through its automatic colour filter function, the ZFV Colour for all your easy vision tasks - as long as the object colours still is able to see and inspect multi-coloured objects invisible for provide enough image contrast.
- Page 6 Scale it to your needs You can set-up one inspection per controller – but the ZFV is scalable, so you can simply add controllers as required by connecting them to a common communication bus to expand the functionality of your sensor. Up to five controllers can be connected together through a simple snap-on system to perform multiple inspections on your work-piece.
- Page 7 The sensor keeps all settings for up to 8 configurations in an The ZFV Colour also features USB and RS-232C interfaces for internal memory. If that is not enough or if you want to log or connection to a personal computer, enabling the easy transfer communicate results and settings, simply connect the optional of data and results.
-
Page 8: Ordering Information
Setting distance Sensing area Model Narrow View 34 to 49 mm (variable) 5 x 4.6 mm to 9 x 8.3 mm (variable) ZFV-SR10 Wide View 38 to 194 mm (variable) 10 x 9.2 mm to 50 x 46 mm (variable) -
Page 9: Sensor Heads
Current consumption Approx. 200 mA Vibration resistance (destruction) 10 to 150 Hz, 0.35-mm single amplitude, 10 times each in X, Y, and Z directions for 8 min Shock resistance (destruction) 150 m/s , three times each in six directions (up/down, left/right, forward/backward) - Page 10 48 V: approx. 200 mA, including current when external light is connected) Vibration resistance (destruction) 10 to 150 Hz, 0.35 mm single amplitude, 10 times each in X, Y, and Z directions for 8 min Shock resistance (destruction) 150 m/s...
- Page 11 26.5 6.2 dia, standard length: 2 m ( 6.36 ) 52.5 35.5 6.2 dia. 30.3 More colour heads are available. Please contact your OMRON dealer for the full range of ZFV-SC heads. Amplifier Units ZFV-CA4@ ZFV-A@ 23.2 23.2 23.4 52.50 4.61...
- Page 12 • Vision demonstrated live • Inspiring applications OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands. Tel: +31 (0) 23 568 13 00 Fax: +31 (0) 23 568 13 88 www.omron-industrial.com Austria France Netherlands Spain Tel: +43 (0) 1 80 19 00...
