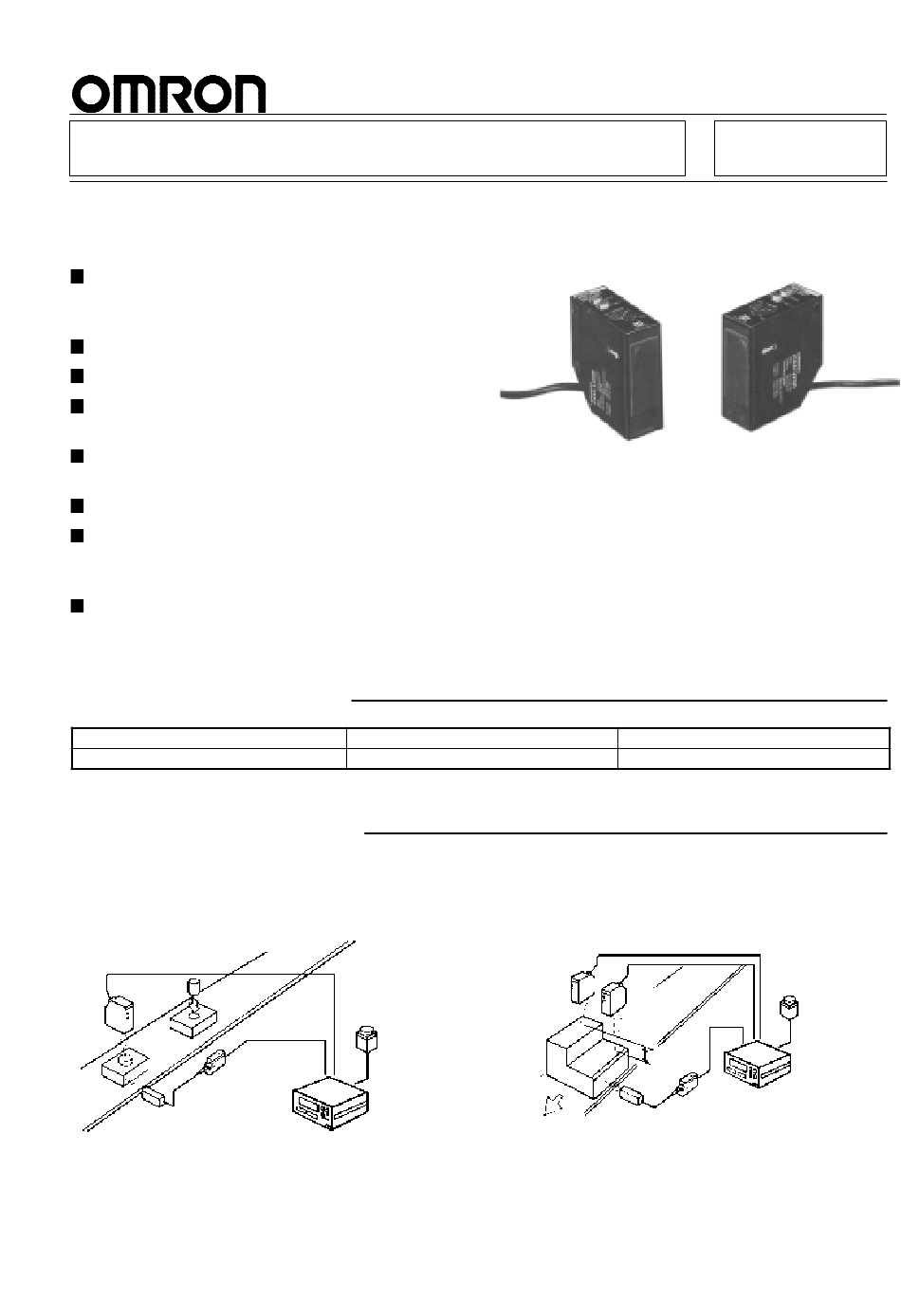

LED Displacement Sensor
Low-cost LED Displacement Sensor
Offers 10-micron Resolution
Measurement point of 25 mm (0.98 in)
with measurement range of ±4 mm
(0.16 in).
Easy-to-use, built-in amplifier.
Fast 5-millisecond response.
Visible beam spot means easy
installation.
Range and stability indicators simplify
set-up and monitoring.
IP66 enclosure rating.
LED light source does not require the
safety precautions of a laser-type light
source.
For signal processing or PLC
communication, use with K3TX or K3TS
intelligent Panel Meter.
Ordering Information
Sensing distance
25±4 mm
Application Examples
Checking a Dimension After Assembly
Z4W-V25R LED Displacement Sensor
Z4W-
V25R
Sensor
E3C Gate
Input Sensor
Intech Systems Chennai Pvt. Ltd, Chennai-600 032
Ph: 4353 8888 Mob: 99 4353 8888 Fax: 044 4353 7888
E-mail: info@intechchennai.com Website: www.intechchennai.com
Resolution
10 μm
Forced Zero
Function Switch
K3TS Intelligent
Digital Panel Meter
Authorised Distributors:-
Part number
Z4W-V25R
Measuring Height Difference
Two Z4W-V25R LED Displacement Sensors
Z4W-V25R
Sensor
Z4W-V25R
Sensor
E3C Gate
Input Sensor
Z4W-V
Forced Zero
Function Switch
K3TS Intelligent
Digital Panel Meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z4W-V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron Z4W-V

Summary of Contents for Omron Z4W-V

  • Page 1 Authorised Distributors:- Intech Systems Chennai Pvt. Ltd, Chennai-600 032 Ph: 4353 8888 Mob: 99 4353 8888 Fax: 044 4353 7888 E-mail: info@intechchennai.com Website: www.intechchennai.com Z4W-V LED Displacement Sensor Low-cost LED Displacement Sensor Offers 10-micron Resolution Measurement point of 25 mm (0.98 in) with measurement range of ±4 mm...

  • Page 2: Specifications

    Z4W-V Z4W-V Specifications RATINGS ±4 mm (0.16 in) Measurement range 25 ±1 mm (0.98 in) Measurement point Light source Red LED Spot diameter 2-mm (0.079 in) dia. at measurement point External light 3,000 lux (incandescent light) Resolution 10 microns The resolution is the peak-to-peak...

  • Page 3: Engineering Data

    Z4W-V Z4W-V Engineering Data LINEARITY CHARACTERISTICS OBJECTS Linearity characteristic curves are obtained by detecting an object at different positions within the measurement range and plotting the analog output error resulting from each operation. The LED Displacement Sensor cannot detect an object accurately if the reflection ratio of the object is extremely small (for example, a black object) or extremely large (for example, an object with a shiny surface).
  • Page 4 Z4W-V Z4W-V Obliquely Positioned Object (continued) When installing the sensor, position the Angle: --30 Angle: +30 sensor correctly for the type of object to sensor correctly for the type of object to White ceramic be detected. If a shiny object is...

  • Page 5: Sensor Connections

    Z4W-V Z4W-V Connections SENSOR CONNECTIONS * The two ground terminals, Brown (red) 12 to 24 VDC Power supply blue (black) and shield are internally connected. However, Blue (black) the blue (black) ground must 0 V GND be used with the brown (red) Orange 50 mA max.

  • Page 6: Operation

    Z4W-V Z4W-V SENSOR TO K3TX PANEL METER SENSOR TO K3TS PANEL METER Forced Zero K3TX Panel Meter Function K3TS Panel Meter Switch Blue Z4W- (black) V25R 4 to 20 mA ↓ Shield 0 V Brown (red) 12 to 24 VDC...

  • Page 7: Installation

    Z4W-V Z4W-V Stability indicator These indicators indicate the intensity of the light input. The object in the measurement range is detected when the green indicator is lit or OFF. The red indicator is lit when there is no object in the measurement range, or the intensity of light input is insufficient.
  • Page 8 Z4W-V Z4W-V INSTALLATION (AND OPERATION) OF THE CONTROLLER Using a Z4W-DD1C Linear Sensor Controller Size Discrimination Required Equipment • Z4W-V25R LED Displacement Sensor To discriminate among objects according to size, use the Z4W-V25R LED Displacement Sensor with a Z4W-DD1C • Z4W-DD1C Linear Sensor Controller Linear Sensor Controller.
  • Page 9 Z4W-V Z4W-V Nomenclature Calibrate the Sensor Controller The linear sensor control panel control consists of the Using an object of the standard specified dimensions, indicators, switches and adjusters shown below. calibrate the sensor controller as follows: 1. Set the MODE switch to NORMAL.

  • Page 10: Mounting Option

    Z4W-V Z4W-V Dimensions Z4W-V SENSOR Cable length: 5 m (16.4 ft) (1.97) 20.3 Cable dia.: (0.80) 3.8 (0.15 in) (1.10) Mounting Holes M4 screws Two 5 (0.20 ) Dia. holes 11.4 (1.10) (0.46) 10.5 (0.41) (1.97) (1.77) Unit: mm (inch) (0.35)
  • Page 11 Z4W-V Z4W-V MOUNTING OPTION 2 Unit: mm (inch) Secure the mounting bracket to the sensor side as indicated here. 37 (1.46) 20.3 (0.80) (0.87) 28 91.10) (0.18) For mounting 13.5 to option 2, attach the 18.5 17.5 mounting bracket to this side of the 22.5...
  • Page 12 Correct Positioning NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4. OMRON ELECTRONICS, INC. OMRON CANADA, INC. One East Commerce Drive 885 Milner Avenue Schaumburg, IL 60173...
