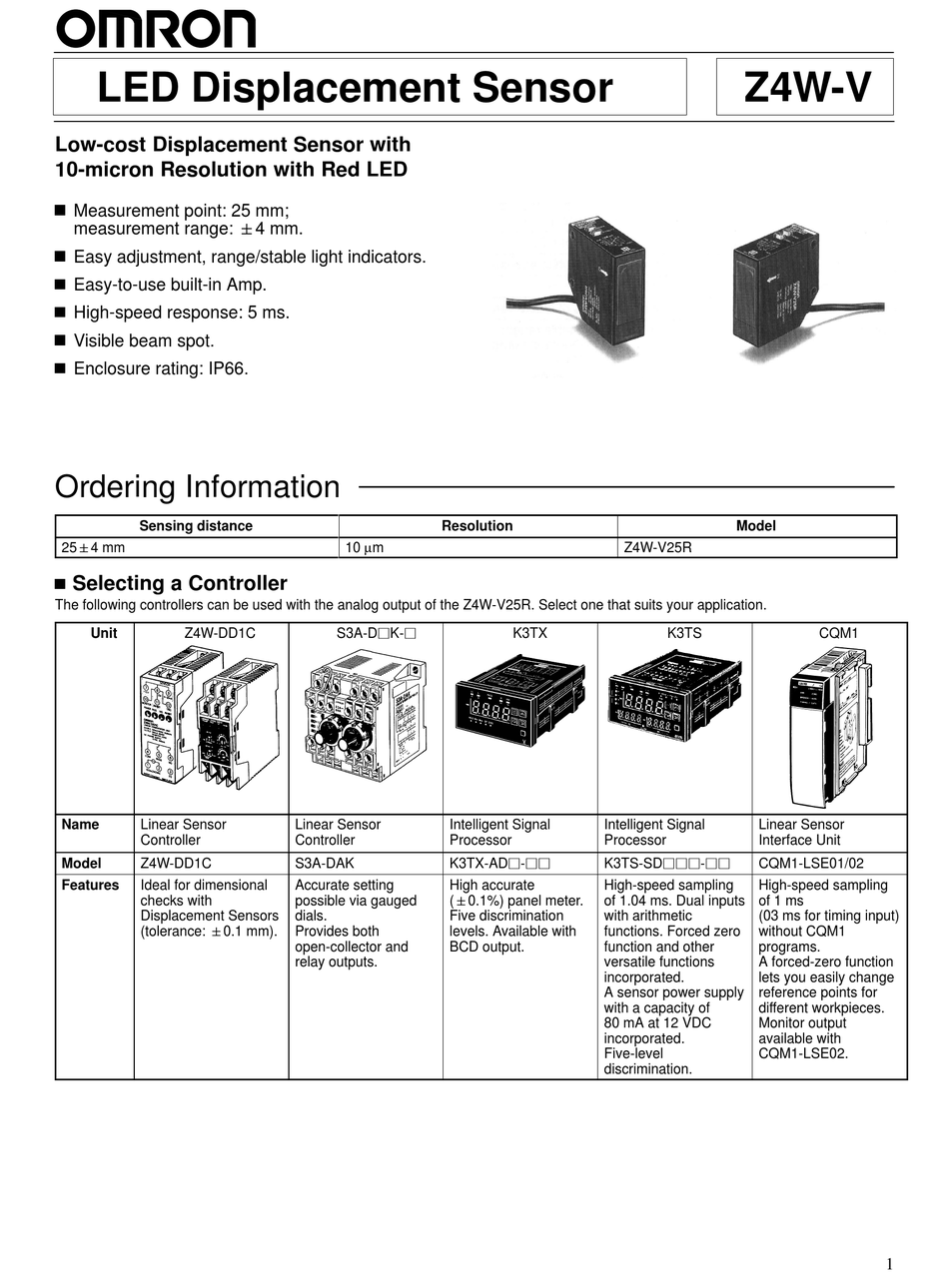

LED Displacement Sensor
Low-cost Displacement Sensor with
10-micron Resolution with Red LED
Measurement point: 25 mm;
measurement range: "4 mm.
Easy adjustment, range/stable light indicators.
Easy-to-use built-in Amp.
High-speed response: 5 ms.
Visible beam spot.
Enclosure rating: IP66.
Ordering Information
Sensing distance
25"4 mm
Selecting a Controller
The following controllers can be used with the analog output of the Z4W-V25R. Select one that suits your application.
Unit
Z4W-DD1C
Name
Linear Sensor
Controller
Model
Z4W-DD1C
Features
Ideal for dimensional
checks with
Displacement Sensors
(tolerance: "0.1 mm).
Resolution
10 µm
S3A-DjK-j
Linear Sensor
Intelligent Signal
Controller
Processor
S3A-DAK
K3TX-ADj-jj
Accurate setting
High accurate
possible via gauged
("0.1%) panel meter.
dials.
Five discrimination
Provides both
levels. Available with
open-collector and
BCD output.
relay outputs.
Z4W-V25R
K3TX
K3TS
Intelligent Signal
Processor
K3TS-SDjjj-jj
High-speed sampling
of 1.04 ms. Dual inputs
with arithmetic
functions. Forced zero
function and other
versatile functions
incorporated.
A sensor power supply
with a capacity of
80 mA at 12 VDC
incorporated.
Five-level
discrimination.
Z4W-V
Model
CQM1
Linear Sensor
Interface Unit
CQM1-LSE01/02
High-speed sampling
of 1 ms
(03 ms for timing input)
without CQM1
programs.
A forced-zero function
lets you easily change
reference points for
different workpieces.
Monitor output
available with
CQM1-LSE02.
