2D Profile Measuring Sensors
ZG2 - Smart Profile Sensor
The easy way to get your profile
• Easy to use - intuitive user interface
• Live - built-in LCD monitor for setup and
immediate profile display
• Versatile - 18 measurement tools
• Accurate - 10 µm resolution
• Wide profiles - up to 70 mm
• Fast - 5 ms sampling time
• Smart - powerful PC software for configuration
and post-processing (optional)

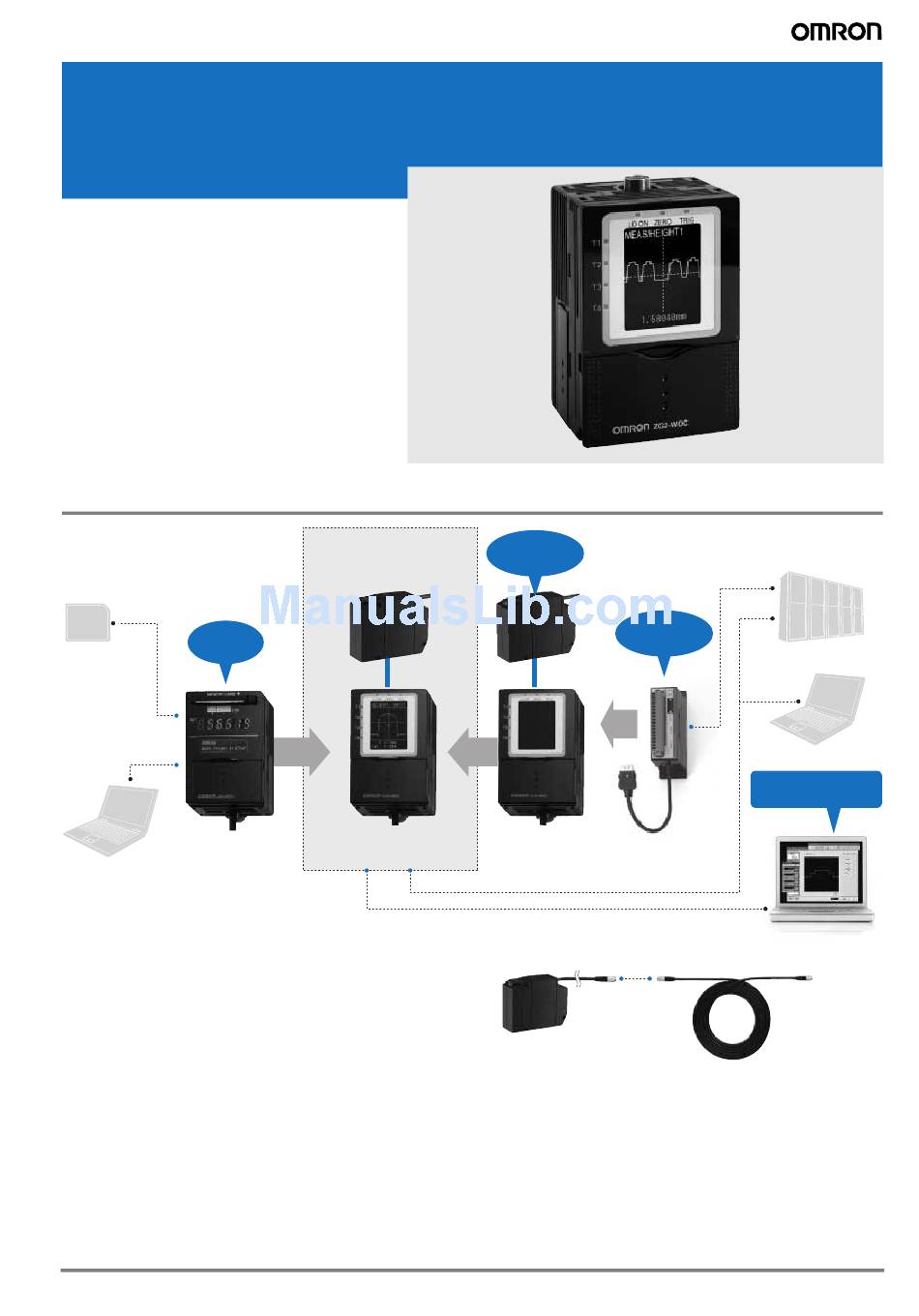

System configuration
Memory card
MEMORY
CARD
256
MB
For logging
data
USB
PC
Data storage unit
A controller link unit is necessary for the following cases.
A data storage unit is connected. Two sensor controllers are linked.
27 m max.
Sensor Head Extension Cables
Highly-flexible extension cables of four different lengths are
available. The distance between the sensor head and sensor
controller can be extended up to 27 m without delaying image
input periods.
ZG2 - Smart Profile Sensor
Basic configuration
Sensor head
Sensor controller
RS-232C
USB
Up to two units
can be linked
High-speed
output to PLC
RS-232C
Real-time parallel
output unit
Sensor head cable length: 0.5 m/2 m
PLC
PC
Smart Monitor ZG2
for setting from a PC (attached)
PC
Flexible cables
25 m/15 m/8 m/3 m
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omron ZG2
Summary of Contents for Omron ZG2
-
Page 1: System Configuration
Real-time parallel output unit RS-232C A controller link unit is necessary for the following cases. A data storage unit is connected. Two sensor controllers are linked. 27 m max. Sensor Head Extension Cables Highly-flexible extension cables of four different lengths are available. -
Page 2: Ordering Information
24 VDC NPN ZG2-WDC11A* 24 VDC NPN ZG2-DSU11 ZG2-WDC11 ZG2-WDC41A* ZG2-DSU41 ZG2-WDC41 * Setup Support Software for PC is attached. Accessories (Order separately) Real-time Parallel Unit (for the ZG-WDC-Series) Sensor Head Extension Cable (Robot cable) Appearance Output type Model Appearance... -
Page 3: Specifications
IP67 (IEC 60529) protection resistance Vibration resistance 10 to 150 Hz with 0.35 mm single amplitude for 80 min each in X, Y and Z directions (destruction) Shock resistance 150 m/s , 3 times each in 6 directions (up/down, right/left, forward/backward) - Page 4 Setup Support Software (CD-ROM), USB Cable (1 m) Note: 1 . The image input periode listed here are for fixed/auto sensitivity. The image input period will be longer for multi-sensitivity or other settings. Use the eco monitor in RUN mode to determine the actual image input period.
- Page 5 Ferrite Core (1 piece), Instruction Manual Note: 1 . The controller link unit is necessary for linking. 2 . Data is saved in the memory of the main unit during logging. The data is automatically saved in a memory card after logging is complet- ed.The maximum number of logging differs according to set condi-...
- Page 6 3-4.5 dia. mounting hole Receiver 16.9 45.1 69 ± 0.1 Vinyl-insulated round cable 6.8 dia, (*) ZG2-WDS8T L=50, A=30° standard length : 2 m, 0.5 m ZG2-WDS22 L=100, A=25° Connector Mounting Hole Dimensions ZG2-WDS8T ZG2-WDS22 Regular reflection Regular reflection 44.1 98.5...
- Page 7 (140) (14.15) (2.85) 11.5 (150) Panel (37.5) 32.90 When two or more units are aligned side-by-side. Panel Mounting Adaptor (Note: 1) 35.20 Panel cutout dimensions Note: 1. Dimensions are for a 2.0 mm thick panel. 116 ± 1 (60 × n) + 8...
- Page 8 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. Q24E-EN-02A In the interest of product improvement, specifications are subject to change without notice. ZG2 - Smart Profile Sensor...
