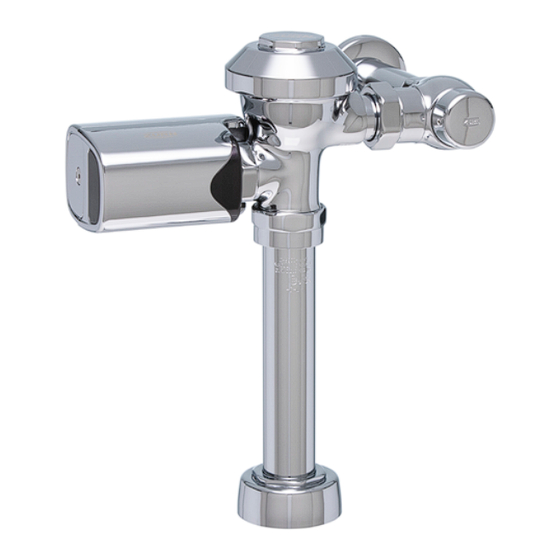

AquaSense
ZER-SM Series
Automatic Battery-Powered
Flush Valve
Installation, Operation, Maintenance
and Parts Manual
ZER6003-SM
Series
LIMITED WARRANTY
129 Oakpark Drive, Unit A, Mooresville, NC 28115
®
ZER6200-SM
Series
ZER6203-SM
Series
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZURN AquaSense ZER6000-SM Series
Summary of Contents for ZURN AquaSense ZER6000-SM Series
- Page 1 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y Daño Reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov Rev. B | Date: 04/27/23 | C.N. No. 145288 | Prod./Dwg. No. FV828 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
- Page 2 BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY This Page Intentionally Left Blank...
-
Page 3: Specifications
35°F to 104°F [2°C to 40°C] Important Safety Information • Do not convert or modify this Zurn product. All warranties will be voided. • All plumbing is to be installed in accordance with applicable codes and regulations. • Water supply lines must be sized to provide an adequate volume of water for each fixture. -
Page 4: Package Contents
BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY Package Contents Control Stop with Vandal Cap Diaphragm Piston E-Z Flush (Optional with Aqua Flush) Valve Body Valve Body ® Sweat solder Connection with Cast Wall Escutcheon E-Z Flush Hex Key Wrench... - Page 5 BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY Sweat Solder Adapter Installation NOTE: Before installation, turn off water supplies to existing fixture and remove flushometer if replacing an existing device. 1. Measure distance from finished wall to the center line of the fixture 2.
- Page 6 BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY Flush Valve Installation Prior to attaching flush valve tailpiece to control stop, inspect and Control Stop verify that the O-ring seal is located within the O-ring groove at the tailpiece.
-
Page 7: Flushing The System
BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY Flushing the System When all flush valves are connected to the fixtures and water pressure is available, it is recommended that the supply piping be Body Cover flushed to remove dirt, pipe chips, etc., from system. - Page 8 Each E-Z Flush comes calibrated from the factory to work optimally in most restroom environments. In low light or highly reflective envi- ronments however, it may be necessary to adjust the calibration distance of an E-Z Flush unit. To do this, a Zurn Magic Magnet may be used.
- Page 9 BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY Flush Valve Trouble Shooting Guide PROBLEM CAUSE SOLUTION User LED continuously blinks every Low battery life. Replace batteries. five seconds. Insufficient flow of water. Stop Valve improperly adjusted. Adjust stop valve (open).
- Page 10 BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY ZER-SM Series Parts Breakdown FV828 Rev. B 04/27/23 Page 8...
- Page 11 BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY Part Identification 1. Valve Cup Seal 16. Vacuum Breaker Tube Nut 31. Piston 2. Valve Gasket 17. Spud Nut 32. Stop Spring 3. Metal Cover, Lens, Electronics Assembly 18.
- Page 12 BERLS.COM (704) 937-2673 129 Oakpark Drive, Unit A, Mooresville, NC 28115 COMMERCIAL SUPPLY Rev. A | Date: 05/22/23 | C.N. No. 145085 | Prod./Dwg. No. FV828 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
