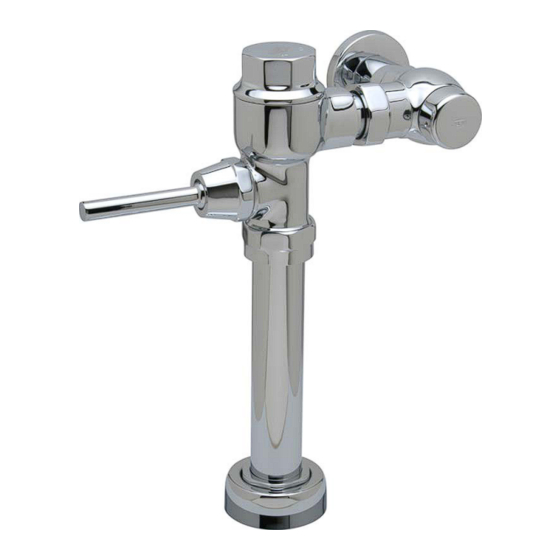

Metroflush piston-operated flush valve

Advertisement

Quick Links

Models:
Z6200
Z6201
Z6203
Z6210
Metroflush
Piston-Operated Flush Valve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of five years from the date
of purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in
writing of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and
used in accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, includ-
ing incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before
installation and use, the purchaser shall determine the suitability of the product for his intended use and the purchaser assumes all risk
and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantability is expressly excluded. If the
products sold hereunder are "consumer products," the implied warranty of merchantability is limited to a period of three years and shall be
limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists are approximate and are not guaranteed.
Metroflush
Z6200 Series
Metroflush Piston-Operated
Flush Valve
Installation, Operation, Maintenance
and Parts Manual
Patented and Patents Pending
LIMITED WARRANTY
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Metroflush Z6200 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZURN Metroflush Z6200 series

  • Page 1 Metroflush ® Z6200 Series Metroflush Piston-Operated Flush Valve Installation, Operation, Maintenance and Parts Manual Patented and Patents Pending Models: Z6200 Z6201 Z6203 Z6210 Metroflush Piston-Operated Flush Valve WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of five years from the date...
  • Page 2: Prior To Installation

    PRIOR TO INSTALLATION IMPORTANT: • All Plumbing is to be installed in accordance with applicable Prior to installing the Metroflush flushometer valve, install ® codes and regulations. the items listed below: • Water supply lines must be sized to provide an adequate •...
  • Page 3 Vacuum Breaker Tube Nut Spud Nut Slip Gasket Rubber Gasket Spud Escutcheon 6.) Hand tighten spud nut (G) to the fixture and vacuum breaker 5.) Determine the length of the vacuum breaker tube (F) tube nut (H) to flush valve. Adjust the valve assembly for required to join the flush valve and fixture spud.
  • Page 4 Z6200 Metroflush Valve Parts Identification 21. Tailpiece 1. Cast Wall Escutcheon 22. Valve Body Cover 2. Setscrew for Cast Wall Escutcheon 23. Valve Body Cover Gasket 3. Supply Cover Tube 24. Internal Kit 4. Sweat Solder Adapter 25. Main Seat 5.
  • Page 5 ZURN INDUSTRIES, LLC 5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330, Ph. 1-800-997-3876, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 Rev. C Date: 7/19/2018 C.N.
