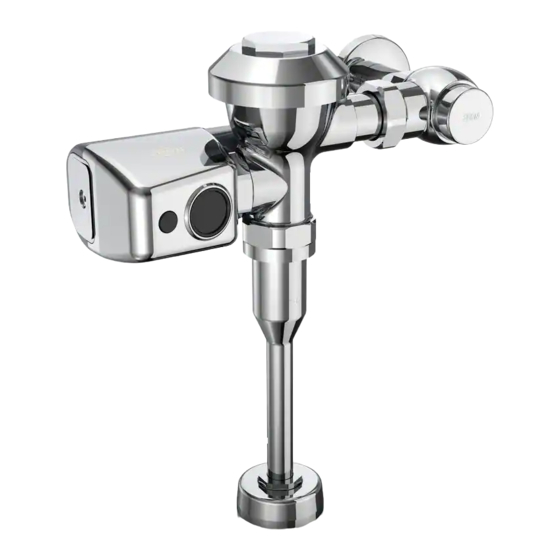

Connected AquaSense
Battery Powered Flush Valve
ZER-W2 Series
Installation, Operation, Maintenance
and Parts Manual
Patented and Patents Pending
ZER6000AV-W2
LIMITED WARRANTY
ZER6003AV-W2
®
Advertisement
Related Manuals for ZURN AquaSense ZER-W2 Series
Summary of Contents for ZURN AquaSense ZER-W2 Series
- Page 1 Connected AquaSense ® Battery Powered Flush Valve ZER-W2 Series Installation, Operation, Maintenance and Parts Manual Patented and Patents Pending ZER6000AV-W2 ZER6003AV-W2 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
-
Page 2: Electronic Emission Notices
• Consult an authorized dealer or service representative for help. Zurn is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user's authority to operate the equipment. -
Page 3: Prior To Installation
Prior to Installation Prior to installing the ZER Flushometer, install the IMPORTANT: items listed below: • ALL PLUMBING IS TO BE INSTALLED IN ACCORDANCE WITH • Closet or urinal fixture APPLICABLE CODES AND REGULATIONS. • Drain line • WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN •... - Page 4 Control Stop Installation Instructions 1. Install control stop assembly by threading it onto water supply 2. When all stop valves are properly connected to the water pipe and tightening with a smooth jawed wrench. Apply thread supply line and water pressure is available, open the control sealing compound or pipe tape to male NPT thread on sweat stop using a flat head screwdriver and turning the stop valve solder adapter only.
- Page 5 Flush Valve Activation Using supplied battery compartment wrench,remove battery compartment from the E-Z Flush™ unit. Load batteries into compartment tray (note position of batteries in tray), and reinstall battery tray into the E-Z Flush unit. Secure tray with battery compartment wrench. The last three turns of the wrench will activate the E-Z Flush unit.
- Page 6 Adjusting Your E-Z Flush - Cont. Before the supply water is turned on, be sure all stop valves to the flush valves are closed off tight. The stop valves can be opened and closed by using the adjusting screw located at the center of the stop valve cap, behind the stop valve cover if already installed.
-
Page 7: Wiring Diagram
Customized Sensor Range Setting 1. Remove battery compartment tray as shown in Step 6. 2. Remove cover and sensor adjustor tool as shown in Step 6. 3. Replace battery compartment in E-Z Flush to activate unit. 4. Press sensor range reset button (the yellow L.E.D. will flash continuously when it has an object in view for the 10-minute reset period). 5. - Page 8 Install Zurn Gateway per the Gateway Instructions Manual Request plumbSMART Administrator Account at 844-987-6737 Zurn creates your Enterprise Account for you! (You will be required to identify your building location, number of floors, and number of rooms.) Log in to plumbsmart.zurn.com Register each Connected Product in plumbSMART (Watch How-To Videos to Get Started.
- Page 9 If LORA LED does not turn ON solid and ethernet cable connected, contact facility IT administrator to modify port rules to allow Zurn gateway to access the internet via local router. If gateway model is ETH/LTE, visually verify SIM card is installed in designated slot on the side of gateway.
- Page 10 Details tab listed as “Activated” NETWORK: Senet SUBSCRIPTION STATUS: Activated LAST HEARD FROM: 07/14/2020, 04:29 PM CDT If listed as “Deactivated”, contact Zurn Custom Service at 1.855. ONE.ZURN (1.855.663.9876) for assistance. “Status – Good” posted in plumbSMART and faucet not Step 1 actuating Verify LoRa Monitor’s cables are connected to IR sensor...
- Page 11 Connected ZER6000 Series Parts Breakdown Part Identification 1. Seal 2. Collar Gasket 3. Sensor Module 4. Manual Overide Push Button 5. Replacement Sensor Lens 6. Chrome Plastic Cover 7. Chrome Metal Cover 8. Battery Drawer 9. O-Ring 10. Allen Wrench 11.
- Page 12 ZURN INDUSTRIES, LLC W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. A Date: 11/10/20 C.N. No. NEW Prod.
