ZURN ZER6000AV-CPM Installation, Operation, Maintenance And Parts Manual

ZURN ZER6000AV-CPM Installation, Operation, Maintenance And Parts Manual

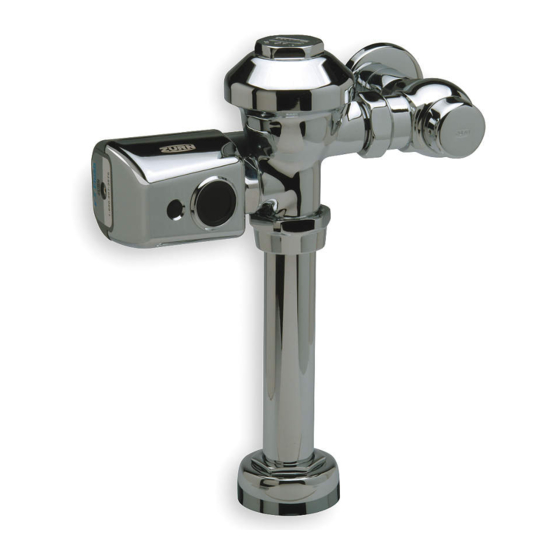

Aquasense av zer series automatic sensor-operated, battery-powered flushometer

Advertisement

Quick Links

Sensor-Operated, Battery-Powered
Closet/Urinal Systems
ZER6000AV-CPM
ZER6000AV-WS1-CPM
ZER6001AV-CPM
ZER6001AV-WS1-CPM
ZER6003AV-CPM
ZER6003AV-WS1-CPM
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing
of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in
accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental
or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and
use, the purchaser shall determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in
connection therewith. Where permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are
"consumer products," the implied warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of
the defective goods. All weights stated in our catalogs and lists are approximate and are not guaranteed.
ZER6000AV-CP
ZER6000AV-CPM
LIMITED WARRANTY
AquaSense AV
ZER Series
Automatic Sensor-Operated,
Battery-Powered Flushometer

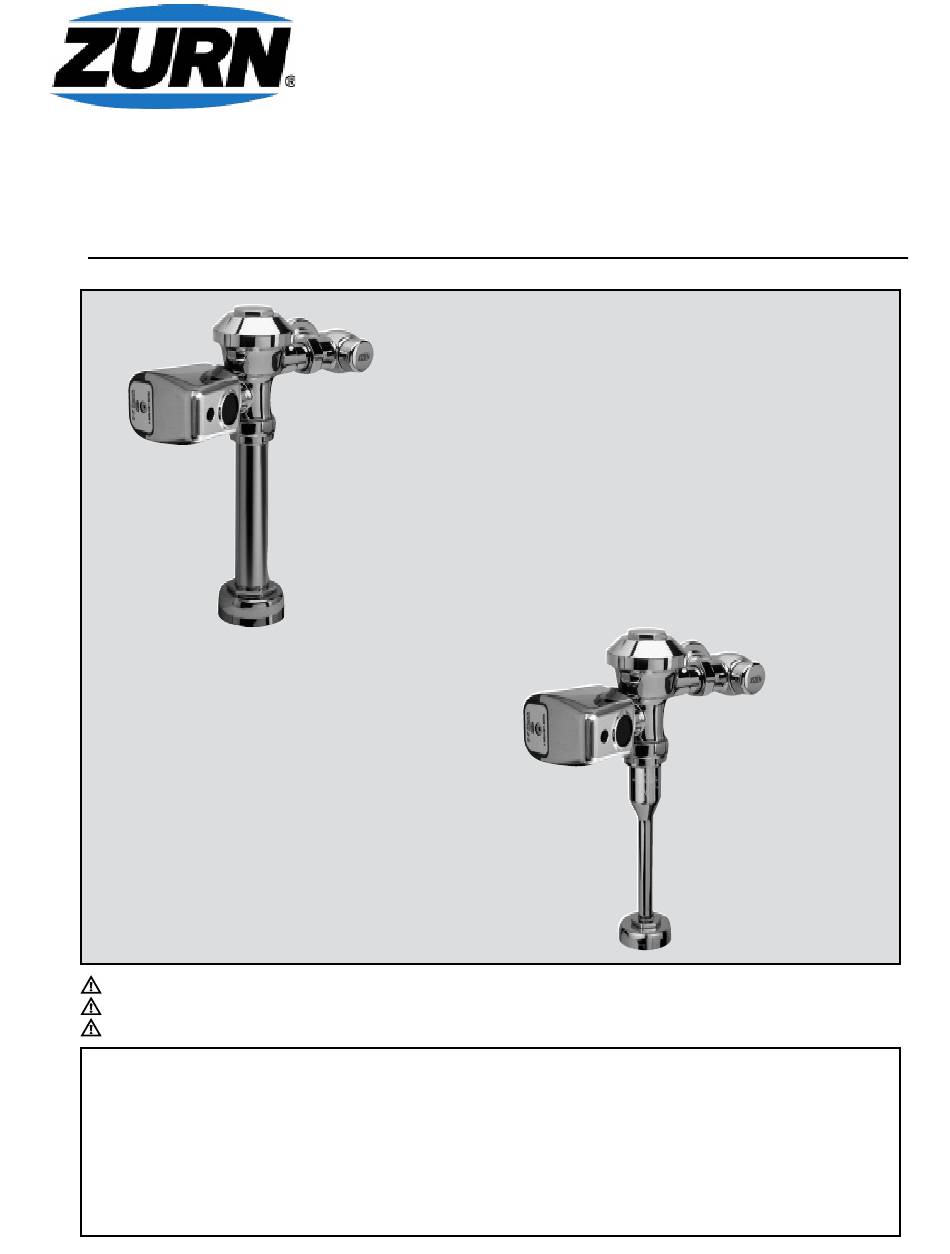

Installation, Operation, Maintenance
and Parts Manual
Patented and Patents Pending
TM
ZER6003AV-CP
ZER6003AV-CPM

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZER6000AV-CPM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZURN ZER6000AV-CPM

  • Page 1 AquaSense AV ZER Series Automatic Sensor-Operated, Battery-Powered Flushometer Installation, Operation, Maintenance and Parts Manual Patented and Patents Pending ZER6000AV-CP ZER6000AV-CPM Sensor-Operated, Battery-Powered Closet/Urinal Systems ZER6000AV-CPM ZER6000AV-WS1-CPM ZER6003AV-CP ZER6001AV-CPM ZER6001AV-WS1-CPM ZER6003AV-CPM ZER6003AV-CPM ZER6003AV-WS1-CPM WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov...
  • Page 2: Prior To Installation

    IMPORTANT: PRIOR TO INSTALLATION • ALL PLUMBING IS TO BE INSTALLED IN ACCORDANCE WITH Prior to installing the ZER Flushometer, install the APPLICABLE CODES AND REGULATIONS. items listed below: • WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN • Closet or urinal fixture ADEQUATE VOLUME OF WATER FOR EACH FIXTURE.
  • Page 3 6.) ACTIVATION Using supplied battery compartment wrench, remove battery compartment from the E-Z Flush™ unit. Load batteries into compartment tray (note position of batteries in tray), and reinstall battery tray into the E-Z Flush unit. Secure tray with battery compartment wrench. The last three turns of the wrench will activate the E-Z Flush unit.
  • Page 4 Figure 9a Figure 10 10.) The ZER flush valves are preset for fixture volume as marked Before the supply water is turned on, be sure all stop valves to the on the valve cartons. The valve does not require regulation for flush valves are closed off tight.
  • Page 5: Wiring Diagram

    WIRING DIAGRAM Delay Flush = User must leave the sensor range for 3 seconds before a flush is generated. 24 Hour Flush = Unit will automatically flush 24 hours after the last use. TROUBLE SHOOTING GUIDE PROBLEM CAUSE SOLUTION Yellow L.E.D. light flashes 3 times Front of Object Lock Sensor is Remove item covering sensor or when there are no...
  • Page 6 Sensor Module PERK6000-SR ZURN INDUSTRIES, LLC 5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330, Ph. 1-800-997-3876, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 Rev. F Date: 7/10/2018 C.N.
