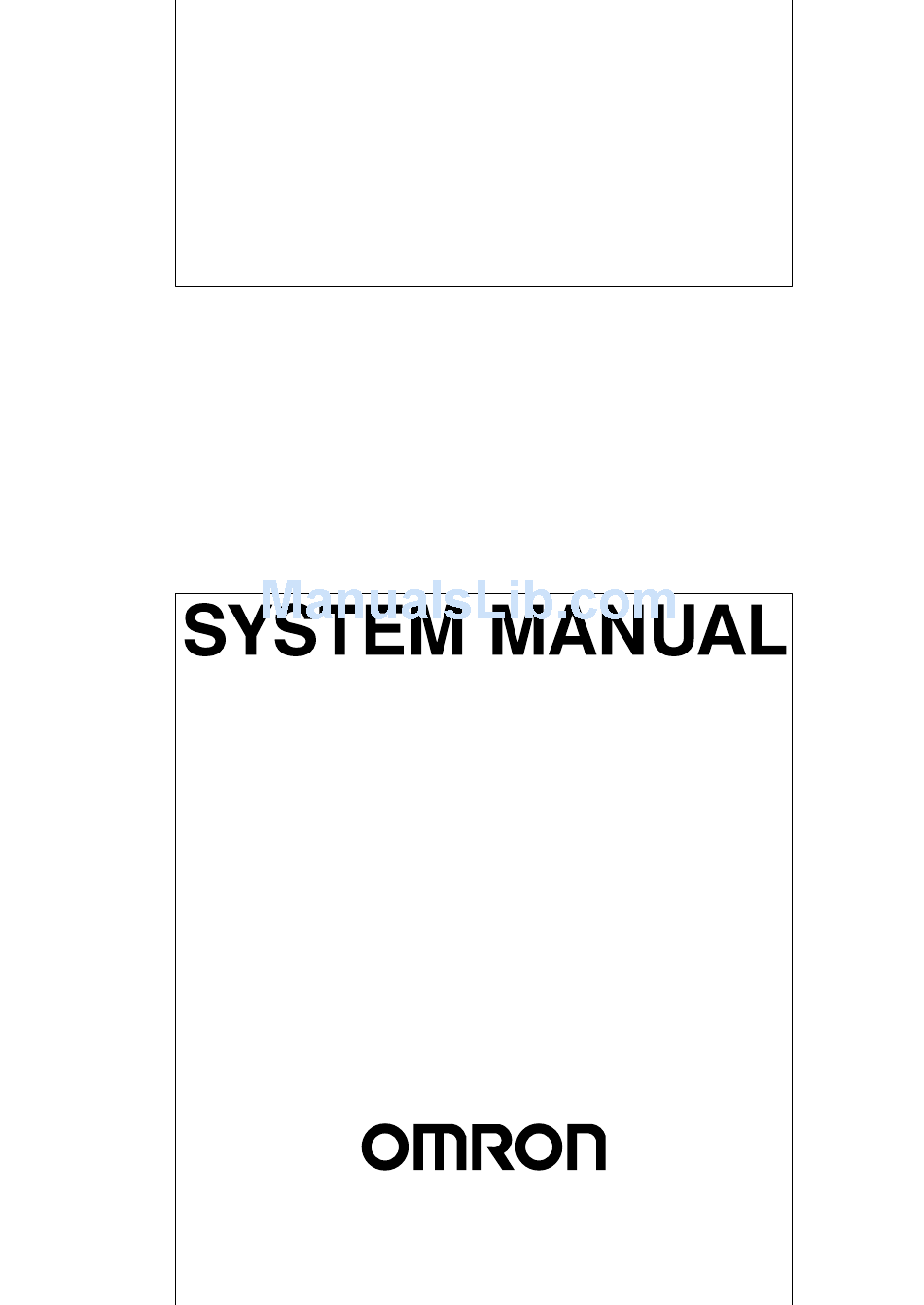

- Page 1 Cat. No. W120-E1-08 SYSMAC C-series Rack PCs Wired Remote I/O...
- Page 2 Wired Remote I/O System Manual Revised April 2003...
- Page 4 1. Indicates lists of one sort or another, such as procedures, checklists, etc. OMRON, 1989 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permis- sion of OMRON.
- Page 6 ............Unit Numbers and I/O Word Allocation .
-
Page 7: Table Of Contents
..........Slave Unit Numbers with Multiple Terminators . -
Page 8: Introduction
This manual describes the means and Units necessary to construct a Wired Remote I/O System con- sisting of at least one Remote I/O Master Unit and one or more Remote I/O Slave Units or Remote Terminals. (The term “Wired” refers to the links used to create the Remote I/O System, e.g., that be- tween a Remote I/O Master Unit and a Remote I/O Slave Unit.) Remote I/O Systems reduce wiring... - Page 9 This section provides general precautions for using the Wired Remote I/O System and related devices. The information contained in this section is important for the safe and reliable application of the Wired Remote I/O System. You must read this section and understand the information contained before attempting to set up or operate the Wired Remote I/O System.
-
Page 10: Intended Audience
Safety Precautions WARNING Do not attempt to take any Unit apart while the power is being supplied. Doing so may result in electric shock. WARNING Do not touch any of the terminals or terminal blocks while the power is being supplied. -
Page 11: Operating Environment Precautions
The PC outputs may remain ON or OFF due to deposition or burning of the output relays or destruction of the output transistors. As a countermeasure for such problems, external safety measures must be provided to ensure safety in the system. - Page 12 Do not pull on the cables or bend the cables beyond their natural limit. Doing either of these may break the cables. Do not place objects on top of the cables or other wiring lines. Doing so may break the cables.
-
Page 13: Ec Directives
You must therefore confirm that the overall machine or equipment complies with EC Directives. 4. Remote I/O products that comply with EC Directives have configurations with less than 30 m of I/O wiring, and less than 10 m of power supply wiring. -
Page 14: Remote I/O Systems
SECTION 1 Introduction This section introduces Wired I/O Systems and describes their characteristics. Remote I/O Systems ............ - Page 15 Do you want to wire doz- ens of terminals all the way across a factory complex or do you want to run a single cable for most of the distance and then wire individual terminals lo-...
-
Page 16: Wired Remote I/O Systems
Section 1-1 Remote I/O Systems A Remote I/O System directly involves only one PC and the program in it and through it a large number of I/O points can be controlled a greater distance from the PC. This is achieved by mounting a Remote I/O Master Unit to the CPU Rack to control I/O points located possibly many kilometers away. - Page 17 Section 1-2 Wired Remote I/O Systems A Master is mounted to the CPU Rack or an Expansion I/O Rack; a Slave is mounted to a Backplane to form what is called a Slave Rack. To a Slave Rack is mounted the same other Units as those mounted to the CPU or Ex- pansion I/O Rack, with only a few exceptions (e.g., Link Units other than...
- Page 18 Replaceable relays Terminals The types of field devices that can be handled is the only functional differ- ence between G72C Remote Terminals and Remote Interfaces connected to I/O Blocks. There is no difference that affects the software operation of the Remote I/O System.
-
Page 19: Section 2 System Design
Although there are many possible Remote I/O Systems that can be built out of Masters, Slaves and Remote Terminals, each System is limited by the capacity of the PC and the nature of the other Units in the System. Section 2-1 describes System configurations based on the C500-RM201 Master and C500-RT201 Slave (i.e., for C120, C500, C1000H, and... -
Page 20: Basic System
All Units can be combined in any fashion and connected in any order as long as they are in series and the Master is on one end of the line. I/O Blocks are mounted to Remote Interfaces. - Page 21 G7TC-OC16 24 VDC G71-OD16 24 VDC Maximum Number of The number of Units in any one System is limited by the capacity of the PC. Connectable Remote I/O Detailed limitations are provided in the following table. These totals include Units all Optical and Wired Master Subsystems controlled by the PC.
- Page 22 C500 C120 *The total number of I/O points in a C1000H System can be up to 2,048, as long the number of I/O points on the CPU Rack and Expansion I/O Racks connected to the CPU Rack (i.e., not I/O points on Slave Racks) is limited to 1,024.
-
Page 23: C120 Systems
In C120 Systems, up to four Masters can be connected to the same PC, and up to two Slaves and 16 Remote Terminals can be connected to any one Master. Note that a Master in a C120 System must be mounted to an I/O slot on a C500 Expansion I/O Rack. -
Page 24: C500 Systems
C500 PCs provide 512 I/O points. This means that the total number of points used in the System must be 512 or less. If, for example, 512 points are con- trolled by one Master connected to a C500 PC, no more Masters or I/O points can be employed for that C500 PC. -
Page 25: C1000H And C2000H Systems
When a Remote I/O System is included, C1000H and C2000H PCs provide 2,048 I/O points. This means that the total number of points used in the Sys- tem must be 2,048 or less. If, for example, 2,048 points are controlled by four Masters on C1000H and C2000H PCs, no more Masters or I/O points can be employed on the PCs. -
Page 26: C200H Systems
A + B + C + D The total number of Special I/O Units that can be used on all Racks com- bined is 10. If PC Link Units are also used in the PC System, they must also be included in the total. - Page 27 Remote Terminal Remote Interface I/O Block Example System 3: Master A maximum of two C200H Expansion I/O Racks can be connected to a Slave with Extra Expansion I/O Rack. I/O Connecting Cable (2-conductor cable) is used to connect the extra Racks...
-
Page 28: Combined Systems
Units that normally provide them (e.g., C200H-OD411, C200H-OD213, C200H-OD214, and C200H-OA221). When using the C200H Backplane for 10 slots as a remote I/O Slave for the CVM1/CV500/CV1000/CV2000, only the 8 slots from the left can be used; the 9th and 10th slots from the left cannot be used. -
Page 29: Optical Connections In Wired Systems
Wired Remote I/O Units. The entire Master Subsystem, from Master to termi- nator, must still be connected in series. Up to 8 Link Adapters (4 pairs) can be used for each Master. To take full ad- vantage of an optical link, shorten wire links as much as possible, even to the point of placing the Link Adapter on the same control panels as the Remote I/O Units. -
Page 30: Multilevel Systems
Rack at the right are controlled through the Optical Master on this CPU Rack. Note that if there was no Master on this Rack and the Optical I/O Units and Slave Rack were connected through the I/O Link Unit, they would become the last Units in the Optical Remote I/O Subsystem controlled by the CPU Unit at the upper left, and be controlled by it. - Page 31 Expansion I/O Racks, both connected to a CPU Rack and to Slave Racks. Although normally not shown in system diagrams for Link Sys- tems, Expansion I/O Racks can be used to increase the number of I/O Units mountable at any one location.
-
Page 32: Section 3 Data Exchange And Operations
The basic setting procedure for the entire System is outlined in Section 3-3. Finally, Section 3-4 provides example program sections used to start System operation when power is turned on to a Slave, rather than to the Master as it nor- mally is. -
Page 33: Block Diagrams
Section 3-1 Block Diagrams Block Diagrams The following block diagrams are for Units available in Wired Remote I/O Systems. C500 Master and Slave Master RS-485 Trans- interface Common mission interface controller interface C120, C500, C1000H, System DC-DC C2000H interface converter... -
Page 34: Block Diagrams
Section 3-1 Block Diagrams C200H Master and Slave Master RS-485 DC-DC interface converter C200H, C200HX, Trans- System C200HG, mission memory C200HE, interface conductor cable C200H PC C200HS interface CPU Unit Indicators Work memory interface Switches Slave RS-485 DC-DC interface converter... - Page 35 Block Diagrams Remote Interface and I/O Blocks Remote Interface Trans- mission Switches interface interface RS-485 interface System Work interface DC-DC Relay Indicators converter output switch I/O Block RUN output Relay interface devices Protection Indicators circuit Power supply 12 or 24 VDC...
-
Page 36: Unit Numbers And I/O Word Allocation
Word allocations on Racks in Remote I/O Systems follow basically the same pattern as the PC to which the Master is mounted, i.e., by the mounting order of and by the number of words required for each Unit mounted for C120, C500, C1000H, and C2000H Systems and by fixed slot words in C200H Sys- tems. -
Page 37: C500 Masters
I/O bus are acknowledged. All following operation is based on this initial check. Therefore, if a Unit is not attached properly or if the power to a Unit is not on when this check is performed, that Unit will be ignored dur- ing actual operation. - Page 38 For example, suppose word 28 is set on a Remote Terminal and word multi- plier 2 is assigned to the Master of that Remote Terminal. The I/O word allo- cated to the Remote Terminal, viewed from the PC, is computed as follows:...
- Page 39 Unit Numbers and I/O Word Allocation Setting Word Multipliers Set the word multipliers in a C1000H and C2000H System using the Pro- gramming Console as shown below. Before setting word multipliers, set the mode selector to PROGRAM. Word multipliers must be assigned only to the Masters to which Remote Terminals are connected.
- Page 40 Section 3-2 Unit Numbers and I/O Word Allocation Meaning of Displays Requesting input of word multiplier. Word multiplier not yet specified. Master number (0 to 7) Indicates a Master I/O slot number Rack number...
- Page 41 With two Slaves connected to one Master, the Slaves are set to unit numbers Slaves 0 and 1. The order does not matter. The last Unit must be set as the termina- tor. If only one Slave is connected, set it to unit number 0 and as the termina- tor.
- Page 42 00), duplication can be avoided by starting Remote Terminal words from the upper end, i.e., from 31 in all Systems except C120 Systems, where it is best to start word settings backward from 15. Do not set words that are already being used for other I/O points.
- Page 43 Section 3-2 Unit Numbers and I/O Word Allocation Example 3: C500 with Here, as in Example 2, word duplication can be avoided by setting Remote Slaves and Remote Terminal words starting from the upper end. Terminals Master Slave #0 Slave Rack...
- Page 44 Section 3-2 Unit Numbers and I/O Word Allocation Example 4: C1000H and Duplication can be avoided here too by starting Remote Terminal words from C2000H with Slaves and the upper end. (See Example 2, above, for details.) Remote Terminals Do not set words that are being used for other I/Os.
-
Page 45: C200H Masters
Slave Rack. I/O slots on the Rack would be, from left to right, 50, 51, 52 ... 58, and 59. Slot words do not change even if an I/O Unit is not mounted in every slot. Slot words not used on shorter Racks can be use as work words. - Page 46 This example System shows word allocations for two C200H Masters, one on and Slaves the CPU Rack and one on an Expansion I/O Rack, and four of the maximum possible five C200H Slaves. (The unallocated I/O words may be used as work words.)
- Page 47 This example System shows word allocations for two C200H Masters, one on Slaves, and Extra the CPU Rack and one on an Expansion I/O Rack, two of the maximum pos- Expansion I/O Racks sible five C200H Slaves, and two extra Expansion I/O Racks. The extra Ex- pansion I/O Racks are counted as two more Slaves in the maximum of five and automatically allocated word for unit numbers.
-
Page 48: Combined Systems
C500 System, i.e., not according to slot words, but left to right to actually mounted I/O Units. The total number of words used by the Units mounted to a C500 Slave Rack must not exceed 20. Expansion I/O Racks cannot be connected to C500 Slave Racks. - Page 49 C200H Master. Note that a C200H Slave could be con- nected to this System, either to another Master or in the present Master Sub- system, to bring the total number of Slaves controlled by the PC to 5 (C500 Slaves count as 2).
-
Page 50: Setting Procedure
Section 3-3 Setting Procedure C1000H Example Restrictions placed on Systems combining C500 Masters and C200H Slaves depend on the PC to which the Master(s) is mounted. Refer to 2-1 Basic Sys- tem for details. C500 Master C1000H PC C200H Slave... -
Page 51: Setting Procedure
After the terminator check indicator(s) on the Master(s) goes out, enter the I/O table (see note 3) through the Programming Console and then verify the I/O table. If a terminator is not found, CPU WAIT’G will be dis- played on the Programming Console. Once the I/O table has been en- tered, it is not necessary to reenter it each time power is turned on, un- less there is a change in it. -
Page 52: Delayed Activation Of Slaves
Delayed Activation of Slaves The following examples illustrate program sections that can be inserted to start System operation when power to a Slave is turned on after its Master has been turned on. Note, however, that the normal procedure, i.e., turning on all Slaves before their Masters, must be followed when creating the I/O table. -
Page 53: Delayed Activation Of Slaves
Section 3-4 Delayed Activation of Slaves Example 2: JMP/JME The section of the following program between JMP and JME will not be exe- Programming (C1000H and cuted until the I/O verification error is cleared (i.e., until all Slaves are turned C2000H PCs) on). - Page 54 The initialization and main programs in the following ladder diagram will not Programming (C200H PCs) be executed until the remote I/O error and I/O verification error have been cleared (i.e., until all Slaves have been turned on). Errors are cleared with FAL(06) 00.
-
Page 55: Section 4 Unit Components And Switch Settings
SECTION 4 Unit Components and Switch Settings Subsections 4-1 through 4-2 provide the names and functions of the indicators, switches, and selectors of Masters, Slaves, and Remote Terminals. Masters and Slaves ............ -
Page 56: Masters And Slaves
TEST switch. END RS CHK Lit until terminator is found. Flashes if more than one terminator is found. Refer to 7-7 Slave Unit Numbers with Multiple Terminator. Goes out if one and only one terminator is found. LINE ERR Lights for transmission line errors. - Page 57 Section 4-1 Masters and Slaves Switches TEST Pressed to test the transmission line when the PC is in PROGRAM mode. Test is repeatedly performed while button is held down. This switch is also pressed to clear transmission errors. CONTINUE/STOP Used to select whether or not transmission is to be STOP continued for trans- mission errors or I/O bus errors at Slaves.
-
Page 58: C500 Slave
Lights when on standby or for transmission errors. Goes out for CPU Unit errors (via watchdog timer monitoring). Lights for I/O bus errors at Slave or when PC detects discrepancy in inputs and outputs connected to Slave. Remains unlit during normal Slave I/O operation. - Page 59 Section 4-1 Masters and Slaves Remove the switch cover to access the DIP switch and terminator switch. Set these as shown on the following. Setting the terminator switch to ON sets the termination resistance. Terminator Switch ON (up): Terminator OFF (down):...
-
Page 60: C200H Master
Unit numbers 0 through 7 are used in C1000H and C2000H Systems. Use numbers 0 and 2 or numbers 1 and 3 for C500 Slaves attached to a C200H Master (to prevent overlapping word assignments). All other PC Systems use only unit numbers 0 and 1. -
Page 61: C200H Slaves
Switches and Selectors Unit Number Set to 0 or 2 to set Unit #0; 1 or 3 to set Unit #1. If 0 or 1 is used, transmission will continue even if a (“Machine No.”) transmission error occurs. If 2 or 3 is used, transmission to all Slaves will be interrupted if a trans- mission error occurs. - Page 62 The DIP switch and terminator selectors are accessed by removing the switch cover on the front of the Slave. Use a regular screwdriver to open the cover if necessary. Always be sure that the PC and Slave power are turned off before setting the switches.
-
Page 63: Remote Terminal
OFF Indicators POWER Lit when power is supplied and Remote Terminal is operational.Not lit for power irregularities. TR/ERROR Flashes during normal transmission. Lights when on standby or for transmission errors. Goes out for CPU Unit errors (via watchdog timer monitoring). - Page 64 31, i.e., 2 = 1 + 2 + 4 + 8 + 16 = 31. Pin 5 must be set OFF for all Remote Terminals, in C120 Systems, i.e., the highest word that can be set is 15.
-
Page 65: Section 5 System Installation
SECTION 5 System Installation This section explains how to install Wired I/O Systems and includes information on dimensions, differences between some of the Units, and wiring. Dimensions ............. . -
Page 66: Dimensions
Section 5-1 Dimensions Dimensions 5-1-1 Masters and Slaves C500 Master (Unit: mm) 34.5 C500 Slave (Unit: mm) 34.5... - Page 67 Rack C200H Racks C200H Racks provide either 3, 5, 8, or 10 slots and are used to mount the C200H PC (CPU Racks), Slaves and other Units (Slave Racks), or other Units without a Slave (Expansion I/O Racks). The appearance and parts of the Rack are shown below.
-
Page 68: Remote Interface (Unit: Mm)
Section 5-1 Dimensions C200H Rack (Unit: mm) Dimensions for mounting holes in the following diagram have 0.2 mm toler- ances. M4 screw 130 118 Rack Lengths C200H-BC031-V2 C200H-BC051-V2 C200H-BC081-V2 C200H-BC101-V2 5-1-2 Remote Interface (Unit: mm) 35.3 63.5... -
Page 69: I/O Blocks
Section 5-1 Dimensions 5-1-3 I/O Blocks Input Block (Unit: mm) 35.3 32.5 Output Block (Unit: mm) 35.3 32.5 5-1-4 G72C Remote Terminals (Unit: mm) M4 screws 35.3 M3.5 screws... -
Page 70: Link Adapters
M4 screws. Do not connect stranded wires directly to the terminal block. Tighten the screws on the terminal block to a torque of 1.2 N S m. Differentiating Units Nameplate, LED, and relay case colors are used to differentiate between In- put and Output Blocks and between AC and DC Input Blocks as shown in the following table. -
Page 71: I/O Block Connections
G7T-1122S 2 C3 3 C4 4 C5 5 C6 6 C7 7 C8 8 C9 9 C1010 C11 11 C1212 C1313 C1414 C1515 G7TC-IA16 (for AC input) + – Input relays G7T-1122S 2 C3 3 C4 4 C5 5 C6... -
Page 72: Mounting And Wiring Precautions
End Plates (model number PFP-M). Four short bars are provided for common points. Output capacity limits the number of common point to four. For outputs, do not connect the same terminal to more than one other terminal. Input terminals can be connected to more than one other terminal as necessary. - Page 73 CPU Rack. Doing so will prevent mounting devices directly to the CPU Unit. Do not mount the C200H Master to a Slave Rack or to an Expansion I/O Rack connected to a Slave Rack. Slaves must be connected directly to the Master or another Slave. Do not connect the Slave Rack with I/O Connecting Cable.
-
Page 74: Wiring
Set the last Unit as the terminator. Do not branch the wiring at a Slave; i.e., wire a Slave in series to a maximum of two other Units, one before it and one following it. - Page 75 Caution Tighten the screws on the terminal block of the AC Power Supply Unit to a torque of 0.8 N S m. Loose screws may result in short-circuiting, malfunction, or burning.
-
Page 76: Wiring
M3.5 self-rising terminals screws are used for the terminal block. When wir- ing to the terminal block, use crimp terminals for M3.5 screws. Do not con- nect stranded wires directly to the terminal block. Tighten the screws on the terminal block to a torque of 0.8 N S m. - Page 77 (points 0 through 15). Use the connecting cable to supply power from each I/O Block power termi- nal to its Remote Interface. Do not supply power to the I/O Block until it has been connected to its Remote Interface.
- Page 78 Sensor 2 Output Terminals When connecting outputs to logic external circuits, the external circuits must be designed to be compatible with the output specifications of the Output Ter- minal (pull-up resistance: 4.3 k ; residual voltage: 1.2 V). Normal Loads Logic Circuits –...
- Page 79 ............C1000H and C2000H Systems .
-
Page 80: Introduction
Introduction The time required to produce a programmed output to an input within a Re- mote I/O System varies with the scan time of the PC, the transmission time of the Remote I/O System, and the timing of the input. -
Page 81: C1000H And C2000H Systems
Time = 10 ms + 20 ms + 2.2 ms + 10 ms = 42.2 ms Maximum I/O Response Time Time = 10 ms + (20 ms x 2) + (2.2 ms x 2) + 2.2 ms + 10 ms = 66.6 ms Transmission Time for... -
Page 82: C200H Systems
Time = 10 ms + 20 ms x 2 + 2.2 ms + 10 ms = 62.2 ms Maximum I/O Response Time Time = 10 ms + (20 ms x 3) + (2.2 ms x 2) + 2.2 ms + 10 ms = 86.6 ms Transmission Time for... - Page 83 Calculations would be as shown below for input and output ON delays of 10 ms and a scan time of 20 ms. This example uses only one Slave Rack con- nected to a Master and four words allocated on the Slave Rack.
- Page 84 The table of Section 7-1 provides easy reference to indicator functions, error causes, and appropriate corrective measures. Section 7-2 shows how to monitor errors through SR words and the Programming Console. The procedures used to locate transmission errors are outlined in Section 7-3, while Section 7-4 provides two tables that illustrate operational differ- ences when errors occur in CONTINUE and STOP modes.
-
Page 85: Self-Diagnosis
FAL number is read through the Program- ming Console. Some errors are also monitored by SR bits and can be pro- grammed to indicate errors through external alarms. The SR bits can also be programmed to stop PC operation in the event of specific errors. - Page 86 Section 7-1 Self-Diagnosis Error Before Operation: C500 Masters and Slaves Programming LEDs on Master LEDs on Remote Cause Correction Console LEDs Slave Terminal LEDs TEST LINE POWER TR/ CPU WAITING flash not lit not lit lit not lit lit Terminator not set. Set farthest Unit from Master as terminator.
- Page 87 REMOTE I/O not lit not lit lit Transmission line Correct broken. transmission line. not lit not lit not lit/lit CPU Unit error in Replace Slave or Slave or Remote Remote Terminal. Terminal. not lit Master or Slave Check Slave I/O I/O bus error.
-
Page 88: Self-Diagnosis
Error LINE XMT/ Error Error Console Display Prior to Master not lit not lit not lit not lit CPU Unit doesn’t Check mounting of Master; system detect the Master. turn power back ON. If error operation detected Master not mount... - Page 89 Note I/O verification errors and I/O setting errors occur when an I/O table is used or when the power supply to a Slave is turned off and I/O Unit settings are changed during CPU Unit operation.
-
Page 90: Error Codes And Monitoring
Terminal. word number. The Error Check bit can be turned ON and OFF to read errors when they have occurred in more than one Unit. The Remote I/O Error flag indicates that an error has occurred in one of the Remote Units. - Page 91 6, 7 Multiplier 3 The Error Check bit can be turned ON and OFF to read errors when they have occurred in more than one Unit. The Remote I/O Error flag indicates that an error has occurred in one of the Remote Units.
- Page 92 Section 7-2 Error Codes and Monitoring The Error Check bit can be turned ON and OFF to read errors when they have occurred in more than one Unit. The Remote I/O Error flag indicates that an error has occurred in a Remote I/O Slave Unit or Remote Terminal.
-
Page 93: Error Codes And Monitoring
Section 7-2 Error Codes and Monitoring Remote Terminals The following error flags (both bits) will be turned on when the same word has been allocated for two different Remote Terminals. Function AR 0300/0301 Error flags for Terminal set to word 0... -
Page 94: C500 Systems
Section 7-2 Error Codes and Monitoring Locating Errors: C120 and Using the following system, let’s assume an error has occurred in word 28 C500 Systems and that word 28 has been allocated to a Remote Terminal. Master CPU Rack 32 pts. - Page 95 Incremented one by the Error Check flag. Indicates Remote Terminal word 31. To read the next error, reset the Error Check bit, then set it again. If the left- most Master has an error, the following is displayed. Errors in the Slaves cannot be read if there is an error in the Master.
-
Page 96: C1000H And C2000H Systems
C2000H Systems that this word has been allocated to a Remote Terminal (word 30 in the Sub- system of the Master with a word multiplier of 1), and the Master is set in CONTINUE mode. C1000H and C2000H CPU Rack... - Page 97 Indicates word setting of 31 (allocated word 63) with word multiplier at 1. To read the next error, reset the Error Check bit and then set it. If the leftmost Master has an error, the following is displayed. Errors in the Slaves cannot be read if there is an error in the Master.
-
Page 98: C200H Systems
Error Codes and Monitoring Locating Errors: C200H Using the following system, let’s assume errors have occurred in words 230 Systems and 231 (word settings 30 and 31) and that words 230 and 231 have been allocated to Remote Terminals. Slave Rack C200H PC... - Page 99 Indicates Master #1. Indicates word setting of 31 (allocated word 231). To read the next error, reset the Error Check bit, then set it again. If Slave #1 connected to Master #1 has as error, the following display will appear.
-
Page 100: Locating Transmission Errors
If it does, the line may be disconnected or wired incorrectly, or the power to one of the Units in the line may be off. To locate the problem, set the Unit just before the end as the terminator, disconnect the cable to the last Unit, and test the System again. -
Page 101: Continue And Stop Mode Operation
Operations in CONTINUE The following configuration and table will be used to show LED indications Mode when power to Slave #0 is interrupted in CONTINUE mode. Refer to Section 2 for details on indicator operation. C500 CPU Rack C500 Master... - Page 102 CONTINUE and STOP Mode Operation Operations in STOP Mode The following configuration and table will be used to show LED indications when power to Slave #0 is interrupted in STOP mode Refer to Section 2 for indicator details. C500 CPU Rack...
- Page 103 RUN or MONITOR mode. started when I/O table is sions sions created. started started 2. Error flag is cleared when I/O table is when I/O when I/O created. 2. PC operation begins when table is table is RUN or MONITOR mode created.
-
Page 104: Recovery In Stop Mode
The date of manufacture can be confirmed using the lot number. The first two digits on the left indicate the day (01 to 31), the third digit indicates the month (1 to 9, X (October), Y (November), Z (December)), and the fourth digit indi- cates the last digit of the year. -
Page 105: Notification Method For Multiple Terminators
Error Check Bit If there are errors in more than one Slave, or multiple terminators have been set, data for the Units can be accessed in order by turning this bit ON and OFF. Remote I/O Error Flag This flag indicates that an error has occurred in a Remote I/O Slave Unit or a Remote Terminal (or an Optical I/O Unit or I/O Link Unit). - Page 106 Error Check Bit If there are errors in more than one Slave or multiple terminators have been set, data for the Units can be accessed in order by turning this bit ON and OFF. Remote I/O Error Flag This flag indicates that an error has occurred in a Remote I/O Slave Unit or a Remote Terminal.
-
Page 107: I/O Table Creation Problems
If there are errors in more than one Slave, or multiple terminators have been set, data for the Units can be accessed in order by turning these bits ON (after the data is read, the bit automatically turns OFF). Bits A00500 to A00507 corre- spond to Masters #0 to #7. - Page 108 Section 7-6 I/O Table Creation Problems The “END RS CHK” indicator on the Remote I/O Master (RM) Unit flashes. By turning ON A00500 to A00507, the terminators can be read in order.
- Page 109 Error Check Bit If there are errors in more than one Slave, or multiple terminators have been set, data for the Units can be accessed in order by turning this bit OFF and ON. Remote I/O Error Flag This flag indicates that an error has occurred in a Remote I/O Slave Unit or a Remote Terminal.
-
Page 110: A Standard Models
B500-AL007-P For Wired Remote I/O Units only, used in pairs Remote I/O Unit Connecting Cable The user can purchase the following recommended RS-485 cable from an independent source. Remote I/O Unit connecting cable RS-485 VCTF 2-conductor x 0.75 mm (JIS) - Page 111 Model Number Plastic optical fiber cable Cable only (w/o connector) Order in multiples of 5 m from 5 to 100 m, or in lengths of 200 m or 500 m 3G5A2-PF002 Optical connector A 2 optical connectors (brown) For plastic optical fiber cable 10 m long or shorter...
-
Page 112: B Specifications
500 mA max. at 5 V Weight 500 g max. RUN Output OMRON G6B relay (closed during operation) Contact capacity: 2 A max. at 250 VAC or 24 VDC (cos = 1) Diagnostic functions Transmission error checks BCC and reversed transmission verification... - Page 113 0.5 A max. at 250 VAC (cos = 0.4) 2 A max. at 24 VDC Power output capacity 3 A max. at 5 VDC (actual output to I/O Units: 2.7 A max.) Number of transmission words 10 per Slave Remote Terminals Power consumption** 200 mA input/500 mA output max.
- Page 114 Input indicator LED indicator (green) RUN output G6B 1a contact relay (closed during operation) Contact capacity: 2 A max. at 250 VAC or 24 VDC (cos Diagnostic functions Transmission error checks BCC and reversed transmission verification CPU Unit error monitoring Power consumption 200 mA max.
- Page 115 Electrical life 10 million opera- 2.5 million operations 1 million 1 million operations tions at 5 mA; at 10 mA; 20,000 at 1 A operations 50,000 at 1 A Mechanical life 1 million operations Ambient temp. range –0 to 55 C...
-
Page 116: C When Using Cs1-Series Pcs
CIO 3000 to CIO 3049 are allocated to C200H Remote I/O Slave Units based on their unit number settings (0 to 4) in 10-word blocks. From each 10-word block, 16 bits are allocated to each slot (even if the slot is not used) of the Slave Rack starting from the left (the slot farthest from the Slave Unit). - Page 117 Hardware Setup 1, 2, 3... 1. Mount a Remote I/O Master Unit to a CS1 CPU Rack, a C200H I/O Expan- sion Rack, or a CS1 Expansion Rack (not a SYSMAC BUS Remote I/O Slave Rack). Up to two Masters can be mounted for a basic system. (There are no restrictions on the mounting position.)
- Page 118 Appendix C When Using CS1-series PCs 8. Turn ON power for all of the Slaves. 9. Turn ON power for the PC. 10. Create the I/O tables.
- Page 119 Supply, and other Units. With most PCs, the CPU Rack is the only Rack that provides linkable slots. data area An area in the PC’s memory that is designed to hold a specific type of data, e.g., the LR area is designed for to hold common data in a PC Link System. distributed control A automation concept in which control of each portion of an automated sys- tem is located near the devices actually being control, i.e., control is decen-...
- Page 120 The devices to which terminals on I/O Units, Special I/O Units, or Intelligent I/O Units are connected. I/O devices may be either part of the Control Sys- tem, if they function to help control other devices, or they may be part of the controlled system.
- Page 121 I/O devices. The limits of the PC System on the upper end is the PC and the program in its CPU Unit and on the lower end, I/O Units, Special I/O Units, Optical I/O Units, Remote Termi- nals, etc.
- Page 122 Unit called a PC. programming device A peripheral device used to input a program into a PC or to alter or monitor a program already held in the PC. There are dedicated programming devices, such as Programming Consoles, and there are non-dedicated devices, such as a host computer.
-
Page 123: Glossary
PC System. Though most of the names of these products end with the word Unit, not all do, e.g., a Remote Terminal is referred to in a col- lective sense as a Unit. Context generally makes any limitations of this word clear. -
Page 124: Index
Error and Restart flags for, 83 applying power, sequence of, 40 locating errors in, 89 monitoring error codes in, 82 Backplanes, mounting C200H Masters and Slaves to, 63 programming example for, 43 block diagram Rack dimensions for, 58 C200H Master, 23... -
Page 125: Error Processing
Index combined systems I/O Terminal, word setting and word allocations, 54 configuration of, 16 I/O Terminals word allocation examples for, 39 error flags in C200H Systems, 84 word allocation in, 37, 38 pin settings, 54 CPU Unit errors, indication of, 53... - Page 126 Remote Terminal and I/O Block pairs, 8 Remote Terminals, 104 Remote Terminals Slaves, 103 pin settings, 54 output words, status of after transmission errors, 50, 54 power supply, 67 repeater terminals, 62 response time, 70–73 in C1000H and C2000H Remote I/O Systems, 71...
- Page 127 Index I/O Blocks, 64 transmission lines, 64 unit numbers word multipliers CPU Unit use of in determining number of Slaves, 9 for word allocation, 21 setting on C200H Master, 51 in relation to allocated words, 26 setting on Slaves, 26...
-
Page 128: Revision History
Revision History A manual revision code appears as a suffix to the catalog number on the front cover of the manual. Cat. No. W120-E1-08 Revision code The following table outlines the changes made to the manual during each revision. Page numbers refer to the previous version. - Page 129 Regional Headquarters OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD Hoofddorp The Netherlands Tel: (31)2356-81-300/Fax: (31)2356-81-388 OMRON ELECTRONICS LLC 1 East Commerce Drive, Schaumburg, IL 60173 U.S.A. Tel: (1)847-843-7900/Fax: (1)847-843-8568 OMRON ASIA PACIFIC PTE. LTD. 83 Clemenceau Avenue, #11-01, UE Square,...
- Page 130 Authorized Distributor: Cat. No. W120-E1-08 Note: Specifications subject to change without notice. Printed in Japan...
