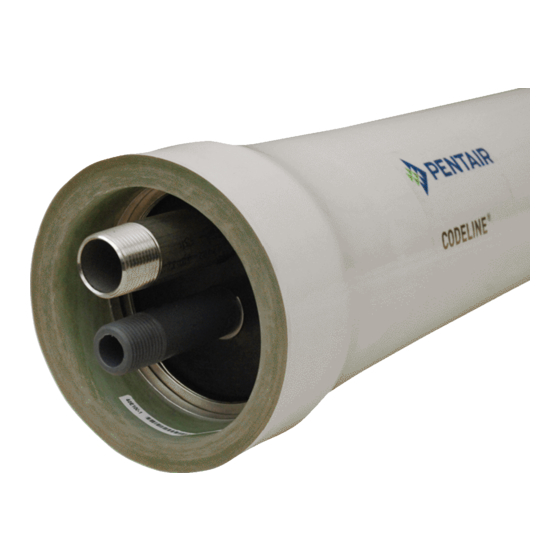

End ported membrane housings for reverse osmosis
Hide thumbs

Advertisement

Quick Links

Download this manual
USER'S GUIDE
End Ported Membrane Housings
For Reverse Osmosis
MODEL – 40E100
All information included in this publication is based on the latest information available
at the time of printing. Pentair reserves the right to make changes at any time without
notice and without incurring any obligation whatsoever. Photocopying of this
publication by authorized original equipment manufacturers who have purchased
directly from Pentair, or by persons using the materials for legitimate educational
purposes, is approved by Pentair. Otherwise all copyright protection afforded by the
law applies.
Product Bulletin – 526005 -Rev. B
CodeLine
Goa, India. Phone: 91-832-6754400  Fax: 91-832-6754412
www.codeline.com
ECN No. 6139 Revision dated – 09/06/2023
Page 1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the CODELINE 40E100 and is the answer not in the manual?

Questions and answers

Related Manuals for Pentair CODELINE 40E100

Summary of Contents for Pentair CODELINE 40E100

  • Page 1 MODEL – 40E100 All information included in this publication is based on the latest information available at the time of printing. Pentair reserves the right to make changes at any time without notice and without incurring any obligation whatsoever. Photocopying of this...
  • Page 2 DANGER – HIGH PRESSURE DEVICE This vessel may cause loss of life, severe bodily harm, or property damage if not correctly installed, operated and maintained. Read and understand all guidelines given in this bulleting before attempting to open, operate or service this vessel. Failure to follow these guidelines and observe every precaution will result in malfunction and could result in catastrophic failure.

  • Page 3: Installation

    INSTALLATION Regardless of when or by whom your vessel may have been installed, there are a few quick checks you should make before use. Check that each vessel is: • Mounted with compliant material (Polyurethane saddle) between the fiberglass shell and any rigid frame.
  • Page 4 OPENING THE VESSEL This can also be accomplished using a WARNING screwdriver and a pair of pliers if the tool is not Relieve pressure from vessel readily available. before beginning this procedure. With the removal tool the retaining ring can Contamination Removal be lifted upward by simply rotating the tool Metal oxidation products and mineral...
  • Page 5 OPENING THE VESSEL (CONTD…) Once the retaining ring has been removed, examine the area for burrs or dings which could damage the head or membrane. If necessary, use ScotchBrite or 600 grade sandpapers to smooth the area. Removing Head Assembly – 1.

  • Page 6: Replacing Elements

    A sharp, forceful thrust may be needed conflicts exist, contact element to enter plug seal into the vessel bore. manufacturer Pentair Water clarification. Removing Elements 1. Remove heads from both ends of vessels as described in Opening the Vessel. Push element out of vessel from the upstream end.
  • Page 7 REPLACING ELEMENTS (CONTD…) 7. Lubricate element seals sparingly with the element manufacturers recommended lubricant or with glycerin. 8. Insert each element with the brine seal (typically a U-cup seat) installed on the upstream end with its lip facing upstream. CAUTION System malfunctions and element damage may result if elements are installed in the wrong direction.

  • Page 8: Head Disassembly

    HEAD DISASSEMBLY NOTE NOTE Head Rebuilding should be performed in a clean During the next step, one or both Port Retainer work area. Dust or dirt on O-rings or other parts halves may fall out. can scratch inner surfaces, with subsequent 5.

  • Page 9: Head Assembly

    HEAD DISASSEMBLY Head Component Identification – Head Disassembled HEAD ASSEMBLY 1. Use only head components in as-new 3. Assembly the Adapter Seal into the condition. Use new O-rings each time the groove in the End Plug. head is assembled. 2. Cover O-rings with a this even layer of Parker Super O-Lube silicone lubricant or the lubricant recommended by your element supplier.
  • Page 10 Plastic parts: examine for cracking, softening or discoloring. This may indicate chemical attack of the material. Defective parts must be replaced. Alternate material may be required. Contact your supplier or Pentair Water for assistance. Metal parts: check for corrosion, scratches, dents, cracks or other damages to insert ring and spiral retaining ring.
  • Page 11 : Use of components damaged by corrosion can cause catastrophic failure. Seals should be replaced as necessary each time the vessel is serviced. Any parts that need to be replaced are available from your supplier or from Pentair. NOTE AFTER END OF SERVICE LIFE OF VESSEL, DISPOSE THE VESSEL AND ITS COMPONENTS AS PER APPLICABLE LOCAL LAWS AND REGULATIONS WARRANTY TERMS &...
