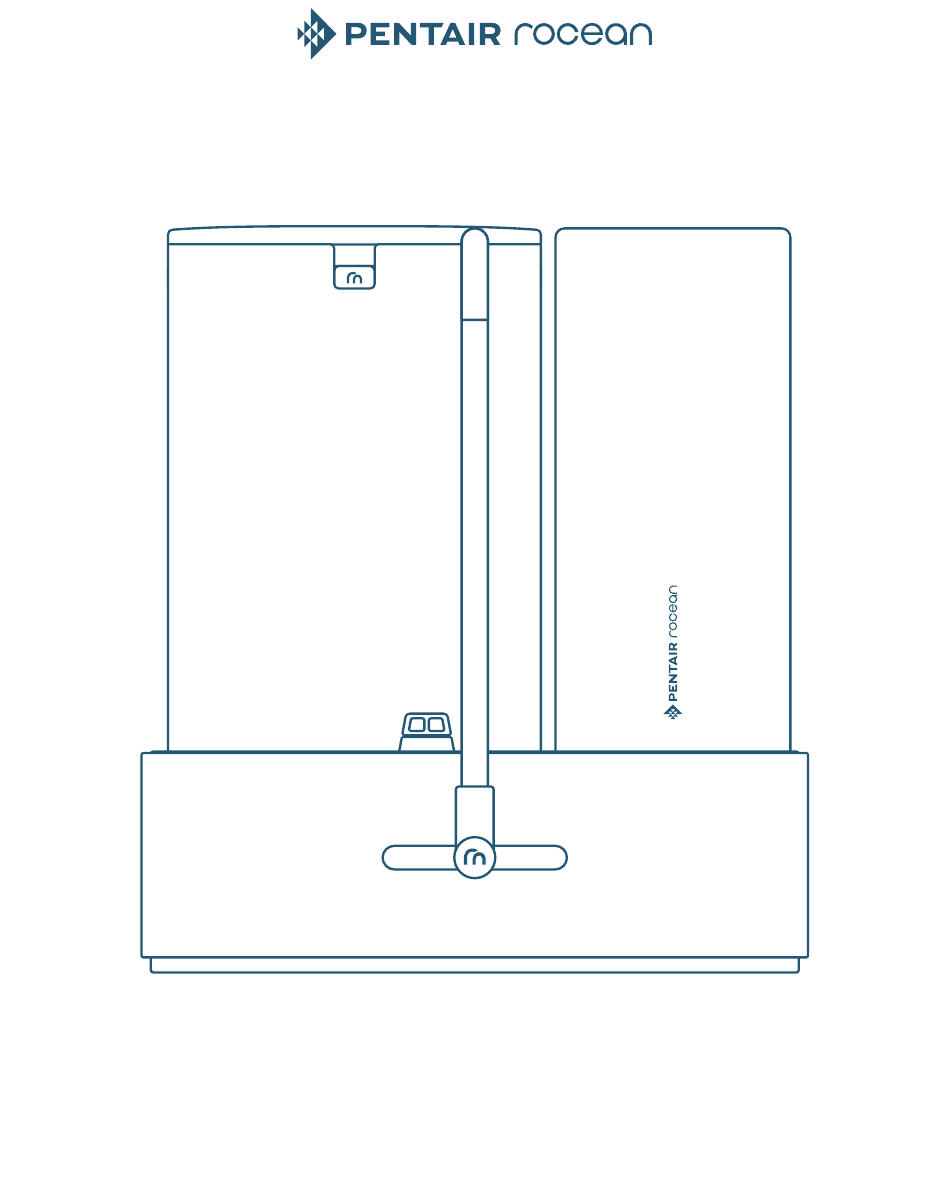

- Page 1 Let’s get started!
-
Page 2: What's In The Box
6 Spout with pre-filter with dust cover 7 Power cord Prefer video instructions? Scan code For a brief video on how to get your Pentair Rocean ® ® Reservoir set-up. Fresh, filtered water is only a few minutes away! PentairRocean.com/HowTo... -
Page 4: First Time Setup
First-time setup Step 1 | Insert the power cord Plug the power cord into the bottom of the base. If desired, wrap any excess cord using the hooks on the bottom of the base. Step 2 | Insert the spout Firmly press the spout into the base until metal is no longer visible. -
Page 5: Step 4 | Plug It In
Step 3 | Insert the filter Remove the filter dust cover. Insert the filter by simultaneously pushing down and rotating clockwise. With the logo facing forward, place the filter sleeve over the filter until it snaps into place. Step 4 | Plug it in Plug the power cord into an outlet. - Page 6 Step 5 | Flush the filter* Fill the water tank with tap water up to the max fill line. We recommend moving your Reservoir to the edge of your sink so that you can easily flush your brand new filter.* This way you can quickly fill the water tank and dispense the excess water directly into the sink.
- Page 7 Step 6 | Repeat Tap the button 4 times to automatically dispense 36 ounces of water (alternatively you can hold the button down, but who has time for that?). Flush water through the system until the tank is completely empty. Repeat step 5 &...
- Page 8 You are all set! Your Reservoir is ready to use! Just press the button for better, cleaner water that’s good for you and good for our planet.
- Page 10 Greater efficiency with InstaClean™ Technology. How did we pack such powerful performance into a filter that fits in your hand? The secret is in our microporous activated coconut-shell carbon filter medium. Our InstaClean™ filter uses a small but powerful pump to push water through a block of ultrafine carbon micropores.
- Page 11 *Based on NSF certifications for Standard Brita® pitcher filter OB03 and IAPMO R&T Certification for the Pentair Rocean filter 4005767/4005801 as part of the 4005799 filtration system as of 7/23/2021. Brita® is a trademark of Brita LP. **16.9 oz single-use plastic water bottles †System 4005799 certified by IAPMO R&T against CSA B483.1 and NSF/ANSI standards 42, 53, 401, and 372 for low lead...
- Page 12 Getting the most out of the Reservoir Press & hold Multi tap Manual dispense Auto-dispense Press & hold the button to instantly Press the button 2x, 3x or 4x times in filter as much water as you’ d like. a row to automatically dispense the amounts shown below: 2x = 12 oz | 350 ml 3x = 24 oz | 700 ml...
- Page 13 Smarter than your average filter. No more guesswork needed. Our intelligent filter replacement notification will alert you when to replace your filter based on usage, not time elapsed. It’s time to stop guessing when to replace your filter! A blue light indicates that your filter does not need to be replaced. An orange light indicates that you have only 10% of the max rated capacity of the filter remaining.
- Page 14 IMPORTANT Before removing filter, watch these video instructions to avoid water spillage. Scan code below PentairRocean.com/HowTo...
-
Page 15: How To Replace The Filter
How to replace the filter Step 1 | Remove tank & Enter filter replace mode Remove the water tank from the base. Press button 8 consecutive times. The machine will enter “Filter Replace Mode” and the LED will blink white. IMPORTANT Before removing filter, remove the water tank and then push the... - Page 16 Step 2 | Remove water & Remove filter Place a large glass under the spout & press the button 2 times to depressurize the filter, some water will come out of the spout. Remove the filter by twisting counter- clockwise. Be mindful, there may be a little water leftover when removing. Step 3 | Flush the filter Please refer back to the steps on page 6 to see how to flush your new filter.
-
Page 17: Contact Information
Email: Support@PentairRocean.com Phone: 1-888-764-3879 For Pentair Rocean product warranties visit: PentairRocean.com/Warranty All Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. NOTE: For Indoor Use Only. Only use replacement filters designed for use with the Pentair Rocean Reservoir. -
Page 18: Troubleshooting And Faq
Troubleshooting & FAQ How often do filters need to be replaced? Reservoir filters have a maximum rated capacity of 390 gallons*. Depending on your usage and water quality, this could last 3-12 months. Your Reservoir’s automatic filter replacement notification light will change to orange when there is less than 10% of the rated maximum capacity remaining and it is time to order a replacement filter. - Page 19 The spout on my Reservoir is sputtering out water - the flow seems restricted. Something must have gotten into your spout from the outside. No matter - just remove your spout from the device and clear out with a common straw or pipe cleaner. When I try to dispense, my Reservoir starts &...
-
Page 20: Performance Data Sheet
Water Filtration System Pentair Rocean Reservoir Filter System Model # 4005799 Company: Be The Change Labs, d.b.a Rocean Address: 833 Broadway, 2nd Fl, New York, NY 10003 Phone: 812-344-2023 Website: PentairRocean.com... - Page 21 Percent Average Reduction Average Influent Percent Requirement/ Standard Substance Influent challenge Reduction Maximum Concentration concentration / Water Permissible Concentration Product Water Concentration Minimum NSF/ANSI 42 Particulate Class I 4800000/mL 99.8% ≥ 85% 10,000/mL Chlorine, Taste and NSF/ANSI 42 1.95 mg/L 2.0 mg/L ±...
- Page 22 NSF/ANSI 1,400 ng/L ± Carbamazepine 1424 ng/L 10.0 ng/L 200 ng/L NSF/ANSI DEET 1,400 ng/L ± 1497 ng/L 11.8 ng/L 200 ng/L (diethyltoluamide) NSF/ANSI Estrone 152 ng/L 140 ng/L ± 20% 2.0 ng/L 20 ng/L NSF/ANSI Ibuprofen 405 ng/L 400 ng/L ± 20% 10.4 ng/L 60 ng/L NSF/ANSI...
- Page 23 Organic chemicals included by surrogate testing Maximum Influent Challenge Chemical Reduction Product Water Chemical Concentration1 (mg/L) Percent Concetration (mg/L) Alachlor 0.050 > 98% 0.0012 Benzene 0.081 > 99% 0.0012 Carbofuran 0.190 > 99% 0.0012 Carbon tetrachloride 0.078 0.00183 Chlorobenzene 0.077 >...
- Page 24 Haloketones (HK) 1,1-dichloro-2-propanone 0.0072 0.00012 1,1,1-trichloro-2-propanone 0.0082 0.00032 Heptachlor (H-34, Heptox) 0.025 > 99% 0.00001 Heptachlor epoxide 0.01075 0.00025 Hexachlorobutadiene 0.044 > 98% 0.0012 Hexachlorocyclopentadiene 0.060 > 99% 0.0000022 Methoxychlor 0.050 > 99% 0.00012 Pentachlorophenol 0.096 > 99% 0.0012 Simazine 0.120 >...
- Page 25 Not all water will contain contaminants listed. Testing performed under standard laboratory conditions; actual performance may vary. Filter is only to be used with cold water. Filter usage must comply with all state and local laws. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
- Page 26 Important Safeguards: Safe Operation & Use WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. NOTE: Installation should comply with state and local laws and regulations.
- Page 28 Enjoy fresh food without endangering species. Drink the purest water without harming the oceans. At Pentair Rocean, we challenge the idea that everything good must come at a cost. We believe it’s possible to both appreciate the environment and protect it. Which is why we’re not only redesigning the home water system by bringing high performance filtration to the water you already have in your home, we’re redesigning our approach to innovation.
- Page 29 What if you could enjoy the planet without harming it?
