KOBE RAX21 SQB-1 Basic Manual

Parts location and replacement

Download this manual

RAX21 SQB-1 Parts Location and Replacement

This basic guide is to show the parts location of the RAX21 SQB-1 and how to remove or install certain parts.

To see more detailed guidelines, please visit:

For under cabinet models: RAX2130SQB-1, RAX2136SQB-1, RAX2142SQB-1

For wall mount models: RAX2130SQB-WM-1, RAX2136SQB-WM-1, RAX2142SQB-WM-1

1. Blower System

2. Control Switch

3. LED Light (3W)

KOBE Range Hoods

"So Quiet...You Won't Believe It's On!"

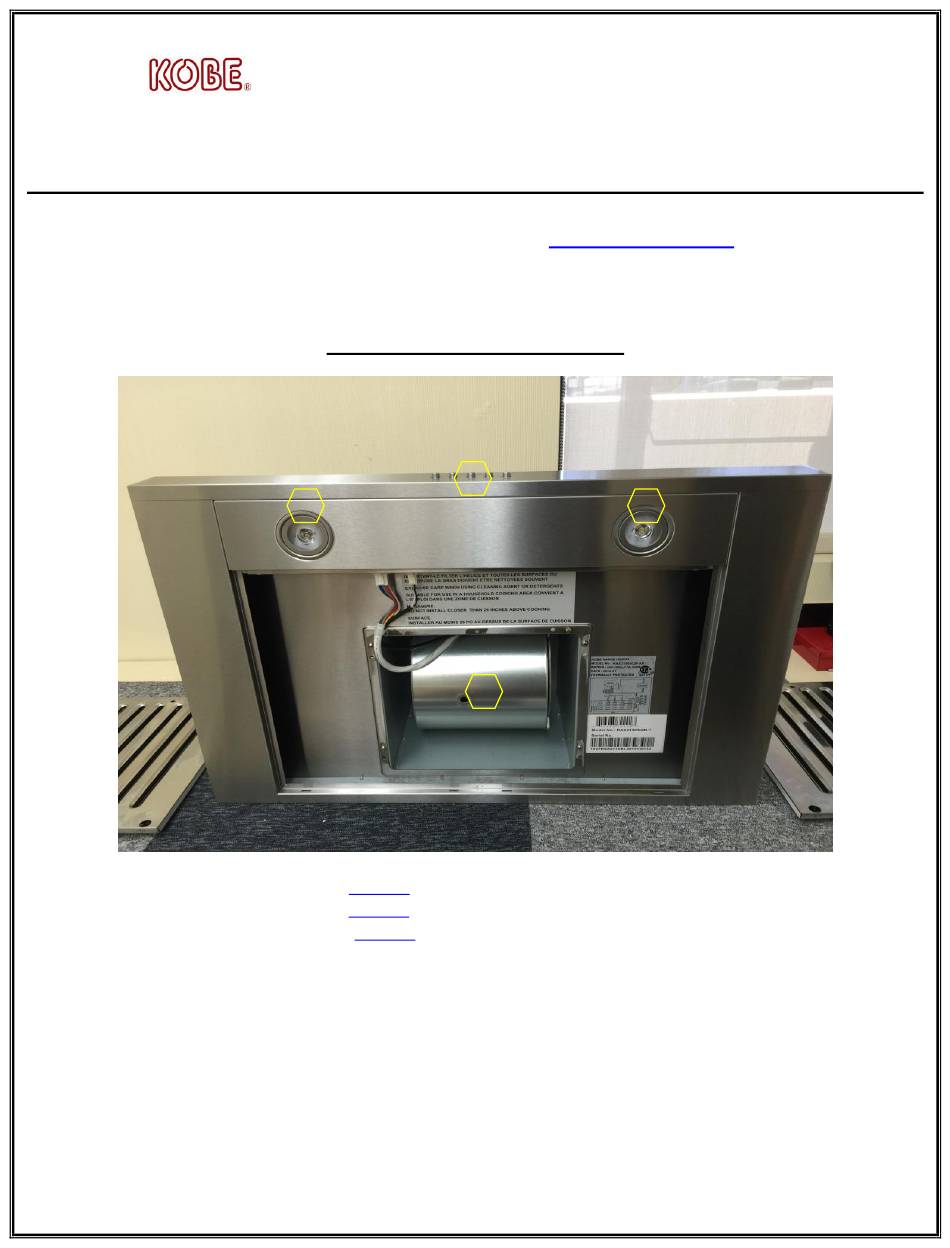

Overall Snapshot of RAX21 SQB-1

Part #7 – See "Parts List" page on manual)

(Manual

Part #6 – See "Parts List" page on manual)

(Manual

Part #5 – See "Parts List" page on manual)

(Manual

Page 1 of 5

Version 20160725

Kobe Service and Repair

Need help?

Do you have a question about the RAX21 SQB-1 and is the answer not in the manual?

Page 1 “So Quiet…You Won’t Believe It’s On!” RAX21 SQB-1 Parts Location and Replacement This basic guide is to show the parts location of the RAX21 SQB-1 and how to remove or install certain parts. To see more detailed guidelines, please visit:...
Page 2 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the LED Light Support Warning: Loosen the screw first with a hand tool screw driver. Warning: When pulling the wires from the capacitor support, press the ‘push release’ at the back of the cord.
Page 3 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Accessing the Capacitor and LED Driver Warning: When pulling the wires from the capacitor support, press the ‘push release’ at the back of the cord. Figure 1 Figure 2 Warning: For the...
Page 4 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Control Switch Warning: Loosen the screw first with a hand tool screw driver. Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Part #6 – See “Parts List” page on manual) 2.
Page 5 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Blower System Warning: 1. Loosen the screw first with a hand tool screw driver. 2. Place a support or hold the blower before removing it. Figure 1 Figure 2 Figure 3 Part #7 –...
