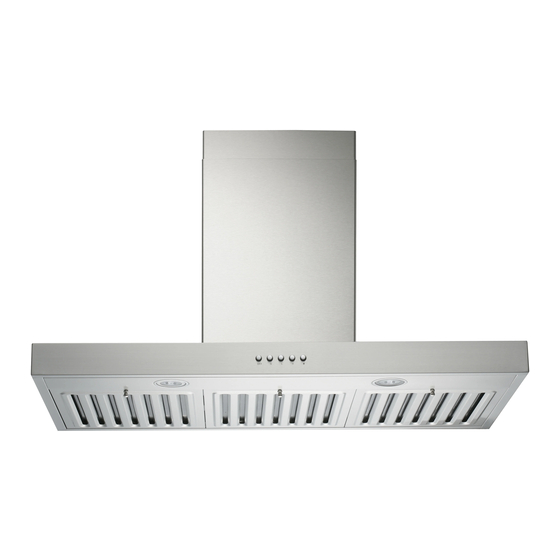

Brillia Series
RAX21 SQB-X Series
Under Cabinet Model: RAX2130SQB-1 (30") / RAX2130SQB-2 (30")
Wall Mount Model:
KOBE Range Hoods
RAX2136SQB-1 (30") / RAX2136SQB-2 (36")
RAX2142SQB-1 (42") / RAX2142SQB-2 (42")
RAX2130SQB-WM-1 (30") / RAX2130SQB-WM-2 (30")
RAX2136SQB-WM-1 (36") / RAX2136SQB-WM-2 (36")
RAX2142SQB-WM-1 (42") / RAX2142SQB-WM-2 (42")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOBE RAX21 SQB-X Series
Summary of Contents for KOBE RAX21 SQB-X Series
- Page 1 KOBE Range Hoods Brillia Series RAX21 SQB-X Series Under Cabinet Model: RAX2130SQB-1 (30”) / RAX2130SQB-2 (30”) RAX2136SQB-1 (30”) / RAX2136SQB-2 (36”) RAX2142SQB-1 (42”) / RAX2142SQB-2 (42”) RAX2130SQB-WM-1 (30”) / RAX2130SQB-WM-2 (30”) Wall Mount Model: RAX2136SQB-WM-1 (36”) / RAX2136SQB-WM-2 (36”) RAX2142SQB-WM-1 (42”) / RAX2142SQB-WM-2 (42”)
- Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of package(s). 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/electrician test the unit before installation. IF THERE IS ANY PROBLEMS: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 5 OPERATING INSTRUCTIONS ..................10 MAINTENANCE ......................11 SPECIFICATIONS ......................12 MEASUREMENTS & DIAGRAMS................. 13 PARTS LIST ........................14 CIRCUIT DIAGRAM ...................... -
Page 4: Important Safety Instructions
Any repair carried out without the supervision of KOBE authorized agents automatically void the warranty. KOBE will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do in the Event of a Range Top Grease Fire 1. SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
3 (for 36” and 42”) {F} Flapper x 2 {G} Screws *knob is attached to the filters Size: 4*16 QTY: 6pcs Size: 4*35 QTY: 2pcs • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT 626-775-8880. - Page 7 {G} Duct Cover {H} Duct Cover-Mounting Bracket {I} Screws *knob is attached to the filters Size: 4*16 Size: 4*8 QTY: 6pcs Size: 4*35 QTY: 2pcs QTY: 4pcs • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT 626-775-8880.
-
Page 8: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculations in inches). - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to... - Page 9 1. Read any provided document(s). 2. Test the range hood by temporarily connecting it to an outlet and turning ON the fan and lights. 3. If you run into any problems, contact KOBE Range Hoods. Venting Requirements 4. The range hood has top 6” round exhaust (default).
- Page 10 Electrical Wire 17. Connected the range hood to an outlet. 18. If hardware is desired, cut off the plug and connect three wires (black, white, and green) to the outlet wires and cap with wire connectors. Connect the wires according to color (ex.
- Page 11 1. Read any provided document(s). 2. Test the range hood by temporarily connecting it to an outlet and turning ON the fan and lights. 3. If you run into any problems, contact KOBE Range Hoods. Venting Requirements 4. The range hood has top 6” round exhaust (default).
- Page 12 Duct Cover Installation 16. Use reference E from TABLE 2 and measurements on page XX to mark the position of the duct cover-mounting bracket. 17. Secure the duct cover-mounting bracket to the wall with two 4*35 screws. Make sure all screws are tightened. Refer to Figure 3.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS 3-Speed Mechanical Push Button NOTE: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed o Q = QuietMode™... -
Page 14: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 15: Specifications
SPECIFICATIONS MODEL / SIZE Under Cabinet Model No. Wall Mount Model No. RAX2130SQB-1 (30”) RAX2130SQB-WM-1 (30”) RAX2136SQB-1 (36”) RAX2136SQB-WM-1 (36”) RAX2142SQB-1 (42”) RAX2142SQB-WM-1 (42”) RAX2130SQB-2 (30”) RAX2136SQB-2 (36”) RAX2142SQB-2 (42”) COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 126W / 1.41A VOLTAGE / Hz 110V / 60Hz NUMBER OF BLOWERS... -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. - FOR UNDER THE CABINET - MODEL NO.: RAX2130SQB-2 (30”) / RAX2136SQB-2 (36”) / RAX2142SQB-2 (42”) - FOR WALL MOUNT - RAX2130SQB-WM-2 (30”) / RAX2136SQB-WM-2 (36”) / RAX2142SQB-WM-2 (42”) MODEL NO.:... -
Page 17: Parts List
PARTS LIST MODEL NO.: RAX2130SQB-2 (30”) RAX2136SQB-2 (36”) RAX2142SQB-2 (42”) Description Model No. Part No. 6” Round Exhaust Adapter 02-028 Hood-Mounting Bracket 02-029 Capacitor 02-004 LED Light 02-005 Control Switch 02-006 Blower System YYC-148-3 Baffle Filter 02-026 LED Light Driver 02-001... - Page 18 MODEL NO.: RAX2130SQB-WM-2 (30”) RAX2136SQB-WM-2 (36”) RAX2142SQB-WM-2 (42”) Description Model No. Part No. Duct Cover-Mounting Bracket 02-039 Duct Cover RAX21DC-2 6” Round Exhaust Adapter 02-028 Hood-Mounting Bracket 02-029 Capacitor 02-004 LED Light 02-005 Control Switch 02-006 Blower System YYC-148-3 Baffle Filter 02-026 LED Light Driver 02-001...
-
Page 19: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RAX2130SQB-2 / RAX2130SQB-WM-2 (30”) RAX2136SQB-2 / RAX2136SQB-WM-2 (36”) RAX2142SQB-2 / RAX2142SQB-WM-2 (42”) -
Page 20: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a installation, both motors voltage meter to check the power and lights are supply. not working. The wire connection is not secure. -
Page 21: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 22 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repairs, alternation, modification not authorized by KOBE. 3. Duct alternation, modification, and connection. 4. Incorrect electric current, voltage, or wiring. 5. Improper usage of the product such as commercial, outdoor, or other usage other than residential indoor usage.
-
Page 23: Warranty Information Form
3. Serial No. :_______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
