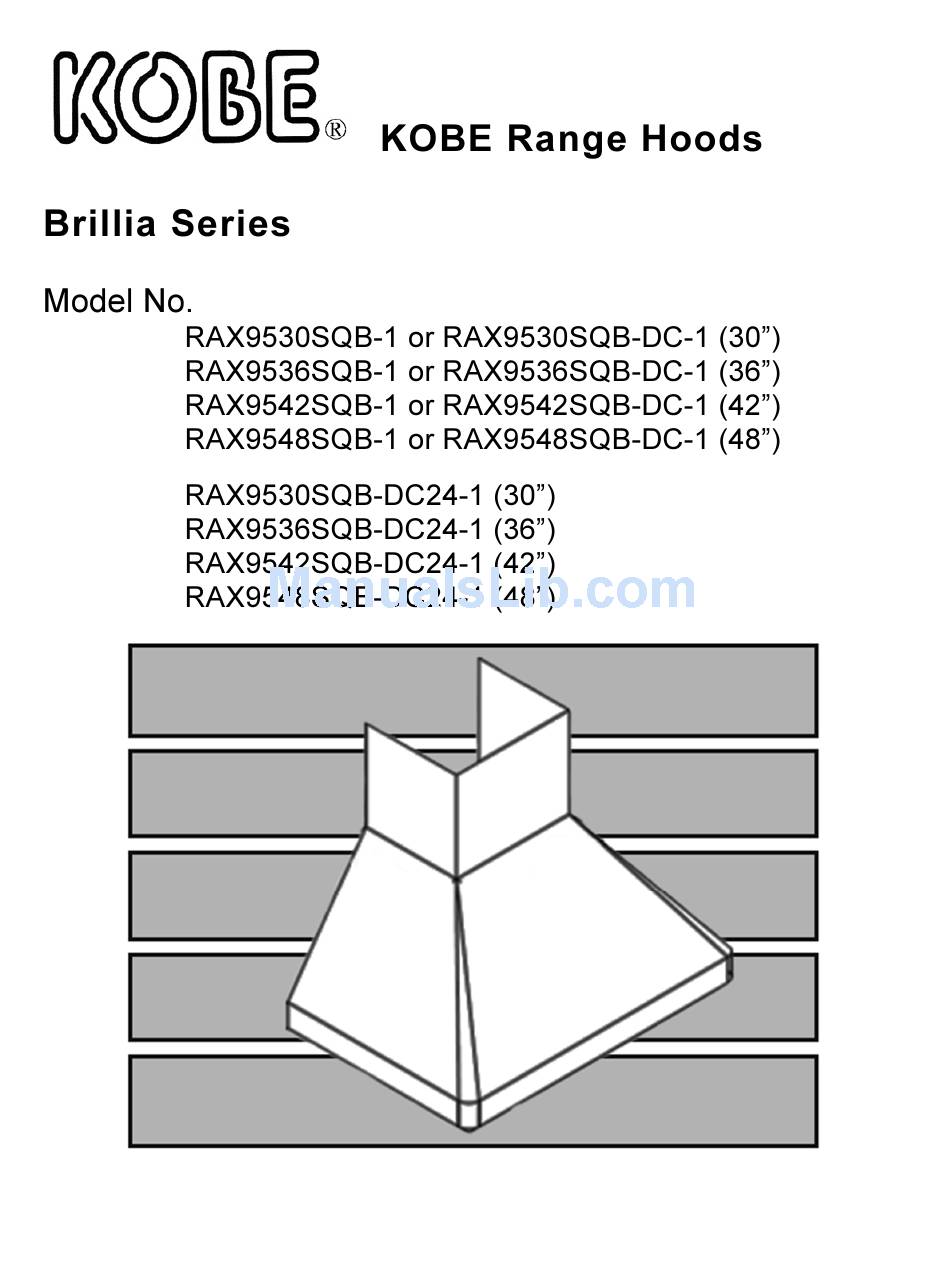

- Page 1 INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 4 OPERATION INSTRUCTIONS....................8 MAINTENANCE ......................... 9 SPECIFICATIONS ........................10 MEASUREMENTS & DIAGRAMS .....................12 PARTS LIST ..........................13 CIRCUIT DIAGRAM ........................16 TROUBLE SHOOTING ......................17 WARRANTY ..........................18 WARRANTY INFORMATION FORM ..................20 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
Extension Duct Cover Box (Included in RAX95 SQB-DC24-1 Only) Extension Duct Cover (Model No. RA02DC-24-1) Duct Cover Mounting Bracket Screws Package M4 x 1-1/2” (2) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom 30”... - Page 8 Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 1) A straight, short venting run will allow the hood to perform more efficiently.
-
Page 9: Safety Warning
Hood Installation Figure 4 CAUTION: If required to move the cooking range to install the hood, turn off the power on an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. 1. Using references in Table 1 and measurements on Page 12, mark the leveling locations point for hood-mounting bracket on the wall. - Page 10 Figure 7 Duct Cover Installation 6. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage, baffle filters, and bright LED lights. The two rotary controls are Light Control & Speed Control. Refer to Figure 9. Figure 9 Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to establish airflow in the kitchen. -
Page 12: Maintenance
MAINTENANCE For the optimal level of operation, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 13: Specifications
SPECIFICATIONS RAX95 Series MODEL / SIZE RAX9530SQB-1 or RAX9530SQB-DC-1 / 30” / Single Blower RAX9536SQB-1 or RAX9536SQB-DC-1 / 36” / Single Blower RAX9542SQB-1 or RAX9542SQB-DC-1 / 42” / Dual Blowers RAX9548SQB-1 or RAX9548SQB-DC-1 / 48” / Dual Blowers RAX9530SQB-DC24-1 / 30” / Single Blower RAX9536SQB-DC24-1 / 36”... - Page 14 Gross RAX9530SQB-1 61.0 68.0 HOOD WEIGHT (lbs) RAX9536SQB-1 63.5 73.0 RAX9542SQB-1 78.5 90.5 RAX9548SQB-1 83.8 98.1 SPEED High QuietMode™ SINGLE BLOWER RAX9530SQB-DC-1 Air Capacity (cfm) RAX9536SQB-DC-1 Sone* RAX9530SQB-DC24-1 RAX9536SQB-DC24-1 DUAL BLOWERS RAX9542SQB-DC-1 Air Capacity (cfm) 1200 RAX9548SQB-DC-1 Sone* RAX9542SQB-DC24-1 RAX9548SQB-DC24-1 *One sone is equivalent to the sound of a refrigerator at 40 decibels.
-
Page 15: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO.: RAX9530SQB-1 or RAX9530SQB-DC-1 (30”) RAX9536SQB-1 or RAX9536SQB-DC-1 (36”) RAX9542SQB-1 or RAX9542SQB-DC-1 (42”) RAX9548SQB-1 or RAX9548SQB-DC-1 (48”) Duct Cover for RAX95 SQB-DC24-1 Series... -
Page 16: Parts List
PART LIST MODEL NO.: RAX9530SQB-1 or RAX9530SQB-DC-1 and RAX9530SQB-DC24-1 (30”) RAX9536SQB-1 or RAX9536SQB-DC-1 and RAX9536SQB-DC24-1 (36”) RAX9542SQB-1 or RAX9542SQB-DC-1 and RAX9542SQB-DC24-1 (42”) RAX9548SQB-1 or RAX9548SQB-DC-1 and RAX9548SQB-DC24-1 (48”) DESCRIPTION MODEL /SIZE PART NO. 6” Round Plastic Exhaust RAX9530SQB-1/RAX9536SQB-1 L1-0505-0003 L1-0505-0004 8”... - Page 17 MODEL NO.: RAX9530SQB-1 or RAX9530SQB-DC-1 and RAX9530SQB-DC24-1 (30”) RAX9536SQB-1 or RAX9536SQB-DC-1 and RAX9536SQB-DC24-1 (36”)
- Page 18 MODEL NO.: RAX9542SQB-1 or RAX9542SQB-DC-1 and RAX9542SQB-DC24-1 (42”) RAX9548SQB-1 or RAX9548SQB-DC-1 and RAX9548SQB-DC24-1 (48”)
-
Page 19: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RAX9530SQB-1 or RAX9530SQB-DC-1 and RAX9530SQB-DC24-1 (30”) RAX9536SQB-1 or RAX9536SQB-DC-1 and RAX9536SQB-DC24-1 (36”) MODEL NO.: RAX9542SQB-1 or RAX9542SQB-DC-1 and RAX9542SQB-DC24-1 (42”) RAX9548SQB-1 or RAX9548SQB-DC-1 and RAX9548SQB-DC24-1 (48”) -
Page 20: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check both motors the power supply. and lights The wire connection is not Check and tighten wire connection. -
Page 21: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM / BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 22 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
-
Page 23: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact:... - Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
