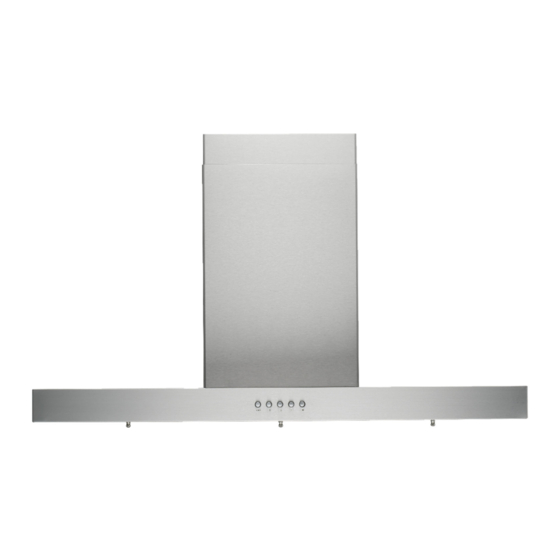

KOBE Brillia RAX2130SQB-1 Installation Instructions And Operation Manual
Under cabinet / wall mount
Hide thumbs
Also See for Brillia RAX2130SQB-1:
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for KOBE Brillia RAX2130SQB-1
Summary of Contents for KOBE Brillia RAX2130SQB-1

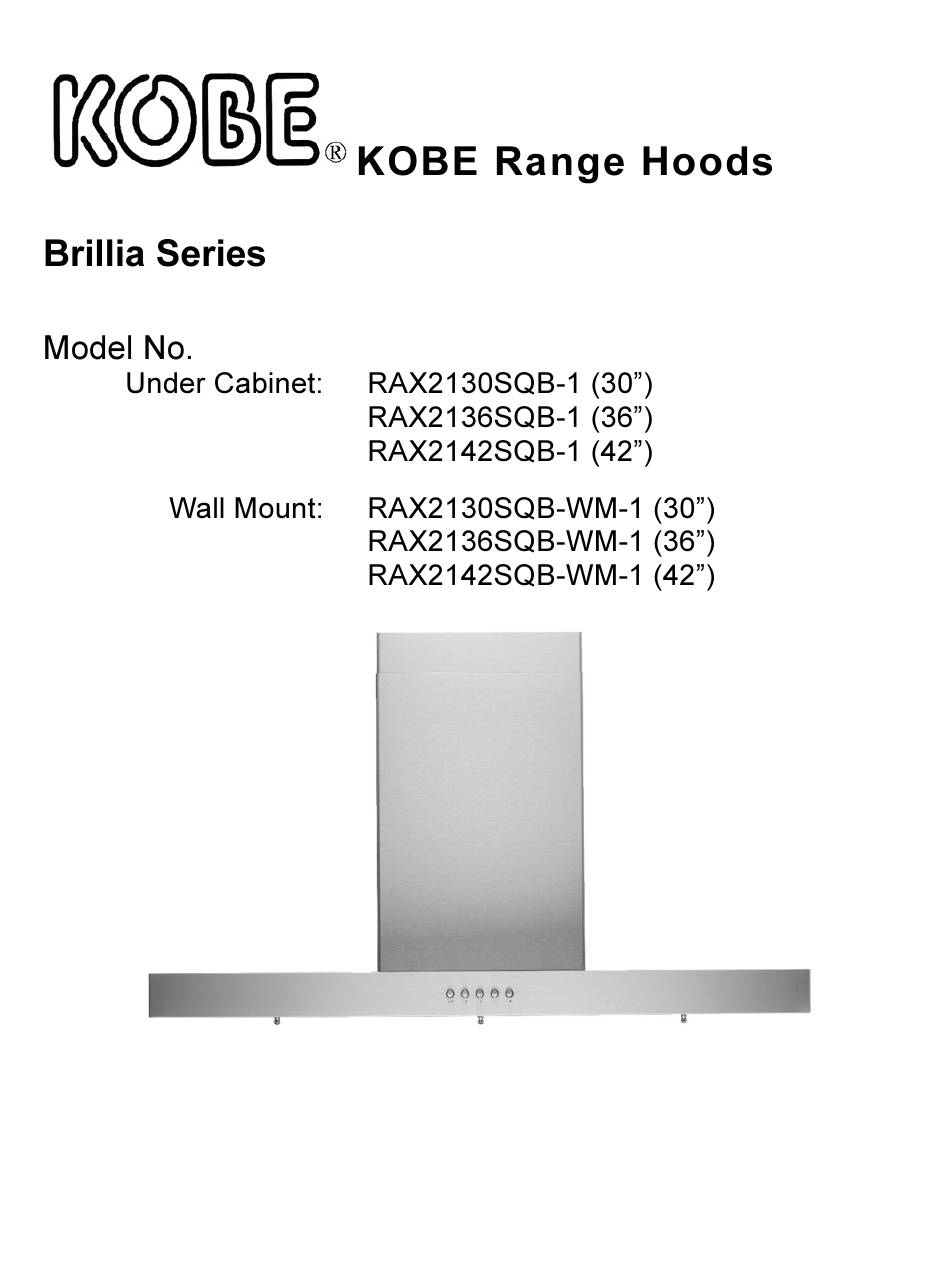

- Page 1 INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 5 OPERATING INSTRUCTIONS....................11 MAINTENANCE ........................12 SPECIFICATIONS ........................13 MEASUREMENTS & DIAGRAMS .....................14 PARTS LIST ..........................16 CIRCUIT DIAGRAM ........................20 TROUBLE SHOOTING ......................21 WARRANTY ..........................22 WARRANTY INFORMATION FORM ..................24 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{E} 6” Round Plastic Collar {F} Wire Cap x 3 {G} Screws Package Wire caps (3) * Pre-installed Knob is attached to baffle filter M4 x 1-1/2” (4) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. - Page 7 {I} Wire Cap x 3 {J} Screws Package Knob is attached to baffle filter 3/16 “x 3/8” (8PCS) * Pre-installed Wire caps (3) M4 x 1-1/2” (4) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
-
Page 8: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 Cabinet A = Height of Floor to Ceiling B = Height of Floor to Counter Top Hood (Standard: 36") C = Preferred Height of Counter Top to... - Page 9 SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents UNDER CABINET WALL MOUNT...
- Page 10 UNDER CABINET INSTALLATION For Model No.: RAX2130SQB-1 / RAX2136SQB-1 / RAX2142SQB-1 Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
- Page 11 Figure 5 Ductwork Installation 5. Use steel pipe to connect the 6” round plastic collar {E} on the hood to the ductwork above. Use duct tape to make all joints secure and air tight. Refer to Figure 6 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
- Page 12 WALL MOUNT INSTALLATION For Model No.: RAX2130SQB-WM-1 / RAX2136SQB-WM-1 / RAX2142SQB-WM-1 Preparation before Installation Figure 8 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 8. A straight, short venting run will allow the hood to perform more efficiently.
- Page 13 Figure 12 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL LOCK SERVICE PANEL...
-
Page 14: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed. o Q = QuietMode™ speed o L = Low speed o H = High speed •... -
Page 15: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 16: Specifications
SPECIFICATIONS MODEL / SIZE For Under Cabinet Application For Wall Mount Application RAX2130SQB-1 (30”) RAX2130SQB-WM-1 (30”) RAX2136SQB-1 (36”) RAX2136SQB-WM-1 (36”) RAX2142SQB-1 (42”) RAX2142SQB-WM-1 (42”) COLOR 18-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 300W / 2.5A NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage... -
Page 17: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS *** All inch measurements are converted from millimeters. Inch measurements are estimated. *** All measurements in ( ) are millimeters. -FOR UNDER THE CABINET- MODEL NO.: RAX2130SQB-1 (30”) / RAX2136SQB-1 (36”) / RAX2142SQB-1 (42”) - FOR WALL MOUNT - MODEL NO.: RAX2130SQB-WM-1 (30”) / RAX2136SQB-WM-1 (36”) / RAX2142SQB-WM-1 (42”) - Page 18 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket...
-
Page 19: Parts List
PARTS LIST MODEL NO.: RAX2130SQB-1 (30”) RAX2136SQB-1 (36”) RAX2142SQB-1 (42”) DESCRIPTION MODEL /SIZE PART NO. 6” Round Plastic Exhaust L1-0505-0003 Capacitor x 1 pc L1-0401-0120-24 LED Light Driver L1-0402-D001 RAX2130SQB-1 B101-2130B-06 RAX2136SQB-1 LED Light Support B101-2136B-06 RAX2142SQB-1 B101-2142B-06 LED Light (3W) L1-0403-0301 Control Switch L1-0405-0301... - Page 20 MODEL NO.: RAX2130SQB-1 (30”) RAX2136SQB-1 (36”) RAX2142SQB-1 (42”)
- Page 21 MODEL NO.: RAX2130SQB-WM-1 (30”) RAX2136SQB-WM-1 (36”) RAX2142SQB-WM-1 (42”) DESCRIPTION MODEL /SIZE PART NO. Duct Cover-Mounting Bracket L1-0203-0390 Duct Cover RA028DC-1 12-03900 6” Round Plastic Exhaust L1-0505-0003 Capacitor x 1 pc L1-0401-0120-24 LED Light Driver L1-0402-D001 RAX2130SQB-WM-1 B101-2130B-06 RAX2136SQB-WM-1 LED Light Support B101-2136B-06 RAX2142SQB-WM-1 B101-2142B-06...
- Page 22 MODEL NO.: RAX2130SQB-WM-1 (30”) RAX2136SQB-WM-1 (36”) RAX2142SQB-WM-1 (42”)
-
Page 23: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RAX2130SQB-1 and RAX2130SQB-WM-1 (30”) RAX2136SQB-1 and RAX2136SQB-WM-1 (36”) RAX2142SQB-1 and RAX2142SQB-WM-1 (42”) -
Page 24: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter both motors to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. not working. -
Page 25: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 26 TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE CENTER: From the 48 contiguous states:...
-
Page 27: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For service in Canada and to report a problem, please contact:... - Page 28 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
