(Not for use on RTV 500)
These instructions are for installation of the
complete cab as well as the modular components.
Description:
Part Number:
Complete Cab Kit
77700-11821 (this contains all 5 kits listed below)
Mount Kit
77700-V4310A (required to install any of the following individual kits)
Windshield Kit
77700-V4368
Rear Panel Kit
77700-11822
Roof Kit
77700-V4312
Door Kit
77700-11823
This cab has been modularly designed so that components may be quickly detached and attached depending upon conditions.
Any component may be used independently with the required Mount Kit (p/n: 77700-V4310A).
BEFORE INSTALLING CAB
Read all instructions and safety instructions in this manual.
Refer to your machine's operator's manual and safety instructions on your
machine's safety decals.
Wear appropriate personal protective equipment (PPE) when performing
work.
Hang a "DO NOT OPERATE" tag in operator station.
Estimated assembly time for entire cab: 1.5 hours (excluding any accessories)
PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020
INSTALLATION MANUAL

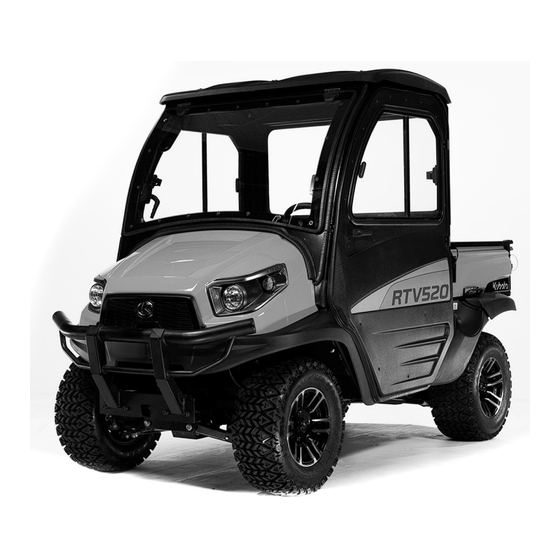

COMPLETE CAB KIT (77700-11821)
KUBOTA RTV 520
Code: 77700‐11999 (Rev. A)
Advertisement
Related Manuals for Kubota 77700-11821
Summary of Contents for Kubota 77700-11821
- Page 1 These instructions are for installation of the complete cab as well as the modular components. Description: Part Number: Complete Cab Kit 77700-11821 (this contains all 5 kits listed below) Mount Kit 77700-V4310A (required to install any of the following individual kits) Windshield Kit 77700-V4368...
-
Page 2: Parts List
77700-V4310A RTV 520 MOUNT KIT PARTS LIST HARDWARE RUBBER TYPES: 1/4” x 3/4” 5/8” REG. BULB EXPAND-A-FOAM 9PRO2 9PR30 PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700‐11999 (Rev. A) - Page 3 1/16” x 1/2” 5/8” REG. BULB 1” RND BULB 5/8” SIDE BULB FOAM TAPE HARDWARE* *HARDWARE ONLY RE- 9YR-DT 9PRO2 9PR19 9PR17 QUIRED WHEN REPLACING CLEAR WINDSHIELD PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700‐11999 (Rev. A)
- Page 4 77700-11822 RTV 520 REAR PANEL KIT PARTS LIST INSIDE VIEW RUBBER TYPES: 5/8” REG. BULB HARDWARE 9PRO2 PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700‐11999 (Rev. A)
- Page 5 77700-V4312 RTV 520 ROOF KIT PARTS LIST UNDERSIDE VIEW OF ROOF ASSEMBLY PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700‐11999 (Rev. A)
- Page 6 77700-11823 RTV 520 DOOR KIT PARTS LIST RUBBER TYPES: 5/8” SIDE BULB 1” FOAM TAPE HARDWARE 9PR17 9PR39 PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700‐11999 (Rev. A)
