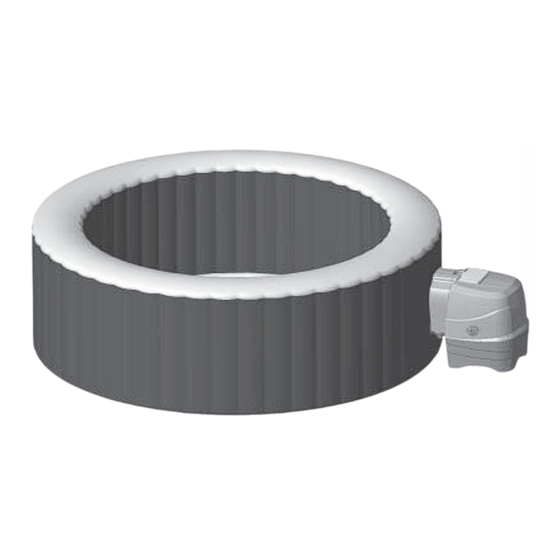

PureSpa™
SB-HS20
For illustrative purposes only.
Do not forget to try these other fi ne Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fi ne
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifi cations and appearance, which may
result in updates to the instruction manual without notice.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays
sous licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet
in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &
Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans
l'Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,
Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited, 21
Holborn Viaduct, London EC1A 2DY, UK.
www.intexcorp.com
(363IO) SPA ENGLISH 7.5" X 10.3" PANTONE 295U 11/10/2023
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.
©2024 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
363
English
A
363-*A*-R1-2411
