PureSpa™
SB-B20-1

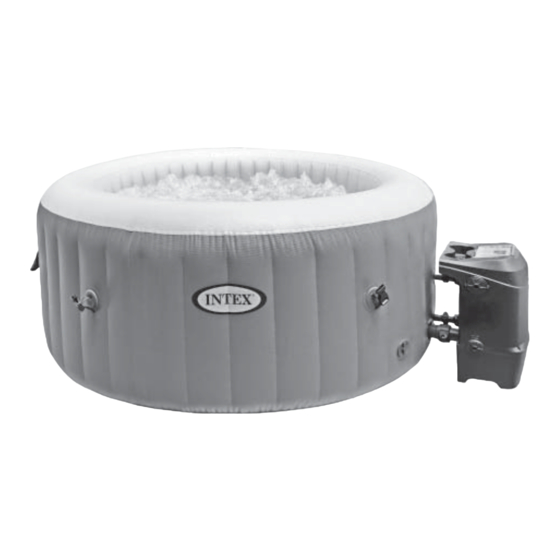

For illustrative purposes only.
Do not forget to try these other fi ne Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fi ne
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifi cations and appearance, which may
result in updates to the instruction manual without notice.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays
sous licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet
in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &
Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans
l'Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,
Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited, 21
Holborn Viaduct, London EC1A 2DY, UK.
www.intexcorp.com
(365IO) SPA ENGLISH 7.5" X 10.3" PANTONE 295U 08/28/2023
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.
©2023 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
365
English
A
365-*A*-R0-2408

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureSpa SB-B20-1 and is the answer not in the manual?

Questions and answers

Rachel moon
June 14, 2025

Ive started putting up my spa and once inflated, it starts deflating. Is this normal and will it stop once I start putting water in? I don't want to fill it, if it is just going to deflate

User image 684d80f1d5e26
0

Related Manuals for Intex PureSpa SB-B20-1

Summary of Contents for Intex PureSpa SB-B20-1

  • Page 1 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,...

  • Page 2: Table Of Contents

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English TABLE OF CONTENTS Warning..................3-6 Parts....................Set-up..................... 9-14 Operation..................LED Code Chart................16 Minimize Heat Loss and Energy Consumption Advice..... 17 Maintenance and Chemicals............18-22 Storage................... 22 Troubleshooting................23-24 Filter pump motor disassembly........... 25 Warranty..................

  • Page 3: Warning

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English IMPORTANT SAFETY RULES When installing and using this electrical equipment, basic safety precautions should always be followed, including the following. READ AND FOLLOW ALL INSTRUCTIONS DANGER • Risk of Accidental Drowning (especially children under 5 years). Caution shall be exercised to prevent unauthorized access to spa by children.
  • Page 4 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English WARNING c) The user should check the water temperature before entering the spa. d) The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility of drowning.
  • Page 5 • Do not allow the water in the spa to freeze. Do not turn on the spa when the water is frozen. • Do not use the spa if damaged in delivery and/or malfunctioning in any fashion. Contact the Intex service center for further direction.
  • Page 6 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English WARNING • Barriers, covers, alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision. Safety equipment • Keep a working phone and a list of emergency phone numbers near the spa. Safe use of the spa •...

  • Page 7: Parts

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English PARTS Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. S AVE THESE INSTRUCTIONS Page 7...
  • Page 8 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English PARTS (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. REF. NO. DESCRIPTION QTY. PART NO. CONTROL BASE 13216 SPA CONTROL BASE LID 13224...

  • Page 9: Set-Up

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English PRODUCT SPECIFICATIONS Voltage / Frequency / Phase 220 - 240 V / 50 Hz / 1 PH Maximum seating capacity: 2 - 4 adults Water capacity: 179 gal (677 L) Inner/outer size: 51/71 in (130/180 cm) Height:...
  • Page 10 Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service Centers” sheet. Spa Control Panel Flip up the panel cover to access the control panel buttons.
  • Page 11 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English SET UP (continued) Optional equipotential bonding system Depending on local building codes and regulations, have a qualifi ed electrician to connect the spa equipotential terminal with a conductor (wire) having a nominal cross-sectional area of 2.5 mm to 6mm the household equipotential terminal.
  • Page 12 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English SET UP (continued) Press the button to turn on the control panel. Press the button to infl ate the spa tub wall for about 5 minutes (see drawing 4). Press the button again to turn it off...
  • Page 13 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English SET UP (continued) Defl ation For Spa Tub Wall: Unscrew the cap to reveal the stem, push the stem in and turn 90 degree right to secure it in the down position (see drawing 8). Once the defl...
  • Page 14 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English SET UP (continued) Spa Control Unit Installation Connect the spa control unit to the spa tub (see drawing 9 & 10). Hand-tighten the connectors securely. Do not use tools to tighten. NOTE: Never attach external accessories not supplied with the kit to the spa tub or control base unit, as this will void the warranty.

  • Page 15: Operation

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English OPERATION SPA CONTROL UNIT PANEL A: Heat Button B: Celsius/Fahrenheit Toggle Button C: Temperature Increase Button D: Temperature Decrease Button E: Water Filter Button F: Bubble Button G: LED Display H: On/Off...

  • Page 16: Led Code Chart

    • If problem persists, contact Intex Service Center. Dry-fi re Protection • Contact Intex Service Center. Water temperature sensor broken • Contact Intex Service Center. After 72 hours of continuous heating operation, the pump will • Press the button to re-active the hibernate automatically.

  • Page 17: Minimize Heat Loss And Energy Consumption Advice

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English MINIMIZE HEAT LOSS AND ENERGY CONSUMPTION ADVICE 1) Always keep the spa cover on to minimize heat loss during heating of the spa between uses (but not while it is being used). Ensure the cover is fi tted tightly, as per manufacturer’s instructions to maximize insulation.

  • Page 18: Maintenance And Chemicals

    Do not add chemicals if the spa is occupied. This can cause skin or eye irritation. Concentrated chlorine solutions can damage the spa tub. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other party for costs associated with the loss of spa water, chemicals or water damage.
  • Page 19 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English SPA WATER CHEMISTRY AND BALANCE Parameter Value Water clarity clear view of the bottom Total Alkalinity (TA) in mg/l 60 to 120 Calcium Hardness (CaCO ) in mg/l 150 to 250 b, c Colour of the water no colour should be observed...
  • Page 20 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English SPA WATER CHEMISTRY AND BALANCE (continued) Calcium Hardness (CaCO ): refers to the amount of calcium and magnesium dissolved in the water. Result if too low – Diffi culty balancing water, corrosion of metal components, eye & skin irritation and water foaming.
  • Page 21 (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English MAINTENANCE Spa Tub Drainage Turn off the spa control unit. Connect the drain valve adaptor to a garden hose and point the other end of the garden hose to a suitable draining area. Remove the drain valve cap from outside of the spa tub and attach the drain valve adaptor to the drain valve (see drawing 13).

  • Page 22: Storage

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English MAINTENANCE (continued) Spa Surround Barefoot areas and relaxing areas around the spa shall be cleaned on a regular basis. No cleaning water may fl ow into the spa or spa water cycle. The dirt and cleaning agents shall be rinsed carefully to drain in the spa surround.

  • Page 23: Troubleshooting

    • Turn off and unplug the spa. Let it cool down and BLOWER DOES restart all over again. NOT WORK • If problem persists, contact Intex Service Center. FILTRATION PUMP • Dirty fi lter cartridge. • Clean or replace the fi lter cartridge in time.
  • Page 24 INFLATION tighten. • Finger tighten during infl ation. • Connection between the hose • If problem persists, contact Intex Service Center. adaptor and blower infl ation outlet, and between the infl ation hose and infl ation valve are loose. • Air blower failure.

  • Page 25: Filter Pump Motor Disassembly

    (365IO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/28/2023 English FILTER PUMP MOTOR DISASSEMBLY If there is a need to replace the fi lter motor (for qualifi ed technician only), follow below steps to disassemble it: IMPORTANT: You must drain out any remaining water inside the piping system of the control base before replacing any parts.

  • Page 26: Warranty

    Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Spa, or Intex or its agents’ and employees’...
