Intex SimpleSpa SB-B10 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

SimpleSpa™
SB-B10
For illustrative purposes only.
Do not forget to try these other fine Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fine
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may
result in updates to the instruction manual without notice.
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, visit
www.intexcorp.com
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
1-800-234-6839
Monday through Friday, 8:30am to 5:00pm Pacific Time
(348PO) SPA ENGLISH 7.5" X 10.3" PANTONE 295U 10/25/2019
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.
IMPORTANT!
348
English
PO
348-*PO-R0-2011

Advertisement

Table of Contents
loading

Related Manuals for Intex SimpleSpa SB-B10

Summary of Contents for Intex SimpleSpa SB-B10

  • Page 1 SimpleSpa™ SB-B10 For illustrative purposes only. Do not forget to try these other fine Intex products: pools, pool accessories, in-home toys, airbeds and boats available at fine retailers or visit our website. Due to a policy of continuous product improvement, Intex reserves the right to change specifications and appearance, which may result in updates to the instruction manual without notice.

  • Page 2: Table Of Contents

    (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English TABLE OF CONTENTS Warning..................3-4 Parts....................Set-up..................... 7-12 Operation..................LED Code Chart................14 Maintenance and Chemicals............15-20 Storage................... 20 Troubleshooting................21-22 Warranty..................23 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 3: Warning

    (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English IMPORTANT SAFETY RULES When installing and using this electrical equipment, basic safety precautions should always be followed, including the following. READ AND FOLLOW ALL INSTRUCTIONS DANGER • Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access by children.
  • Page 4 • Do not allow the water in the spa to freeze. Do not turn on the spa when the water is frozen. • Do not use the spa if damaged in delivery and/or malfunctioning in any fashion. Contact the Intex service center for further direction.

  • Page 5: Parts

    (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English PARTS Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SPA SUCTION FITTING Self-contained spa fittings.
  • Page 6 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English PARTS (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. REF. NO. DESCRIPTION QTY. PART NO. CONTROL BASE 12837 12771 SIDE COVER HINGE BASE...

  • Page 7: Set-Up

    (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English PRODUCT SPECIFICATIONS Maximum seating capacity: 4 adults Water capacity: 210 gal (795 L) Inner/outer diameter: 57/77 in (145/196 cm) Height: 26 in (66 cm) Bubble air blower: 800 Watts Filter pump flow rate: 460 gal/hr (1,741 L/hr) Heater power: 1,300 Watts / 110-120 V / 60 Hz...
  • Page 8 Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service Centers” sheet. Safety Sign Card Posting The Safety Sign card included with the manual shall be posted in an area visible to the users of the spa to alert them of the safety rules and warnings.
  • Page 9 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English SET UP (continued) Inflation Inflate the Spa Tub Wall Take out the ground cloth (19) and spread it over the cleared area. Then spread out the spa liner over the ground cloth and point the drain valve towards a suitable draining area. NOTE: Spread the ground cloth with the bubbles facing down over the cleared area where you intend to setup your spa.
  • Page 10 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English SET UP (continued) IMPORTANT: To prevent damage to the air blower motor never block the air blower outlet opening during inflation. Press the button again to turn it off. After inflation, if the horizontal top seam of the external lining (32) is not aligned with the spa tub (16) horizontal top seam (see drawing 5), let some air out of the the spa tub, then adjust the external lining and re-inflate the spa tub.
  • Page 11 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English SET UP (continued) Inflate the Spa Cover Air Bladder Open the inflation valve and insert the inflation hose (7) into the valve; press to inflate until it is firm to the touch but not hard (see drawing 7).
  • Page 12 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English SET UP (continued) Spa Control Unit Installation Connect the spa control unit to the spa tub (see drawing 9). Hand-tighten the connectors securely. Do not use tools to tighten. NOTE: Never attach external accessories not supplied with the kit to the spa tub or control base unit, as this will void the warranty.

  • Page 13: Operation

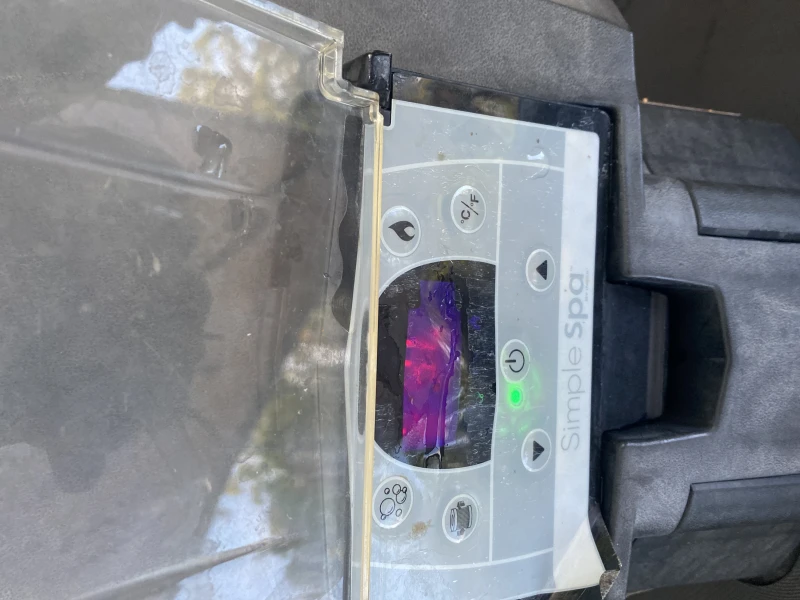

    (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English OPERATION SPA CONTROL UNIT PANEL A: Heat Button B: Celsius/Fahrenheit Toggle Button C: Temperature Increase Button D: Temperature Decrease Button E: Water Filter Button F: Bubble Button G: LED Display H: On/Off Button On/Off Button: Once the unit is plugged in, use this button to active the control unit panel...

  • Page 14: Led Code Chart

    • If problem persists, contact Intex Service Center. Dry-fire Protection • Contact Intex Service Center. Water temperature sensor broken • Contact Intex Service Center. After 72 hours of continuous heating operation, the pump will • Press the button to re-active the hibernate automatically.

  • Page 15: Maintenance And Chemicals

    Do not add chemicals if the spa is occupied. This can cause skin or eye irritation. Concentrated chlorine solutions can damage the spa tub. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other party for costs associated with the loss of spa water, chemicals or water damage.
  • Page 16 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English SPA WATER CHEMISTRY AND BALANCE Preferred Water Chemistry Reading Minimum Ideal Maximum Free Chlorine 2 ppm 2 - 4 ppm 5 ppm 7.2 - 7.6 Total Alkalinity (TA) 60 ppm 80 ppm 120 ppm Calcium Hardness (CaCO...
  • Page 17 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English SPA WATER CHEMISTRY AND BALANCE (continued) SPA Water Adjustment How to adjust the spa water chemistry when the levels are off the range. CAUTION: Always follow the chemical manufacturer’s directions, and the health and hazard warnings. Total Alkalinity (TA) Adjustment Remove the spa cover to aerate the water and use the included test strips to check the chemistry level.
  • Page 18 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English SPA WATER CHEMISTRY AND BALANCE (continued) Lowering pH Lowering pH Using Muriatic Acid Volume 210 gal (795 L) 290 gal (1098 L) Total Alkalinity 120 ppm 80 ppm 120 ppm 80 ppm 0.028 qt 0.018 qt...
  • Page 19 (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English MAINTENANCE Spa Tub Drainage Turn off the spa control unit. Connect the drain valve adaptor to a garden hose and point the other end of the garden hose to a suitable draining area (see drawing 13). Remove the drain valve cap from outside of the spa tub and attach the drain valve adaptor to the drain valve (see drawing 13).

  • Page 20: Storage

    (348PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 10/25/2019 English MAINTENANCE (continued) Spa Cover The attachment buckles of the cover are locking buckles. Two keys are provided in the plastic bag with the manual and other accessories. Each buckle is marked with “locked” and “unlocked” symbols for easy operation: put the key into the slot on the buckle and turn it to the appropriate position to lock or unlock the buckle respectively.

  • Page 21: Troubleshooting

    • Turn off and unplug the spa. Let it cool down and BLOWER DOES restart all over again. NOT WORK • If problem persists, contact Intex Service Center. FILTRATION PUMP • Dirty filter cartridge. • Clean or replace the filter cartridge in time.
  • Page 22 • Tighten/reinstall hose adaptor. INFLATION tighten. • Finger tighten during inflation. • Connection between the hose • If problem persists, contact Intex Service Center. adaptor and blower inflation outlet, and between the inflation hose and inflation valve are loose. • Air blower failure.

  • Page 23: Warranty

    WARRANTY Your SimpleSpa has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies only to the SimpleSpa listed below. The provisions of this Limited Warranty apply only to the original purchaser and is not transferable.
