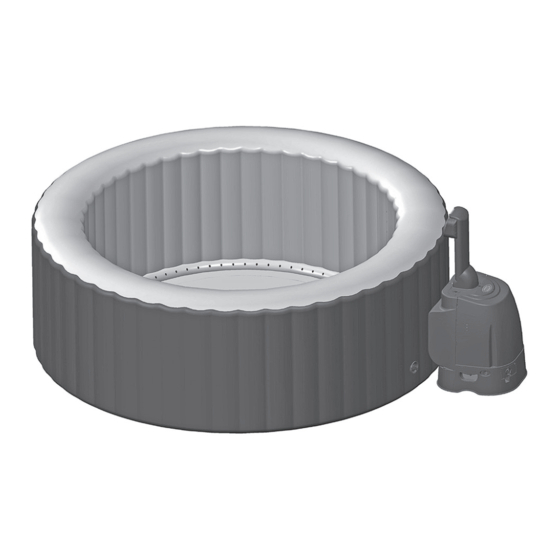

128474GN - PureSpa Bubble Massage Ø 196 x 71 cm
295IO
Repair Kit
1510
Setup Video
2
26
27
29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 128474GN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intex 128474GN

  • Page 1 Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v nasledujúcom adresári. / Združena datoteka PDF. Izvirniki so povezani v naslednjem imeniku. / Spojena PDF datoteka. Izvornici su povezani u sljedećem imeniku. 128474GN - PureSpa Bubble Massage Ø 196 x 71 cm 295IO...
  • Page 2 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal –...
  • Page 3: Table Of Contents

    A295I019EN English TABLE OF CONTENTS Warning..................3-6 Parts....................Set-up..................... 8-13 Operation..................LED Code Chart................15 Minimize Heat Loss and Energy Consumption Advice..... 16 Maintenance and Chemicals............17-21 Storage................... 21 Troubleshooting................22 Filter pump motor disassembly........... 23 Warranty..................24 S AVE THESE INSTRUCTIONS Page 2...
  • Page 4: Warning

    A295I019EN English IMPORTANT SAFETY RULES When installing and using this electrical equipment, basic safety precautions should always be followed, including the following. READ AND FOLLOW ALL INSTRUCTIONS DANGER • Risk of Accidental Drowning (especially children under 5 years). Caution shall be exercised to prevent unauthorized access to spa by children.
  • Page 5 A295I019EN English WARNING c) The user should check the water temperature before entering the spa. d) The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility of drowning. e) Persons with any medical condition should seek medical advice before using a spa. f) Persons using medication and/or having an adverse medical history should seek medical advice before using a spa since some medication may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.
  • Page 6 • Do not allow the water in the spa to freeze. Do not turn on the spa when the water is frozen. • Do not use the spa if damaged in delivery and/or malfunctioning in any fashion. Contact the Intex service center for further direction.
  • Page 7 A295I019EN English WARNING • Barriers, covers, alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision. Safety equipment • Keep a working phone and a list of emergency phone numbers near the spa. Safe use of the spa •...
  • Page 8: Parts

    A295I019EN English PARTS Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. S AVE THESE INSTRUCTIONS Page 7...
  • Page 9 A295I019EN English PARTS (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. PART NO. REF. DESCRIPTION QTY. 4 ADULTS 6 ADULTS 28404 28406 28474 28408 28410 CONTROL BASE 12320 12320B 12320 12320 12320B CONTROL BASE BACK COVER 11719 11719B 11719 11719 11719B...
  • Page 10: Set-Up

    A295I019EN English PRODUCT SPECIFICATIONS Voltage / Frequency / Phase 220 - 240 V / 50 Hz / 1 PH Maximum seating capacity: 4 adults 6 adults Water capacity: 210 gal (795 L) 290 gal (1098 L) Inner/outer diameter: 57/77 in (145/196 cm) 65/85 in (165/216 cm) Height: 28 in (71 cm)
  • Page 11 Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service Centers” sheet. Spa Control Unit Assembly Connect the control panel (3) cable plug into the receptacle on top of the spa control base and screw in the plug cover firmly by hand (see drawing 1).
  • Page 12 A295I019EN English SET UP (continued) Press the button located on top of the control base and remove the back cover (see drawing 3). 3. Unscrew the control base inflation cap (5) to reveal the air blower inflation outlet, insert one end of the inflation hose (7) into the outlet and turn to the right to lock it (see drawing 4). 4. Unscrew the air valve cap to reveal the stem in the up position for inflation. Insert the other end of the inflation hose (7) into the valve and turn to the right to lock it in position (see drawing 5).
  • Page 13 A295I019EN English SET UP (continued) IMPORTANT The spa tub inflation/deflation valve incorporates an “air pressure release” function that automatically releases excess air when the spa tub internal pressure is between 1.5 - 2.5 psi (0.103 - 0.172 bar). Air pressure release valve. Inflation of spa in the morning. Air expands in the midday heat. Air pressure release valve kicks in and releases excess air.
  • Page 14 A295I019EN English SET UP (continued) Spa Control Unit Installation Connect the spa control unit to the spa tub (see drawing 10). Hand-tighten the connectors securely. Do not use tools to tighten. Reinstall the back cover (2) to the spa control base (see drawing 11). Back cover must be installed before using the SPA.
  • Page 15: Operation

    A295I019EN English OPERATION SPA CONTROL UNIT PANEL A: Heat Button B: Celsius/Fahrenheit Toggle Button C: Temperature Increase Button D: Temperature Decrease Button E: Water Filter Button F: Bubble Button G: LED Display H: On/Off Button On/Off Button: Once the unit is plugged in, use this button to active the control unit panel buttons.
  • Page 16: Led Code Chart

    • If problem persists, contact Intex Service Center. Dry-fire Protection • Contact Intex Service Center. Water temperature sensor broken • Contact Intex Service Center. After 72 hours of continuous heating operation, the pump will • Press the button to re-active the hibernate automatically.
  • Page 17: Minimize Heat Loss And Energy Consumption Advice

    A295I019EN English MINIMIZE HEAT LOSS AND ENERGY CONSUMPTION ADVICE 1) Always keep the spa cover on to minimize heat loss during heating of the spa between uses (but not while it is being used). Ensure the cover is fitted tightly, as per manufacturer’s instructions to maximize insulation. It shall be recommended that the cover, when not in use, should be kept off the ground to retain its cleanliness (particularly the surface in close proximity to the water spa water surface).
  • Page 18: Maintenance And Chemicals

    Do not add chemicals if the spa is occupied. This can cause skin or eye irritation. Concentrated chlorine solutions can damage the spa tub. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other party for costs associated with the loss of spa water, chemicals or water damage.
  • Page 19 A295I019EN English SPA WATER CHEMISTRY AND BALANCE Parameter Value Water clarity clear view of the bottom Total Alkalinity (TA) in mg/l 60 to 120 Calcium Hardness (CaCO ) in mg/l 150 to 250 b, c Colour of the water no colour should be observed max.
  • Page 20 A295I019EN English SPA WATER CHEMISTRY AND BALANCE (continued) Calcium Hardness (CaCO ): refers to the amount of calcium and magnesium dissolved in the water. Result if too low – Difficulty balancing water, corrosion of metal components, eye & skin irritation and water foaming. Result if too high – Scale formation, cloudy water, eye & skin irritation, difficulty balancing water and filter/ heater inefficiency. Saturation Index (SI): temperature, calcium hardness concentration, total alkalinity and pH represent the main factors influencing scale formation. The tendency of water to either form scale or corrode is indicated by the Saturation Index (SI): SI = pH+TF+CF+AF-12.1...
  • Page 21 A295I019EN English MAINTENANCE Spa Tub Drainage Turn off the spa control unit. Connect the drain valve adaptor to a garden hose and point the other end of the garden hose to a suitable draining area (see drawing 14). Remove the drain valve cap from outside of the spa tub and attach the drain valve adaptor to the drain valve (see drawing 14).
  • Page 22: Storage

    A295I019EN English MAINTENANCE (continued) Spa Surround Barefoot areas and relaxing areas around the spa shall be cleaned on a regular basis. No cleaning water may flow into the spa or spa water cycle. The dirt and cleaning agents shall be rinsed carefully to drain in the spa surround. Spa Tub and Cover Air Bladder Repair Use the enclosed repair patch to repair any puncture: •...
  • Page 23: Troubleshooting

    • Turn off and unplug the spa. Let it cool down and • Air blower pump is too hot. BUBBLE AIR BLOWER restart all over again. DOES NOT WORK • If problem persists contact Intex Service Center. • Clean or replace the filter cartridge in time. • Dirty filter cartridge. FILTRATION PUMP • Check and clean filtration inlet and outlet regularly.
  • Page 24: Filter Pump Motor Disassembly

    A295I019EN English FILTER PUMP MOTOR DISASSEMBLY If there is a need to replace the filter motor (for qualified technician only), follow below steps to disassemble it: IMPORTANT: You must drain out any remaining water inside the piping system of the control base before replacing any parts. Tools required: One adjustable wrench and one Philip screwdriver. NOTE: The “special wrench tool” is included with the new filter pump motor replacement and not with the spa set.
  • Page 25: Warranty

    Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your PureSpa, or Intex or its agents’ and employees’...
  • Page 26 REPAIR KIT KIT DE RÉPARATION PARCHE DE REPARACIÓN Debido a restricciones en el transporte, no se incluye cola En raison des restrictions de transport, la colle n’est pas Due to shipping restrictions, glue is not provided. Use PVC or de pegado. Utilice una cola de pegado con base de PVC o fournie.
  • Page 27 (1510) SPA GROUNDING INSTRUCTION 7.5” X 10.3” PANTONE 295U 08/22/2014 English 1510 IMPORTANT: Do not setup the spa on wooden decks or platforms. Do not put any insulation material between the ground and the control base unit. For outdoor installation – the spa control base unit shall be setup on a smooth and level cement ground.
  • Page 28 (1510) SPA GROUNDING INSTRUCTION 7.5” X 10.3” PANTONE 295U 08/22/2014 English 1510 DŮLEŽITÉ: Nestavte vířivku na dřevěné podlahy nebo pódia. Nevkládejte žádný izolační materiál mezi zem a řídicí jednotku. Pro venkovní použití - řídící jednotka vířivky musí být postavena na hladké a rovné pevné zemi. Uzemnění...
  • Page 29 (1901) setup video QR code instruction EN FR SP GE IT DU PT DA PL RU JA CH 7.5” X 10.3” 05/30/2018 1901 QR Code / Code QR / Código QR / QR-Code / Codice QR / QR code / Código QR / QR-kode / Kod QR / QR-код...
  • Page 30 (1901) setup video QR code instruction GR, CZ, HR, LV, LT, SK, SLO, RO, BG, TR, SRB, HU 7.5” X 10.3” 05/30/2018 1901 Κωδικός QR / QR kód / QR kôd / QR kods / QR kodas / QR kód / Koda QR / Cod QR / QR код...
