TN007S / TN008S
Présentation du produit
a
TN007S : RJ45 CAT.6 STP - Gr.2TV
TN008S : RJ45 CAT.6a STP - Gr.3TV
Afin de garantir les performances, le produit
doit être :
- installé par un professionnel compétent,
selon les règles de l'art.
- installé en respectant les consignes de
sécurité et normes techniques en vigueur
- utilisé avec un câble adapté à l'usage et
aux performances souhaitées.
Installation
7
A
1

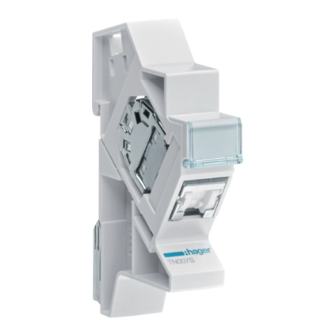

Connecteur RJ45 + support modulaire
a
RJ45 Anschlussmodul + Hutschienenträger
e
RJ45 Jack + patch modul
z
Produktbeschreibung
e
TN007S: RJ45 CAT.6 STP - Gr.2TV
TN008S: RJ45 CAT.6a STP - Gr.3TV
Um die volle Leistung des Produktes zu
garantieren, muss dieses:
- durch eine qualifizierte Person nach dem
aktuellen Stand der Technik installiert werden
- gemäß der aktuell gültigen Sicherheitsregeln
und technischen Standards installiert werden
- unter zu Hilfenahme eines Kabels, welches
für den bestimmungsgemäßen Gebrauch
geeignet ist, installiert werden.
F/FTP - S/FTP - SF/FTP
8
Z
Product description
z
TN007S: RJ45 CAT.6 STP - Gr.2TV
TN008S: RJ45 CAT.6a STP - Gr.3TV
In order to guarantee the performance,
the product must be:
- installed by a professional according to the
rules of the art.
- installed in accordance with safety
instructions and technical standards
- used with a cable suitable for the intended
uses and performance.
9
q
6LE002947A
