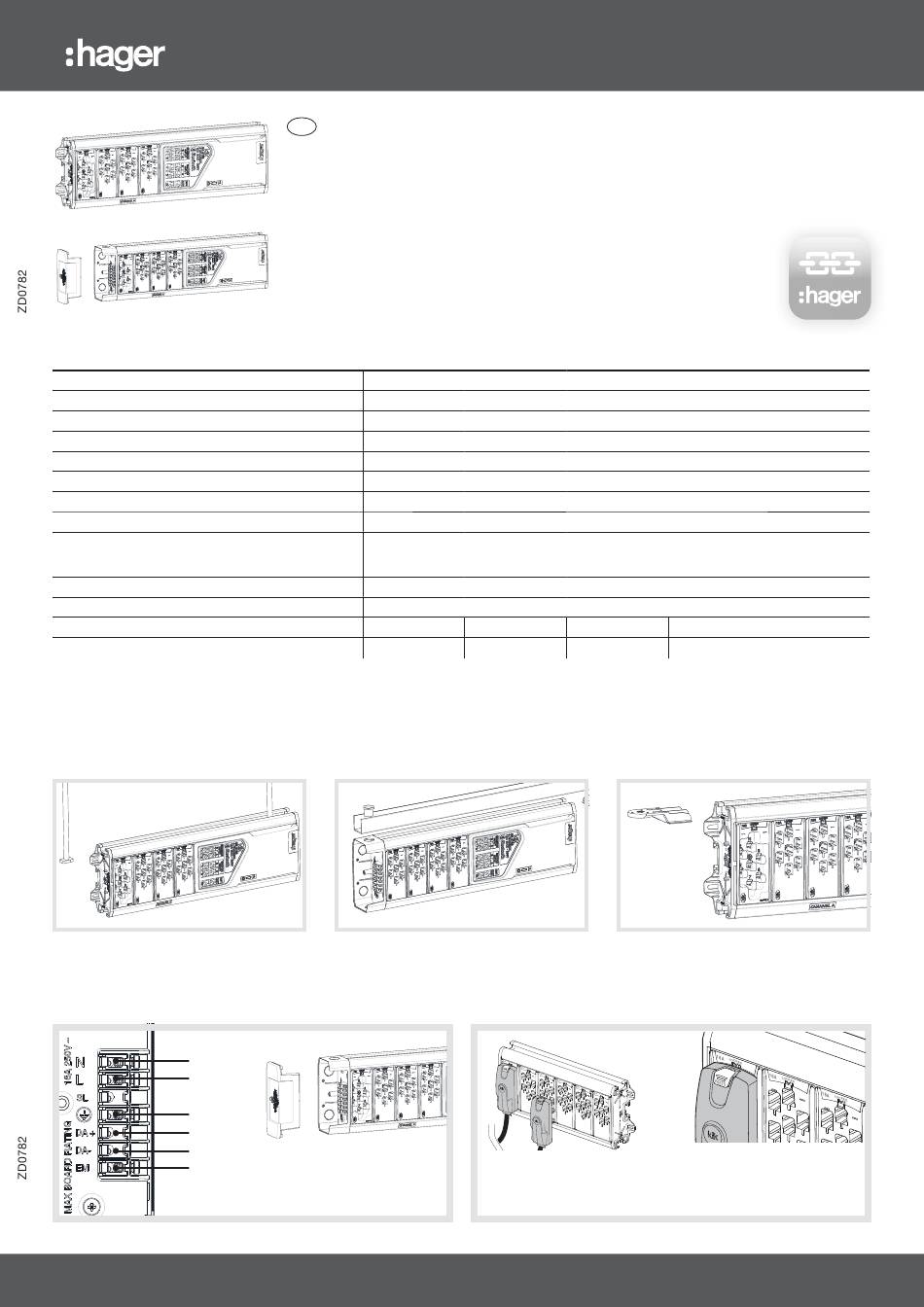

hager Klik LCM Installation Instructions

Technical Characteristics

Number of channels
Number of outputs per channel
Number of sensor inputs
Number of switch inputs
Supply Voltage
Maximum Number of Devices
Rated current
Rated current each connector
Complies with
IP protection
Connection for commissioning
Dimensions
Hager hereby declares that this KLCM**** is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
A copy of the original declaration of conformity may be obtained from technical@hager.co.uk.

Mounting Options

Drop Rods

Supply Connection

Hard wired - KLCM413W & WIET
Neutral
Line
CPC
Do not use
Do not use
Emergency connection to be
used for KLCM413WIET only.
1
GB

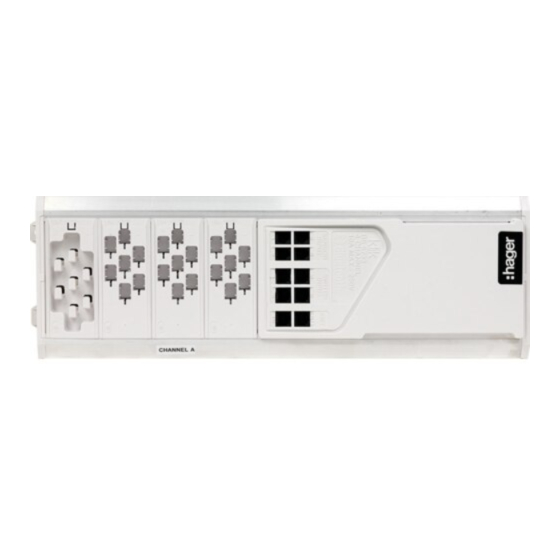

KLCM412P
Plug-in supply (Integrated emergency test, RJ45 Link)
KLCM413W
Wire-in supply (Integrated emergency test, RJ45 Link)
KLCM423WIET
Wire-in supply, emergency test (Standard emergency test, supply disconnect)
For KLCM how-to guides please see hager.co.uk or our YouTube channel
youtube.com/user/hageruktv.
Search 'Hager Klik LCM' for our video quick start guide.
4
3 (hard wired LCM has 4 outputs on channel A)
4 (KLCM-OS range)
4
230V AC 50Hz
64 DALI, 16 per output.
10A (total load)
10A
BS 5733:2010,
F EN60669-2-5
pr
BS EN 61535:2009 - (Excluding clauses 10.1 and 10.3 due to Aluminium enclosure)
IP20
Bluetooth Smart (Bluetooth 4) (only available for apple iPad)
Height
145mm
Trunking
(Use slider along spring channel nuts.)
Installation Instructions
Width Depth
440mm 58mm
Direct: e.g. nail gun or screw fixing
(not possible for hard-wire KLCM413W)
Pluggable - KLCM412P
Plug in supply & Klik 7 Lead Connection
• Connecting the supply lead: plug
in and push down
• Disconnecting the supply lead:
press button and push up.
Klik LCM
Hager Ltd.
Hortonwood 50
Telford
Shropshire
TF1 7FT
Sales Service Centre: 01952 675 675
Technical Service Centre: 01952 675 689
Search KlikLink in the iPad app store.
Weight
1.9kg
Plug colour coding
White: Luminaire Lead
Red: Luminaire & Emergency
Black: Link Lead
ZD0782 - Issue 3 10-17
