SJME-@-OY
Junma servo motors
A new concept in drive simplicity
Medium inertia compact motor
• Peak torque up to three times continuous torque for
3 seconds
• Easy to install with prebuilt cables
• Motors with brakes are available
• No motor settings required, just plug and run
Ratings
• 230 VAC Single-phase 100 W to 750 W
(0.318 Nm to 2.39 Nm)
System Configuration
Junma Servo Motor
3,000 rpm
(100-750 W)
Motor Type Designation
JUNMA servomotor
Capacity
Code
Output (W)
100
01
02
200
04
400
750
08
Voltage
A: 200 VAC
Junma servo motors
Encoder cable
Power cable
SJME - 02 A M B 4 1 - OY
(Refer to servo drive chapter)
Junma MECHATROLINK-II
Servo Drive
OMRON YASKAWA Motion Control BV
Brake specifications
1 : No brake
C : 24VDC brake
Shaft end specifications
4 : Straight, key
Design procedure
B : Standard
Feedback specifications
M : Analogue output encoder
Junma Pulse
Servo Drive
200V
SJDE- 02 APA-OY
REF
C
PULSE
AL1
4
AL2
C
AL3
FIL
4
C
N
1
C
N
2
PWR
U
L1
V
L2
W
+
-
CNA
CNB
199
Advertisement
Related Manuals for Omron JUNMA
Summary of Contents for Omron JUNMA
-

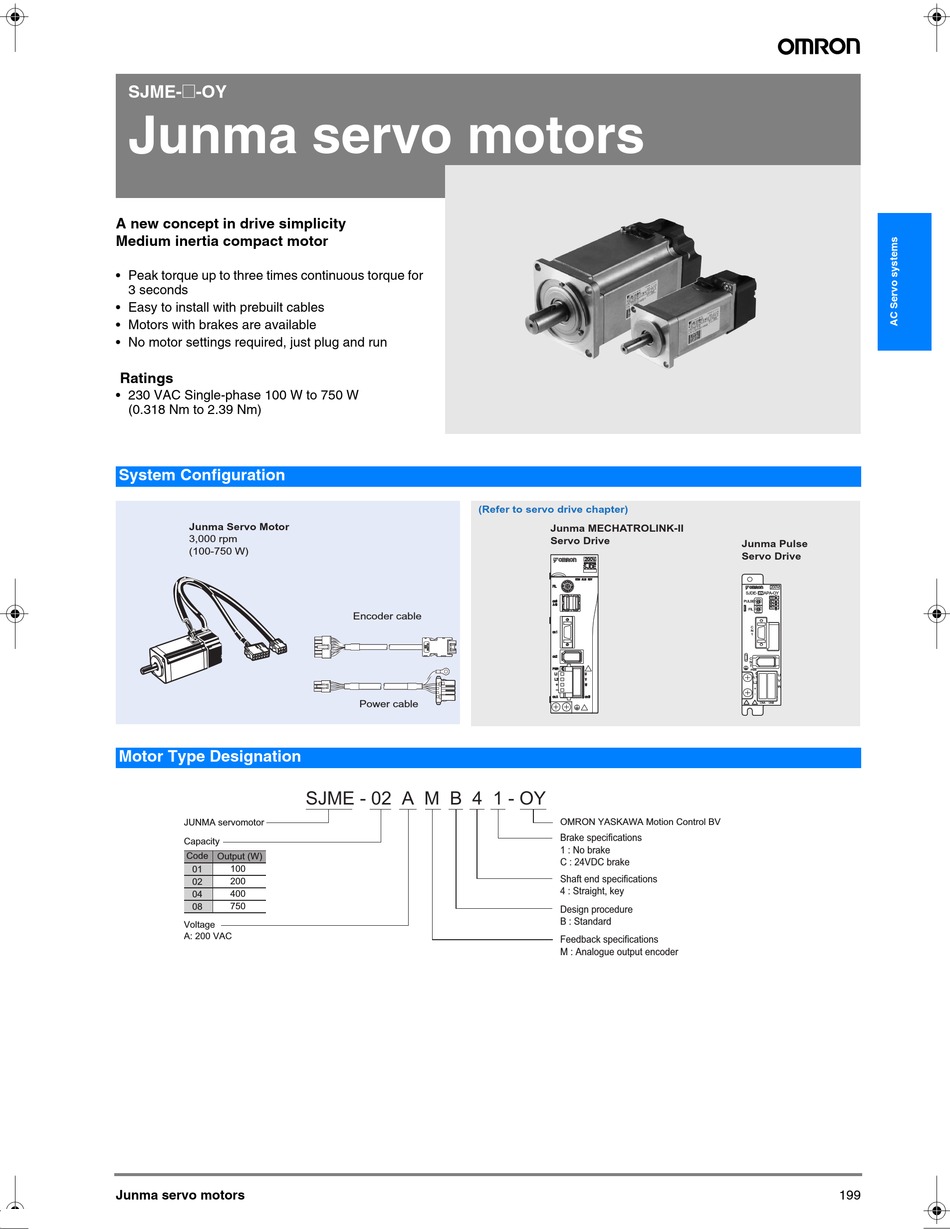

Page 1: System Configuration
