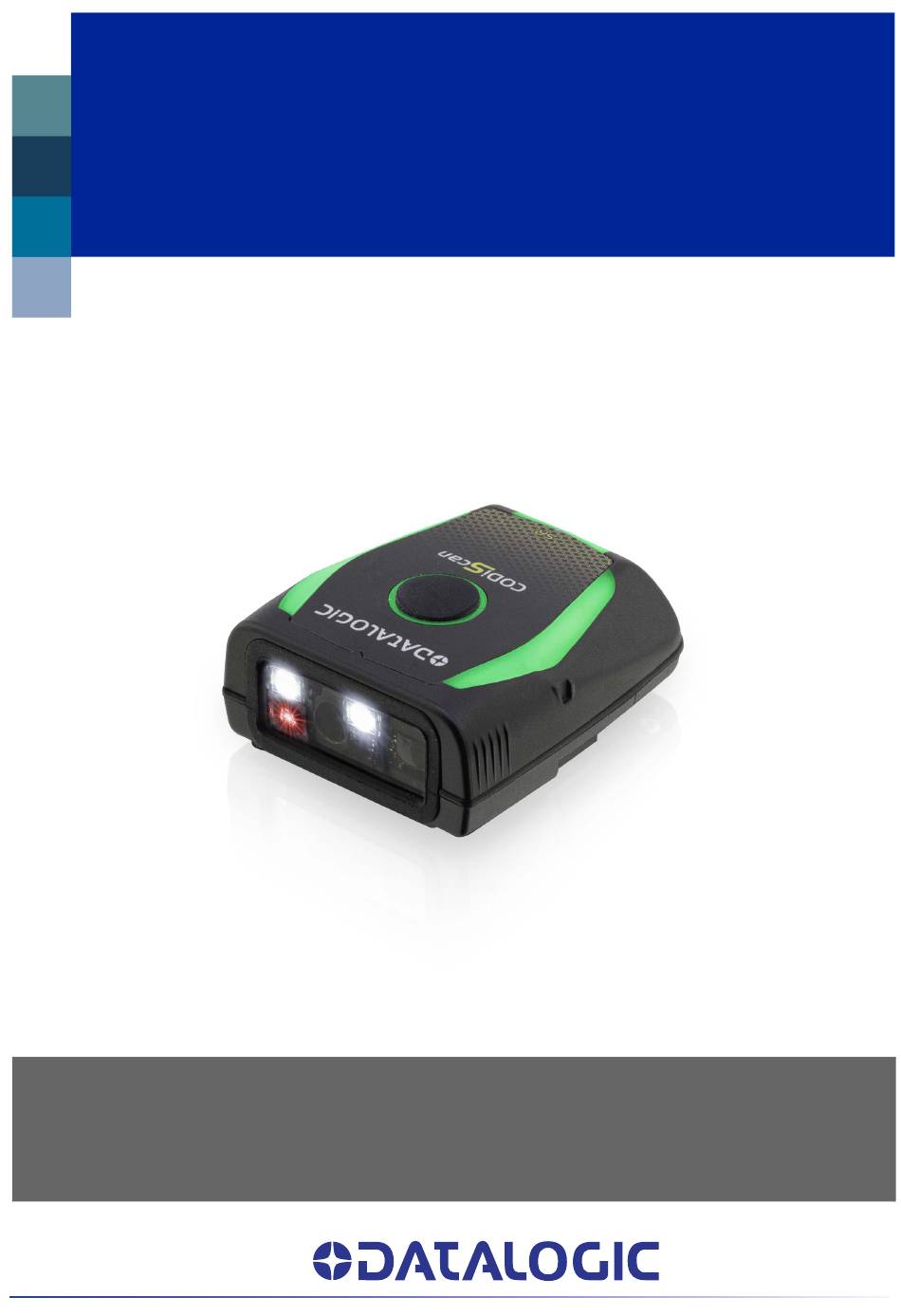

Page 1 CODiScan™ HS7600 PRODUCT REFERENCE GUIDE Wearable Bluetooth® Bar Code Reader...
Page 2 CODiScan is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc and any use of such marks by Datalogic S.p.A and/or its affiliates is under license. All other brand and product names may be trademarks of their respective own- ers.
Page 3: Table Of Contents
Connecting the Device ....................19 Interface Selection ......................19 Configuring THE GATEWAY Interface ................19 Customizing Configuration Settings ................. 22 Using the Programming Bar Codes ....................22 Datalogic Aladdin™ Utility ........................22 Aladdin™APP ............................22 Interface Settings ..........................23 Configuring Other Features ......................23 Software Version Transmission .......................23...
Page 4 TABLE OF CONTENTS Resetting the Product Configuration to Defaults ................24 Restore Custom Default Configuration ..................24 Restore Factory Configuration ....................24 CHAPTER 3. CONFIGURATION WITH BAR CODES............. 25 Configuration Parameters ....................25 Gateway Interface Configuration: ..................... 25 Parameters common to all interface applications: ..............25 Symbology-specific parameters: .....................
Page 5 TABLE OF CONTENTS Power On Alert ..........................84 Good Read Beep Type .......................84 Good Read Beep Frequency .....................85 Good Read Beep Length ......................86 Good Read Beeper Volume .......................87 Silent Mode ..........................88 Good Read LED Duration ......................89 Good Read: When to Indicate ....................90 Green Spot Duration .........................91 Good Read Vibration Duration ....................91 CAMERA CONTROL ...........................92...
Page 6 TABLE OF CONTENTS GS1 DataBar Expanded Set Length 2 ..................116 GS1 DATABAR™ LIMITED ......................117 GS1 DataBar Limited Enable/Disable ..................117 GS1 DataBar Limited to GS1-128 Emulation ................117 CODE 39 ............................118 Code 39 Enable/Disable ......................118 Code 39 Check Character Calculation ..................118 Code 39 Check Character Transmission ................119 Code 39 Start/Stop Character Transmission .................119 Code 39 Full ASCII ........................120 Code 39 Quiet Zones .......................120...
Page 7 Compressed 2 of 5 Set Length 2 ....................146 DATALOGIC 2 OF 5 ..........................147 Datalogic 2 of 5 Enable/Disable ....................147 Datalogic 2 of 5 Check Character Calculation ................147 Datalogic 2 of 5 Check Character Transmission ..............148 Datalogic 2 of 5 Length Control ....................148 Datalogic 2 of 5 Set Length 1 ....................149...
Page 8 TABLE OF CONTENTS Code 93 Check Character Calculation ..................169 Code 93 Check Character Transmission ................170 Code 93 Length Control ......................170 Code 93 Set Length 1 ......................171 Code 93 Set Length 2 ......................171 Code 93 Quiet Zones .......................172 MSI ..............................173 MSI Enable/Disable .........................173 MSI Check Character Calculation ...................173 MSI Check Character Transmission ..................174 MSI Length Control .........................174...
Page 9 TABLE OF CONTENTS PDF417 Set Length 2 ......................198 MICRO PDF417 ..........................199 Micro PDF417 Enable / Disable ....................199 Micro PDF417 Code 128 GS1-128 Emulation ................199 Micro PDF417 Length Control ....................200 Micro PDF417 Set Length 1 ....................200 Micro PDF417 Set Length 2 ....................201 QR CODE ............................202 QR Code Enable / Disable .......................202 QR Code Length Control ......................202...
Page 10 TABLE OF CONTENTS CHAPTER 4. REFERENCES ................... 238 USB COM Parameters ....................239 Intercharacter Delay ........................239 ACK NAK Options ..........................240 ACK Character ..........................240 NAK Character ..........................241 ACK NAK Timeout Value ........................242 ACK NAK Retry Count ........................243 Disable Character ..........................244 Enable Character ..........................245 Keyboard Interface .......................
Page 11 TABLE OF CONTENTS APPENDIX C. SAMPLE BARCODES................ 290 Sample Barcodes ......................290 1D Barcodes ............................290 GS1 Databar™ (RSS) ........................292 GS1 Databar™ (-14) ........................292 2D Barcodes ............................293 APPENDIX D. KEYPAD..................295 APPENDIX E. SCANCODE TABLES ................ 297 Control Character Emulation ..................297 Single Press and Release Keys ......................297 Interface Type USB-Keyboard or USB-Keyboard for APPLE ...........
Page 12 TABLE OF CONTENTS CODISCAN™ HS7600...
Page 13: Preface
Programming can alternatively be performed using the Datalogic Aladdin™ Configura- tion application, which is available from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC.
Page 14: Manual Conventions
TECHNICAL SUPPORT Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to (www.datalogic.com). For quick access, from the home page click on the search icon , and type in the name of the product you’re looking for.
Page 15: Warranty
Products once sold. The Warranty Period shall be one year from the date of shipment by Datalogic, unless otherwise agreed in an applicable writing by Datalogic. Datalogic will not be liable under the warranty if the Product has been exposed or subjected to any: (1) maintenance, repair, installation, handling, packaging, transportation, storage, operation or use that is improper or otherwise not in compliance with Datalogic’s instruction;...
Page 16 PREFACE NOTES CODISCAN™ HS7600...
Page 17: Chapter 1. Introduction

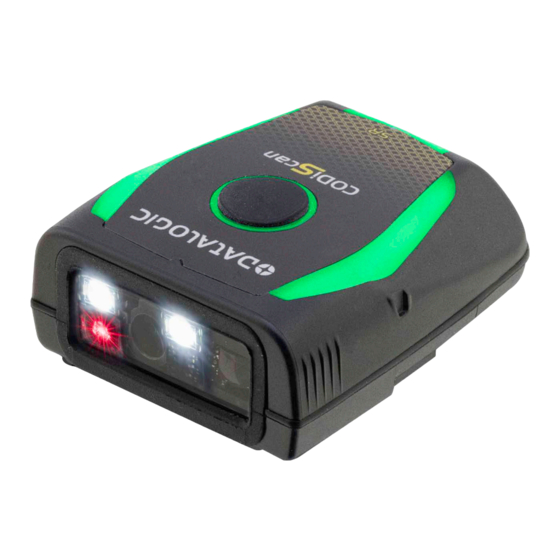

CHAPTER 1 INTRODUCTION ABOUT THE READER CODiScan™ is the new Bluetooth wearable scanner series developed by Datalogic to address Logistics and Manufacturing applications as well as Retail and Healthcare ware- housing operations, all while providing the following benefits: • Improve businesses daily operations accuracy and productivity with a small, light- weight super-reliable device •...
Page 18: General Features
The CODiScan™ HS7600 normally functions by capturing and decoding codes. HS7600 is a powerful omni-directional reader, so the orientation of the symbol is not important. Datalogic's unique 'Green Spot' for good-read feedback helps to improve productivity in noisy environments or in situations where silence is required.
Page 19 Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage the device and void your warranty. Do not disassemble or modify the battery. The battery contains safety and protection devices, which, if damaged, may cause the battery to generate heat, explode or ignite.
Page 20: Programming The Reader
In addition, Aladdin makes it easy to upgrade the handheld’s firmware, to attain the benefits of new reader features. Reference the Datalogic Aladdin™ Online Help for more details. Aladdin is available for download free of charge on the Datalogic website.
Page 21: Chapter 2. Setup
CHAPTER 2 SETUP UNPACKING Check carefully to ensure the reader and any cables or accessories ordered are present and undamaged. If any damage occurred during shipment, contact " Technical Support" on page xiv SETTING UP THE CODISCAN™ HS7600 READER Follow the steps below to connect and get your reader up and communicating with its host.
Page 22: Using The Codiscan™ Hs7600
Refer to " to enable or disable the Aiming pointer. Aiming Pointer" on page 92 CHARGING THE BATTERIES Charge the CODiScan HS7600 by simply inserting it into one of the available chargers: • SC-HS7600: USB Cap Charger 1 slot •...
Page 23 CHARGING THE BATTERIES NOTE: Before using the battery, read "Battery Safety" on page 2. CAUTION: Insert the Hand Scanner only in a dry Charging Station and touch it only with dry hands to avoid malfunction. PRODUCT REFERENCE GUIDE...
Page 24: Mounting The Reader
SETUP MOUNTING THE READER CODiScan HS7600 can be used in standalone mode or in conjunction with the following accessories to extend user comfort: • HT1-HS7600KR: Adjustable Right Hand Trigger • HT1-HS7600KL: Adjustable Left Hand Trigger • LH-HS7600: Extensible Lanyard for Neck and Belt...
Page 25: Wearing The Hand Trigger
MOUNTING THE READER Wearing the Hand Trigger Before wearing the hand trigger, make sure to choose the right part number whether you are right- or left-handed. To wear the hand trigger: 1. Put on the hand trigger on top of your hand and, while holding the trigger in place with the thumb, fasten it using the closing strap.
Page 26 SETUP CODISCAN™ HS7600...
Page 27: Maintenance And Disposal
MOUNTING THE READER Maintenance and Disposal The electronic parts are detachable from the fabric to allow: • washing/changing the fabric • changing the trigger • disposing of the different parts WARNING: Remove the trigger and the electronic parts before washing the fabric.
Page 28: Lanyard
SETUP Lanyard The LH-HS7600 extensible lanyard can be used in two ways: • Worn on the neck. • Attached to a pocket or a belt by detaching the lanyard from the retractable reel. The lanyard can be extended for ease of use as shown below. Lanyard on neck Lanyard on belt The LH-HS7600 extensible lanyard also has a safety clip on the back side.
Page 29: Removing The Device From The Portable Holder
MOUNTING THE READER Removing the Device from the Portable Holder To remove the device from the portable holder, push the device with your thumb, using your other hand to prevent the device from falling. NOTE: Push with your thumb perpendicular to the device. Do not push diagonally.
Page 30: Linking The Reader
Link to Host in SPP Mode Link Reader as HID device to a Bluetooth host Use this procedure to let the CODiScan HS7600 send data to a Bluetooth host using the Bluetooth HID profile. 1. If using a Bluetooth adapter on the host device, install any driver provided with the adapter.
Page 31: Link Reader As Hogp Device To A Bluetooth (Le) Host
Level" on page 227 Link Reader as HOGP device to a Bluetooth (LE) host Use this procedure to let the CODiScan HS7600 send data to a Bluetooth host using the Bluetooth HOGP profile. 1. If using a Bluetooth adapter on the host device, install any driver provided with the adapter.
Page 32: Bluetooth Passkey Or Pin Code Entry Request
SETUP Bluetooth Passkey or Pin Code Entry Request During the pairing process, based on Host and Reader security settings, you may need to enter a Bluetooth passkey or PIN code. When requested by the Host, simply enter the displayed code by scanning the corresponding bar codes for alphanumeric entry listed .
Page 33: Parts Of The Reader
PARTS OF THE READER PARTS OF THE READER 1. Scan Window 3. Recharge, trigger and USB contact area 2. Multifunctional key button 4. LEDs MULTIFUNCTIONAL BUTTON The multifunctional button on the HS7600 Scanner can be used to read bar codes, as well as to retrieve information, such as battery status, and perform different actions.
Page 34: Scanner Leds
SETUP SCANNER LEDS The LEDs on the HS7600 provide information about the charging status when the device is inserted in a charging station. See the following table for a description of the different LED colors: Table 1 - Battery and Recharge LED Description COLOR BATTERY STATUS Scanner is not charging...
Page 35: Connecting The Device
• USB Toshiba TEC • Datalogic Magellan Scanners' specific interface CONFIGURING THE GATEWAY INTERFACE Scan the programming bar code from the following section which selects the appropri- ate interface type to match the system the reader will be connected to. Next, proceed to the corresponding chapter in this manual (also listed in the table) to configure any desired settings and features associated with that interface.
Page 36 Table 3 - Available Interfaces (continued) SERIAL INTERFACES USB-COM (simulates RS-232 standard interface) $P,HA12,P Select USB-COM-STD a. Download the correct USB Com driver from www.datalogic.com. USB FOR TERMINALS USB HID POS $P,HA44,P Select USB HID POS USB Toshiba TEC $P,HA41,P...
Page 37 CONFIGURING THE GATEWAY INTERFACE KEYBOARD USB Keyboard with standard key encoding $P,HA35,P Select USB Standard Keyboard USB Keyboard with alternative key encoding $P,HA2B,P Select USB Alternative Keyboard USB-Composite (combines USB-KBD emulation and USB-COM $P,HA4D,P Select USB-Composite PRODUCT REFERENCE GUIDE...
Page 38: Customizing Configuration Settings
Datalogic Aladdin™ is a multi-platform utility program providing a quick and user- friendly configuration method via the USB-COM interface. The Aladdin utility is avail- able on the Datalogic website. Aladdin allows you to program the reader by selecting configuration commands through a user-friendly graphical interface running on a PC.
Page 39: Interface Settings
CUSTOMIZING CONFIGURATION SETTINGS Interface Settings The reader is typically factory-configured with a set of default features standard to the interface type you ordered. See Appendix B, Standard Defaults Global Interface Features, starting on provides settings configurable by all inter- page 25 face types.
Page 40: Resetting The Product Configuration To Defaults
SETUP Resetting the Product Configuration to Defaults Restore Custom Default Configuration If you aren't sure what programming options are in your reader, or you've changed some options and want to restore the Custom Default Configuration that may have been saved in the reader, scan the Restore Custom Default Configuration bar code below.
Page 41: Chapter 3. Configuration With Bar Codes
CHAPTER 3 CONFIGURATION WITH BAR CODES This and following sections provide programming bar codes to configure your reader by changing the default settings. For details about additional methods of programming, see " Customizing Configuration Settings" on page 22 NOTE: You must first enable your CODiScan to read bar codes in order to use this section.
Page 42: Symbology-Specific Parameters
CONFIGURATION WITH BAR CODES Symbology-specific parameters: define 1D Symbologies, starting on page 97 2D Symbologies, starting on page 182 options for all symbologies and provides the programming bar codes necessary for con- figuring these features. NOTE: You must first enable your reader to read bar codes in order to use this section.
Page 43: Global Interface Features
GLOBAL INTERFACE FEATURES ENTER/EXIT PROGRAMMING MODE GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except those necessary for: •...
Page 44: Usb-Com Interfaces
CONFIGURATION | USB-COM INTERFACES SECTION CONTENTS • Intercharacter Delay • ACK NAK Timeout Value • Beep On ASCII BEL • ACK NAK Retry Count • Beep On Not on File • ACK NAK Error Handling • ACK NAK Options • Indicate Transmission Failure •...
Page 45: Usb-Com Settings
USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE USB-COM SETTINGS Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments.
Page 46: Beep On Ascii Bel
ENTER/EXIT PROGRAMMING MODE USB-COM INTERFACES Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a <BEL> character is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event.
Page 47: Ack Nak Options
USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data prop- erly, and sends “NAK” when the data is in error. Options are: •...
Page 48: Ack Character
ENTER/EXIT PROGRAMMING MODE USB-COM INTERFACES ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See " ACK Character" on for more detailed programming instructions.
Page 49: Ack Nak Timeout Value
USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. See "...
Page 50: Ack Nak Error Handling
ENTER/EXIT PROGRAMMING MODE USB-COM INTERFACES ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...
Page 51: Disable Character
USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE Disable Character Specifies the value of the USB COM host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. See " Disable Character" for more detailed programming instructions. on page 244 Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 52 NOTES CODISCAN™ HS7600...
Page 53: Keyboard Interface
CONFIGURATION | KEYBOARD INTERFACE SECTION CONTENTS OUNTRY starting on page 38 • Setting Country Mode THER EYBOARD ARAMETERS starting on page 53 • Encoding Type • Intercharacter Delay • ALT Output Type • Intercharacter Delay • Keyboard Numeric Keypad • Intercode Delay •...
Page 54: Country Mode
COUNTRY MODE This feature specifies the country/language supported by the keyboard. The Country Mode setting is ignored if the interface uses alternate key encoding. SETUP ON PC TO USE ALT UNIVERSAL 1. Open Registry Edit 2. Set EnableHexNumpad to 1 as follows: 3.
Page 55: Setting Country Mode
COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode $CKBCO00  United States $CKBCO01 French International (Belgian French) $CKBCO02 United Kingdom $CKBCO03 Danish $CKBCO04 French (France) $CKBCO05 German $CKBCO06 Italian PRODUCT REFERENCE GUIDE...
Page 56 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO07 Norwegian $CKBCO08 Portuguese (Portugal) $CKBCO09 Spanish $CKBCO0A Swedish $CKBCO0B Swiss French $CKBCO0C Japanese ASCII $CKBCO0D Hungarian CODISCAN™ HS7600...
Page 57 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO0E Czech $CKBCO0F SlovaK $CKBCO10 Romanian $CKBCO11 Croatian $CKBCO12 Polish_214 $CKBCO13 French Canadian Win7 $CKBCO14 Lithuanian PRODUCT REFERENCE GUIDE...
Page 58 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO17 Vietnamese $CKBCO18 Russian $CKBCO19 Arabic 101 $CKBCO1A Chinese ASCII $CKBCO1B Thai-Kedmanee $CKBCO1C Albanian $CKBCO1D Arabic 102 CODISCAN™ HS7600...
Page 59 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO1E Arabic 102 AZERTY $CKBCO1F Azeri Cyrillic $CKBCO20 Azeri Latin $CKBCO21 Belarusian $CKBCO22 Bosnian Cyrillic $CKBCO23 Bosnian Latin $CKBCO24 Bulgarian Cyrillic PRODUCT REFERENCE GUIDE...
Page 60 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO25 Bulgarian Latin $CKBCO26 Canadian French (Legacy) $CKBCO27 Canadian Multilingual $CKBCO28 Chinese (Simplified) $CKBCO29 Chinese (Traditional) $CKBCO2A Czech Programmers $CKBCO2B Czech QWERTY CODISCAN™ HS7600...
Page 61 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO2C Dutch Netherland $CKBCO2D Estonian $CKBCO2E Faeroese $CKBCO2F Finnish $CKBCO30 French (Canada) 2000/XP $CKBCO31 French (Canada) 95/98 $CKBCO32 Galician PRODUCT REFERENCE GUIDE...
Page 62 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO33 Greek $CKBCO34 Greek Latin $CKBCO35 Greek Polytonic $CKBCO36 Greek220 $CKBCO37 Greek220 Latin $CKBCO38 Greek319 $CKBCO39 Greek319 Latin CODISCAN™ HS7600...
Page 63 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO3A Hebrew Israel $CKBCO3B Hungarian_101KEY $CKBCO3C Icelandic $CKBCO3D Irish $CKBCO3E Italian_142 $CKBCO3F Japanese (Shift-JIS) $CKBCO40 Kazakh PRODUCT REFERENCE GUIDE...
Page 64 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO41 Korean (Hangul) $CKBCO42 Korean ASCII $CKBCO43 Kyrgyz Cyrillic $CKBCO44 Latin America $CKBCO45 Latvian $CKBCO46 Latvian QWERTY $CKBCO47 Lithuanian_IBM CODISCAN™ HS7600...
Page 65 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO48 Macedonian -FYROM $CKBCO49 Maltese_47KEY $CKBCO4A Mongolian-Cyrillic $CKBCO4B Polish Programmer $CKBCO4C Portuguese Brazil $CKBCO4D Portuguese Brazilian ABNT $CKBCO4E Portuguese Brazilian ABNT2 PRODUCT REFERENCE GUIDE...
Page 66 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO4F Romanian Legacy $CKBCO50 Romanian Programmer $CKBCO51 Romanian Standard $CKBCO52 Russian Typewriter $CKBCO53 Serbian Cyrillic $CKBCO54 Serbian Latin $CKBCO55 Slovak QWERTY CODISCAN™ HS7600...
Page 67 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO56 Slovenian $CKBCO57 Spanish Variation $CKBCO58 Swiss German $CKBCO59 Tatar $CKBCO5A Turkish F $CKBCO5B Turkish Q $CKBCO5C Ukrainian PRODUCT REFERENCE GUIDE...
Page 68 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO5D US Dvorak $CKBCO5E US Dvorak Left Hand $CKBCO5F US Dvorak Right Hand $CKBCO60 US English (Mac) $CKBCO61 US English (North American) $CKBCO62 US International $CKBCO63 Uzbek Cyrillic CODISCAN™ HS7600...
Page 69: Other Keyboard Parameters
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE OTHER KEYBOARD PARAMETERS Encoding Type $CENCO00  Encoding Type = Don’t Use Encoding $CENCO03 Encoding Type = UTF_8 $CENCO04 Encoding Type = Windows 874 $CENCO05 Encoding Type = Windows 932 $CENCO06 Encoding Type = Windows 936 $CENCO07 Encoding Type = Windows 949 $CENCO08...
Page 70 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO09 Encoding Type = Windows 1250 $CENCO0A Encoding Type = Windows 1251 $CENCO0B Encoding Type = Windows 1252 $CENCO0C Encoding Type = Windows 1253 $CENCO0D Encoding Type = Windows 1254 $CENCO0E Encoding Type = Windows 1255 $CENCO0F Encoding Type = Windows 1256 CODISCAN™...
Page 71 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO10 Encoding Type = Windows 1257 $CENCO11 Encoding Type = Windows 1258 $CENCO12 Encoding Type = Windows 20866 $CENCO31 Encoding Type = Windows 54936 $CENCO13 Encoding Type = ISO 8859-1 $CENCO14 Encoding Type = ISO 8859-2 $CENCO15 Encoding Type = ISO 8859-3...
Page 72 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO16 Encoding Type = ISO 8859-4 $CENCO17 Encoding Type = ISO 8859-5 $CENCO18 Encoding Type = ISO 8859-6 $CENCO19 Encoding Type = ISO 8859-7 $CENCO1A Encoding Type = ISO 8859-8 $CENCO1B Encoding Type = ISO 8859-9 $CENCO1C Encoding Type = ISO 8859-10 CODISCAN™...
Page 73 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO1D Encoding Type = ISO 8859-11 $CENCO1E Encoding Type = ISO 8859-13 $CENCO1F Encoding Type = ISO 8859-14 $CENCO20 Encoding Type = ISO 8859-15 $CENCO21 Encoding Type = ISO 8859-16 $CENCO22 Encoding Type = MS-DOS 437 $CENCO23 Encoding Type = MS-DOS 737...
Page 74 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO24 Encoding Type = MS-DOS 775 $CENCO25 Encoding Type = MS-DOS 850 $CENCO26 Encoding Type = MS-DOS 852 $CENCO27 Encoding Type = MS-DOS 855 $CENCO28 Encoding Type = MS-DOS 857 $CENCO29 Encoding Type = MS-DOS 860 $CENCO2A Encoding Type = MS-DOS 861 CODISCAN™...
Page 75 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO2B Encoding Type = MS-DOS 862 $CENCO2C Encoding Type = MS-DOS 863 $CENCO2D Encoding Type = MS-DOS 865 $CENCO2E Encoding Type = MS-DOS 866 $CENCO2F Encoding Type = MS-DOS 869 $CENCO30 Encoding Type = Mac CP10000 PRODUCT REFERENCE GUIDE...
Page 76: Alt Output Type
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE ALT Output Type This option specifies the encode type of ALT Mode when the reader sends Output Key- board Data in Alt Mode. (Be aware that the reader may switch automatically between ALT mode & Normal Keyboard Scancode, to correctly display some characters that are not present in the current Keyboard Country).
Page 77: Keyboard Numeric Keypad
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Keyboard Numeric Keypad This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad. $CKBKP00  Keyboard Numeric Keypad = Standard Keys $CKBKP01 Keyboard Numeric Keypad = Numeric Keypad Keyboard Send Control Characters This feature is used by the USB Keyboard interfaces.
Page 78: Intercharacter Delay
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. See " Intercharacter Delay"...
Page 79: Usb Keyboard Speed
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed This option specifies the USB poll rate for a USB Keyboard. NOTE: This feature applies ONLY to the USB Keyboard interface. $CKBSP01  USB Keyboard Speed = 1ms $CKBSP02 USB Keyboard Speed = 2ms $CKBSP03 USB Keyboard Speed = 3ms $CKBSP05...
Page 80: Usb-Oem Interface
CONFIGURATION | USB-OEM INTERFACE SECTION CONTENTS • USB-OEM Device Usage CODISCAN™ HS7600...
Page 81: Usb-Oem Device Usage
ENTER/EXIT PROGRAMMING MODE USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of bar code reader. Depending on what other reader you may already have con- nected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Page 82: Data Format
CONFIGURATION | DATA FORMAT SECTION CONTENTS LOBAL ETTINGS starting on page 67 • Global Prefix/Suffix • Global AIM ID • Case Conversion • GS1-128 AIM ID • Character Conversion ABEL starting on page 70 • • Label ID Symbology Selection Label ID: Set Individually Per Symbology •...
Page 83: Global Settings
GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE GLOBAL SETTINGS Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data). See in “Ref- page 249 erences”...
Page 84: Case Conversion
ENTER/EXIT PROGRAMMING MODE DATA FORMAT Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. NOTE: Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data. $CLFCA00 ...
Page 85: Global Aim Id
GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See for more detailed pro- gramming instructions.
Page 86: Label Id
ENTER/EXIT PROGRAMMING MODE DATA FORMAT LABEL ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
Page 87: Label Id: Set Individually Per Symbology
LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. NOTE: This setting requires the scanning of bar codes from multiple sec- tions. See " Label ID: Set Individually Per Symbology" on page 253 for more detailed programming instructions.
Page 88: Label Id Symbology Selection
ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See " Label ID: for full instructions. Set Individually Per Symbology" on page 253 Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 89 LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection (continued) $C32ID Set EAN-13/P2 Label ID Character(s) $C35ID Set EAN-13/P5 Label ID Character(s) $CISID Set ISBN Label ID Character(s) $CINID Set ISSN Label ID Character(s) $C8BID Set EAN-8 Label ID Character(s) $C82ID Set EAN-8 P2 Label ID Character(s) $C85ID...
Page 90 ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection (continued) $CXBID Set GS1 DataBar Expanded Label ID Character(s) $CLBID Set GS1 DataBar Limited Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $CP3ID Set Code 32 Label ID Character(s) $CCCID Set Code 39 CIP HR Label ID Character(s) $CC8ID...
Page 91 Label ID Symbology Selection (continued) $CHRID Set Interleaved 2 of 5 CIP HR Label ID Character(s) $CD2ID Datalogic 2 of 5 Label ID Character(s) $CS2ID Standard 2 of 5 Label ID Character(s) $CU2ID Industrial 2 of 5 Label ID Character(s)
Page 92 ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection (continued) $CC1ID Code 11 Label ID Character(s) $CMSID MSI Label ID Character(s) $CPLID Plessey Label ID Character(s) $CALID Anker Plessey Label ID Character(s) $CCMID Set Matrix 2 of 5 Label ID Character(s) CODISCAN™...
Page 93: Reading Parameters
CONFIGURATION | READING PARAMETERS SECTION CONTENTS CANNING EATURES starting on page 78 • Scan Mode • Object Detection Sensitivity • Scanning Active Time • Object Detection Illumination Off Time • Flash On Time • • Flash Off Time • • Double Read Timeout EEPER NDICATORS starting on page 84...
Page 94: Scanning Features
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See in “References” for descriptions. page 256 $CSNRM00  Scan Mode = Trigger Single $CSNRM01 Scan Mode = Trigger Hold Multiple $CSNRM02 Scan Mode = Trigger Pulse Multiple $CSNRM03 Scan Mode = Flashing $CSNRM05...
Page 95: Scanning Active Time
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments.
Page 96: Flash Off Time
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. See in “References”...
Page 97 SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Double Read Timeout (continued) $CSNDR32 Double Read Timeout = 0.5 Second $CSNDR3C  Double Read Timeout = 0.6 Second $CSNDR46 Double Read Timeout = 0.7 Second $CSNDR50 Double Read Timeout = 0.8 Second $CSNDR5A Double Read Timeout = 0.9 Second $CSNDR64 Double Read Timeout = 1 Second PRODUCT REFERENCE GUIDE...
Page 98: Object Detection Sensitivity
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Object Detection Sensitivity Sets the sensitivity level for object detection wakeup. Choices are low, medium and high. $CSMSE00 Object Detection Sensitivity = Low $CSMSE01  Object Detection Sensitivity = Medium $CSMSE02 Object Detection Sensitivity = High CODISCAN™...
Page 99: Object Detection Illumination Off Time
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Object Detection Illumination Off Time Specifies the amount of time reader illumination stays off after pulling the trigger when in Object Detection. The configurable range is 01 to 32 by 01 in increments of 500ms (500ms to 16 seconds).
Page 100: Led And Beeper Indicators
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS LED AND BEEPER INDICATORS Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. $CBPPU00 Power On Alert = Disable (No Audible Indication) $CBPPU01  Power On Alert = Power-up Beep Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound.
Page 101: Good Read Beep Frequency
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) $CBPFR00 Good Read Beep Frequency = Low $CBPFR01 Good Read Beep Frequency = Medium $CBPFR02...
Page 102: Good Read Beep Length
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read Beep Length $CBPLE06 Good Read Beep Length = 60 msec $CBPLE08  Good Read Beep Length = 80 msec $CBPLE0A Good Read Beep Length = 100 msec $CBPLE0C Good Read Beep Length = 120 msec $CBPLE0E Good Read Beep Length = 140 msec $CBPLE10...
Page 103: Good Read Beeper Volume
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read Beeper Volume Selects the beeper volume (loudness) upon a good read beep. There are three select- able volume levels. $CBPVO00 Good Read Beeper Volume = Beeper Off $CBPVO01 Good Read Beeper Volume = Low $CBPVO02 Good Read Beeper Volume = Medium $CBPVO03...
Page 104: Silent Mode
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Silent Mode If needed, audible indications can be disabled by scanning the labels below. Please note that some important audible notifications are not muted in silent mode and other notifications are replaced by visual indications. All changes in audible notifications are summarized here: •...
Page 105: Good Read Led Duration
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 100 milliseconds to 25,500 milliseconds (0.1 to 25.5 seconds) in 100ms increments.
Page 106: Good Read: When To Indicate
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. $CBPIN00  Indicate Good Read = After Decode $CBPIN01 Indicate Good Read = After Transmit $CBPIN02 Indicate Good Read =...
Page 107: Green Spot Duration
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Green Spot Duration Specifies the duration of the good read pointer beam after a good read. $CLSSP00 Green Spot Duration = Disable (Green Spot is Off) $CLSSP01  Green Spot Duration = Short (300 msec) $CLSSP02 Green Spot Duration = Medium (500 msec) $CLSSP03...
Page 108: Camera Control
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS CAMERA CONTROL Aiming Pointer Enables/disables the aiming pointer for all symbologies. $CTAAP00 Aiming Pointer = Disable $CTAAP01  Aiming Pointer = Enable $CTAAP02 Aiming Pointer = Green Spot Pick Mode Specifies the ability of the reader to decode labels only when they are close to the cen- ter of the aiming pattern.
Page 109: Mobile Phone Mode
CAMERA CONTROL ENTER/EXIT PROGRAMMING MODE Mobile Phone Mode This mode is useful for scanning bar codes displayed on a mobile phone. Other options for this feature can be configured using the Datalogic Aladdin application. $CSNPE00 Mobile Phone Mode = Disable $CSNPE01 ...
Page 110: Decode Negative Image
Decode Negative Image = Disable $CIPVR01 Decode Negative Image = Enable Image Capture For information and a list of options for Image Capture, use the Datalogic Aladdin con- figuration application, available for free download from the Datalogic Scanning website. CODISCAN™ HS7600...
Page 111: Multiple Label Reading
MULTIPLE LABEL READING ENTER/EXIT PROGRAMMING MODE MULTIPLE LABEL READING In standard (default) mode, when the reader’s aiming system is activated (by a trigger pull, motion or other method depending on the mode), it acquires and processes each image in the area in front of it (the Volume). In this case, the reader stops processing the image once it decodes a label.
Page 112: Multiple Labels Ordering By Code Length
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Multiple Labels Ordering by Code Length Specifies the transmission ordering by code length, when Multiple Labels per Frame is enabled. $CSNMT00  Multiple Labels Ordering = Disable $CSNMT01 Multiple Labels Ordering = Transmit Increasing Length Order $CSNMT02 Multiple Labels Ordering = Transmit Decreasing Length Order...
Page 113: 1D Symbologies
CONFIGURATION | 1D SYMBOLOGIES SECTION CONTENTS ISABLE YMBOLOGIES starting on page 98 5 (I 2 OUPON ONTROL NTERLEAVED • starting on page 98 • starting on page 132 UPC-A 5, F NTERLEAVED EBRABAN • starting on page 99 • start- ing on page 137 UPC-E 5 CIP HR...
Page 114: Disable All Symbologies
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES DISABLE ALL SYMBOLOGIES Scan this label to disable all symbologies. Disable All Symbologies COUPON CONTROL Coupon Control This feature is used to control the method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded •...
Page 115: Upc-A
UPC-A ENTER/EXIT PROGRAMMING MODE UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A bar codes. $CABEN00 UPC-A = Disable $CABEN01  UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data. $CABCT00 UPC-A Check Character Transmission = Don’t Send $CABCT01...
Page 116: Expand Upc-A To Ean-13
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00  UPC-A to EAN-13 = Don’t Expand $CAB3B01 UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 117: Upc-E
UPC-E ENTER/EXIT PROGRAMMING MODE UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E bar codes. $CEBEN00 UPC-E = Disable $CEBEN01  UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data. $CEBCT00 UPC-E Check Character Transmission = Don’t Send $CEBCT01...
Page 118: Expand Upc-E To Ean-13
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CEB3B00  UPC-E to EAN-13 = Don’t Expand $CEB3B01 UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 119: Gtin Formatting
UPC-E ENTER/EXIT PROGRAMMING MODE GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN-8, and EAN-13 labels into the GTIN 14-character format. $CGBEN00  GTIN Formatting = Disable $CGBEN01 GTIN Formatting = Enable PRODUCT REFERENCE GUIDE...
Page 120: 104
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES EAN-13 The following options apply to the EAN-13 symbology. EAN-13 Enable/Disable When disabled, the reader will not read EAN-13 bar codes. $C3BEN00 EAN-13 = Disable $C3BEN01  = Enable EAN-13 EAN-13 Check Character Transmission Enable this option to transmit the check character along with EAN-13 bar code data. $C3BCT00 EAN-13 Check Character Transmission = Don’t Send $C3BCT01...
Page 121: Ean-13 Flag 1 Character
EAN-13 ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN-13 Flag1 character. The Flag 1 character is the first character of the label $C3BF100 EAN-13 Flag 1 Char = Don’t transmit $C3BF101  EAN-13 Flag 1 Char = Transmit EAN-13 to ISBN Conversion This option enables/disables conversion of EAN-13/JAN-13 Bookland labels starting with 978 to ISBN labels.
Page 122: Ean-13 To Issn Conversion
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES EAN-13 to ISSN Conversion Enables/disables conversion of EAN/JAN-13 Bookland labels starting with 977 to ISSN labels. $C3BIN00  ISSN = Disable $C3BIN01 ISSN = Enable CODISCAN™ HS7600...
Page 123: 107
EAN-8 ENTER/EXIT PROGRAMMING MODE EAN-8 The following options apply to the EAN-8 symbology. EAN-8 Enable/Disable When disabled, the reader will not read EAN-8 bar codes. $C8BEN00 EAN-8 = Disable $C8BEN01  = Enable EAN-8 EAN-8 Check Character Transmission Enable this option to transmit the check character along with EAN-8 bar code data. $C8BCT00 EAN-8 Check Character Transmission = Don’t Send $C8BCT01...
Page 124: Expand Ean-8 To Ean-13
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Expand EAN-8 to EAN-13 Enable this option to expand EAN-8/JAN-8 labels to EAN-13/JAN-13. $C8B3B00  EAN-8 to EAN-13 = Don’t Expand $C8B3B01 EAN-8 to EAN-13 = Expand CODISCAN™ HS7600...
Page 125: Upc/Ean Global Settings
UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 sym- bologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits.
Page 126: Upc/Ean Quiet Zones
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES UPC/EAN Quiet Zones This feature specifies the number of quiet zones for UPC/EAN labels. Quiet zones are blank areas at the ends of a bar code, typically 10 times the width of the narrowest bar or space in the label.
Page 127: Add-Ons
UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Add-Ons The following features apply to optional add-ons. NOTE: Contact Customer Support for advanced programming of optional and conditional add-ons. Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): •...
Page 128: Optional Add-On Timer
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01 Optional Add-on Timer = 10ms $CADOT02 Optional Add-on Timer = 20ms $CADOT03 Optional Add-on Timer = 30ms $CADOT05...
Page 129: Gs1 Databar™ Omnidirectional
GS1 DATABAR™ OMNIDIRECTIONAL ENTER/EXIT PROGRAMMING MODE GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar Omnidirectional (formerly RSS-14) sym- bology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar Omnidirectional bar codes. $C4BEN00  GS1 DataBar Omnidirectional = Disable $C4BEN01 GS1 DataBar Omnidirectional = Enable...
Page 130: Gs1 Databar™ Expanded
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) sym- bology. GS1 DataBar Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar Expanded bar codes. $CXBEN00  GS1 DataBar Expanded = Disable $CXBEN01 GS1 DataBar Expanded = Enable...
Page 131: Gs1 Databar Expanded Length Control
GS1 DATABAR™ EXPANDED ENTER/EXIT PROGRAMMING MODE GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CXBLC00 ...
Page 132: Gs1 Databar Expanded Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GS1 DataBar Expanded Set Length 2 This feature specifies one of the bar code lengths for " GS1 DataBar Expanded Length . Length 2 is the maximum label length if in Variable Length Mode, Control" on page 115 or the second fixed length if in Fixed Length Mode.
Page 133: Gs1 Databar™ Limited
GS1 DATABAR™ LIMITED ENTER/EXIT PROGRAMMING MODE GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar Limited (formerly RSS Limited) symbol- ogy. GS1 DataBar Limited Enable/Disable When disabled, the reader will not read GS1 DataBar Limited bar codes. $CLBEN00 ...
Page 134: Code 39
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 bar codes. $CC3EN00 Code 39 = Disable $CC3EN01  Code 39 = Enable Code 39 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional Code 39 check character.
Page 135: Code 39 Check Character Transmission
CODE 39 ENTER/EXIT PROGRAMMING MODE $CC3CC08 Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00 Code 39 Check Character Transmission = Don’t Send $CC3CT01 ...
Page 136: Code 39 Full Ascii
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. $CC3FA00  Code 39 Full ASCII = Disable $CC3FA01 Code 39 Full ASCII = Enable Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels.
Page 137: Code 39 Length Control
CODE 39 ENTER/EXIT PROGRAMMING MODE Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CC3LC00 ...
Page 138: Code 39 Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 39 Set Length 2 This feature specifies one of the bar code lengths for " Code 39 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 139: Trioptic Code
TRIOPTIC CODE ENTER/EXIT PROGRAMMING MODE TRIOPTIC CODE The following options apply to the trioptic symbology. Trioptic Code Enable/Disable When disabled, the reader will not read Trioptic Code bar codes. $CCTEN00  Trioptic Code = Disable $CCTEN01 Trioptic Code = Enable CODE 39 DANISH PPT The following options apply to the Code 39 Danish PPT symbology.
Page 140: Code 39 Pzn
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 39 PZN The following options apply to the Code 39 PZN symbology. Code 39 PZN Enable/Disable When disabled, the reader will not read Code 39 PZN bar codes. $CPZEN00  Code 39 PZN = Disable $CPZEN01 Code 39 PZN = Enable CODE 39 LA POSTE...
Page 141: Code 32 (Italian Pharmaceutical)
CODE 32 (ITALIAN PHARMACEUTICAL) ENTER/EXIT PROGRAMMING MODE CODE 32 (ITALIAN PHARMACEUTICAL) The following options apply to the Code 32 symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 bar codes. $CP3EN00  Code 32 = Disable $CP3EN01 Code 32 = Enable Code 32 Feature Setting Exceptions...
Page 142: Code 32 Start/Stop Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 32 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 32 start and stop characters. $CP3SS00  Code 32 Start/Stop Character Transmission = Don’t Transmit $CP3SS01 Code 32 Start/Stop Character Transmission = Transmit CODE 39 CIP HR (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP HR symbology.
Page 143: Code 128
CODE 128 ENTER/EXIT PROGRAMMING MODE CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable Enables/Disables ability of the reader to decode Code 128 labels. $CC8EN00 Code 128 = Disable $CC8EN01  Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 144: Code 128 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 bar code data. $CC8CT00  Code 128 Check Character Transmission = Don’t Send $CC8CT01 Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Page 145: Code 128 Quiet Zones
CODE 128 ENTER/EXIT PROGRAMMING MODE Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 146: Code 128 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 128 Set Length 1 This feature specifies one of the bar code lengths for " Code 128 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 147: Gs1-128
GS1-128 ENTER/EXIT PROGRAMMING MODE GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GTIN- 128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 148: Interleaved 2 Of 5 (I 2 Of 5)
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES INTERLEAVED 2 OF 5 (I 2 OF 5) The following options apply to the I 2 of 5 symbology. CAUTION: When reading this symbology, the settings for I 2 of 5 Length Control AND I 2 of 5 Check Character Calculation MUST be enabled to increase decoding safety.
Page 149: I 2 Of 5 Check Character Calculation
INTERLEAVED 2 OF 5 (I 2 OF 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. $CI2CC00  I 2 of 5 Check Character Calculation = Disable $CI2CC01 I 2 of 5 Check Character Calculation = Calculate Std Check (Modulo 10 no AR)
Page 150: I 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES I 2 of 5 Check Character Calculation (continued) $CI2CC10 I 2 of 5 Check Character Calculation = Calculate Bosch Check $CI2CC20 I 2 of 5 Check Character Calculation = Calculate Italian Post Check I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data.
Page 151: I 2 Of 5 Length Control
INTERLEAVED 2 OF 5 (I 2 OF 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set.
Page 152: I 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for " I 2 of 5 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 153: Interleaved 2 Of 5, Febraban
INTERLEAVED 2 OF 5, FEBRABAN ENTER/EXIT PROGRAMMING MODE INTERLEAVED 2 OF 5, FEBRABAN Interleaved 2 of 5, Febraban format Enable / Disable NOTE: Interleaved 2 of 5 shall be enabled before enabling Febraban variant. Enables/Disables ability of reader to decode Interleaved 2 of 5, Febraban format. $CI2FE00 ...
Page 154: Matrix 2 Of 5 Enable/Disable
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES The following options apply to the Matrix 2 of 5 symbology. Matrix 2 of 5 Enable/Disable When disabled, the reader will not read Matrix 2 of 5 bar codes. $CM2EN00  Matrix 2 of 5 = Disable $CM2EN01 Matrix 2 of 5 = Enable Matrix 2 of 5 Check Character Calculation...
Page 155: Matrix 2 Of 5 Check Character Transmission
MATRIX 2 OF 5 ENTER/EXIT PROGRAMMING MODE Matrix 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Matrix 2 of 5 check character. $CM2CT00 Matrix 2 of 5 Check Character Transmission = Don’t Send $CM2CT01  Matrix 2 of 5 Check Character Transmission = Send Matrix 2 of 5 Length Control...
Page 156: Matrix 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Matrix 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Standard 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 142 fixed length if in Fixed Length Mode.
Page 157: Standard 2 Of 5
STANDARD 2 OF 5 ENTER/EXIT PROGRAMMING MODE STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 bar codes. $CS2EN00 ...
Page 158: Standard 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check charac- ter. $CS2CT00 Standard 2 of 5 Check Character Transmission = Don’t Send $CS2CT01  Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...
Page 159: Standard 2 Of 5 Set Length 1
STANDARD 2 OF 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Standard 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 142 fixed length if in Fixed Length Mode.
Page 160: Compressed 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES COMPRESSED 2 OF 5 The following options apply to the Compressed 2 of 5 symbology. Compressed 2 of 5 Enable/Disable When disabled, the reader will not read Compressed 2 of 5 bar codes. $CC2EN00  Compressed 2 of 5 = Disable $CC2EN01 Compressed 2 of 5 = Enable...
Page 161: Compressed 2 Of 5 Check Character Transmission
COMPRESSED 2 OF 5 ENTER/EXIT PROGRAMMING MODE Compressed 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Compressed 2 of 5 check char- acter. $CC2CT00 Compressed 2 of 5 Check Character Transmission = Don’t Send $CC2CT01 ...
Page 162: Compressed 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Compressed 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Compressed 2 of 5 Length Control" . Length 1 is the minimum label length if in Variable Length Mode, or the on page 145 first fixed length if in Fixed Length Mode.
Page 163: Datalogic 2 Of 5
DATALOGIC 2 OF 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the reader will not read Datalogic 2 of 5 bar codes. $CD2EN00  Datalogic 2 of 5 = Disable...
Page 164: Datalogic 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Datalogic 2 of 5 Check Character Transmission Enable this option to transmit the check character along with Datalogic 2 of 5 bar code data. $CD2CT00 Datalogic 2 of 5 Check Character Transmission = Don’t Send $CD2CT01 ...
Page 165: Datalogic 2 Of 5 Set Length 1
Alphanu- meric characters in Appendix D, Keypad represent- Select Datalogic 2 of 5 Set Length 2 Setting ing your desired character(s). End by scanning the $CD2L2 ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 166: Industrial 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable When disabled, the reader will not read Industrial 2 of 5 bar codes. $CU2EN00  Industrial 2 of 5 = Disable $CU2EN01 Industrial 2 of 5 = Enable...
Page 167: Industrial 2 Of 5 Check Character Transmission
INDUSTRIAL 2 OF 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00 Industrial 2 of 5 Check Character Transmission = Don’t Send $CU2CT01  Industrial 2 of 5 Check Character Transmission = Send Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...
Page 168: Industrial 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Industrial 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 151 fixed length if in Fixed Length Mode.
Page 169: Iata
IATA ENTER/EXIT PROGRAMMING MODE IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. $CIAEN00  IATA = Disable $CIAEN01 IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional IATA check character. $CIACT00 IATA Check Character Transmission = Don’t Send...
Page 170: Follett 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES FOLLETT 2 OF 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Follett 2 of 5 labels. $CF2EN00  Follett 2 of 5 = Disable $CF2EN01 Follett 2 of 5 = Enable CODISCAN™...
Page 171: Codabar
CODABAR ENTER/EXIT PROGRAMMING MODE CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar bar codes. $CCBEN00  Codabar = Disable $CCBEN01 Codabar = Enable Codabar Check Character Calculation This option enables/disables calculation and verification of an optional Codabar check character.
Page 172: Codabar Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. NOTE: This feature is valid only when Codabar Check Character Calculation is enabled. $CCBCT00 Codabar Check Character Transmission = Don’t Send $CCBCT01 ...
Page 173: Codabar Start/Stop Character Set
CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters. $CCBSC00 Codabar Check Character Set = ABCD/TN*E $CCBSC01 Codabar Check Character Set = ABCD/ABCD $CCBSC02 Codabar Check Character Set = abcd/tn*e $CCBSC03 ...
Page 174: Codabar Quiet Zones
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 175: Codabar Length Control
CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CCBLC00 ...
Page 176: Codabar Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Set Length 2 This feature specifies one of the bar code lengths for " Codabar Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 177: Abc Codabar
ABC CODABAR ENTER/EXIT PROGRAMMING MODE ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. $CCBAB00  ABC Codabar = Disable $CCBAB01 ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 178: Abc Codabar Dynamic Concatenation Timeout
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES ABC Codabar Dynamic Concatenation Timeout This parameter specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. The timeout can be set within a range of 05 to 255 in 10ms increments. A setting of zero specifies no delay. To configure this feature, scan the ENTER/EXIT PRO- GRAMMING MODE bar code above, then the bar code at left followed by the digits from the Alphanu-...
Page 179: Isbt 128
ISBT 128 ENTER/EXIT PROGRAMMING MODE ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Enables/disables ISBT 128 concatenation of 2 labels. $CI8CE00  ISBT 128 Concatenation = Disable $CI8CE01 ISBT 128 Concatenation = Enable ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 180: Isbt 128 Dynamic Concatenation Timeout
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05 ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A ISBT 128 Dynamic Concatenation Timeout = 100 msec $CI8DT14 ...
Page 181: Isbt 128 Force Concatenation
ISBT 128 Force Contatenation = Disable $CI8FC01 ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options NOTE: Use the Datalogic Aladdin configuration application or Contact Cus- tomer Support to set up pairs of label types for concatenation. PRODUCT REFERENCE GUIDE...
Page 182: Code 11
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 bar codes. $CC1EN00  Code 11 = Disable $CC1EN01 Code 11 = Enable Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.
Page 183: Code 11 Check Character Transmission
CODE 11 ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. $CC1CT00 Code 11 Check Character Transmission = Don’t Send $CC1CT01  Code 11 Check Character Transmission = Send Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology.
Page 184: Code 11 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 11 Set Length 1 This feature specifies one of the bar code lengths for " Code 11 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 185: Code 93
CODE 93 ENTER/EXIT PROGRAMMING MODE CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. $CC9EN00  Code 93 = Disable $CC9EN01 Code 93 = Enable Code 93 Check Character Calculation This option enables/disables calculation and verification of optional Code 93 check character.
Page 186: Code 93 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 93 Check Character Transmission This feature enables/disables transmission of an optional Code 93 check character. $CC9CT00  Code 93 Check Character Transmission = Don’t Send $CC9CT01 Code 93 Check Character Transmission = Send Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.
Page 187: Code 93 Set Length 1
CODE 93 ENTER/EXIT PROGRAMMING MODE Code 93 Set Length 1 This feature specifies one of the bar code lengths for " Code 93 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 188: Code 93 Quiet Zones
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 93 Quiet Zones This feature specifies the number of quiet zones for Code 93 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 189: Msi
ENTER/EXIT PROGRAMMING MODE The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. $CMSEN00  MSI = Disable $CMSEN01 MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. $CMSCC00 MSI Check Character Calculation = Disable $CMSCC01...
Page 190: Msi Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES MSI Check Character Transmission Enables/disables transmission of an MSI check character. $CMSCT00 MSI Check Character Transmission = Don’t Send $CMSCT01  MSI Check Character Transmission = Send MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
Page 191: Msi Set Length 1
ENTER/EXIT PROGRAMMING MODE MSI Set Length 1 This feature specifies one of the bar code lengths for " MSI Length Control" on page 174 Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 192: Plessey
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. $CPLEN00  Plessey = Disable $CPLEN01 Plessey = Enable Plessey Check Character Calculation Enables/Disables calculation and verification of a Plessey check character. $CPLCC00 Plessey Check Character Calculation = Disable $CPLCC01...
Page 193: Plessey Check Character Transmission
PLESSEY ENTER/EXIT PROGRAMMING MODE Plessey Check Character Transmission Enables/disables transmission of a Plessey check character. $CPLCT00 Plessey Check Character Transmission = Don’t Send $CPLCT01  Plessey Check Character Transmission = Send Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology.
Page 194: Plessey Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Plessey Set Length 1 This feature specifies one of the bar code lengths for " Plessey Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 195: Bc412
BC412 ENTER/EXIT PROGRAMMING MODE BC412 The following options apply to the BC412 symbology. BC412 Enable/Disable Enables/Disables ability of reader to decode BC412 labels. $CBCEN00  BC412 = Disable $CBCEN01 BC412 = Enable BC412 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional BC412 check character.
Page 196: Bc412 Length Control
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES BC412 Length Control This feature specifies either variable length decoding or fixed length decoding for the BC412 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CBCLC00 ...
Page 197: Bc412 Set Length 1
BC412 ENTER/EXIT PROGRAMMING MODE BC412 Set Length 1 This feature specifies one of the bar code lengths for " BC412 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 198: Symbologies
CONFIGURATION | SYMBOLOGIES SECTION CONTENTS GLOBAL FEATURES • starting on page 183 PDF417 ZTEC • starting on page 185 • starting on page 197 PDF417 HINA ENSIBLE ICRO • starting on page • starting on page 199 QR C ATRIX •...
Page 199: 2D Global Features
2D GLOBAL FEATURES The following features are common to all, or in some cases, most of the available 2D symbologies. Default settings are indicated at each feature/option with a green arrow. Also reference Appendix B, Standard Defaults for a listing of the most widely used set of standard factory settings.
Page 200: 2D Structured Append
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES 2D Structured Append Enables/disables ability of reader to append multiple 2D Codes labels in a structured format. The structured append property is globally applied to the following symbolo- gies, if these are enabled: • Data Matrix •...
Page 201: Aztec Code
AZTEC CODE ENTER/EXIT PROGRAMMING MODE AZTEC CODE Aztec Code Enable / Disable Enables/disables the ability of the reader to decode Aztec Code labels. $CAZEN00 Aztec Code = Disable $CAZEN01  Aztec Code = Enable Aztec Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 202: Aztec Code Set Length 1
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Aztec Code Set Length 1 Specifies one of the bar code lengths for " Aztec Code Length Control" on page 185 Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 203: China Sensible Code
CHINA SENSIBLE CODE ENTER/EXIT PROGRAMMING MODE CHINA SENSIBLE CODE China Sensible Code Enable / Disable Enables/disables the ability of the reader to decode China Sensible Code labels. $CCSEN00  China Sensible Code = Disable $CCSEN01 China Sensible Code = Enable China Sensible Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 204: China Sensible Code Set Length 1
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES China Sensible Code Set Length 1 Specifies one of the bar code lengths for " China Sensible Code Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 205: Data Matrix
DATA MATRIX ENTER/EXIT PROGRAMMING MODE DATA MATRIX Data Matrix Enable / Disable Enables/disables ability of reader to decode Data Matrix labels. $CDMEN00 Data Matrix = Disable $CDMEN01  Data Matrix = Enable Data Matrix Square/Rectangular Style Specifies the options available when reading Data Matrix with different form factors. Choices are: •...
Page 206: Data Matrix Length Control
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Data Matrix Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CDMLC00 ...
Page 207: Data Matrix Set Length 2
DATA MATRIX ENTER/EXIT PROGRAMMING MODE Data Matrix Set Length 2 This feature specifies one of the bar code lengths for " Data Matrix Length Control" on . Length 2 is the maximum label length if in Variable Length Mode, or the sec- page 190 ond fixed length if in Fixed Length Mode.
Page 208: Gs1 Dotcode
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES GS1 DOTCODE The following options apply for the DotCode barcode decoding DotCode Enable This options enables/disables the ability of the reader to decode DotCode barcodes. $CDCEN01 DotCode = Enable $CDCEN00  DotCode = Disable DotCode High Resolution Enable This options improves the decoding performance for very small module size barcodes, e.g.
Page 209: Dotcode Position-Based Decoding
DotCode Position-based Decoding = Enable $CDCCP00  DotCode Position-based Decoding = Disable Additional Options To improve performances the following additional settings are available using Aladdin configuration utility, downloadable from www.datalogic.com. • Dot Size • Fixed Length or Variable Length •...
Page 210: Maxicode
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES MAXICODE Maxicode Enable / Disable Enables/disables ability of reader to decode Maxicode labels. $CMXEN00  Maxicode = Disable $CMXEN01 Maxicode = Enable Maxicode Primary Message Transmission Enables/disables the transmission of only the Primary Message when the Secondary Message is not readable.
Page 211: Maxicode Length Control
MAXICODE ENTER/EXIT PROGRAMMING MODE Maxicode Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMXLC00 ...
Page 212: Maxicode Set Length 2
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Maxicode Set Length 2 This feature specifies one of the bar code lengths for " Maxicode Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 213: Pdf417
PDF417 ENTER/EXIT PROGRAMMING MODE PDF417 PDF417 Enable / Disable Enables/disables the ability of the reader to decode PDF417 labels. $CP4EN00 PDF417 = Disable $CP4EN01  PDF417 = Enable PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 214: Pdf417 Set Length 1
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES PDF417 Set Length 1 Specifies one of the bar code lengths for " . Length 1 PDF417 Length Control" on page 197 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 215: Micro Pdf417
MICRO PDF417 ENTER/EXIT PROGRAMMING MODE MICRO PDF417 Micro PDF417 Enable / Disable Enables/disables the ability of the reader to decode Micro PDF417 labels. $CMIEN00 Micro PDF417 = Disable $CMIEN01  Micro PDF417 = Enable Micro PDF417 Code 128 GS1-128 Emulation Specifies which AIM ID to use for Micro PDF labels when doing Code 128 or GS1-128 emulation.
Page 216: Micro Pdf417 Length Control
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Micro PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMILC00 ...
Page 217: Micro Pdf417 Set Length 2
MICRO PDF417 ENTER/EXIT PROGRAMMING MODE Micro PDF417 Set Length 2 This feature specifies one of the bar code lengths for " Micro PDF417 Length Control" on . Length 2 is the maximum label length if in Variable Length Mode, or the sec- page 200 ond fixed length if in Fixed Length includes the bar code’s data characters only.
Page 218: Qr Code
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES QR CODE QR Code Enable / Disable Enables/disables the ability of the reader to decode QR Code labels. $CQREN00 QR Code = Disable $CQREN01  QR Code = Enable QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 219: Qr Code Set Length 1
QR CODE ENTER/EXIT PROGRAMMING MODE QR Code Set Length 1 This feature specifies one of the bar code lengths for " QR Code Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 220: Micro Qr Code
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES MICRO QR CODE Micro QR Code Enable / Disable Enables/disables the ability of the reader to decode Micro QR Code labels. $CMQEN00  Micro QR Code = Disable $CMQEN01 Micro QR Code = Enable Micro QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 221: Micro Qr Code Set Length 1
MICRO QR CODE ENTER/EXIT PROGRAMMING MODE Micro QR Code Set Length 1 This feature specifies one of the bar code lengths for " Micro QR Code Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 204 fixed length if in Fixed Length Mode.
Page 222: Ucc Composite
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES UCC COMPOSITE UCC Optional Composite Timer Specifies the amount of time the system will wait for the stacked part of a UCC Compos- ite label before transmitting the linear label without an add-on. The UCC Optional Com- posite Timer can be set within a range of 10 to 300 msec.
Page 223: Postal Code Selection
UCC COMPOSITE ENTER/EXIT PROGRAMMING MODE Postal Code Selection Enables/disables the ability of the reader to decode labels of a specific postal symbol- ogy. • Disable All Postal Codes • Australia Post • Postnet • Japan Post • Planet • • Royal Mail •...
Page 224: Postnet Bb Control
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Postal Code Selection (continued) $CPOEN07 Postal Code Selection = Enable IMB $CPOEN08 Postal Code Selection = Enable Sweden Post $CPOEN09 Postal Code Selection = Enable Portugal Post Postnet BB Control Controls the ability of the reader to decode B and B' fields of Postnet labels. $CPOBB00 ...
Page 225 NOTES PRODUCT REFERENCE GUIDE...
Page 226: Ocr Decoding
CONFIGURATION | OCR DECODING The CODiScan HS7600 is equipped with an Optical Character Recognition feature. This section describes how to configure the Datalogic bar code reader to enable OCR decoding. The CODiScan HS7600 support the following OCR font types: •...
Page 227: Ocr Decoding Predefined Templates
ENTER/EXIT PROGRAMMING MODE OCR Decoding Predefined Templates The following selections are exclusive, enabling one template automatically disables the others. $COCEN00000000  OCR Predefined Template = Disable OCR Function $COCEN00000001 OCR Predefined Template = EU Identity Card OCR $COCEN00000002 OCR Predefined Template = IATA Passport OCR $COCEN00000004 OCR Predefined Template = Italian Post OCR Payment $COCEN00000008...
Page 228: Power Management
CONFIGURATION | POWER MANAGEMENT SECTION CONTENTS OWER starting on page 213 • Powerdown Timeout ATTERY ROFILES starting on page 214 • Battery Profiles • Battery Information These parameters refer to Mobile units only. CODISCAN™ HS7600...
Page 229: Power Save
POWER SAVE ENTER/EXIT PROGRAMMING MODE POWER SAVE Powerdown Timeout The Powerdown Timeout feature sets the time for automatically switching the unit off when the imager has been idle. $CSLPS00 Powerdown Timeout = Disable $CSLPS01 Powerdown Timeout = 10 minutes $CSLPS02 Powerdown Timeout = 20 minutes $CSLPS03 ...
Page 230: Battery Profiles
BATTERY PROFILES Battery Profiles CODiScan HS7600 provides the user the ability to select different usage profiles to bet- ter configure the reader with respect to specific needs. By default, the Maximum Perfor- mance profile is selected and provides high snappiness and max reading capability. The...
Page 231: Battery Information
Maximum Autonomy • Max reader autonomy • Vibro motor disabled • Increased Sniff-time period (Bluetooth®) Battery Information By using Datalogic Aladdin utility, additional battery data can be retrieved, i.e.: • HH Serial Number • Charge % • Health % •...
Page 232: Wireless Features
CONFIGURATION | WIRELESS FEATURES SECTION CONTENTS IRELESS EEPER EATURES starting on page 217 • • Good Transmission Beep Disconnect Beep • • Beeper Frequency Leash Alarm • Beep Duration • Beep Volume ONFIGURATION PDATES starting on page 222 • • Automatic Configuration Update Copy Configuration to Gateway •...
Page 233: Wireless Beeper Features
WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE WIRELESS BEEPER FEATURES Several options are available to configure beeper behavior for wireless operation. Good Transmission Beep Enables/disables the Good Transmission Beep indication. When enabled, a beep occurs when a Label is correctly transmitted to the host. $CBTAB00 Good Transmission Beep = Disable $CBTAB01...
Page 234: Beep Duration
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Beep Duration This feature controls the duration of radio-specific beep indications. $CBTBD06 Beep Duration = 60 msec $CBTBD08  Beep Duration = 80 msec $CBTBD0A Beep Duration = 100 msec $CBTBD0C Beep Duration = 120 msec $CBTBD0E Beep Duration = 140 msec $CBTBD10...
Page 235: Beep Volume
WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE Beep Volume Selects the beeper volume (loudness) of radio-specific beep indications. There are three selectable volume levels. $CBTBV00 Beep Volume = Low $CBTBV01 Beep Volume = Medium $CBTBV02  Beep Volume = High Disconnect Beep Enables/disables the beep indication that a handheld has become disconnected from a host.
Page 236: Leash Alarm
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range. This is especially useful in instances where the reader might inadvertently have been placed in a bag or cart. For this mode to be effective, the reader must be linked to the host.
Page 237 WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE Leash Alarm (continued) $CBTLB04 Leash Alarm = 4 Seconds $CBTLB05 Leash Alarm = 5 Seconds $CBTLB0A Leash Alarm = 10 Seconds $CBTLB19 Leash Alarm = 25 Seconds $CBTLB1E Leash Alarm = 30 Seconds PRODUCT REFERENCE GUIDE...
Page 238: Configuration Updates
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES CONFIGURATION UPDATES Automatic Configuration Update When this feature is enabled, a reader and its linked Gateway can automatically ensure they stay in sync with regard to application hardware and/or configuration. See for more information on this feature. page 261 $CBTCU00 Automatic Configuration Update = Disable...
Page 239: Batch Features
BATCH FEATURES ENTER/EXIT PROGRAMMING MODE BATCH FEATURES Batch Mode This option specifies whether to store labels in the handheld while disconnected from the host. Options are as follows: • Disabled — The handheld will not store/batch labels. • Automatic — The handheld will store labels to RAM when the handheld goes out of range and is disconnected from the remote device.
Page 240: Erase Batch Memory
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Erase Batch Memory When the reader is configured in Manual Batch Mode, use the following bar code to erase any labels stored in batch memory. NOTE: Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this bar code.
Page 241: Direct Radio Autolink
DIRECT RADIO AUTOLINK ENTER/EXIT PROGRAMMING MODE DIRECT RADIO AUTOLINK Direct Radio Autolink This feature enables/disables the ability to link a wireless handheld to a host without scanning the Unlink label first. $CBTDL00  Direct Radio Link = Unlink Label Required $CBTDL01 Direct Radio Link = Automatic Unlinking PRODUCT REFERENCE GUIDE...
Page 242: Rf Address Stamping
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES RF ADDRESS STAMPING These features allow configuration of source radio data inclusion. Source Radio Address Transmission Enables/disables the ability of source radio address information to be transmitted to the host and, if so, at what position with respect to the label data. See in “Refer- page 261 ences”...
Page 243: Bluetooth-Only Features
BLUETOOTH-ONLY FEATURES NOTE: Changing the configuration parameters described in this section may cause a temporary loss of the Bluetooth connection between the Reader and the remote device. Bluetooth Security Level NOTE: This parameter applies when pairing the Reader with a third party Bluetooth device.
Page 244 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES $CBTSL01  BT Security Level = Level 1 - lowest $CBTSL02 BT Security Level = Level 2 $CBTSL03 BT Security Level = Level 3 - highest CODISCAN™ HS7600...
Page 245: Wi-Fi Channels Exclusion
If the specific 802.11 standard and the frequency channels used by the Wi-Fi equipment are known, select the corresponding combination from the list of pro- gramming labels below or use the Datalogic Aladdin tool. With this setting, the Reader and the remote Bluetooth device avoid using the Bluetooth frequency channels that overlap with the already occupied Wi-Fi channels.
Page 246 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Wi-Fi Channels Exclusion (continued) $CBTWF00000000001FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 $CBTWF0000000003FFFFF80000 WiFi Ch. Exclusion = 802.11b_g ch.5 $CBTWF000000007FFFFF000000 WiFi Ch. Exclusion = 802.11b_g ch.6 $CBTWF0000000FFFFFE0000000 WiFi Ch. Exclusion = 802.11b_g ch.7 $CBTWF000001FFFFFC00000000 WiFi Ch. Exclusion = 802.11b_g ch.8 $CBTWF00003FFFFF8000000000 WiFi Ch.
Page 247 BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE Wi-Fi Channels Exclusion (continued) $CBTWF1FFFFFC0000000000000 WiFi Ch. Exclusion = 802.11b_g ch.12 $CBTWF7FFFF800000000000000 WiFi Ch. Exclusion = 802.11b_g ch.13 $CBTWF7F800000000000000000 WiFi Ch. Exclusion = 802.11b_g ch.14 $CBTWF000000007FFFFF3FFFFF WiFi Ch. Exclusion = 802.11b_g ch.1 and 6 $CBTWF00FFFFFE0000003FFFFF WiFi Ch.
Page 248 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Wi-Fi Channels Exclusion (continued) $CBTWF1FFFFFC0000007FFFFF0 WiFi Ch. Exclusion = 802.11b_g ch.2 and 12 $CBTWF1FFFFFCFFFFFE0000000 WiFi Ch. Exclusion = 802.11b_g ch.7 and 12 $CBTWF0FFFFF03FFFF81FFFFE0 WiFi Ch. Exclusion = 802.11b_g ch.2 and 7 and 12 $CBTWF000001FFFFFCFFFFFE00 WiFi Ch. Exclusion = 802.11b_g ch.3 and 8 $CBTWF7FFFF8000000FFFFFE00 WiFi Ch.
Page 249 BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE Wi-Fi Channels Exclusion (continued) $CBTWF7F800000001FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 and 14 $CBTWF7F803FFFFF8000000000 WiFi Ch. Exclusion = 802.11b_g ch.9 and 14 $CBTWF7F803FFFFF9FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 and 9 and 14 $CBTWF000FFFFFE3FFFFF80000 WiFi Ch. Exclusion = 802.11b_g ch.5 and 10 $CBTWF0000000001FFFFFFFFFF WiFi Ch.
Page 250: Bluetooth Discoverable Mode Timeout
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Bluetooth Discoverable Mode Timeout It defines how long the scanner is discoverable after reading the "Link HID" or "Link SPP" label. $CBTDT00 Discoverable Mode Timeout = 1 minute $CBTDT01 Discoverable Mode Timeout = 2 minutes $CBTDT02 ...
Page 251: Bluetooth Friendly Name
ENTER/EXIT bar code to terminate the string. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL  CODISCAN HS7600 [SERIAL_NUMBER_SCANNER] PRODUCT REFERENCE GUIDE...
Page 252: Bluetooth Hid Features
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES BLUETOOTH HID FEATURES Before connecting the Reader to a Bluetooth HID host device, the keyboard emulation used for label transmission can be configured using the parameters described in this section, plus the following parameters: • "...
Page 253: Bluetooth Hid Intercharacter Delay
BLUETOOTH HID FEATURES ENTER/EXIT PROGRAMMING MODE Bluetooth HID Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments.
Page 254: Chapter 4. References
CHAPTER 4 REFERENCES This section contains explanations and examples of selected bar code features. See " for the actual bar code labels. Configuration with Bar Codes" on page 25 SECTION CONTENTS USB COM P ARAMETERS on page 239 • Intercharacter Delay •...
Page 255: Usb Com Parameters
USB COM PARAMETERS USB COM PARAMETERS Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments.
Page 256: Ack Nak Options
REFERENCES ACK NAK Options This enables/disables the ability of the reader to support the USB COM ACK/NAK proto- col. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 257: Nak Character
USB COM PARAMETERS NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 258: Ack Nak Timeout Value
REFERENCES ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
Page 259: Ack Nak Retry Count
USB COM PARAMETERS ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries. To set this feature: 1.
Page 260: Disable Character
REFERENCES Disable Character Specifies the value of the USB COM host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 261: Enable Character
USB COM PARAMETERS Enable Character Specifies the value of the USB COM host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 262: Keyboard Interface
REFERENCES KEYBOARD INTERFACE Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. To set the delay: 1.
Page 263: Intercode Delay
KEYBOARD INTERFACE Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The select- able range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 264: Data Format
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) NOTE: Additional advanced editing is available. See the Advanced format- ting features in the Datalogic Aladdin configuration software, or contact " Technical Support" on page xiv for more information. Please Keep In Mind...
Page 265: Global Prefix/Suffix
DATA FORMAT Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indicated. Figure 4 Prefix and Suffix Positions OR...
Page 266: Global Aim Id
REFERENCES Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...
Page 267: Label Id
Code 93 & 260000 550000 Code 11 434500 620000 Code 128 230000 540000 Code 32 410000 580000 Code 39 2A0000 560000 Datalogic 2of5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN8 464600 410000 EAN8 P2...
Page 268 REFERENCES SYMBOLOGY USA LABEL ID SET EU LABEL ID SET ISSN 6E0000 6E0000 400000 5A0000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCE 450000 440000 UPCE P2 450000 480000 UPCE P5 450000 490000 OCR-A 6F0000 246F00 OCR-B...
Page 269: Label Id: Set Individually Per Symbology
DATA FORMAT Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section " Label ID Control"...
Page 270 REFERENCES Label ID: Set Individually Per Symbology — continued Table 14 Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar code (Reader enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix...
Page 271: Character Conversion
DATA FORMAT Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the char- acter that will be converted. The second character in the pair is the character to convert to.
Page 272: Scanning Features
REFERENCES SCANNING FEATURES Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single: When the trigger is pulled, scanning is activated until one of the follow- ing occurs: • Object Detection has elapsed • a label has been read •...
Page 273 SCANNING FEATURES NOTE: If you make a mistake before the last character, scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. 6. Scan the ENTER/EXIT PROGRAMMING MODE bar code to exit Programming Mode. This completes the procedure.
Page 274: Flash On Time
REFERENCES Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.
Page 275: Flash Off Time
SCANNING FEATURES Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.
Page 276: Led And Beeper Indicators
REFERENCES LED AND BEEPER INDICATORS Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 277: Rf Features
RF FEATURES RF FEATURES Automatic Configuration Update When this feature is enabled, the gateway and reader will keep their configurations syn- chronized. If a reader's configuration is altered by reading programming labels, this change is automatically transferred and updated in a linked host. Likewise, if the gate- way's configuration is changed using Aladdin or by host commands, then the reader's configuration will automatically be updated if this feature is enabled.
Page 278: Symbologies
REFERENCES SYMBOLOGIES Set Length Length Control allows you to select either variable length decoding or fixed length decoding for the specified symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. Set Length 1 This feature specifies one of the bar code lengths for a given symbology.
Page 279: Set Length 2
SYMBOLOGIES Set Length 2 This feature specifies one of the bar code lengths for a given symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Reference the to view the selectable range (number 1D Symbologies, starting on page 97 of characters) for the symbology being set.
Page 280: Chapter 5. Message Formatting
CHAPTER 5 MESSAGE FORMATTING MESSAGE FORMATTING A message from the Host to the gateway must follow these rules: • If Address stamping options or address delimiter are enabled on the gateway, the Host replay must have address field and delimiter too. Otherwise the message will be ignored.
Page 281: Led And Beeper Control
LED AND BEEPER CONTROL The format of the ACK from Host message (used for transmission mode 02) is: [Scanner_Addr] [Scanner_Addr_delimiter] MESSAGE <CR> The format of a generic message From Host to HH is: [Scanner_Addr] [Scanner_Addr_delimiter] DC2 MESSAGE <CR> where DC2 is ASCII 0x12 (^R) character. [Items in square brackets are optional.] LED AND BEEPER CONTROL The LED control escape sequences are intended to activate the LEDs for short periods of...
Page 282: Appendix A. Technical Specifications
16 hours (1 scan every 5 secs) / 12,000 scans depending on set- Operating Time / Scans tings and environmental conditions Battery 640 mAh, Lithium polymer (rechargeable) Recharge Time 2.15 hours with Datalogic Charging Station (Typical) OPTICAL CHARACTERISTICS Optical Resolution 1280 x 960 pixels Illumination System...
Page 283 Particulate and Water IP54 - EN 60529 Sealing FEEDBACK Green Spot Datalogic ‘Green Spot’ on the Code for Good Read 3 LEDs: 2 Lateral blades, rear LED spot with separate LEDs on/off – good read, battery status, Bluetooth pairing Audio 85 dbA –...
Page 284: Common Reading Characteristics
TECHNICAL SPECIFICATIONS COMMON READING CHARACTERISTICS ™ Table 23 Reading Characteristics CODiScan HS7600 DOF - DEPTH OF FIELD (TYPICAL) Symbology DOF range 5 mil: 13 to 22 cm / 5.1 to 8.6 in 20 mil: 40 to 110 cm / 15.7 to 43.3 in Code 39 20 mil: up to 160 cm / up to 62.9 100 mil: up to 500 cm /up to 196.8...
Page 285: Decoding Capabilities
2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Interleaved 2 of 5 Febraban (for desk models only); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/Chi- nese 2 of 5); IATA 2 of 5 Air cargo code; Follet 2 of 5; Codabar; Codabar (NW7); ABC Cod- abar;...
Page 286: Led And Beeper Indications
TECHNICAL SPECIFICATIONS LED AND BEEPER INDICATIONS The reader’s beeper sounds and its illumination flashes or changes color to indicate var- ious functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. Table 24LED and Beeper Indications INDICATION BEEPER...
Page 287 USER INDICATIONS FOR HS7600 STATUS GOOD READ LED BATTERY LED BUZZER Single Program- ACK Received on mable Beep Transmission (OFF by default) ACK NOT Received on Wrong Beep Transmission ↔ Configuration Alignment 250 msec ON 250 msec OFF Blinking: 1 s ON . 1 s OFF Green (charge = 50% - 99%) Charge in Progress...
Page 288: Programming Mode
TECHNICAL SPECIFICATIONS PROGRAMMING MODE The following indications ONLY occur when the reader is in Programming Mode. INDICATION DESCRIPTION BEEPER Enter Programming A valid programming label LED blinks continu- Reader sounds four low fre- Mode has been scanned. ously quency beeps. Reader sounds three times at Rejection of Label Label has been rejected.
Page 289: Cleaning Procedure
WARNING: Be sure to turn off power and unplug the device from electrical outlet before cleaning. CAUTION: DO NOT use abrasive pads or cleaning agents. Common Cleaning Solutions The cleaners and disinfectants listed below are recommended for use on Datalogic’s CODiScan enclosures: CLEANERS DISINFECTANTS Formula 409®...
Page 290: Cleaning Enclosure And Window Surfaces
TECHNICAL SPECIFICATIONS Cleaning enclosure and window surfaces 1. Moisten a soft cloth with a recommended cleaning solution. Be sure to apply the solution to your cloth first. Wring excessive liquid from the cloth. 2. Use the cloth to wipe down the surface of the unit. Use cotton swabs, lightly moistened, to reach in corners and crevices.
Page 291: Scanner Deep Cleaning
CLEANING PROCEDURE Scanner deep cleaning In case some hard grime, grease or liquid residual are present on electrical contacts, a deeper cleaning may be needed. If the above procedure is not enough to guarantee proper working of the system, the use of isopropyl alcohol is suggested (minimum 70%). In this case it is suggested to use a cotton tipped applicator with isopropyl alcohol, gen- tly wiping along the pins of the electrical connection.
Page 292 TECHNICAL SPECIFICATIONS NOTES CODISCAN™ HS7600...
Page 293: Appendix Bstandard D Efaults
APPENDIX B STANDARD D EFAULTS The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming bar codes for each parameter. A column has also been provided for recording of your pre- ferred default settings for these same configurable features.
Page 294 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Keyboard Numeric Keypad Standard Keys Keyboard Send Control Characters Send Ctrl+Key Intercharacter Delay 00 = No Intercharacter Delay Intercode Delay 00 = No Intercode Delay USB Keyboard Speed USB OEM USB-OEM Device Usage Handheld DATA FORMAT No Global Prefix...
Page 295 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Good Read Beeper Volume High Silent Mode Disable Good Read LED Duration Enable Good Read LED Duration 300 msec Good Read: When to Indicate After Decode Green Spot Duration Short (300 msec) Good Read Vibration Duration Vibration ON (200 msec) Aiming Pointer Enable...
Page 296 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER UPC-E Number System Character Transmit Transmission GTIN GTIN Formatting Disable EAN 13 (Jan 13) EAN-13 Enable/Disable Enable EAN-13 Check Character Transmis- Send sion EAN-13 Flag 1 Character Transmit EAN-13 to ISBN Conversion Disable ISSN EAN-13 to ISSN Conversion...
Page 297 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER GS1 DataBar Expanded Set Length 1 GS1 DataBar Expanded Set Length 2 GS1 DATABAR™ LIMITED GS1 DataBar Limited Enable/Disable Disable GS1 DataBar Limited to GS1-128 Disable Emulation CODE 39 Code 39 Enable/Disable Enable Code 39 Check Character Calculation Don’t calculate Code 39 Check Character Transmis- Send...
Page 298 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 39 CIP HR Enable/Disable Disable SPECIAL CODES Code 128 Code 128 Enable/Disable Enable Expand Code 128 to Code 39 Don’t Expand Code 128 Check Character Trans- Don’t Send mission Code 128 Function Character Trans- Don’t Send mission Code 128 Quiet Zones...
Page 299 Datalogic 2 of 5 Check Character Send Transmission Datalogic 2 of 5 Length Control Variable Length Datalogic 2 of 5 Set Length 1 6 characters Datalogic 2 of 5 Set Length 2 50 characters INDUSTRIAL 2 of 5 Industrial 2 of 5 Enable/Disable...
Page 300 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Industrial 2 of 5 Check Character Disable Calculation Industrial 2 of 5 Check Character Send Transmission Industrial 2 of 5 Length Control Variable Industrial 2 of 5 Set Length 1 6 characters Industrial 2 of 5 Set Length 2 50 characters CODE IATA...
Page 301 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER ISBT 128 Concatenation Disable ISBT 128 Concatenation Mode Static ISBT 128 Dynamic Concatenation 200 msec Timeout ISBT 128 Force Concatenation Disable ISBT 128 Advanced Concatenation Disable Options CODE 11 Code 11 Enable/Disable Disable Code 11 Check Character Calculation Check C and K Code 11 Check Character Transmis- Send...
Page 302 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Plessey Check Character Calculation Plessey std check char. verification Plessey Check Character Transmis- Send sion Plessey Length Control Variable Plessey Set Length 1 1 character Plessey Set Length 2 50 characters BC412 BC412 Enable/Disable Disable BC412 Check Character Calculation...
Page 303 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Data Matrix Set Length 2 3,116 characters GS1 DOTCODE DotCode Enable Disable DotCode High Resolution Enable Enable DotCode Position-based Decoding Disable MAXICODE Maxicode Enable / Disable Disable Maxicode Primary Message Trans- Disable mission Maxicode Length Control Variable Maxicode Set Length 1 1 character...
Page 304 Source Radio Address Transmission Do not include Source Radio Address Delimiter 00 (no delimiter character) Character Bluetooth Security Level Level 1 - lowest Wi-Fi Channels Exclusion Automatic Bluetooth Discoverable Mode Time- 3 minutes CODISCAN HS7600 [SERI- Bluetooth Friendly Name AL_NUMBER_SCANNER] CODISCAN™ HS7600...
Page 305: Default Exceptions
DEFAULT EXCEPTIONS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Bluetooth HID Alt Mode DEFAULT EXCEPTIONS Table 27 - Default Exceptions by Interface Type PARAMETER DEFAULT EXCEPTION Interfaces: USB-OEM Global Suffix No Global Suffix Double Read Timeout 500 msec Interfaces: All Keyboard, USB Keyboard No unique settings PRODUCT REFERENCE GUIDE...
Page 306: Appendix C. Sample Barcodes
APPENDIX C SAMPLE BARCODES The sample bar codes in this appendix are typical representations for their symbology types. SAMPLE BARCODES 1D Barcodes UPC-A EAN-13 Code 39 Code 128 CODISCAN™ HS7600...
Page 307 SAMPLE BARCODES Interleaved 2 of 5 12345678901231 Code 32 Codabar Code 93 Code 11 PRODUCT REFERENCE GUIDE...
Page 308: Gs1 Databar™ (Rss)
SAMPLE BARCODES GS1 Databar™ (RSS) GS1 DataBar™ variants must be enabled to read the barcodes below (see " DataBar™ Omnidirectional" on page 113 GS1 DataBar™ Expanded Stacked 10293847560192837465019283746029478450366523 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 Databar™ (-14) GS1 DataBar™ Omnidirectional Truncated 55432198673467 GS1 DataBar™...
Page 309: 2D Barcodes
SAMPLE BARCODES 2D Barcodes Aztec Data Matrix China Sensible MaxiCode Test Message PDF417 ABCabc Micro PDF 417 BV17453 PRODUCT REFERENCE GUIDE...
Page 310 SAMPLE BARCODES QR Code 35900G9 2D Barcodes (continued) Micro QR Code 123456 UCC Composite CODISCAN™ HS7600...
Page 311: Appendix Dkeypad
APPENDIX D KEYPAD Use the bar codes in this appendix to enter numbers as you would select digits/charac- ters from a keypad. PRODUCT REFERENCE GUIDE...
Page 312 KEYPAD CODISCAN™ HS7600...
Page 313: Appendix E. Scancode Tables
APPENDIX E SCANCODE TABLES CONTROL CHARACTER EMULATION Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to USB Keyboard platforms. Control Character 00 : Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 314 SCANCODE TABLES CODISCAN™ HS7600...
Page 315: Interface Type Usb-Keyboard Or Usb-Keyboard For Apple
INTERFACE TYPE USB-KEYBOARD OR USB-KEYBOARD FOR APPLE (CONTINUED) PRODUCT REFERENCE GUIDE...
Page 316 SCANCODE TABLES CODISCAN™ HS7600...
Page 317: Interface Type Usb-Keyboard Alt Mode
INTERFACE TYPE USB-KEYBOARD ALT MODE (CONTINUED) PRODUCT REFERENCE GUIDE...
Page 318: Digital Interface
SCANCODE TABLES CODISCAN™ HS7600...
Page 319: Ibm31Xx 102-Key
IBM31XX 102-KEY PRODUCT REFERENCE GUIDE...
Page 320 SCANCODE TABLES CODISCAN™ HS7600...
Page 321: Ibm Xt
IBM XT PRODUCT REFERENCE GUIDE...
Page 322 SCANCODE TABLES CODISCAN™ HS7600...
Page 323: Microsoft Windows Codepage 1252
MICROSOFT WINDOWS CODEPAGE 1252 MICROSOFT WINDOWS CODEPAGE 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the leg- acy components of Microsoft Windows in English and some other Western languages. PRODUCT REFERENCE GUIDE...
Page 324: Appendix F. Ascii Chart
APPENDIX F ASCII CHART ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < > CODISCAN™ HS7600...
