New Product News
Power Relays

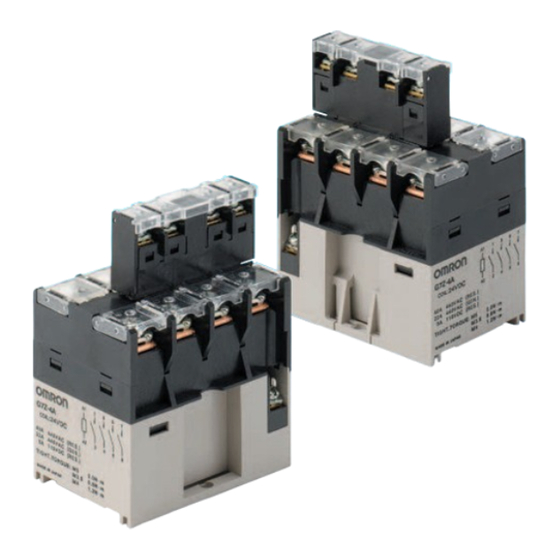

G7Z
High-capacity Power Relays Capable
of Carrying and Switching 40 A at 440 VAC
Compact
High
Insulation
Load switching for
400-VAC systems
Low
Noise
Approx. 70 dB
40%
smaller than
contactors (IEC-
AC1, 50-A
specifications)
Low Power
Consumption
Less than 4 W DC
High
Capacity
IEC-AC1 40-A rating
4-pole power fully applied:
160 A
RoHS
Compliant
Mirror Contacts
for
Safety Function
Simple
Mounting
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omron G7Z
Summary of Contents for Omron G7Z

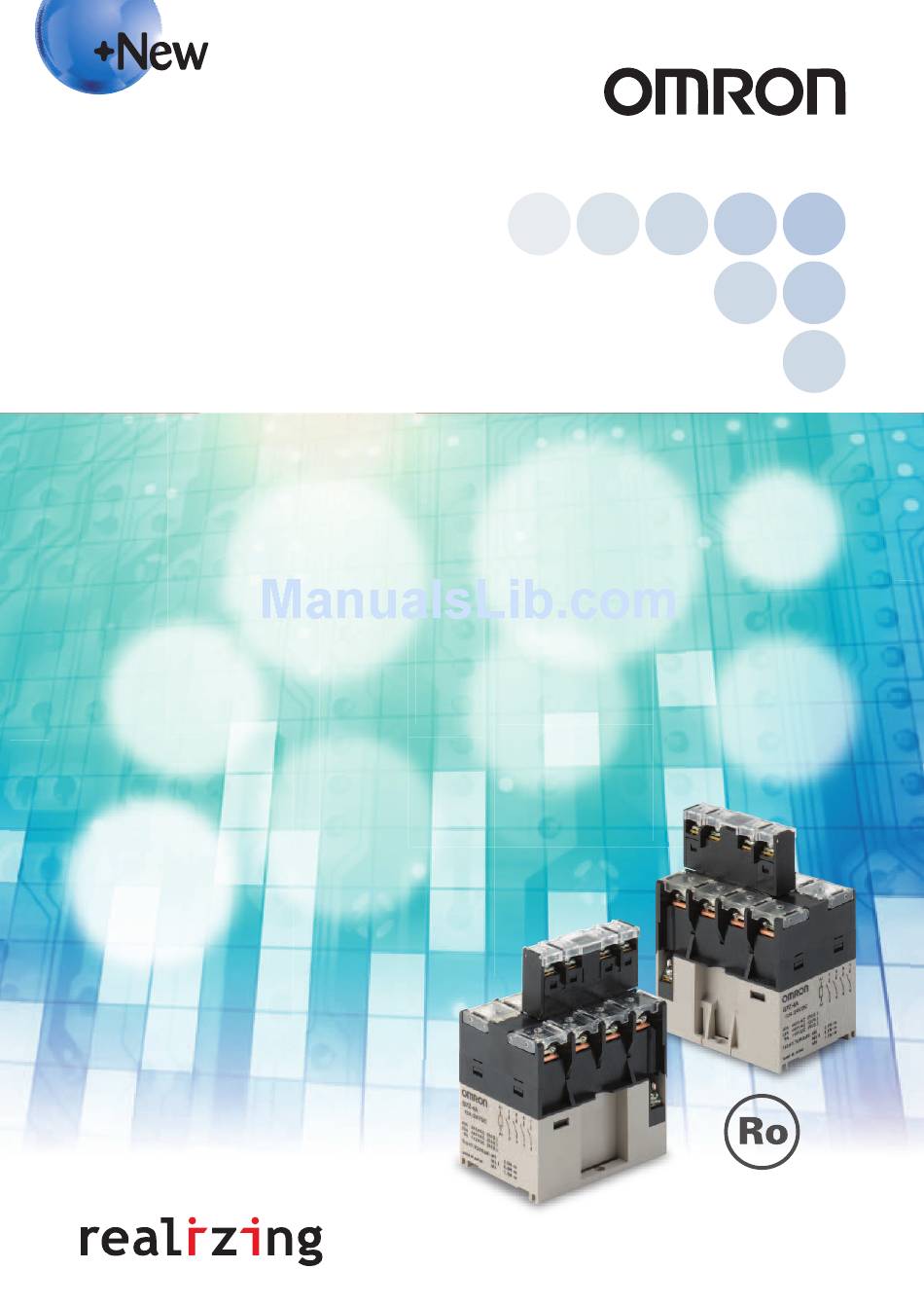

- Page 1 New Product News Power Relays High-capacity Power Relays Capable of Carrying and Switching 40 A at 440 VAC High Capacity Mirror Contacts Compact Safety Function IEC-AC1 40-A rating 4-pole power fully applied: smaller than 160 A contactors (IEC- AC1, 50-A...
- Page 2 Safety Function with Mirror Contacts EN 60947-4-1 certification for mirror contact mechanisms has been obtained by Number of poles using a combination of a relay and auxiliary contact blocks (5 VDC, 1 mA), 62 mm enabling application in feedback circuits of safety circuits.
-
Page 3: Model Number Structure
DPST-NO/DPST-NC DPST-NO G7Z-2A2B-20Z SPST-NO/SPST-NC G7Z-2A2B-11Z DPST-NC G7Z-2A2B-02Z Auxiliary Contact Block 2 poles DPST-NO G73Z-20Z SPST-NO/SPST-NC G73Z-11Z DPST-NC G73Z-02Z Note: 1. Relay contact terminals are M5, and the coil terminals are M3.5. 2. Auxiliary contact block terminals are M3.5. Power Relays... -
Page 4: Ordering Information
2. Operating characteristics were measured at a coil temperature of 23 C. 3. The maximum allowable voltage is the maximum value of the fluctuation range for the Relay coil operating power supply and was measured at an ambient temperature of 23 C. - Page 5 The contact resistance for the auxiliary contact block (G73Z) was measured with 0.1 A at 5 VDC using the voltage drop method. 3. The operate time was measured with the rated voltage imposed with any contact bounce ignored at the ambient temperature of 23 C.
- Page 6 Terminal Arrangement/Internal Connections Relay with Auxiliary Contact Block G7Z-4A-20Z G7Z-4A-11Z G7Z-4A-02Z 52 61 54 63 54 61 Note: The coil has no polarity. Note: The coil has no polarity. Note: The coil has no polarity. G7Z-3A1B-20Z G7Z-3A1B-11Z G7Z-3A1B-02Z 54 63 54 61 52 61 Note: The coil has no polarity.
-
Page 7: Application Examples
Note: The dimensions are typical values. Application Examples DIN Track Mounting Height (when using the PFP-100N or PFP-50N • Power supplies applied to Inverters and servo drivers for public and mounting rail) industrial use • Power supplies applied to uninterruptible power supplies plus... - Page 8 Precautions Be sure to read the common precautions provided in Best Control Devices Catalog Version 17 before using the Relay. • Use End Plates (PFP-M) on both sides of the Relay to make sure !WARNING that it is properly secured.
- Page 9 2.5 kV or maintain a gap of more than 0.5 mm when the coil is de-energized even if at least one NO contact (main contact) of the Relay is welded (according to EN 60947-4-1).
- Page 10 Power Relays...
- Page 11 Warranty and Limitations of Liability WARRANTY OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS.
