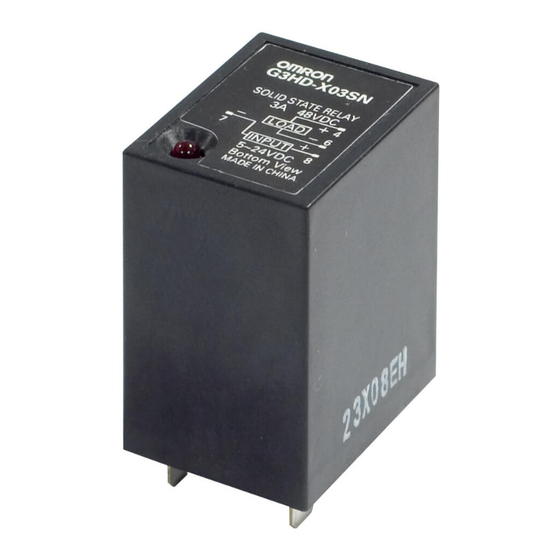

Solid State Relays G3@-VD
G3H/G3HD
Refer to Warranty and Application Considerations (page 1), Safety
Precautions (page 4), and Technical and Safety Information (page 6).
International Standards for G3H Series,
Same Profile as LY Power Relays
• Shape-compatible with mechanical relays.
• Certified by UL, CSA, and VDE (models numbers with a suffix
of "-VD").
• Socket type, same size as LY Power Relays.
• Operation indicator provided to confirm input (models numbers
with "N" before the suffix).
Model Number Structure
Model Number Legend
G3H-@@@@@@-@
2 3 4 5 6 7 8
1
1.
Basic Model Name
G3H:
Solid State Relay
2.
Rated Load Power Supply Voltage
2:
200 VAC
3, 4. Rated Load Current
03:
3 A
5.
Terminal Type
S:
Plug-in terminals
G3HD-@@@@-@
3 4 5 6 7
2
1
1.
Basic Model Name
G3H:
Solid State Relay
2.
Load Power Supply Type
D:
DC
3.
Rated Load Power Supply Voltage
X:
50 VDC
4.
Rated Load Current
03:
3 A
224
Solid State Relays G3@-VD
6.
7.
8.
5.
6.
7.
G3H/G3HD
Zero Cross Function
Blank: Equipped with zero cross function
L:
Not equipped with zero cross function
Operation Indicator
Blank: Not equipped with operation indicator
N:
Equipped with operation indicator
Certification
VD:
Certified by UL, CSA, and VDE standards
Terminal Type
S:
Plug-in terminals
Operation Indicator
Blank: Not equipped with operation indicator
N:
Equipped with operation indicator
Certification
VD:
Certified by UL, CSA, VDE
