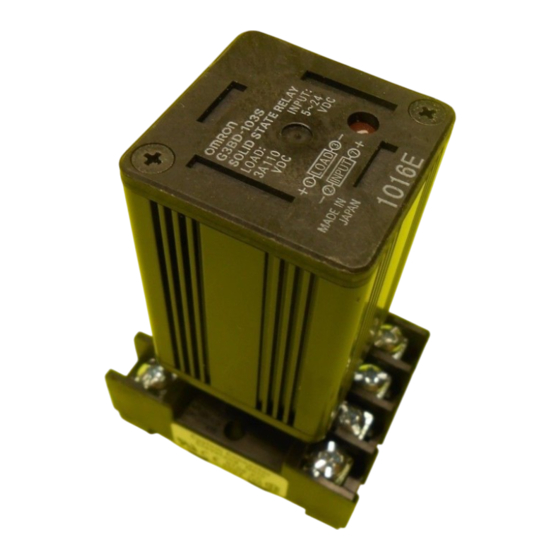

Omron G3B Manual

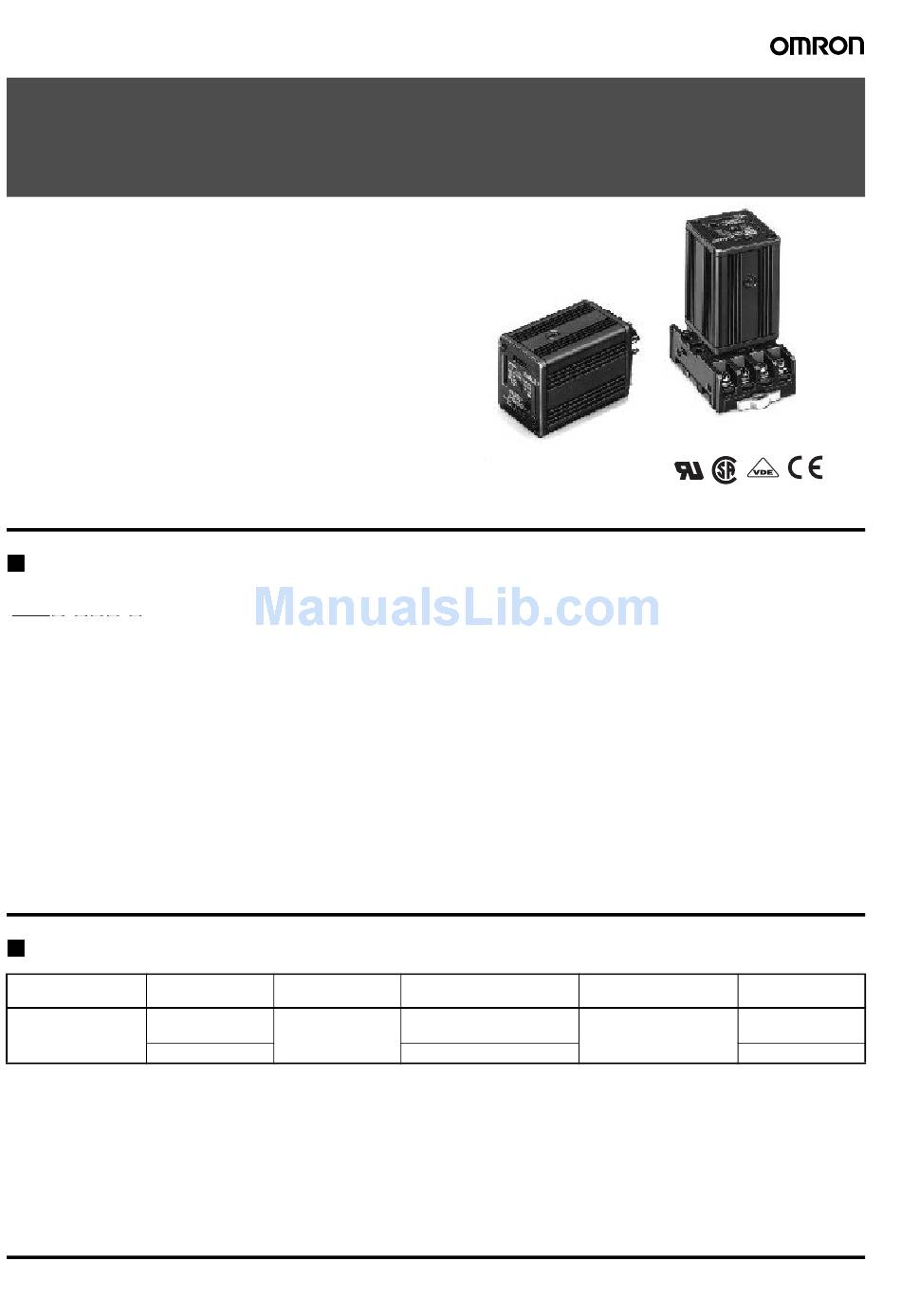

Solid State Relays G3@-VD
G3B/G3BD
Refer to Warranty and Application Considerations (page 1), Safety
Precautions (page 4), and Technical and Safety Information (page 6).
International Standards for G3B Series,
Same Profile as MK Power Relays
• Shape-compatible with mechanical relays.
• Certified by UL, CSA, and VDE (models numbers with a suffix
of "-VD").
• Plug-in type, same size as MK Power Relays.
• Operation indicator provided to confirm input.
• DC Output model available with 3 to 125-VDC load voltage
range for high-voltage applications.
Model Number Structure
Model Number Legend
G3B@-@@@-@
2 3 4 5 6
1
1. Basic Model Name
G3B: Solid State Relay
2. Load Power Supply Type
Blank: Switches AC loads
D: Switches DC loads
3. Rated Load Power Supply Voltage
2: 200 V
1: 100 V
4. Rated Load Current
03: 3 A
05: 5 A
Ordering Information
List of Models
Isolation Zero cross
Photocoupler Yes
No
Note: 1. Product is labelled "250 VAC".
2. When ordering, specify the rated input voltage.
220
Solid State Relays G3@-VD
Indicator
function
Yes
G3B/G3BD
5. Terminal Type
S: Plug-in terminals
6. Certification
VD: Certified by UL, CSA, and VDE
Rated output load
5 A at 100 to 240 VAC
(See note.)
3 A at 5 to 110 VDC
Rated input voltage
5 to 24 VDC G3B-205S-VD
G3BD-103S-VD
Model
