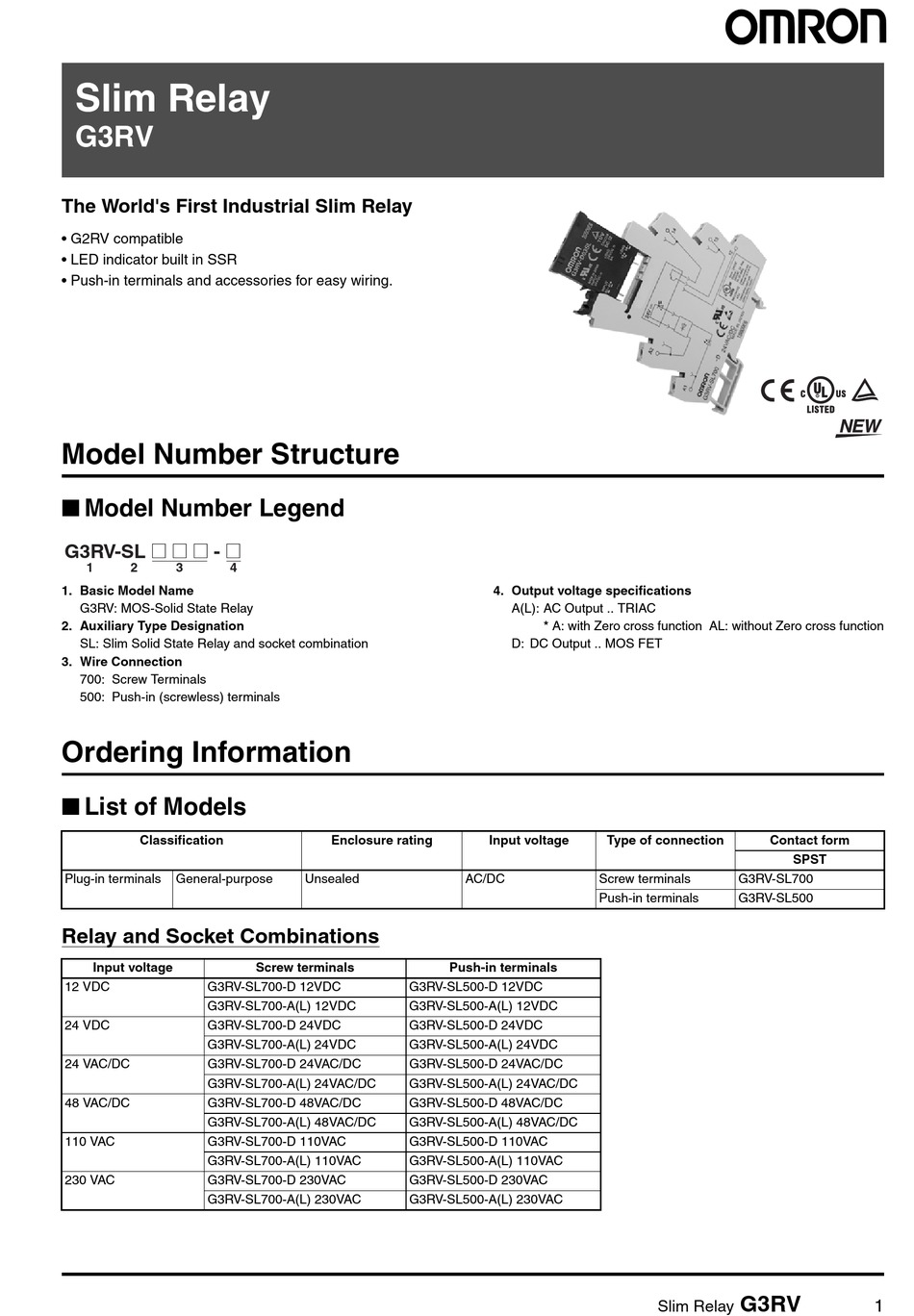

Slim Relay
G3RV
The World's First Industrial Slim Relay
• G2RV compatible
• LED indicator built in SSR
• Push-in terminals and accessories for easy wiring.
Model Number Structure
■ Model Number Legend
G3RV-SL @ @ @ - @
1
2
3
4
1. Basic Model Name
G3RV: MOS-Solid State Relay
2. Auxiliary Type Designation
SL: Slim Solid State Relay and socket combination
3. Wire Connection
700: Screw Terminals
500: Push-in (screwless) terminals
Ordering Information
■ List of Models
Classification
Plug-in terminals
General-purpose
Relay and Socket Combinations
Input voltage
12 VDC
G3RV-SL700-D 12VDC
G3RV-SL700-A(L) 12VDC
24 VDC
G3RV-SL700-D 24VDC
G3RV-SL700-A(L) 24VDC
24 VAC/DC
G3RV-SL700-D 24VAC/DC
G3RV-SL700-A(L) 24VAC/DC
48 VAC/DC
G3RV-SL700-D 48VAC/DC
G3RV-SL700-A(L) 48VAC/DC
110 VAC
G3RV-SL700-D 110VAC
G3RV-SL700-A(L) 110VAC
230 VAC
G3RV-SL700-D 230VAC
G3RV-SL700-A(L) 230VAC
Enclosure rating
Unsealed
Screw terminals
G3RV-SL500-D 12VDC
G3RV-SL500-A(L) 12VDC
G3RV-SL500-D 24VDC
G3RV-SL500-A(L) 24VDC
G3RV-SL500-D 24VAC/DC
G3RV-SL500-A(L) 24VAC/DC
G3RV-SL500-D 48VAC/DC
G3RV-SL500-A(L) 48VAC/DC
G3RV-SL500-D 110VAC
G3RV-SL500-A(L) 110VAC
G3RV-SL500-D 230VAC
G3RV-SL500-A(L) 230VAC
4. Output voltage specifications
A(L): AC Output .. TRIAC
* A: with Zero cross function AL: without Zero cross function
D: DC Output .. MOS FET
Input voltage
Type of connection
AC/DC
Screw terminals
Push-in terminals
Push-in terminals
Contact form
SPST
G3RV-SL700
G3RV-SL500
G3RV
Slim Relay
1
Advertisement
Table of Contents
Related Manuals for Omron G3RV
Summary of Contents for Omron G3RV
- Page 1 G3RV: MOS-Solid State Relay A(L): AC Output .. TRIAC 2. Auxiliary Type Designation * A: with Zero cross function AL: without Zero cross function SL: Slim Solid State Relay and socket combination D: DC Output .. MOS FET 3. Wire Connection...
-
Page 2: Specifications
Specifications ■ Ratings (at an Ambient Temperature of 25°C) Input G3RV-SL700/500-A Series Rated voltage Rated current Must operate Must release Input voltage voltage voltage % of rated voltage 50 Hz 60 Hz ±10% 12 VDC 15 mA 10.8V 24 VDC 12 mA 21.6V... - Page 3 10 µA max. (at 24VDC) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength AC2500V 50/60 Hz for 1 min between input and output Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.7-mm single amplitude Shock resistance 300m/s Ambient temperature Storage: -30~+100°C (with no icing or condensation)
-
Page 4: Engineering Data
Mounting Distance 10mm Mounting Distance 0mm ■ One Cycle Surge Current: Non-repetitive Non-repetitive (Keep the inrush current to half the rated value if it occurs repetitively.) The values shown by the solid line are for non-repetitive inrush currents. G3RV-SL700/500-A(L) Series... -
Page 5: List Of Models
Accessories ■ PLC Interface (for G2RV-SL700 & G3RV-SL700 series only) List of Models Model number Description Connection P2RVC-8-O-F PLC Output Interface for 8x Ribbon cable connector G2RV-SL700 & G3RV-SL700 series 10 Pole, IEC603/1 PNP - type Specifications Input Rated voltage 30 VAC/VDC max. -
Page 6: Model Number Legend
G3RV-SL700/500-D DC24 AC/DC24V G3RV-SL700/500-D AC/DC24 AC/DC48V G3RV-D03SL DC48 G3RV-SL700/500-D AC/DC48 AC110V G3RV-SL700/500-D AC110 AC230V G3RV-SL700/500-D AC230 * different by ambient temperature. Please refer to 4 pages of characteristic data “ ■ Load current derating curves” for the details. G3RV Slim Relay... -
Page 7: Specification
Blue (S) Black (B) P2RVM-100@ 20 pcs / box (minimum order) P2RVM-200@ 20 pcs / box (minimum order) @ select color: R = Red, S=Blue, B=Black Specification Max current (EN60947-7-1 section 8.3.3 / 1991) Max. Voltage 400 VAC Max. Voltage... -
Page 8: Complete Unit
Model number Quantity Description P2RV-S 50 plates Provides isolation between adjacent relays to achieve 400 V isolation. Dimensions Note: All units are in millimeters unless otherwise indicated. Complete Unit G3RV-SL700 Input circuit 106.7 max. 70.9 47.2 6.2 max. 26.1 24 V DC... -
Page 9: Solid State Relay
G3RV-SL500 Input circuit 106.7 max. 82.9 69.8 6.2 max. 24.6 24 V DC Other Input Voltage Terminal Arrangement/ Terminal Arrangement/ Internal Connections Internal Connections 97.4 max. (Top View) (Top View) 88.9 99.2 12 V DC Terminal Arrangement/ Internal Connections (Top View) -
Page 10: Installation
■ Tools G3RV-SL700 series: Flat-Blade screwdriver should be used for mounting and / or releasing cables. G3RV-SL500 series: Flat-Blade screwdriver should be used for mounting stranded wires without ferrules and / or releasing cables. Applicable Screwdriver ● Flat-blade, Parallel-tip, 2.5 mm diameter (3.0 mm max.) ●... - Page 11 ■ Wiring Use wires of the applicable sizes specified above. The length of the exposed conductor should be 7 mm for a G3RV-SL700 series, 12 mm for a G3RV-SL500 series. G3RV-SL700 7 mm G3RV-SL500 12 mm Fig. 1 Exposed Conductor Length...
-
Page 12: Precautions For Connection
• Do not move the screwdriver up, down, or from side to side while it • Insert the screwdriver into the bottom of the hole. It may not be is inserted in the hole. -
Page 13: Definition Of Precautionary Information
OFF. electric shock leakage. The internal snubber circuit is charged. • Con rm it wire for G3RV is not used in pipe or duct for high * 202S,SL,G3RV-A(L) Type only voltage power supply.Induction will be generated and cause Minor hazard by burns may occasionally occur. -
Page 14: Suitability For Use
60mm min. Air inlet * If the air inlet or air outlet has a lter, clean the lter regularly to prevent it from cogging to ensure an e cient ow of air. * Do no locate any objects around the air inlet or air outlet, otherwise Vertical the objects may obstruct the proper ventilation of the control panel.
