Features
The E3FS is a type 2 Safety Single beam sensor intended to be used with the control units F3SP-U3P -TGR and F3SP-U5P-TGR.
• Safety Single Beam (E3FS)
1) Up to Category 2 (EN954-1)
Type2 ESPE and Type2 AOPD.
Approved by TÜV Product Service
2) High protection against water
IP67 (IEC60529)
3) Small Sensor
M18 x 65 mm
4) 4 different model available
Plastic case (with cable type and connector type)
Brass case (with cable type and connector type)
E3FS
• Muting Controller for Safety single beam sensor (F3SP-
U3P-TGR and F3SP-U5P-TGR)
1) Muting functions are integrated
Muting inputs
Override function
Muting Lamp output
Interlock function and Test Reset input
2) 2 different model available
2 beam unit (F3SP-U3P-TGR)
4 beam unit (F3SP-U5P-TGR)
3) Small Controller
2 beam unit W=22.5 mm
4 beam unit W=45.0 mm
G-63
Advertisement
Table of Contents
Related Manuals for Omron F3SP-U3P-TGR
Summary of Contents for Omron F3SP-U3P-TGR

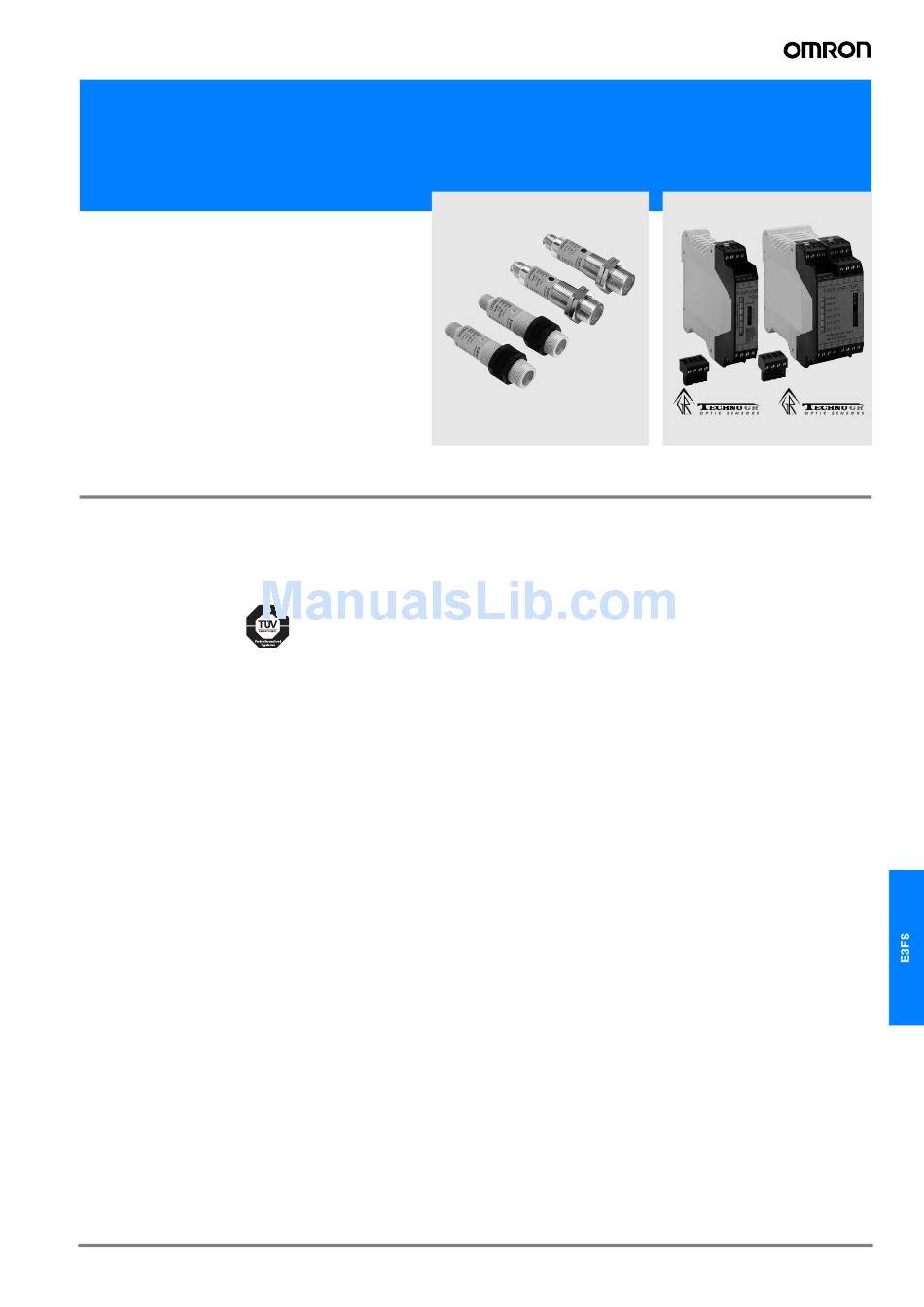

- Page 1 F3SP-U3P-TGR and F3SP-U5P-TGR Features The E3FS is a type 2 Safety Single beam sensor intended to be used with the control units F3SP-U3P -TGR and F3SP-U5P-TGR. • Safety Single Beam (E3FS) • Muting Controller for Safety single beam sensor (F3SP-...
-
Page 2: Ordering Information
Ordering Information Safety Single beam Sensors (Type 2) E3FS-10B4 series Appearance Case material Operation distance Model Cable Type E3FS-10B4 Plastic Plug Type E3FS-10B4-P1 0 to10 m Cable Type E3FS-10B4-M Nickel Brass Plug Type E3FS-10B4-M1-M Controller for Safety Single beam Sensors... -
Page 3: Rating And Performance
Dielectric strength 1,000 VAC 50/60 Hz 1 min Malfunction 10 to 55 Hz, double amplitude: 1.5 mm, 2 h each in the X, Y, and Z directions Vibration resistance Operating limit 10 to 55 Hz, double amplitude: 0.7 mm, 50 min each in the X, Y, and Z directions Malfunction 500 m/s²... -
Page 4: Output Circuit
24 VDC ±10% Power consumption 420 mA max. Output contacts 2 NO 2.5 A (protected by fuse), 115 V AC max. 2 NO 2.5 A (protected by fuse), 250 V AC max. Indicators 6 LED for status and diagnostics Enclosure rating... -
Page 5: Timing Chart
Timing Chart Output mode and timing chart Receiver connection Connect Pink (2) to Brown(1) Connect Pink (2) to Blue (3) Mode of output ON when Incident (Light ON) ON when interrupted (Dark ON) Light Incident Light interrupted Indicator Green Control... - Page 6 +24Vdc 0Vdc WARNING: Both safety contacts OUT1 and OUT2 must be connected. If the machine has a single locking circuit, the two normally opened contacts must be connected in series. WARNING: The power supply of Safety sensors must be taken from the same supply of F3S-U3P-TGR unit.
- Page 7 +24Vdc +24Vdc 0Vdc 0Vdc WARNING: Both safety contacts OUT1 and OUT2 must be connected. If the machine has a single locking circuit, the two normally opened con tacts must be connected in series. Dip Switch setting Function Not used --------------...
-
Page 8: Precautions For Correct Use
Control Units before finalizing placement and starting normal (From ON to OFF: Refer to Response Time.) operation. The maximum stop time for a machine is the time it takes to ac- Warning tually stop dangerous parts after the machine receives a stop si- gnal from the F3SP. - Page 9 Dimensions Note: All units are in millimeters unless otherwise indicated Plastic housing Cable type: Connector type: E3FS-10LB E3FS-10LB-P1 E3FS-10DB4 E3FS-10DB4-P1 Metallic housing Cable type: Connector type: E3FS-10LB-M E3FS-10LB-M1-M E3FS-10DB4-M E3FS-10DB4-M1-M E3FS G-71...
- Page 10 45 mm ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. E25E-EN-02 In the interest of product improvement, specifications are subject to change without notice.
