V-TAC VT-48501 Instruction Manual

INSTRUCTION MANUAL

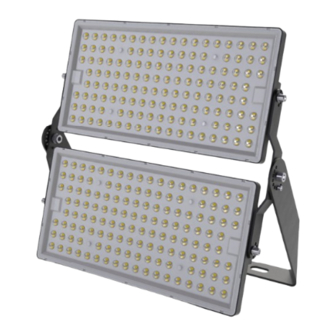

LED FLOOD LIGHT
TECHNICAL DATA
MODEL VT-48501
SKU 23616, 23617
LUMENS 67500 Lm
WATTS 500W
INPUT VOLTAGE AC: 220-240V, 50Hz
BEAM ANGLE Sphere 360°
LIFE SPAN
25,000 Hours
ON/OFF CYCLE
>15,000
DF >0.9
CRI >70
MATERIAL Diecast Aluminium
OPERATION TEMPERATURE -20°C to +45°C
DIMENSION 530x65x523mm
*This product contains a light source of energy e ciency class<D>, where <D> shall be replaced
by the energy class of the contained light source.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please
read these instructions carefully before starting the installation and keep this manual
handy for future reference. If you have any another query, please contact our dealer or
local vendor from whom you have purchased the product. They are trained and ready
to serve you at the best. The warranty is valid for 5 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear
and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily
operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service
agent or a similar qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the
luminaire shall be destroyed.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.
• For Outdoor use.
NOTE: To reduce the risk of strangulation the flexible wiring
connected to this luminaire shall be e ectively fixed to the wall
if the wiring is within arm's reach.

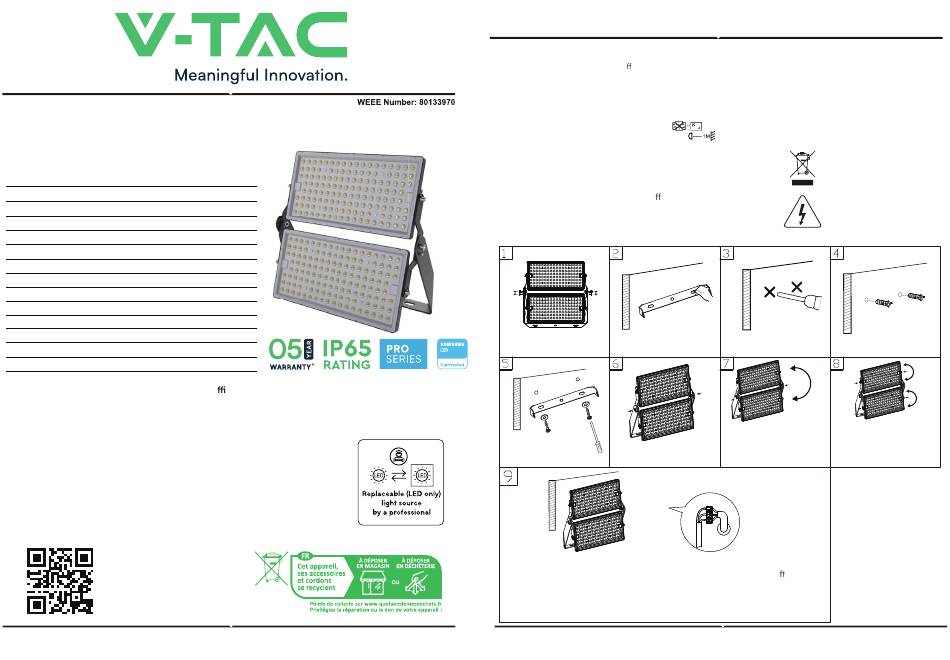

INSTALLATION DIAGRAM
1.Loosen the screws to remove 2.Determine installation
the bracket. location.
6.Install the lamp body and
5.Fixed bracket.
lock the bracket screws.
9.The input line is connected to the "L" live wire in brown, the "N" zero wire in
blue, and the yellow green wire is connected to the ground wire. A er
connecting the wires, it is necessary to use insulation tape and waterproof
tape for insulation and waterproofing treatment. It is recommended to use a
professional waterproof junction box
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
3.Punching holes on building
4.Insert Wall plug.
surfaces with drills.
7.Adjust the angle of the entire lamp, 8.Adjust the angle of the single lamp,
with an adjustable angle of 0-180 ° with an adjustable angle of -60 ° to
and a grid adjustment of 22.5 °. +60 °,and a single grid adjustment
After adjusting the angle, tighten the of 30 °. After adjusting the angle, lock
angle adjustment screw and bracket the angle adjustment screw and bracket
fixing bolt. fixing bolt.
