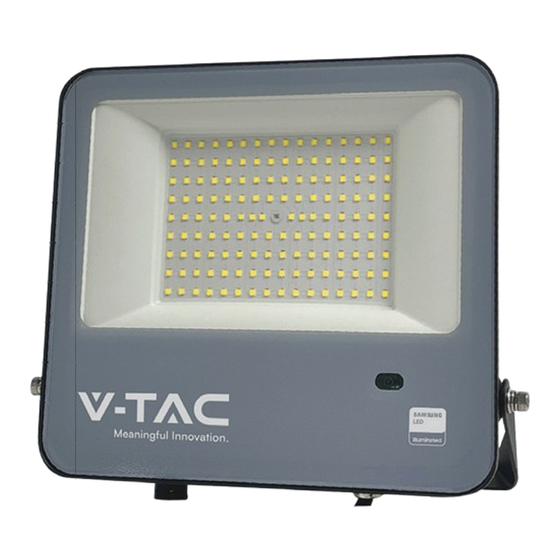

V-TAC VT-44032PS Instruction Manual

INSTRUCTION MANUAL
LED FLOOD LIGHT WITH LIGHT SENSOR
TECHNICAL DATA
MODEL VT-44032PS VT-44052PS VT-44103PS
23186, 23187 23188, 23189 23190, 23191
SKU
WATTS
30W 50W 100W
LUMENS
3100 Lm 11480 Lm
5200 Lm
@WIDE CONE
EFFICIENCY
120+ Lm/W
LIFE SPAN [HOURS]
25,000
BEAM ANGLE 115°
CRI >70
DF
>0.9
AC: 220-240V, 50Hz
INPUT POWER
BODY TYPE
Aluminium
OPERATION
-20 to +45°C
TEMPERATURE
MAX MOUNTING
<5M
HEIGHT
N.W [KGS] 0.41 0.56 1.1
DIMENSION
164.5x153x34mm 183.5x169x34mm 253.5x242.5x40mm
PROJECTED
25168.5 31011.5 61473.75
AREA [MMP]
LIGHT SENSOR
70Lux (±25%) ON or OFF
*This product contains a light source of energy e ciency class<D><E>,where <D><E> shall be replaced
by the energy class of the contained light source.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing defects only.
VT-44153PS VT-44203PS VT-44203PS VT-44203PS
23192, 23193
23194, 23195 23194, 23195 23194, 23195
150W
200W
17220 Lm 22960 Lm 22960 Lm 22960 Lm
135+ Lm/W
1.78 2.8
328.5x295x43mm 402.5x349.5x44mm
96907.5 140673.75
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire
should be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer
or his service agent or a similar qualified person in order to avoid a hazard.
• Replace any cracked protective shield.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.
• Minimum distance from lighted objects 1m.
NOTE: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be e ectively fixed to
the wall if the wiring is within arm's reach.

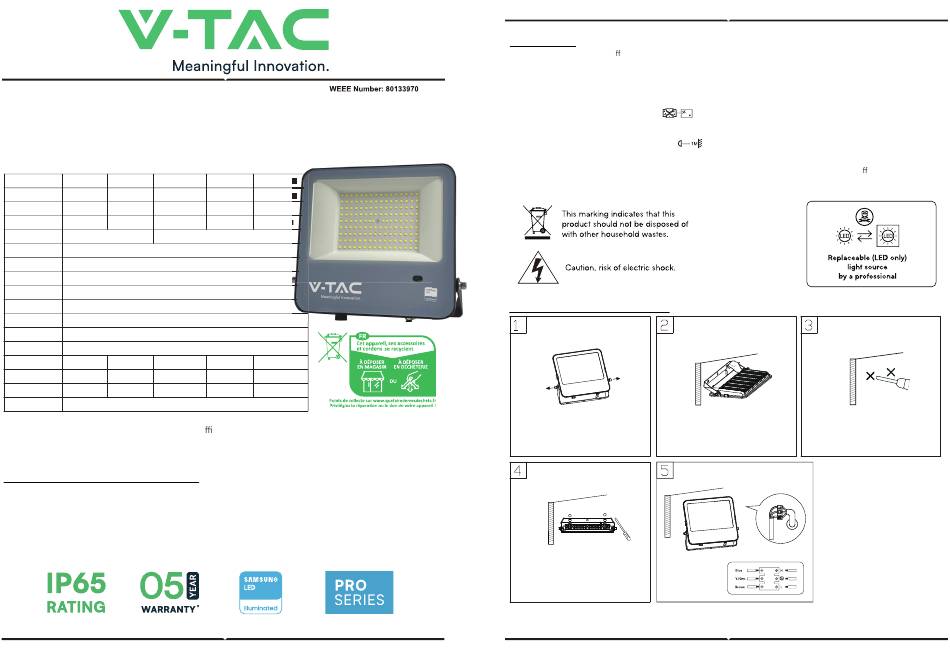

INSTALLATION DIAGRAM
