INSTRUCTION MANUAL

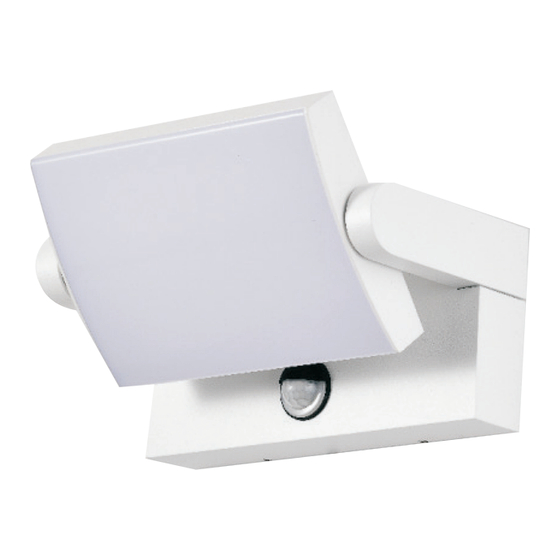

LED WALL LAMP WITH PIR SENSOR
TECHNICAL DATA
Lumens
CCT
3000K
VT-11020S
17W
2520
Aluminium
Aluminium
VT-11020S
17W
2580
4000K
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions careful-
ly before starting the installation and keep this manual handy for future reference. If you have any another query, please
contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve
you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage
caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily
operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing
defects only.
Sensing Time
CRI
Sensing Distance
30 sec~3 min
10M
>80
>0.7
212*165*100MM
adjustable
30 sec~3 min
>80
>0.7
212*165*100MM
10M
adjustable
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source of this luminaire is not replaceable, when the light source
reaches its end of life the whole luminaire should be replaced.
• Proper grounding should be ensured throughout the installation.
This marking indicates that this
product should not be disposed
of with other household wastes.
INSTALLATION DIAGRAM
AC:220-240V,50�60Hz
AC:220-240V,50�60Hz
INSTALLATION INSTRUCTION
Step 1: Switch o the power before starting the installation.
Step 2: Release the base plate by unscrewing the set screws from the sides of the luminaire by using
an allen wrench (included).
Fix the power cable through the base plate, then drill the holes on the wall by using the base plate as a guide. Fix the
base plate to the wall using the plugs and screws (included).
Step 3: Wire and connect the power cable to the terminal block.
Step 4: Mount the luminaire on the base plate using the set screws. Make sure the set screws are
properly fixed using the allen screws.
Step 5: Switch on the power to test the light.
Caution, risk of electric shock.
4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for V-TAC VT-11020S
Summary of Contents for V-TAC VT-11020S

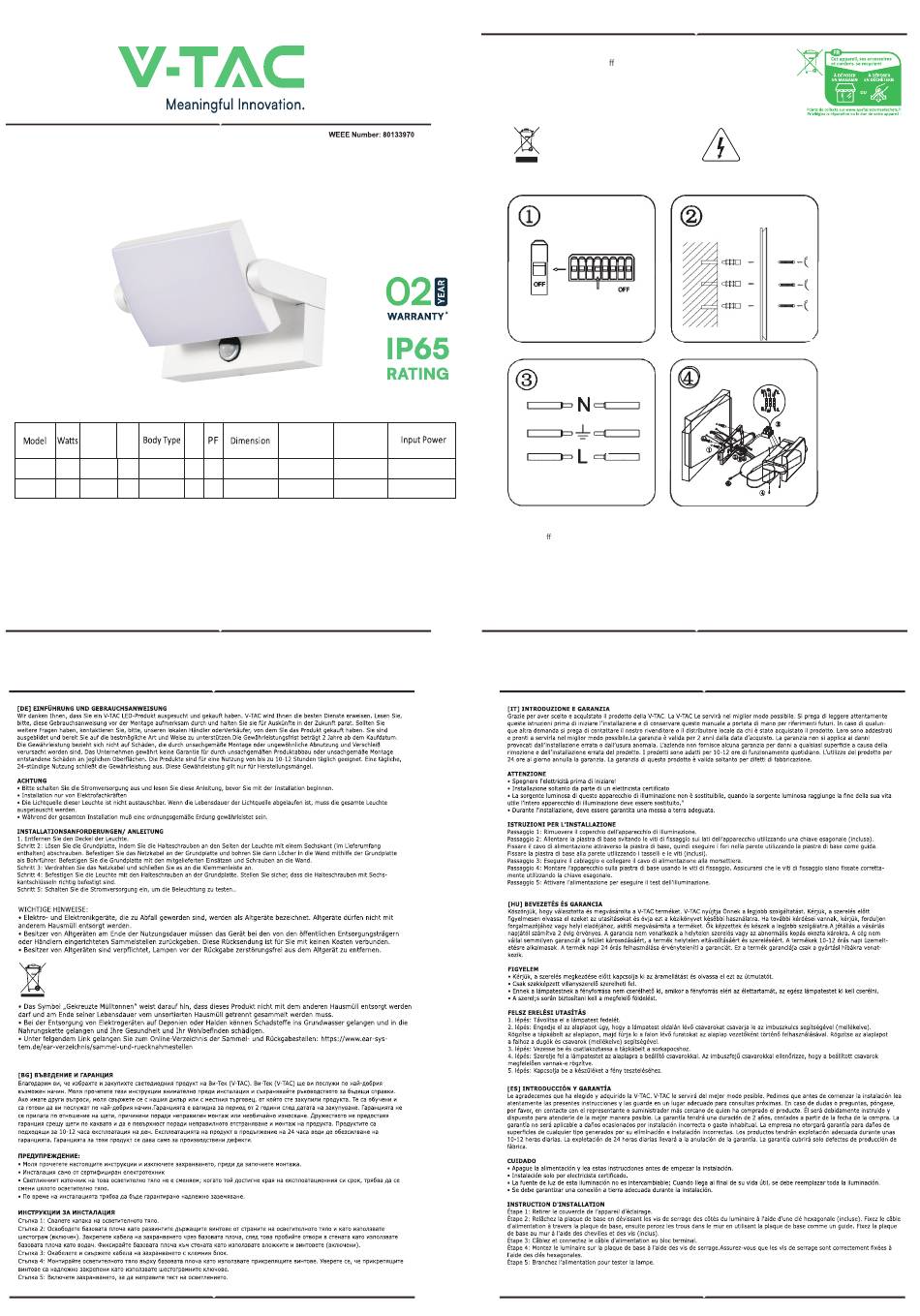

- Page 1 INTRODUCTION & WARRANTY INSTALLATION INSTRUCTION Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions careful- Step 1: Switch o the power before starting the installation. ly before starting the installation and keep this manual handy for future reference. If you have any another query, please Step 2: Release the base plate by unscrewing the set screws from the sides of the luminaire by using contact our dealer or local vendor from whom you have purchased the product.
