INSTRUCTION MANUAL

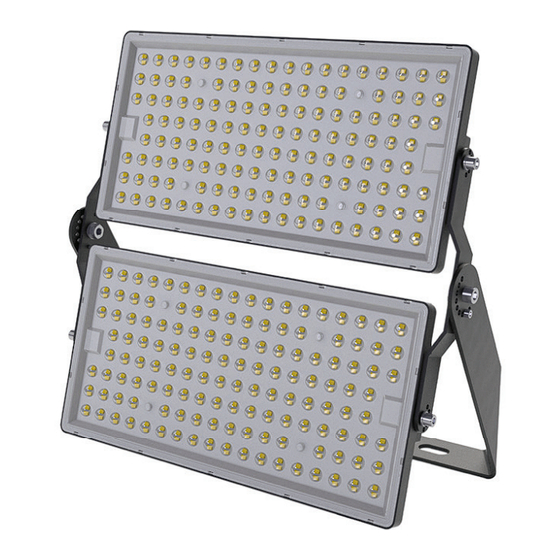

LED FLOOD LIGHT

TECHNICAL DATA

MODEL VT-48500
SKU 23089, 97212
LUMENS 67500 Lm
WATTS 500W
INPUT VOLTAGE AC: 220-240V, 50Hz
BEAM ANGLE Sphere 360°
LIFE SPAN
25,000 Hours
ON/OFF CYCLE
>15,000
DF >0.9
CRI >70
MATERIAL Diecast Aluminium
OPERATION TEMPERATURE -20°C to +45°C
DIMENSION 530x65x523mm
*This product contains a light source of energy e ciency class<D>, where <D> shall be replaced
by the energy class of the contained light source.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best.
Please read these instructions carefully before starting the installation and keep this
manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are
trained and ready to serve you at the best. The warranty is valid for 2 years from
the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against
damage to any surface due to incorrect removal and installation of the product.
The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing
defects only.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in
multiple languages.
SUPER BRIGHT
135+
LM/WATT EFFICIENCY

WARNING

• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole
luminaire should be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.
NOTE: To reduce the risk of strangulation the flexible wiring
connected to this luminaire shall be e ectively fixed to the wall
if the wiring is within arm's reach.

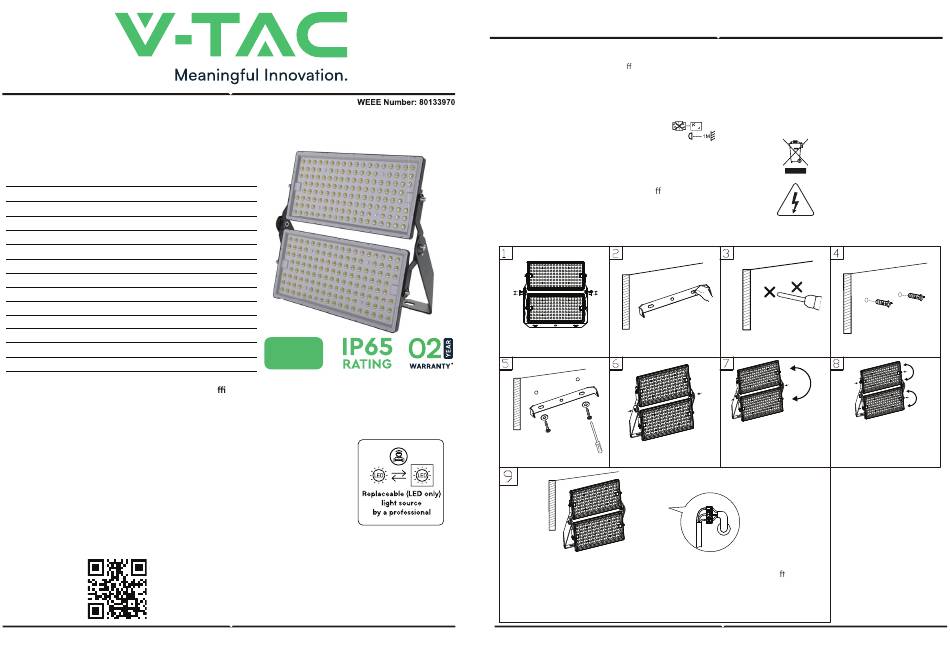

INSTALLATION DIAGRAM

1.Loosen the screws to remove 2.Determine installation
the bracket. location.
6.Install the lamp body and
5.Fixed bracket.
lock the bracket screws.
9.The input line is connected to the "L" live wire in brown, the "N" zero wire in
blue, and the yellow green wire is connected to the ground wire. A er
connecting the wires, it is necessary to use insulation tape and waterproof
tape for insulation and waterproofing treatment. It is recommended to use a
professional waterproof junction box
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
3.Punching holes on building
4.Insert Wall plug.
surfaces with drills.
7.Adjust the angle of the entire lamp, 8.Adjust the angle of the single lamp,
with an adjustable angle of 0-180 ° with an adjustable angle of -60 ° to
and a grid adjustment of 22.5 °. +60 °,and a single grid adjustment
After adjusting the angle, tighten the of 30 °. After adjusting the angle, lock
angle adjustment screw and bracket the angle adjustment screw and bracket
fixing bolt. fixing bolt.
