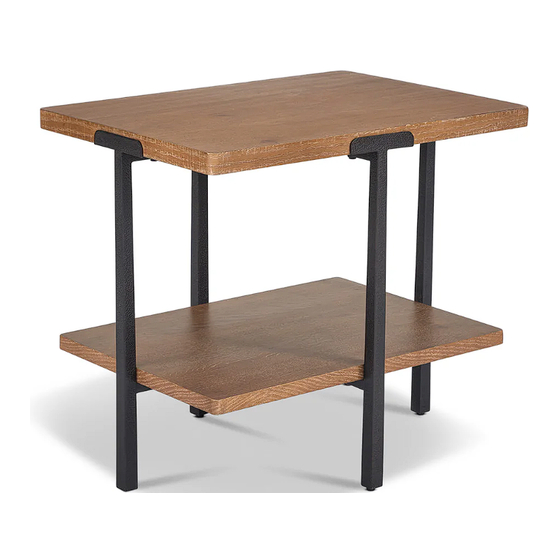

W1077-01
End Table
IMPORTANT NOTE
Carefully remove all the parts from the
carton and put them individually on a soft
cloth to prevent damage to the parts.
We have taken great care in the design of
this product and request that you carefully
and accurately follow our assembly
instructions to ensure proper set-up.
Part List
A. Table Top
C. Long Leg Frame
1 piece
Hardware List
Long Bolt
8+1 pieces
Ø1/4*1-1/2"
1 piece
D. Short Left Leg Frame
Short Bolt
6+1 pieces
Ø1/4*3/4"
B. Shelf Panel
1 piece
1 piece
Flat Washer
Spring Washer
14+1 pieces
14+1 pieces
Ø1/4*16mm
Assembly Instruction 1/3
E. Short Right Leg Frame
1 piece
Hex Key
1 piece
Ø1/4
30*100*4mm
Advertisement
Related Manuals for FLEXSTEEL W1077-01
Summary of Contents for FLEXSTEEL W1077-01
- Page 1 W1077-01 End Table IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent damage to the parts. We have taken great care in the design of this product and request that you carefully and accurately follow our assembly instructions to ensure proper set-up.
- Page 2 Assembly Instruction 2/3 IMPORTANT • Do not tighten up all the bolts until each part is properly assembled. • You should keep the Hex Key in a safe place as you may need to tighten up the bolts in the future. •...
- Page 3 • Wipe the table clean with a soft, dry cloth after each use. • Mop up spills quickly with a soft, dry cloth. Flexsteel Industries, Inc. For Parts or Customer Service, call toll-free: 1-888-415-3979 Monday-Friday 8:00-5:00pm Central Time Email: customersolutions@flexsteel.com...
