INSTRUCTIONS
HP290 MONOBLOC HEAT PUMP SYSTEM
for Installation
& Maintenance
When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and
performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised
by Ideal Heating.
For the very latest copy of literature for specification and maintenance practices visit our website idealheating.com
where you can download the relevant information in PDF format.
May 2024
UIN 241526 A02
HYBRID
SCAN
SCAN
for
Schematics
Guide
Guide
SCAN
SCAN
for Halo Lite
for Hybrid
RF Installation
Instructions
Manual
Manual
Advertisement
Table of Contents
Related Manuals for Ideal Heating HP290
Summary of Contents for Ideal Heating HP290
- Page 1 HYBRID INSTRUCTIONS HP290 MONOBLOC HEAT PUMP SYSTEM SCAN SCAN SCAN SCAN for Installation for Halo Lite for Hybrid & Maintenance RF Installation Instructions Schematics Guide Manual Manual Guide When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require.
- Page 2 • Dispose of the batteries according to the local statutory commissioning& servicing of central requirements and not with the usual domestic refuse. heating systems NOTE TO INSTALLER: LEAVE THESE INSTRUCTIONS WITH APPLIANCE Ideal Heating reserve the right to vary specification without notice...
-
Page 3: Table Of Contents
HP290 + Combi Boiler + Buffer + Two zones Bivalent system .......14 1.1.3 HP290 + Heating Only + System Boiler + Buffer + Two zones Bivalent system ..15 1.1.4 HP290 + Heating Only + System Boiler + DHW + Two zones Bivalent system ..16... -
Page 4: Section 1 - General
This kit is required for all hybrid installations consisting of All settings relating to hybrid installations should be set up and the HP290 monobloc heat pump. The HP290 monobloc heat altered by a competent person. For full installation instructions, pump is compatible with heat only, system and combination refer to the HP290 Installation &... -
Page 5: Installing The Hp290 Hybrid Kit

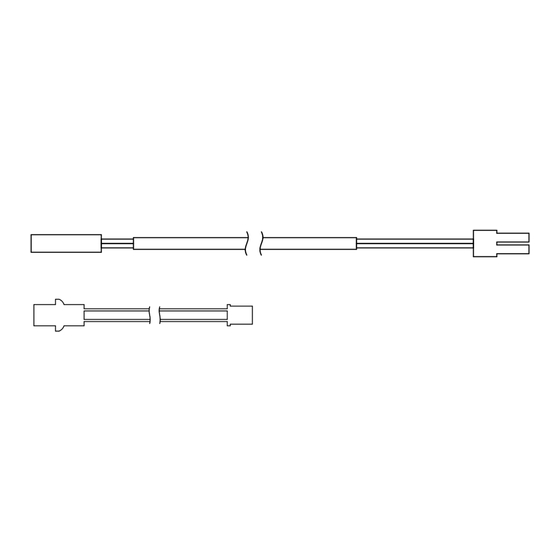

Section 1 - General 1.3 INSTALLING THE HP290 HYBRID KIT Install the HP290 Hybrid kit as follows (Refer to Figure 1): 1. Make sure that the appliance ON/OFF switch is set to OFF. 2. Make sure that the electrical power to the outdoor unit is isolated. - Page 6 Section 1 - General Connector CN39 Dip-switch S1 (switch 3) Figure 2. HP290 Outdoor PCB Hybrid Instructions...
- Page 7 230V contacts contacts contacts L Out Ground Room Stat Overheat 3 Way CH1 Pump CH2 Pump Backup Boiler Power Stat Valve or Valve or Valve Gland Gland Gland Gland Gland Figure 3. HP290 Control Box - Internal Wiring Hybrid Instructions...
-
Page 8: Hp290 Interface Layout
Section 1 - General 1.4 HP290 INTERFACE LAYOUT Screen Locked Silent Mode Active Wi-Fi Connected Smart Grid Active Outside Temperature Zone 2 Target Temperature (lights when Zone 2 On, grey when Zone 2 Off) Shown if controllled by Room Temperature... -
Page 9: Hybrid Mode Settings
Section 1 - General 1.4.1 Hybrid Mode Settings The settings in Table 1 must be inputted into the controller depending on the type of system. See sections 1.4.2 to 1.4.5 for setting instructions. Table 1 Hybrid Mode Controller Settings Hybrid System Type Controller Settings Boiler Function Heat Pump Function... -
Page 10: Configuring Hybrid Mode
Section 1 - General 1.4.2 Configuring Hybrid Mode From the Indoor Control Box Homepage display (Figure 4), set the Additional Heat Source (AHS) function as follows: Other heat source AHS function Heating and DHW AHS_Pump_I Control dT1_AHS_ON 5⁰C Zone1 t_AHS_Delay 30minutes Heating and DHW Heating In AHS function select either accordance with Table 1. -
Page 11: Setting The Heating Bivalent Point (T4Hmin)
Section 1 - General 1.4.3 Setting the Heating Bivalent Point 1.4.4 Setting the boiler heating mode activation (T4HMIN) temperature (T4_AHS_ON) Note: T4HMIN is the outdoor temperature below which the Note: T4_AHS_ON is the outdoor temperature below which the heat pump will not operate in heating mode. additional heating source is on. -
Page 12: Setting Domestic Hot Water Bivalent Point (T4Dhwmin)
Section 1 - General 1.4.5 Setting domestic hot water bivalent point (T4DHWMIN) Note: T4DHWMIN is the outdoor temperature below which the heat pump will not operate in domestic hot water mode. T4DHWMIN From the service menu set the as follows: For serviceman Cooling setting Heating setting Auto mode setting Temp. -
Page 13: Appendix
Appendix 1.1 SYSTEM SCHEMATICS 1.1.1 Schematics Key/Legend Hybrid Instructions... -
Page 14: Hp290 + Combi Boiler + Buffer + Two Zones Bivalent System
Appendix 1.1.2 HP290 + Combi Boiler + Buffer + Two zones Bivalent system Hybrid Instructions... -
Page 15: Hp290 + Heating Only + System Boiler + Buffer + Two Zones Bivalent System
Appendix 1.1.3 HP290 + Heating Only + System Boiler + Buffer + Two zones Bivalent system Hybrid Instructions... -
Page 16: Hp290 + Heating Only + System Boiler + Dhw + Two Zones Bivalent System
Appendix 1.1.4 HP290 + Heating Only + System Boiler + DHW + Two zones Bivalent system Hybrid Instructions... - Page 17 Notes Quick Start Guide...
- Page 18 At Ideal Heating we take our environmental impact seriously, therefore when installing any Ideal Heating product please make sure to dispose of any previous appliance in an environmentally conscious manner. Households can contact their local authority to find out how.
