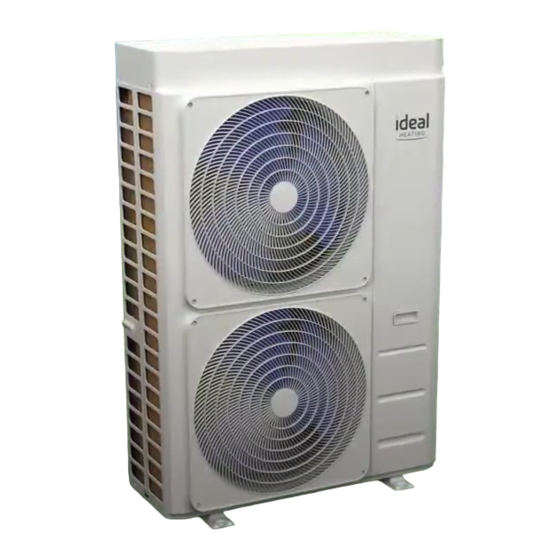

Ideal Heating ECOMOD AHP60 14 kW Installation And Servicing

Air/water monobloc heat pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND
SERVICING
ECOMOD AHP60
14 and 18 kW
Air/water monobloc heat pump
When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and performance
specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.
For the very latest copy of literature for specification and maintenance practices visit our website www.idealcommercialboilers.com
where you can download the relevant information in PDF format.
September 2022
UIN 00U07352240-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOMOD AHP60 14 kW and is the answer not in the manual?

Questions and answers

Related Manuals for Ideal Heating ECOMOD AHP60 14 kW

Summary of Contents for Ideal Heating ECOMOD AHP60 14 kW

  • Page 1 INSTALLATION AND SERVICING ECOMOD AHP60 14 and 18 kW Air/water monobloc heat pump When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Ideal. For the very latest copy of literature for specification and maintenance practices visit our website www.idealcommercialboilers.com where you can download the relevant information in PDF format.

  • Page 3: Table Of Contents

    AHP60-14/18 - Installation, Use and Maintenance CONTENTS 1. REGULATIONS, RECOMMENDATIONS AND WARNINGS ..............5 1.1. Applicable regulations and standards ......................5 1.2. Recommendations and warnings ......................... 5 2. DESCRIPTION OF THE EQUIPMENT ................15 2.1. Designations and scope ..........................15 2.2. Packaging..............................15 2.3. Definitions ..............................
  • Page 4 7.5. Cleaning the external surfaces ........................60 7.6. Maintenance of the outdoor unit ........................60 7.7. Residual safety risks ........................... 61 7.8. “Maintenance” check list ..........................62 8. END OF PRODUCT LIFE- ....................68 ■ Symbols used in this document INFORMATION: This symbol draws attention to comments. Failure to comply with these instructions may cause damage to the CAUTION: installation or to other objects.

  • Page 5: Regulations, Recommendations And Warnings

    1. REGULATIONS, RECOMMENDATIONS AND WARNINGS 1.1. Applicable regulations and standards This outdoor heat pump has been designed in accordance with current regulations and must be used accordingly. See the list of standards on the back cover. This device must be transported in compliance with the local laws. This device and its refrigerant R32 must be handled in compliance with the application orders of the gas regulation. Specific guidelines related to the presence of Fluorine in the composition of the R32 fluid are specified in the European Union regulation n°...
  • Page 6 The elements indicated below are not exhaustive given the diversity of the possible installations and interventions; they cannot be considered as an undertaking as to the responsibility of Ideal heating. These elements cannot replace a risk analysis, which remains the responsibility of the installer and the personnel working on the machines.
  • Page 7 HANDLING AND STORAGE Handling: Ensure that the premises have adequate air renewal/extraction . Technical measures/precautions: Recommendations for safe use: Do not breathe in the vapours or use aerosols. Close tightly and store in a cool, dry, well-ventilated place. Storage Keep in original recipients. Incompatible products: explosives, flammable materials, organic peroxide.
  • Page 8 ■ Specific warnings on the R32 refrigerant The R32 refrigerant: - is odourless; - is slightly inflammable (A2L), but only in the presence of flames; - Risk of explosion at air concentrations between the lower and upper flammability levels of the fluid, see refrigerant data sheet above. It is essential to follow the following guidelines: - do not smoke near to the appliance ; - put up no smoking signs near to the appliance ; - ensure that it is installed in a well-ventilated area - do not pierce or burn the appliance ;...
  • Page 9 1.2.4. Recommendations for hydraulic and electrical circuits ■ Hydraulic connections The connection must comply with good engineering practices according to the regulations in force. Reminder: Make the assembly seals according to good engineering practices in force for plumbing work: - Use suitable seals or gaskets (fibre seals, O rings). - Use Teflon or hemp tape.
  • Page 10 Percentage of Efficiency cor- Absorbed power Water flow rate cor- Loss of head cor- Freezing point [°C] glycol rection factor correction factor rection factor rection factor -3.2 0.985 1.02 1.08 -7.8 0.98 0.99 1.05 1.12 -14.1 0.97 0.98 1.10 1.22 -22.3 0.965 0.97...
  • Page 11 TO EXPANSION SYSTEM Example of recommended connection diagram (non exhaustive) 01-07-2022 11 / 70...
  • Page 12 1.2.5. General safety rules Before starting any operation on the units, each operator must be fully familiar with the operation of the machine and its controls and have read and understood all the information contained in this manual. The removal and/or handling of any safety device is strictly prohibited. Children and unaccompanied disabled people are not allowed to use the device.
  • Page 13 Be sure to maintain a posture that does not cause fatigue when installing and maintaining the unit. Also check the weight of any component before handling it. The unit works with the refrigerant R32, included in the list of greenhouse gases (GWP 675) that meet the requirements of EU Regulation No.
  • Page 14 AHP60 14/18 kW - Installation, Use and Maintenance 14 / 70 00U07352240-A_ EN...

  • Page 15: Description Of The Equipment

    AHP60-14/18 - Installation, Use and Maintenance 2. DESCRIPTION OF THE EQUIPMENT 2.1. Designations and scope Ecomod is hot water production system for heating networks or thermodynamic production of domestic hot water. 2.2. Packaging Outdoor unit Model Code ECOMOD 14 AH090911 ECOMOD 18 AH090913 ECOMOD 14 AC...

  • Page 16: Technical Data

    AHP60 14/18 kW - Installation, Use and Maintenance 2.4. Technical data 2.4.1. Data sheet for standard units AHP 60 Measurement TECHNICAL CHARACTERISTICS units 14 kW 18 kW 7,54 / 14,10 / 7,30 / 17,90 / Heat output (1) min/nom/max 15,23* 19,33* Absorbed power (1) 2,91...
  • Page 17 AHP60-14/18 - Installation, Use and Maintenance AHP 60 Measurement TECHNICAL CHARACTERISTICS units 14 kW 18 kW Hydraulic circuit water capacity Max. pressure on water side Hydraulic connections Ø 1"M 1"M Minimum volume of water for bottle Hydraulic circuit Nominal power of the circulator 0.14 0.14 Maximum power of circulator...
  • Page 18 AHP60 14/18 kW - Installation, Use and Maintenance 2.4.2. 2.4.2. Electrical data for the unit and auxiliaries Electrical data for the unit and auxiliaries Economod Heat Pump Control external Unit power supply V/~/Hz 3N~400V-50Hz* V/~/Hz 12/01/1950 command circuit Integrated command V/~/Hz 12/01/1950 Power supper to fans...
  • Page 19 AHP60-14/18 - Installation, Use and Maintenance 2.4.3.2. Partial load Sound levels refer to units at full load and in conditions guaranteeing a thermal capacity equal to that declared at a temperature of 7°C for an average climate, in accordance with standard EN 14825, in accordance with the provisions of EU regulation 813/2013(dry bulb temperature (wet bulb temperature) of the outside air = 7°C (6°C), water temperature inlet-outlet = 47-55°C). The tolerance on the value of the total sound power level is of 2dB(A).

  • Page 20: Description

    AHP60 14/18 kW - Installation, Use and Maintenance 2.5. Description 2.5.1. Models AHP60 14 - 18 kW RH side view Front view LH side view Top view IN/OUT : 1”M G E: electrical power input Figure 1 - Frame sizes (in mm) for both 14kW and 18kW 20 / 70 00U07352240-A_ EN...
  • Page 21 AHP60-14/18 - Installation, Use and Maintenance 2.5.2. Access to internal components Figure 2 - Dismantling procedure 1) Remove the cover by unscrewing the screws (numbers 1, 2, 3, 4, 5, 6,7, 8, 9). 2) Remove the screws (numbers 10, 11) from the front plate, then push the panel downwards to free the interlocking tabs (view A);...

  • Page 22: Operating Principle

    AHP60 14/18 kW - Installation, Use and Maintenance 2.6. Operating principle 2.6.1. Production of DHW (winter mode) When the heat pump is operating, other than in the start-up and transition phases, the inlet temperature must not fall below 25°C. A lower value may cause system anomalies, including damage to the compressor. Similarly, the outlet temperature must not exceed 60°C. With temperatures higher than those indicated, especially if combined with low water flow rates, there may be anomalies in the operation of the unit, or in the most critical cases, the safety devices...
  • Page 23 AHP60-14/18 - Installation, Use and Maintenance Water flow rate on the condenser The nominal water flow rate is determined for a temperature difference of 5°C between the inlet and the outlet of the condenser. The maximum authorised flow rate is that with a temperature difference of 3°C whereas the minimum is that with a temperature difference of 8°C in nominal conditions, as shown on the data sheet. For more detailed information, we provide a table below which indicates the minimum flow rates to be guaranteed on the condenser to ensure that it operates correctly according to the model, as well as the disconnection and re-engagement flow rates for the flow rate controller.

  • Page 24: Installation

    AHP60 14/18 kW - Installation, Use and Maintenance 3. INSTALLATION The outdoor unit and the Ecomod Heat Pump Control must be installed using CAUTION: the new equipment supplied. 3.1. Lifting and handling Handling must be carried out by qualified personnel, correctly equipped with tools suited to the weight and size of the unit, in compliance with the accident prevention safety rules. Notes: 1.

  • Page 25: Location

    AHP60-14/18 - Installation, Use and Maintenance 3.2. Location The choice of the position for installation is particularly important insofar as any later movement is a delicate operation requiring the intervention of a qualified person. Comply with the maximum and minimum distances for the outdoor unit (see next paragraph); the performance and service life guarantees depend on this. 3.3.
  • Page 26 AHP60 14/18 kW - Installation, Use and Maintenance • Make sure that the passage of hydraulic connections is possible and easy, especially in the case of several heat pumps. • The outdoor unit is weatherproof, but avoid installing it in a place where it may be exposed to dirt or heavy water run-off (under a leaking gutter, under a roof, etc.). Avoid installing the unit in places where water is likely to stagnate or fall, for example from gutters •...
  • Page 27 AHP60-14/18 - Installation, Use and Maintenance Industries / risk zones Incinerators Agriculture Paper / Salt Swimming Treatment Type Corrosive product & other Cleaning & fertiliser wood extraction pools plants combustions manufacturers Nitrogen oxides (NOX) Sulphur oxides Oxides (SxOy) Carbon oxides Sulphurs Hydrogen fluoride Volatile gases...
  • Page 28 AHP60 14/18 kW - Installation, Use and Maintenance 3.3.2. Installation precautions We recommend that you carry out a noise nuisance risk study. This will have to take into account the residual noise without the heat pump, the data of the machine, the place of implantation, the distance to the measuring point, this list is not exhaustive.
  • Page 29 AHP60-14/18 - Installation, Use and Maintenance 3.3.3. Minimum technical clearances • By following the installation precautions, it is absolutely essential to ensure the following minimum service clearances are respected. The distances E and L are required for the maintenance of the unit.
  • Page 30 <5Pa to allow all installed heat pumps to discharge the required flow rate (see flow rate in the table in paragraph 2.4.1). • Ideal Heating cannot be held responsible for any drop in performances of the unit if these recommendations are not respected. 30 / 70...

  • Page 31: Installing The Control Unit

    AHP60-14/18 - Installation, Use and Maintenance 3.3.4. Condensate evacuation system All the units have been designed so that the base of the unit acts as a condensate drainage tray. A plastic connector is supplied and is to be installed under the base, to connect a hose to channel the condensation water.
  • Page 32 AHP60 14/18 kW - Installation, Use and Maintenance When choosing the size of the pipes, make sure that the maximum pressure drop of the system as stated in the technical data in paragraph 2.4.1 is not exceeded (see useful head). Always connect the pipes to the connections using the wrench-to-wrench CAUTION: system.
  • Page 33 The adjustment and management of flow rates is the responsibility of the installer/ under installer/operator responsibility and will not be operated by Ideal Heating. CAUTION: During commissioning of the system, balancing control will be requested by Ideal Heating.
  • Page 34 AHP60 14/18 kW - Installation, Use and Maintenance • Protecting the heat pumps against corrosion Corrosion can affect the iron components used in heat pumps and heating systems,, directly related to the presence of oxygen in the water heater's water. Dissolved oxygen that enters the unit when it is being filled for the first time reacts with the equipment materials and quickly disappears. Without refreshing the oxygen through significant contributions of water, the unit might not experience any damage whatsoever. However, it is important to follow the sizing rules and installation guidelines in order to prevent oxygen from continuously flowing into the heating water. From these rules, we have: Preferably an expansion vessel with a membrane rather than an open expansion vessel...
  • Page 35 AHP60-14/18 - Installation, Use and Maintenance 3.5.6. Connecting water supply Check that the system is stopped, with the general switch in position 0. Add water until the pressure of the hydraulic circuit reaches 2 bar. The P-vent operates automatically, run the pump to readjust the pressure. Check that there are no leaks.
  • Page 36 AHP60 14/18 kW - Installation, Use and Maintenance 3.5.6.1. Precautions when connecting the water supply • Supervise all of the operations for connecting the water supply and filling. • Before connecting the water supply and filling the system, disconnect the electrical power supply to the units. • The connection of the water supply and filling of the installation must always be carried out in controlled pressure conditions (max. 1 bar). Ensure that a pressure reducer and a safety valve have been fitted on the loading/reintegration line.

  • Page 37: Electrical Connections

    AHP60-14/18 - Installation, Use and Maintenance 3.5.6.3. Air Evacuation Function This function allows the system to be purged, using the circulator at maximum speed. To enable purge mode : - Screen in OFF mode Puis Puis Password MODE SF 1A 3 secondes The circulator activates for 5 minutes and then turns off.
  • Page 38 AHP60 14/18 kW - Installation, Use and Maintenance 3.6.1. General remarks on electrical connections Check that the electrical power supply complies with the nominal characteristics of the appliance (voltage, phases, frequency) as stated on the data plate located on the side panel of the appliance. The electrical connection must comply with the electrical wiring diagram of the appliance and local and international regulations (fit a main circuit breaker, and differential circuit breakers for each line, and earth installation adequately, etc.).
  • Page 39 AHP60-14/18 - Installation, Use and Maintenance 3.6.3. Current source Electrical connections must only be carried out by QUALIFIED PERSONNEL, in compliance with the legislation in force. DANGER: Ensure that an adequate earth connection is installed, as inadequate earthing can cause electrical shocks. The manufacturer cannot be held responsible for damage caused by ineffective or absence of earthing.
  • Page 40 AHP60 14/18 kW - Installation, Use and Maintenance 3.6.4. Connecting the command unit See Ecomod Heat Pump Control instructions. 3.6.5. User terminal The terminal block is under the machine cover. To access it, refer to the instructions in paragraph 2.5.2. The terminal block must be connected in compliance with the remarks below. CAUTION: It is important to separate high voltage cables from very low voltage cables Cable glands...
  • Page 41 AHP60-14/18 - Installation, Use and Maintenance TERMINAL CONNECTION TYPE BLOCK Connect the earth cable Connect the neutral cable from the main power supply Power supply input 3-Ph/N/ Connect the L1 phase cable from the main power supply PE, 400 Vac, 50Hz. Connect the L2 phase cable from the main power supply Connect the L3 phase cable from the main power supply X-5.2...

  • Page 42: Pre-Requisites Before Commissioning

    AHP60 14/18 kW - Installation, Use and Maintenance 4. PRE-REQUISITES BEFORE COMMISSIONING 4.1. Verification before switching on • Check that the electrical and hydraulic diagrams of the installation the machine is connected to are available. • Check that there are safety valves, filters and the expansion system. • Ensure that the isolation valves of the hydraulic circuits are open. •...

  • Page 43: Switching On

    - Check if the electrical resistors of the compressors are powered correctly. 4.3. Commissioning - The heat pump must only be commissioned by Ideal Heating commissioning personnel. - If heating is required before the planned commissioning date, back-up generators may be used: Ecomod heating system only via the tank back up resistors.

  • Page 44: Operating Diagram

    AHP60 14/18 kW - Installation, Use and Maintenance 4.5. Operating diagram 4.5.1. 14-18 kW Figure 13 - Operating diagram 44 / 70 00U07352240-A_ EN...
  • Page 45 AHP60-14/18 - Installation, Use and Maintenance LEGEND SIGN DESCRIPTION SIGN DESCRIPTION Compressor H/CS Water outlet Condenser H/CR Water inlet EV-1/2 Evaporator High pressure sensor EEV1 Electronic expansion valve Low pressure sensor 4WV1 4 way cycle reversing valve EXT1 Outdoor temperature sensor Fluid bottle Temperature sensor on suction line Dehydration filter...

  • Page 46: Hmi Navigation

    AHP60 14/18 kW - Installation, Use and Maintenance 4.6. HMI Navigation U : User S : Password-protected specialist (195) * : Only in case of default in progress ** : Only if USB flash drive detected with the right files 46 / 70 00U07352240-A_ EN...

  • Page 47: Control Interface

    AHP60-14/18 - Installation, Use and Maintenance 5. CONTROL INTERFACE 5.1. User interface The unit is equipped with a display underneath a transparent polycarbonate cover with an IP67 protection rating. The interface consists of a variable text part and a series of icons identifying the operation of the appliance as shown in the table below.

  • Page 48: Set" Setpoint Menu

    AHP60 14/18 kW - Installation, Use and Maintenance It normally displays the water outlet temperature in tenths of a degree Celsius or the alarm code is displayed if there is at least one alarm in progress. If several alarms are in progress, the first one is displayed, while the second one is displayed after the first one has been reset. Menu Below is a description of the main navigation functions in the menus, also explaining some functions that are harder to understand.

  • Page 49: Sensor Menu [Tp]

    AHP60-14/18 - Installation, Use and Maintenance 5.3. Sensor menu [TP] Access the PSS menu to enter the maintenance technician password “195” and to activate access to a higher level. Once you have fully exited the menus, the password privileges are lost and the password needs to be entered once again. LABEL SENSOR Inlet water temperature...

  • Page 50: Troubleshooting

    AHP60 14/18 kW - Installation, Use and Maintenance 6. TROUBLESHOOTING 6.1. Troubleshooting of failures without error code Problems encountered Cause Solution HMI off with heat pump Reverse the cabling between 2 power supply Power supply phase reversal powered up phases Error 495 on Ecomod heat Power up the heat pump.
  • Page 51 AHP60-14/18 - Installation, Use and Maintenance Code Description Cause Solution The pressure sensor detects • Check for gas leaks in the refrigeration circuit. a pressure that is lower than • Check if the error occurs when the operating mode the “low pressure setpoint” . is changed pressure setting...
  • Page 52 AHP60 14/18 kW - Installation, Use and Maintenance Code Description Cause Solution • Check that the IN1 sensor is attached correctly to the terminals CN2 1-2 Failure of the E611 water inlet The IN1 sensor is defective sensor • Check that the OUT1 sensor is attached correctly to the terminals CN2 3-4 Failure of the water...
  • Page 53 AHP60-14/18 - Installation, Use and Maintenance Code Description Cause Solution • Check that the EXT1 sensor is attached correctly to the terminals CN3 1-2 Failure of E651 the external The EXT1 sensor is defective air sensor • Check that the LP1 sensor is attached correctly to the terminals CN1 1-2 Low pressure The LP1 low pressure sensor...
  • Page 54 AHP60 14/18 kW - Installation, Use and Maintenance Code Description Cause Solution If the functional diagram connections are all present, Check: • Check if opto-coupler OPT1 is powered, if there is a 12V voltage between the terminals Vcc and GND. •...

  • Page 55: Inverter Board Errors

    AHP60-14/18 - Installation, Use and Maintenance 6.3. Inverter board errors Model 14 and 18 kW HMI error Number of card flashes Causes Solutions Description error Compressor not connected Check the wiring / Replace the inverter Overloaded compressor Controller protection sampling Replace the inverter board of the continuity/short-circuit break output current Phase current IPM*...

  • Page 56: Ohminic Values Of The Different Probes

    AHP60 14/18 kW - Installation, Use and Maintenance Model 14 and 18 kW HMI error Number of card flashes Causes Solutions Description error Tension Check power at source voltage Check power source High AC input wiring protection Poor input wiring of food DC power surge Tension Low voltage High AC input...

  • Page 57: Maintenance Of The Outdoor Unit

    AHP60-14/18 - Installation, Use and Maintenance 7. MAINTENANCE OF THE OUTDOOR UNIT 7.1. Draining water from outdoor unit If the unit has to be completely drained, first close the manual inlet and outlet valves (not supplied) and then disconnect the pipes provided on the outside of the water inlet and outlet so that the liquid contained in the unit can flow out (to make this easier, we suggest installing two drain taps on the outside of the water inlet and outlet between the unit and the manual valves). If it is necessary to recharge the system or to adjust the glycol content, the service valve may be used.

  • Page 58: Periodic Checks

    AHP60 14/18 kW - Installation, Use and Maintenance Operation even for a short period of time, with a water temperature below +5°C is not covered by the warranty. Before switching the appliance back CAUTION: on after prolonged stoppage, ensure that the temperature of the water- glycol mix is at least +5°C or more.
  • Page 59 AHP60-14/18 - Installation, Use and Maintenance Here are the activities that are recommended and compulsory for the unit to operate correctly. The compulsory activities must be performed by an authorised customer service in order for the corresponding certificate to be issued. Failure to respect these activities will make the warranty void and could considerably shorten the life of your product. OPERATIONS month months...

  • Page 60: Cleaning The External Surfaces

    AHP60 14/18 kW - Installation, Use and Maintenance 7.4.1. CLEANING THE EVAPORATOR Follow the instructions below to clean correctly: a) Remove any surface dirt. Deposits such as leaves, fibres... etc., must be used with a vacuum cleaner (use a brush or a spray, carefully avoiding rubbing with metal parts or abrasives). If compressed air is to be used, ensure that the air stream is kept pointing perpendicularly to the surface of the battery to avoid bending the aluminium fins. Take care not to bend the fins with the nozzle of the compressed air gun.

  • Page 61: Residual Safety Risks

    AHP60-14/18 - Installation, Use and Maintenance 7.6.1. Installation drain Function used to drain the system, using the circulator at maximum speed. To enable this function: - Control in OFF mode - Access the parameters PRG => PSS => PRG => (enter password 195) - Hold down the UP and DOWN keys at the same time for 3 seconds. The circulator is activated at full speed; after 5 minutes, the circulator switches off.

  • Page 62: Maintenance" Check List

    AHP60 14/18 kW - Installation, Use and Maintenance 7.8. “Maintenance” check list ■ Before starting any work on equipment containing flammable refrigerant, safety checks must be performed to minimise the risk of ignition. Take the following steps before working on the cooling system: Measure Performed Remark General working environment ■ Inform all of the following persons of the type of work to be carried out: –...
  • Page 63 ■ Replace the components according to the instructions in the manual. If necessary, contact the Ideal Heating technical service department. Carry out the following checks: ■ The refrigerant load must not exceed that allowed for the installation room.
  • Page 64 ■ Only components suitable for a flammable atmosphere may be powered up in the vicinity of such an atmosphere. ■ Use only suitable original parts or components approved by Ideal Heating. Other components may cause the refrigerant to ignite if leaked. Wiring ■ Check if the wiring is subject to wear, corrosion, traction, vibrations, sharp edges or other unfavourable surrounding influences.
  • Page 65 AHP60-14/18 - Installation, Use and Maintenance Measure Performed Remark ■ The refrigerant detector must be suitable for the R32 refrigerant to be detected. ■ The refrigerant detector must not contain any potential source of ignition. ■ Calibrate the refrigerant detector to suit the refrigerant used. Set the response threshold to < 3 g/a, suitable for propane. Leak detection using leak detection liquids: ■ Leak detector liquids associated with most refrigerants are suitable.
  • Page 66 AHP60 14/18 kW - Installation, Use and Maintenance Measure Performed Remark Topping up the refrigerant Filling with refrigerant In addition to the usual filling procedure, the following requirements must be satisfied: - make sure that the filling valve is not used for different refrigerants.
  • Page 67 AHP60-14/18 - Installation, Use and Maintenance Measure Performed Remark j) If the recycling bottles are filled as required and the process is completed, ensure that the bottles and equipment are immediately removed from the facility and that all shut-off valves are closed. k) Recovered refrigerant must not be used to fill other systems until it has been purified and examined. Marking (on the heat pump) If the heat pump has been taken out of service, affix the following marking, along with the date and signature, prominently on the heat pump: ■ The refrigerant is inflammable.

  • Page 68: End Of Product Life

    The manufacturer or its importer/distributor is available to answer any request for further information. Ideal Heating has signed up to the Eco-systems service which collects, recycles and cleans our used electrical equipment, according to the highest environmental requirements.
  • Page 69 AHP60-14/18 - Installation, Use and Maintenance Incorrect disposal of the appliance may cause serious environmental damage and endanger people. We therefore recommend that you contact authorised persons with appropriate technical training obtained through courses recognised by the competent authorities. The same precautions described in the previous paragraphs must be followed. Special attention must be paid to the disposal of the refrigerant gas.
  • Page 70 Technical Training The Ideal Technical Training Centre offers a series of first class training courses for domestic, commercial and industrial heating installers, engineers and system specifiers. For details of courses please ring: ... 01482 498432 Ideal Boilers Ltd. pursues a policy of continuing improvement in the design and performance of its products. The right is therefore reserved to vary specification without notice.

This manual is also suitable for:

Ecomod ahp60 18 kw
