RX130 Group
32
Renesas 32-bit Microcontroller
RX Family/RX100 Series
Renesas Solution Starter Kit
RX Capacitance Touch Evaluation System
All information contained in these materials, including products and product specifications,
represents information on the product at the time of publication and is subject to change by
Renesas Electronics Corp. without notice. Please review the latest information published by
Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.
website (http://www.renesas.com).
www.renesas.com
RX Capacitive Touch Evaluation System CPU Board
User's Manual
Rev.1.10 Apr 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX130 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas RX130 Series

Summary of Contents for Renesas RX130 Series

  • Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.
  • Page 2 Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
  • Page 3 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
  • Page 4 The following documents apply to the RX130 Group, RX Capacitive Touch CPU Board included in the Renesas Capacitive Touch Evaluation System. Make sure to refer to the latest versions of these documents. The newest versions of the documents listed may be obtained from the Renesas Electronics Web site.
  • Page 5 List of Abbreviations and Acronyms Abbreviation Full Form ACIA Asynchronous Communications Interface Adapter bits per second Cyclic Redundancy Check Direct Memory Access DMAC Direct Memory Access Controller Global System for Mobile Communications Hi-Z High Impedance IEBus Inter Equipment Bus Input/Output IrDA Infrared Data Association Least Significant Bit...
  • Page 6 Renesas or its affiliates shall in no event be liable for any loss of profit, loss of data, loss of contract, loss of business, damage to reputation or goodwill, any...
  • Page 7 Safety Items Definitions of Symbols A variety of symbols are used in this document and on the product itself to prevent in advance danger to you the user or any third parties and to prevent in advance damage to any physical property. This section, Safety Items, presents these symbols and their meanings.
  • Page 8 Warning Handling related warnings: Do not disassemble or modify this product. Renesas does not guarantee this product if it has been disassembled or modified. The power supply for this product can be selected to be either the USB bus or a DC jack. A jumper is used to select the power supply.
  • Page 9 After use the equipment cannot be disposed of as household waste, and the WEEE must be treated, recycled and disposed of in an environmentally sound manner. Renesas Electronics Europe GmbH can take back end of life equipment, register for this service at...
  • Page 10 Electromagnetic Environment Electromagnetic Environment  This product generates electromagnetic emissions in an industrial environment. Use in a residential environment may affect other equipment.  This product requires special EMC precautions and should be used in accordance with the EMC information provided below. EMI: Electro Magnetic Interference Standard Level...
  • Page 11 Test Condition of Electrostatic Discharge Discharge Method Test Voltage Result ±4.0kV Pass Indirect Discharge ±4.0kV Pass Contact Discharge ±4.0kV Pass ±2.0kV Pass Direct Discharge Air Discharge ±4.0kV Pass ±8.0kV Pass Test Condition of Radio Frequency Electromagnetic Field Frequency Antenna Test Level Dwell Time Modulation Result...

  • Page 12: Table Of Contents

    Table of Contents Overview ..............................1 Purpose ............................1 Features ............................1 Board Specifications ........................2 Regulatory Compliance Notices ...................... 3 1.4.1 European Union regulatory notices ..................3 Power Supply............................4 Requirements..........................4 Power-up Behavior .......................... 4 Board Layout ............................5 Component Layout ..........................
  • Page 13 Circuit Diagram ............................13 PCB Layout Diagram ..........................14 10. Parts List ............................... 15 11. Code Development ..........................16 11.1 Overview ............................16 11.2 Software Project ..........................16 11.3 Compiler Restrictions ........................16 11.4 Mode Support ..........................16 11.5 Debugging Support ........................16 11.6 Address Space..........................

  • Page 14: Overview

    RX130 Group RX Capacitive Touch Evaluation System CPU Board Overview Purpose This CPU board is an evaluation tool for Renesas microcontrollers. This manual explains the technical components of the hardware in detail. Features This CPU board offers the following features: •...

  • Page 15: Board Specifications

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 1. Overview Board Specifications The CPU board specifications are shown in Table 1.1. Table 1.1 CPU Board Specifications Item Specification Microcontroller Part No: R5F5130ADFN Package: 80-pin LFQFP On-chip memory: ROM 128KB+8KB、RAM16KB Input Clock Main clock: 16MHz (option) Subclock: 32.768KHz (option...

  • Page 16: Regulatory Compliance Notices

    Name: Renesas Electronics Corporation Address: Toyosu Foresia, 3-2-24, Toyosu, Koto-ku, Tokyo 135-0061, Japan ・ Person responsible for placing on the market Name: Renesas Electronics Europe GmbH Address: Arcadiastrasse 10, 40472 Dusseldorf, Germany ・ Trademark and Type name Trademark: Renesas Product name: RX130 Capacitive Touch Evaluation System...

  • Page 17: Power Supply

    At the time of purchase, the microcontroller on the CPU board is pre-programmed with sample software. This software automatically recognizes what type of Renesas Capacitive Touch Evaluation System application board is connected to the CPU board and runs the corresponding demo program. Refer to the RX Capacitive Touch Evaluation System Quick Start Guide for more information.

  • Page 18: Board Layout

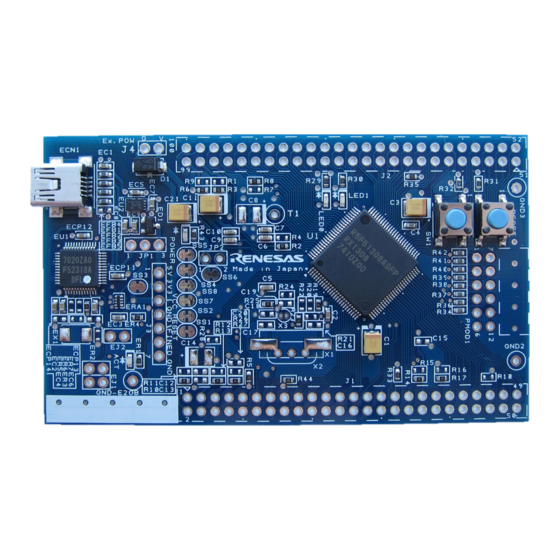

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 3. Board Layout Board Layout Component Layout Figure 3.1 shows the component layout of the RX130CPU board. Battery holder DC power connector Power supply selector （ ） Sensor board application Power supply/ headers Workbench...

  • Page 19: Component Placement

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 3. Board Layout Component Placement Figure 3.2 shows placement of individual components on the RX130 CPU board. Component numbers and values are also shown on the board schematics. Top-side Components Placement Bottom-side Components Placement Figure 3.2 RX130CPU Board Component Placement Schematics...

  • Page 20: Connectivity

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 4. Connectivity Connectivity System Block Diagrams Figure 4.1 provides a system block diagram for the CPU board. Battery E1 connector E1コネクタ バッテリー (option) （オプション） Power DC Jack DCジャック supply 電源回路...

  • Page 21: User Circuitry

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 5. User Circuitry User Circuitry Reset Circuit The CPU board uses the MCU’s built-in power-on reset circuit. In addition, a reset signal can be generated from the board’s RES switch. Refer to the RX130 Group hardware manual for details regarding the microcontroller reset requirements and the CPU board circuit diagrams for information regarding the reset circuitry in use on the CPU board.

  • Page 22: Usb Serial Conversion

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 5. User Circuitry USB Serial Conversion For USB-serial conversion, USB serial IC FT232 (manufactured by FTDI) is mounted on the CPU board and connected to the RX130 Serial Communications Interface (SCI) module. Functions differ according to which SCI pin is connected to the board.

  • Page 23: Configuration

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 6. Configuration Configuration Modifying the CPU Board This section lists the option links that are used to modify the way the CPU board operates in order to access different configurations. Configurations can be modified using option link resistors, jumpers or DIP switches. A link resistor is a 0Ω...

  • Page 24: Clock Configuration

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 6. Configuration Clock Configuration Table 6.3 details the option link functions associated with the clock configuration. Table 6.3 Clock Option Links Reference Explanation Not Fitted Related Ref. P36/EXTAL, Connects crystal oscillator X1 to RX130. R6,R7 U1 (EXTAL, P37/XTAL...

  • Page 25: Headers

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 7. Headers Headers Application Headers Table 7.1 Application Headers (CN1) Connections Application Header Application Header Header Name Port Header Name Port PE5/AN021 - : Non Connection Table 7.2 Application Headers (CN2) Connections Application Header Application Header Header Name...

  • Page 26: Circuit Diagram

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 8. Circuit Diagram Circuit Diagram The circuit diagram is shown on the Appendix 1. R12UZ0003EJ0110 Rev.1.10 Page 13 of 17 Apr 26, 2024...

  • Page 27: Pcb Layout Diagram

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 9. PCB Layout Diagram PCB Layout Diagram The PCB layout diagram is shown on the Appendix 2. R12UZ0003EJ0110 Rev.1.10 Page 14 of 17 Apr 26, 2024...

  • Page 28: Parts List

    RX130 Group RX Capacitive Touch Evaluation System CPU Board User's Manual 10. Patrs List Parts List The Parts list is shown on the Appendix 3. R12UZ0003EJ0110 Rev.1.10 Page 15 of 17 Apr 26, 2024...

  • Page 29: Code Development

    11.1 Overview For all code debugging using Renesas software tools, the CPU board must be connected to a PC via an E1 emulator debugger. An E1 debugger is not supplied with this product and must be procured separately. For further information regarding the debugging capabilities of the E1 debugger, refer to RX Family E1/E20 Emulator User’s Manual (R20UT0399EJ).

  • Page 30: Additional Information

    Copyright This document may be, wholly or partially, subject to change without notice. All rights reserved. Duplication of this document, either in whole or part is prohibited without the written permission of Renesas Electronics Limited. © 2016 (2024) Renesas Electronics Corporation.
  • Page 31 SW1-2 Operating Mode Single Chip / E1(FINE) Boot Mode (SCI) P36/EXTAL XCOUT 4.7k DNF : Do Not Fitted MD/FINED MD/FINED 32.768kHz P37/XTAL Renesas Electronics Corp. XCIN RESET Title DIPSW-2 RX130 CPU Board D2514-6V0C-AR-WD Size Document Number D-RTK0EG0004C01002BJ-B Date: 21.July,2015 Sheet 1/1...
  • Page 32 Appendix 2. PCB Top-side Layout...
  • Page 33 PCB Bottom-side Layout...
  • Page 34 Renesas Electronics Corp. Appendix 3. RX Capacitive Touch Evaluation System RX130 CPU Board RTK0EG0004C01002BJ PartNo Title Component Name Component Specification Qty/Set Remarks Type Reference Product Number (Specfication) Manufacture Mount/Unmount Microcomputer R5F51305ADFN Renesas Mount USB-Serial Converter IC FT232RQ FTDI Mount Chip Capacitor...
  • Page 35 Renesas Electronics Corp. Component Name Component Specification Qty/Set Remarks Type Reference Product Number (Specfication) Manufacture Mount/Unmount Chip Resistor MCR03ERTJ103 ROHM Mount Chip Resistor R10,R61 MCR03ERTJ472 ROHM 4.7k Mount Chip Resistor R3,R6,R7,R9,R53,R54 ROHM Unmount ,R58 DIP Switch SBS9102TK KNITTER-SWITCH 2-position Mount...
  • Page 36 Revision History RX130 Group RX Capacitive Touch Evaluation System CPU Board User’s Manual Date Description Rev. Page 1.00 Feb 17, 2016 First Edition issued － 1.10 Apr.26.24 Update Notice and How to Use This Manual. － Added board dimensions to the Table 1.1 Added regulatory compliance notices Update Code development.
  • Page 37 RX130 Group RX Capacitive Touch Evaluation System CPU Board User’s Manual Publication Date: Rev.1.00 Feb 17, 2016 Rev.1.10 Apr 26, 2024 Published by:Renesas Electronics Corporation 3-2-24 Toyosu, Koto Ward, Tokyo, 135-0061, Japan...
  • Page 38 RX130 Group RX Capacitive Touch Evaluation System CPU Board User’s Manual R01UH0001EJ0110...
