PRELIMINARY WARNINGS
The word WARNING preceded by the symbol
The word ATTENTION preceded by the symbol
instrument or the connected equipment. The warranty shall become null and void in the event of improper use or
tampering with the module or devices supplied by the manufacturer as necessary for its correct operation, and if
the instructions contained in this manual are not followed.
WARNING: The full content of this manual must be read before any operation. The module must only be used by
qualified electricians. Specific documentation is available via QR-CODE shown on page 1.
Electrical and electronic waste disposal (applicable in the European Union and other countries with recycling).
The symbol on the product or its packaging shows the product must be surrendered to a collection centre
authorized to recycle electrical and electronic waste.
SENECA s.r.l.; Via Austria, 26 – 35127 – PADOVA – ITALY; Tel. +39.049.8705359 - Fax +39.049.8706287
CONTACT INFORMATION
Technical support
This document is the property of SENECA srl. Copies and reproduction are prohibited unless authorised.
The content of this document corresponds to the described products and technologies.
Stated data may be modified or supplemented for technical and/or sales purposes.
MI00608-4-EN

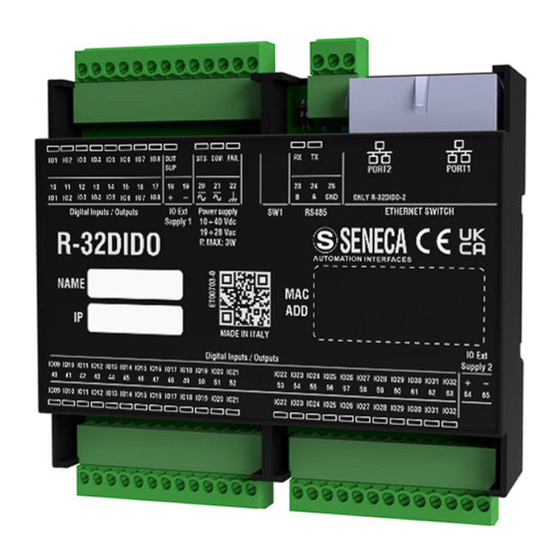

INSTALLATION MANUAL
R-32DIDO-2
R-32DIDO-2-P
The module must be repaired and damaged parts replaced by the Manufacturer. The product is sensitive to
electrostatic discharges. Take appropriate measures during any operation.
DOCUMENTATION
R-32DIDO-2
support@seneca.it
indicates conditions or actions that put the user's safety at risk.
indicates conditions or actions that might damage the
DOCUMENTATION
Product information
INSTALLATION MANUAL
R-32DIDO-2-P
sales@seneca.it
1/5
Advertisement
Table of Contents
Related Manuals for Seneca R-32DIDO-2
Summary of Contents for Seneca R-32DIDO-2
- Page 1 The symbol on the product or its packaging shows the product must be surrendered to a collection centre authorized to recycle electrical and electronic waste. DOCUMENTATION DOCUMENTATION R-32DIDO-2 R-32DIDO-2-P SENECA s.r.l.; Via Austria, 26 – 35127 – PADOVA – ITALY; Tel. +39.049.8705359 - Fax +39.049.8706287 CONTACT INFORMATION Technical support support@seneca.it Product information sales@seneca.it This document is the property of SENECA srl.
-
Page 2: Module Layout
Digital input/output active IO1/IO32 Digital input/output not active Digital inputs/outputs powered Digital inputs/outputs not powered IP address set (R-32DIDO-2 version only) Flashing Waiting for the IP address from the DHCP IP address set (R-32DIDO-2-P version only) Flashing No IP address configured... -
Page 3: Electrical Connections
2 Ethernet (with LAN fault-bypass function) 100 base T on RJ45 PORTS 1 RS485 port on terminals 23-24-25 (only R-32DIDO-2 versions) Number of channels: 32; Voltage: Threshold ON: >11 Vdc; Threshold OFF: < 4 Vdc; Vmax: 24 Vdc; Impedance 9kΩ, DIGITAL INPUTS Individually configurable. - Page 4 EXAMPLE: In the diagram below we have an application example of a system with four digital inputs and three digital outputs externally powered at 12Vdc and three digital outputs and two digital inputs powered at 24Vdc. ATTENTION The external IO Ext 1 and IO Ext 2 supplies must be powered simultaneously within a range of 12÷24Vdc. The external IO Ext 1 and IO Ext 2 supplies can have different voltages.
-
Page 5: Daisy-Chain
For the Ethernet cabling between the devices, the use of the unshielded CAT5 or CAT5e cable is required. CAT6 for industrial environments. FACTORY IP ADDRESS (R-32DIDO-2 ONLY) The default module IP address is static: 192. 168. 90. 101 WEB SERVER...
