Summary of Contents for AJ QBUS 1621714

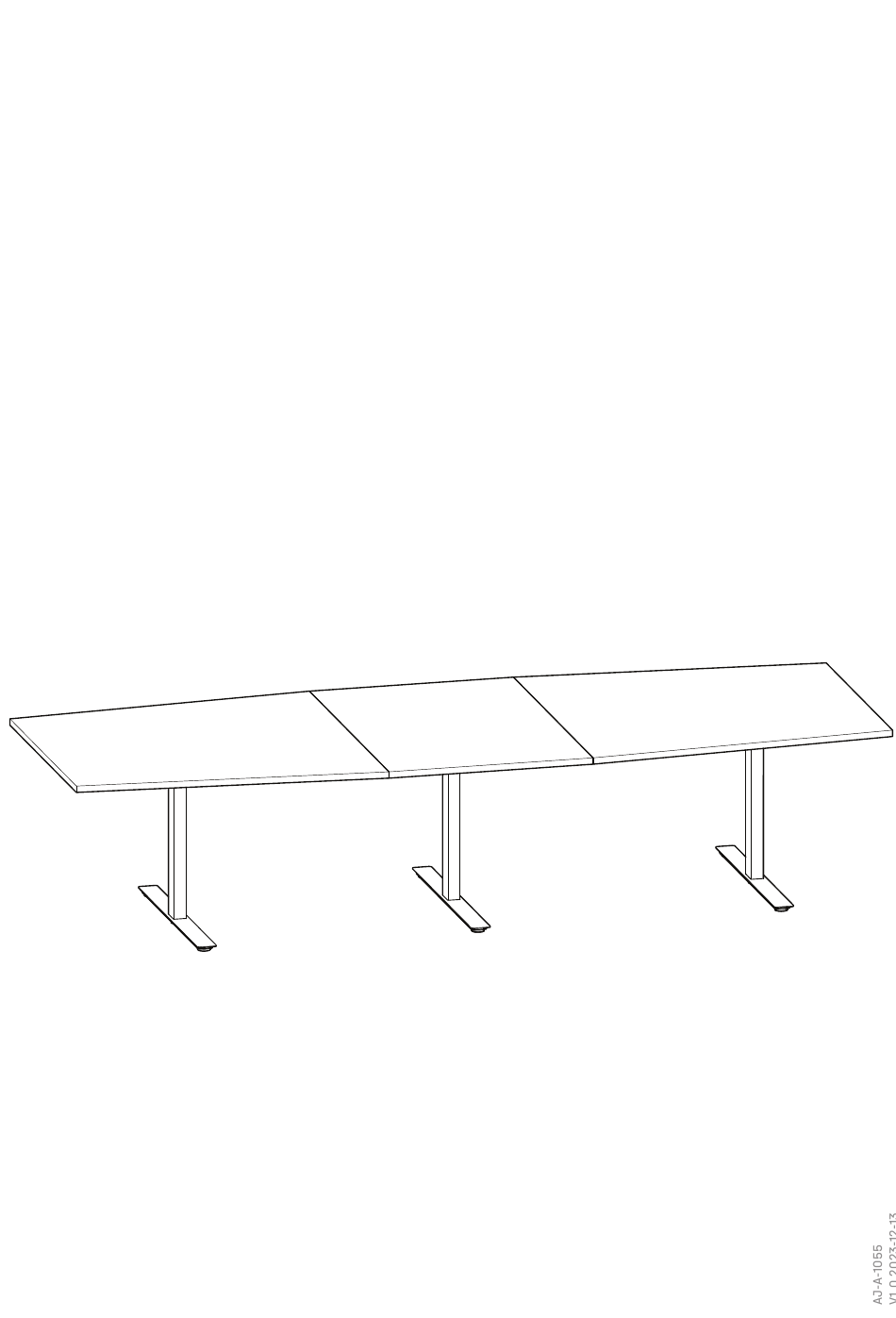

- Page 1 Assembly instructions Fixed 3-4 leg conference table...
- Page 2 PACKAGE CONTENTS (3-LEG TABLE) DESK COMPONENTS Crossbar rail Foot Side bracket Addon bracket Add-on crossbar rail HARDWARE Screw clamp M8x14 M6x12 M6x10 5mm rubber Hex key Tapping screw 5x20 Note: There may be additional hardware included in the package, as these are used for different desk configurations.
- Page 3 PACKAGE CONTENTS (4-LEG TABLE) DESK COMPONENTS Crossbar rail Foot Side bracket Addon bracket Add-on crossbar rail HARDWARE Screw clamp M8x14 Hex key M6x12 M6x10 5mm rubber Tapping screw 5x20 Note: There may be additional hardware included in the package, as these are used for different desk configurations.
- Page 4 ASSEMBLY INSTRUCTIONS Crossbar rail M6x12...
- Page 5 M6x12 Screw clamp 5mm rubber CLICK!
- Page 6 M8x14 M6x10...
- Page 7 ADD-ON LEG ASSEMBLY M6x12 M8x14 M6x12 Addon bracket For 4-leg assembly, repeat step 7-8.
- Page 8 Screw clamp 5mm rubber M6x10 35cm 35cm...
- Page 9 Tapping screw 5x20 3200 MM 3200 mm = 16x 4000 mm = 20x 4800 mm = 22x 5600 mm = 28x 3200 MM + 4800 MM 4000 MM 4000 MM + 5600 MM 4800 MM 5600 MM...
- Page 10 Assembly instructions - 3-4 leg conference table English Step 1 Start with the two crossbar rails (B3). Make sure that you pick the correct ones, as the are very similar to the add- on crossbar rails (B8). See illustration to check the difference. The crossbar rails are compressed when delivered. 1.
- Page 11 Assembly instructions - 3-4 leg conference table English Step 9 1. On the add-on leg, attach six rubber bushings (H7) in the round holes on the middle rails, facing upwards towards (H3) the table top. Attach six plastic screw clamps in the square holes on the middle rails.
