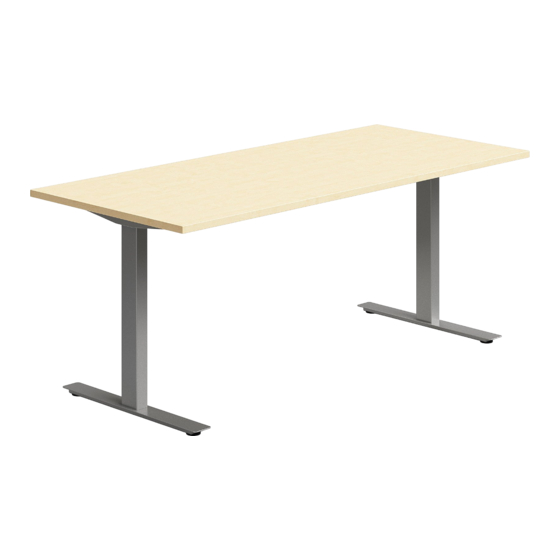

- Page 1 Assembly instructions Fixed 2-leg desk NOTICE! If you're building a desk with 3 legs, please follow the instructions that are included in the 3rd Leg Box.
-
Page 2: Package Contents
PACKAGE CONTENTS DESK COMPONENTS Crossbar rail Side bracket Feet HARDWARE Screw clamp M8x14 5mm rubber Hex key M6x12 M6x10 Tapping screw 5x20 Note: There may be additional hardware included in the package, as these are used for different desk configurations. - Page 3 ASSEMBLY INSTRUCTIONS M6x12...
- Page 4 M6x12 Screw clamp 5mm rubber CLICK!
- Page 5 M6x10 M8x14 5-10cm 5-10cm...
- Page 6 Tapping screw 5x20 FOR 2-PART TABLE TOP Tapping screw 5x20...
- Page 7 Assembly instructions - 2 leg desk English NOTE! If you’re building a desk with 3 legs, please follow the instructions that are included in the 3rd Leg Box. Step 1 1. The crossbar rails (B3) are compressed when delivered. Loosen the set screws slightly and extend the inner rail. Step 2 1.
