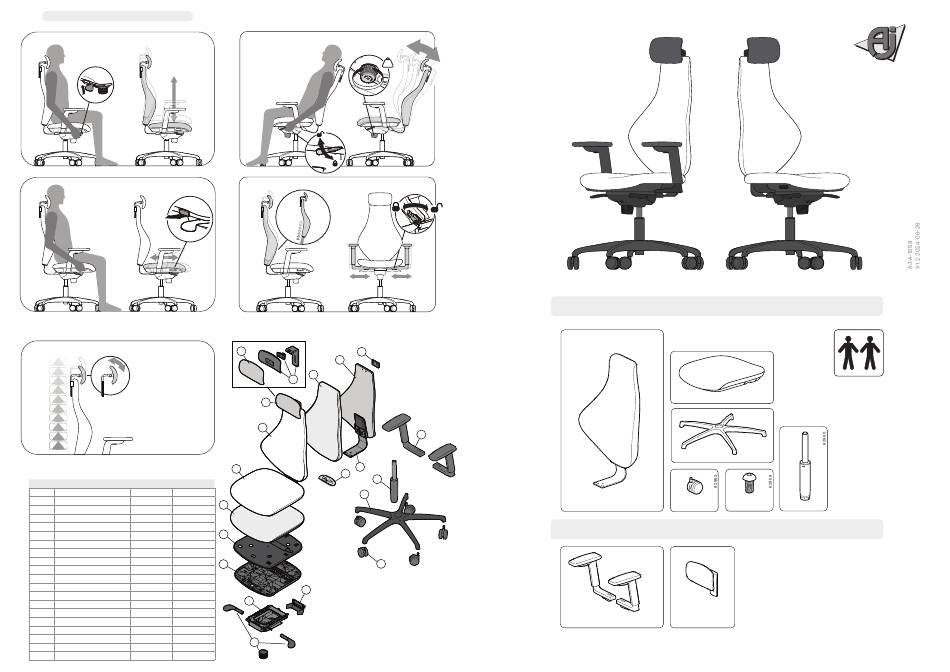

AJ HURRAY Assembly Manual

USER GUIDE
10
9
8
7
6
5
4
3
2
1
PARTS DIAGRAM AND MATERIALS
Part no. Description Material
1 Neck rest cover PU PU Plastic
2 Neck rest padding PU Plastic
3 Neck rest mechanism PP Plastic
4 Backrest cover foam PU Plastic
5 Seat cover foam PU Plastic
6 Seat foam padding PU Plastic
7 Seat shell PP Plastic
8 Seat shell PP Plastic
9 Seat mechanism Aluminium Metal
10 Adjustment knobs/handles PA Plastic
11 Cover PP Plastic
12 Backrest foam padding PU Plastic
13 Backrest shell Plywood Wood
14 Neck rest fixing plate PP Plastic
15 Backrest fixing plate Steel Metal
16 Cover PP Plastic
17 Armrest (pair) PA Plastic
18 Gas cylinder Steel Metal
19 Wheelbase PA Plastic
20 Wheels PP Plastic
kg
2
14
13
12
3
1
4
15
5
16
18
19
6
7
8 20
11
9
10
HURRAY
Assembly guide
17
PACKAGE CONTENTS
SEAT WITH MECHANISM
BASE
5X 5X
BACKREST CASTORS M8×16
OPTIONAL ACCESSORIES
NECKREST
ARMREST
GAS CYLINDER
